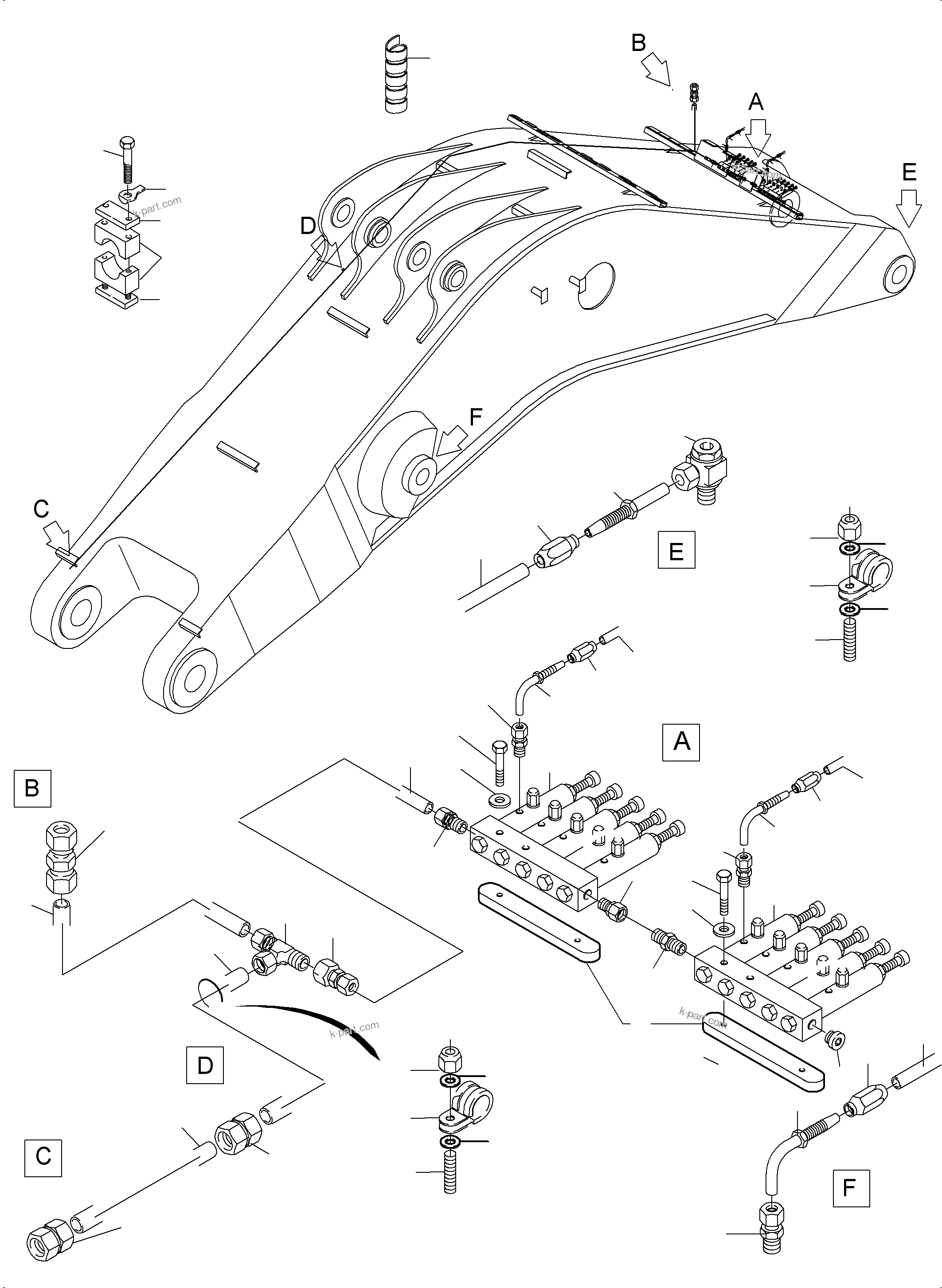

BOOM - LUBE LINES, BE - 9.75M | PC4000-6 S/N 58137

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC4000-6 S/N 58137

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?		Metering valve	2	991-0091
?	654 130 40	Protection cap with o-ring	10
?	655 649 40	Tube protection	-2
?	340 465 99	Washer	46
?	340 111 99	Washer	46
?	512 273 98	Socket	1
?	936 983 40	Plate	2
?	308 555 99	Bold	4
?	517 121 98	Washer	4
?	515 029 40	Hose connection 90°	16
?	515 027 40	Hose connection	4
?	515 028 40	Collet	20
?	372 483 99	Union	2
?	324 672 40	Plug	1
?	215 424 99	Pipe assy. Ш 12	-2
?	576 160 40	Hose DN 4	-2
?	308 579 99	Bolt	14
?	509 308 98	Locking plate	7
?	534 000 99	Half clamp	7
?	534 001 99	Plate	7
?	534 002 99	Plate	7
?	374 443 99	Union	3
?	516 834 98	Union	1
?	515 951 98	Union	1
?	906 981 40	Union	8
?	0443551210	Twin Clamp 12	15
?	0443451210	Clamp 12	12
?	507 037 98	Nut	46
?	907 854 40	Thread pin	46
?	0443452511	Clamp 25	32
?	517 291 98	Union	4
?	905 772 40	Pipe assy. Ш 25	1
?	905 773 40	Pipe assy. Ш 25	1
?	905 774 40	Pipe assy. Ш 25	1
?	907 080 40	Olive	12
?	371 257 99	Union Nut	12
?	906 347 40	Olive	4
?	371 259 99	Union Nut	4
?	906 868 40	Olive	9
?	371 264 99	Union Nut	9
?	374 428 99	Union	4
?	371 271 99	Union Nut	8
?	044 345 23 12	Clamp 23,5	1
?	371 867 99	Button	2
