HD605-8 S/N 30072-UP (For KAL)

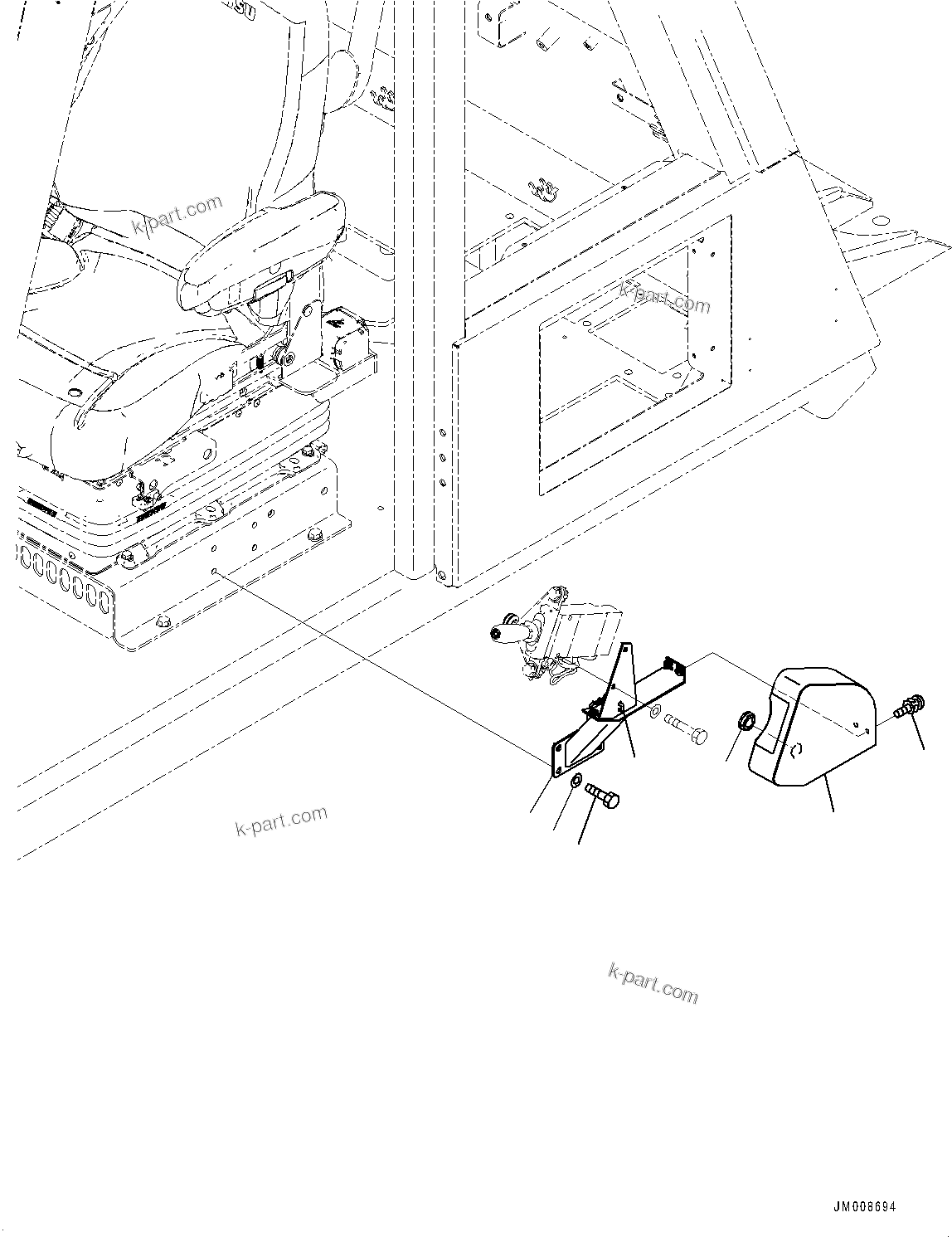

Komatsu parts book diagram for HD605-8 S/N 30072-UP (For KAL): CAB, DUMP LEVER BRACKET (#30001-)

? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	569-43-8A230	Bracket	1	SN: 30001-UP
	?	01010-80820	Bolt	4	SN: 30001-UP
	?	01643-30823	Washer	4	SN: 30001-UP
	?	426-09-11220	Grommet	1	SN: 30001-UP
	?	562-43-3A681	Cover	1	SN: 30001-UP
	?	01023-70614	Screw	3	SN: 30001-UP
	?	08034-20519	Band	1	SN: 30001-UP

Komatsu HD605-8 S/N 30072-UP (For KAL) parts catalog PDF

CAB, DUMP LEVER BRACKET (#30001-) (K0200-005041) in HD605-8 S/N 30072-UP (For KAL). Diagram image and parts list.
