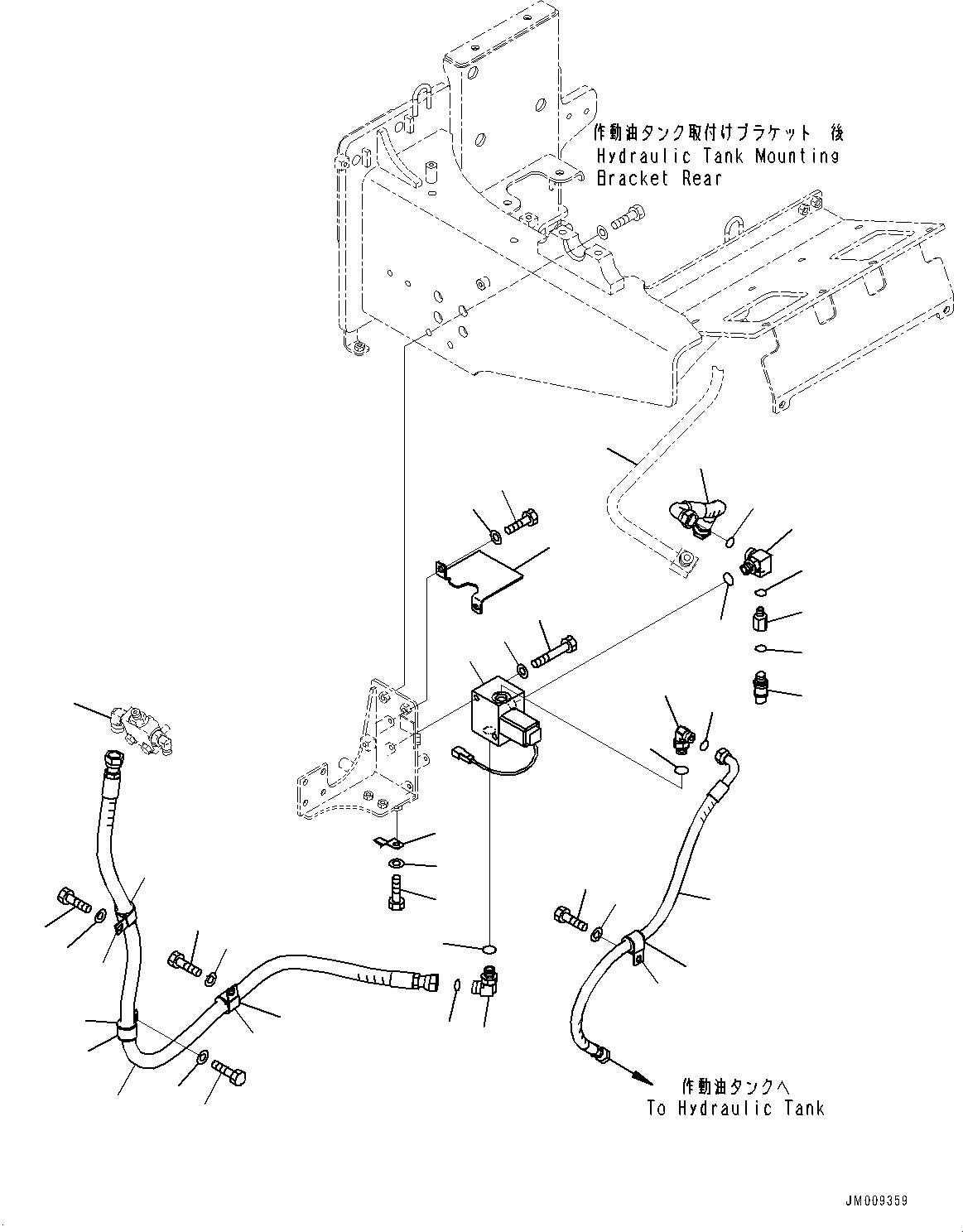

HYDRAULIC TANK, RETARDER VALVE (#30001-) | HD605-8 S/N 30072-UP (For KAL)

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

HD605-8 S/N 30072-UP (For KAL)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 10 11 9 8 9 8 10 11

#	Part Number	Partname	Quantity	Options	Reference
1	569-43-83171	Valve	1	SN: 30001-UP
2	01010-81085	Bolt	2	SN: 30001-UP
3	01643-31032	Washer	2	SN: 30001-UP
4	02782-10516	Elbow	1	SN: 30001-UP
5	07002-22034	O-ring	1	SN: 30001-UP
6	02896-21015	O-ring	1	SN: 30001-UP
7	02765-00517	Hose, Face Seal Type	1	SN: 30001-UP
8	04434-53212	Clip	3	SN: 30001-UP
9	07095-20523	Cushion	3	SN: 30001-UP
10	01010-81220	Bolt	3	SN: 30001-UP
11	01643-31232	Washer	3	SN: 30001-UP
12	569-43-88680	Elbow	1	SN: 30001-UP
13	07002-22034	O-ring	1	SN: 30001-UP
14	02896-21015	O-ring	1	SN: 30001-UP
15	428-43-27710	Joint	1	SN: 30001-UP
16	07002-21423	O-ring	1	SN: 30001-UP
17	7861-93-1870	Sensor, Pressure	1	SN: 30001-UP
18	07002-61823	O-ring	1	SN: 30001-UP
19	569-43-8M350	Hose	1	SN: 30001-UP
20	02782-10422	Elbow	1	SN: 30001-UP
21	07002-22034	O-ring	1	SN: 30001-UP
22	02896-21012	O-ring	1	SN: 30001-UP
23	08193-20010	Clip	1	SN: 30001-UP
24	01010-81020	Bolt	1	SN: 30001-UP
25	01643-31032	Washer	1	SN: 30001-UP
26	02772-004A8	Hose	1	SN: 30001-UP
27	04434-52711	Clip	1	SN: 30001-UP
28	07095-20419	Cushion	1	SN: 30001-UP
29	01010-81020	Bolt	1	SN: 30001-UP
30	01643-31032	Washer	1	SN: 30001-UP
31	569-61-8M720	Cover	1	SN: 30001-UP
32	01010-81020	Bolt	2	SN: 30001-UP
33	01643-31032	Washer	2	SN: 30001-UP
34	569-43-8M220	Block(Brake Piping,Accumulator Charge Valve Piping)	-1	SN: UP	H3540-003017
\|$34	569-43-8M220	Block(Brake Piping,Accumulator Charge Valve Piping)	-1	SN: UP	H3540-005017
\|$35	569-43-8M220	Block(Brake Piping,Accumulator Charge Valve Piping)	-1	SN: UP	H3540-008017
\|$36	569-43-8M220	Block(Brake Piping,Accumulator Charge Valve Piping)	-1	SN: UP	H3540-010017
\|$37	569-43-8M220	Block(Brake Piping,Accumulator Charge Valve Piping)	-1	SN: UP	H3540-012017
\|$38	569-43-8M220	Block(Brake Piping,Accumulator Charge Valve Piping)	-1	SN: UP	H3540-015017
\|$39	569-43-8M220	Block(Brake Piping,Accumulator Charge Valve Piping)	-1	SN: UP	H3540-017017
\|$40	569-43-8M220	Block(Brake Piping,Accumulator Charge Valve Piping)	-1	SN: UP	H3540-004016
\|$41	569-43-8M220	Block(Brake Piping,Accumulator Charge Valve Piping)	-1	SN: UP	H3540-006016
\|$42	569-43-8M220	Block(Brake Piping,Accumulator Charge Valve Piping)	-1	SN: UP	H3540-007016
\|$43	569-43-8M220	Block(Brake Piping,Accumulator Charge Valve Piping)	-1	SN: UP	H3540-009016
\|$44	569-43-8M220	Block(Brake Piping,Accumulator Charge Valve Piping)	-1	SN: UP	H3540-011016
\|$45	569-43-8M220	Block(Brake Piping,Accumulator Charge Valve Piping)	-1	SN: UP	H3540-013016
\|$46	569-43-8M220	Block(Brake Piping,Accumulator Charge Valve Piping)	-1	SN: UP	H3540-014016
\|$47	569-43-8M220	Block(Brake Piping,Accumulator Charge Valve Piping)	-1	SN: UP	H3540-016016
\|$48	569-43-8M220	Block(Brake Piping,Accumulator Charge Valve Piping)	-1	SN: UP	H3540-018016
35	569-43-8A970	Tube(Brake Piping,Rear Shuttle Valve Piping)	-1	SN: UP	H3540-004019
\|$50	569-43-8A970	Tube(Brake Piping,Rear Shuttle Valve Piping)	-1	SN: UP	H3540-009019
\|$51	569-43-8A970	Tube(Brake Piping,Rear Shuttle Valve Piping)	-1	SN: UP	H3540-003020
\|$52	569-43-8A970	Tube(Brake Piping,Rear Shuttle Valve Piping)	-1	SN: UP	H3540-008020
\|$53	569-43-8A970	Tube(Brake Piping,Bracket)	-1	SN: UP	H3540-005024
\|$54	569-43-8A970	Tube(Brake Piping,Bracket)	-1	SN: UP	H3540-010024
\|$55	569-43-8A970	Tube(Brake Piping,Bracket)	-1	SN: UP	H3540-006023
\|$56	569-43-8A970	Tube(Brake Piping,Bracket)	-1	SN: UP	H3540-011023
\|$57	569-43-8A970	Tube(Brake Piping,Rear Shuttle Valve Piping,With Centralized Lubrication, 4-Points)	-1	SN: UP	H3540-007019
\|$58	569-43-8A970	Tube(Brake Piping,Rear Shuttle Valve Piping,With Centralized Lubrication, 4-Points)	-1	SN: UP	H3540-013019
\|$59	569-43-8A970	Tube(Brake Piping,Rear Shuttle Valve Piping,With Centralized Lubrication, 4-Points)	-1	SN: UP	H3540-016019
\|$60	569-43-8A970	Tube(Brake Piping,Rear Shuttle Valve Piping,With Centralized Lubrication, 4-Points)	-1	SN: UP	H3540-015020
\|$61	569-43-8A970	Tube(Brake Piping,Bracket,With Centralized Lubrication, 4-Points)	-1	SN: UP	H3540-012024
\|$62	569-43-8A970	Tube(Brake Piping,Bracket,With Centralized Lubrication, 4-Points)	-1	SN: UP	H3540-017024
\|$63	569-43-8A970	Tube(Brake Piping,Bracket,With Centralized Lubrication, 4-Points)	-1	SN: UP	H3540-014023
\|$64	569-43-8A970	Tube(Brake Piping,Bracket,With Centralized Lubrication, 4-Points)	-1	SN: UP	H3540-018023
