SAA6D170E-7D S/N 710161-UP (For PC1250-11/PC1250LC-11)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	6520-71-1010	Valve Assembly	1	SN: 710161-UP
?	6520-71-1020	Sensor, Pressure	1	SN: 710161-UP
?	6520-71-1030	Valve, Shut-off	2	SN: 710161-UP
?	01010-80865	Bolt	2	SN: 710161-UP
?	01643-30823	Washer	2	SN: 710161-UP
?	6246-71-7310	Tube	1	SN: 710161-UP
?	6354-71-5560	Bolt, Joint	1	SN: 710161-UP
?	07005-01212	Seal, Washer	2	SN: 710161-UP \| KIT-FLAG: S
?	07206-31014	Bolt, Joint	1	SN: 710161-UP
?	07005-01412	Seal, Washer	2	SN: 710161-UP \| KIT-FLAG: S
?	6245-71-5270	Clamp	4	SN: 710161-UP
?	01010-80635	Bolt	2	SN: 710161-UP
?	01643-30623	Washer	2	SN: 710161-UP
?	6246-71-7270	Tube	1	SN: 710161-UP
?	07005-01012	Seal, Washer	1	SN: 710161-UP \| KIT-FLAG: S
?	07005-01212	Seal, Washer	1	SN: 710161-UP \| KIT-FLAG: S
?	6246-71-7370	Tube	1	SN: 710161-UP
?	07005-01212	Seal, Washer	1	SN: 710161-UP \| KIT-FLAG: S
?	6252-71-7180	Cover	1	SN: 710161-UP
?	6754-71-5750	Clip	2	SN: 710161-UP
?	6261-71-6670	Clamp	2	SN: 710161-UP
?	01010-80635	Bolt	1	SN: 710161-UP
?	01643-30623	Washer	1	SN: 710161-UP
?	6262-71-7710	Valve Assembly	1	SN: 710161-UP
?	07040-10807	Plug	1	SN: 710161-UP
?	07005-00812	Seal, Washer	1	SN: 710161-UP \| KIT-FLAG: S
?	07005-01012	Seal, Washer	1	SN: 710161-UP \| KIT-FLAG: S
?	07005-01212	Seal, Washer	1	SN: 710161-UP \| KIT-FLAG: S
?	6262-71-7730	Bolt, Joint	1	SN: 710161-UP
?	07005-01012	Seal, Washer	1	SN: 710161-UP \| KIT-FLAG: S
?	6354-71-5560	Bolt, Joint	1	SN: 710161-UP
?	07005-01212	Seal, Washer	1	SN: 710161-UP \| KIT-FLAG: S
?	6520-71-1010	Valve Assembly	1	SN: 710161-UP
?	6520-71-1020	Sensor, Pressure	1	SN: 710161-UP
?	6520-71-1030	Valve, Shut-off	2	SN: 710161-UP
?	01010-80865	Bolt	2	SN: 710161-UP
?	01643-30823	Washer	2	SN: 710161-UP
?	6246-71-7290	Tube	1	SN: 710161-UP
?	6354-71-5560	Bolt, Joint	1	SN: 710161-UP
?	07005-01212	Seal, Washer	2	SN: 710161-UP \| KIT-FLAG: S
?	07206-31014	Bolt, Joint	1	SN: 710161-UP
?	07005-01412	Seal, Washer	2	SN: 710161-UP \| KIT-FLAG: S

Komatsu SAA6D170E-7D S/N 710161-UP (For PC1250-11/PC1250LC-11) parts catalog PDF

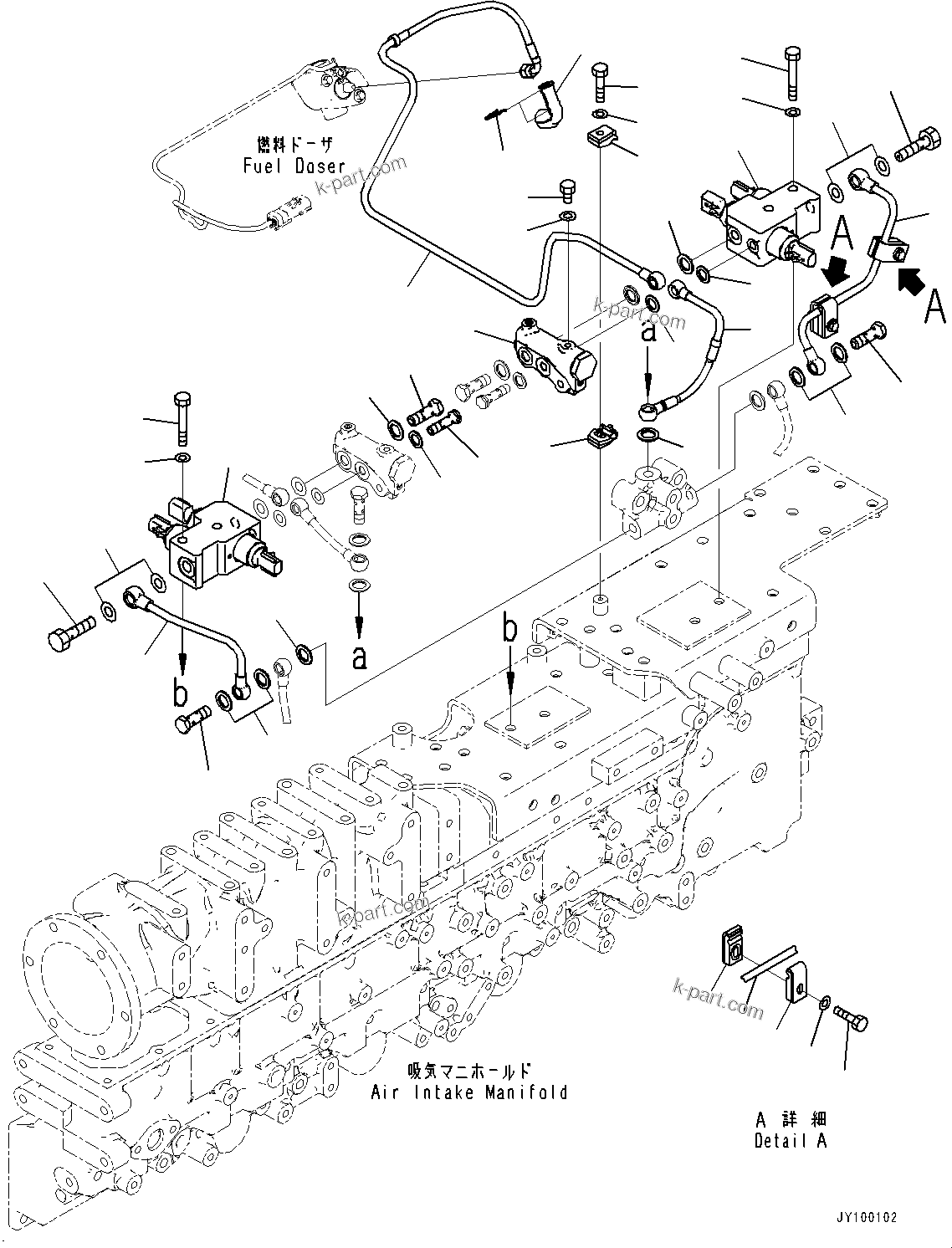

FUEL FILTER, FUEL DOSER SHUT-OFF VALVE (#710161-) (A4110-001004) in SAA6D170E-7D S/N 710161-UP (For PC1250-11/PC1250LC-11). Diagram image and parts list.
