SAA6D170E-7D S/N 710161-UP (For PC1250-11/PC1250LC-11)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	6246-51-8290	Plate	1	SN: 710161-UP
?	01010-81040	Bolt	3	SN: 710161-UP
?	01643-31032	Washer	3	SN: 710161-UP
?	6246-51-8270	Plate	1	SN: 710161-UP
?	01010-81030	Bolt	4	SN: 710161-UP
?	01643-31032	Washer	4	SN: 710161-UP
?	6246-51-8410	Bracket	1	SN: 710161-UP
?	01010-81095	Bolt	4	SN: 710161-UP
?	01643-31032	Washer	4	SN: 710161-UP
?	6246-51-8250	Connector	1	SN: 710161-UP
?	01010-81055	Bolt	2	SN: 710161-UP
?	01643-31032	Washer	2	SN: 710161-UP
?	702-21-63200	Valve, Pilot	1	SN: 710161-UP
?	702-21-58250	Solenoid Assembly	1	SN: 710161-UP
?	702-21-55870	O-ring	1	SN: 710161-UP
?		Body	1	SN: 710161-UP \| SCC: C1
?	702-21-55880	O-ring	1	SN: 710161-UP
?	702-21-54180	Screw	2	SN: 710161-UP
?	702-21-58220	O-ring	2	SN: 710161-UP
?	01252-60635	Bolt, Hexagon Socket Head	2	SN: 710161-UP
?	02782-1042A	Elbow	1	SN: 710161-UP
?	07002-21823	O-ring	1	SN: 710161-UP \| KIT-FLAG: S
?	02896-21012	O-ring	1	SN: 710161-UP \| KIT-FLAG: S
?	02782-10420	Elbow	1	SN: 710161-UP
?	07002-21823	O-ring	1	SN: 710161-UP \| KIT-FLAG: S
?	02896-21012	O-ring	1	SN: 710161-UP \| KIT-FLAG: S
?	6246-52-8170	Tube	1	SN: 710161-UP
?	6262-51-9510	Clamp	1	SN: 710161-UP
?	6262-51-9520	Clamp	1	SN: 710161-UP
?	01010-81040	Bolt	1	SN: 710161-UP
?	01643-31032	Washer	1	SN: 710161-UP
?	799-101-5230	Nipple	1	SN: 710161-UP
?	07002-21423	O-ring	1	SN: 710161-UP \| KIT-FLAG: S
?	02781-00313	Union	1	SN: 710161-UP
?	07002-21823	O-ring	1	SN: 710161-UP \| KIT-FLAG: S
?	02896-21009	O-ring	1	SN: 710161-UP \| KIT-FLAG: S
?	02781-0031D	Union	1	SN: 710161-UP
?	07002-21423	O-ring	1	SN: 710161-UP \| KIT-FLAG: S
?	02896-21009	O-ring	1	SN: 710161-UP \| KIT-FLAG: S
?	07040-11007	Plug	1	SN: 710161-UP
?	07002-21023	O-ring	1	SN: 710161-UP \| KIT-FLAG: S
?	6246-51-8260	Plate	1	SN: 710161-UP
?	6127-51-6822	Gasket	1	SN: 710161-UP \| KIT-FLAG: S
?	01010-81030	Bolt	2	SN: 710161-UP
?	01643-31032	Washer	2	SN: 710161-UP
?	6246-52-8180	Tube	1	SN: 710161-UP
?	07206-31014	Bolt, Joint	2	SN: 710161-UP
?	07003-01419	Gasket	4	SN: 710161-UP \| KIT-FLAG: S
?	6246-51-8420	Cover	1	SN: 710161-UP
?	01010-81025	Bolt	2	SN: 710161-UP
?	01643-31032	Washer	2	SN: 710161-UP
?	6218-81-8470	Band	1	SN: 710161-UP

Komatsu SAA6D170E-7D S/N 710161-UP (For PC1250-11/PC1250LC-11) parts catalog PDF

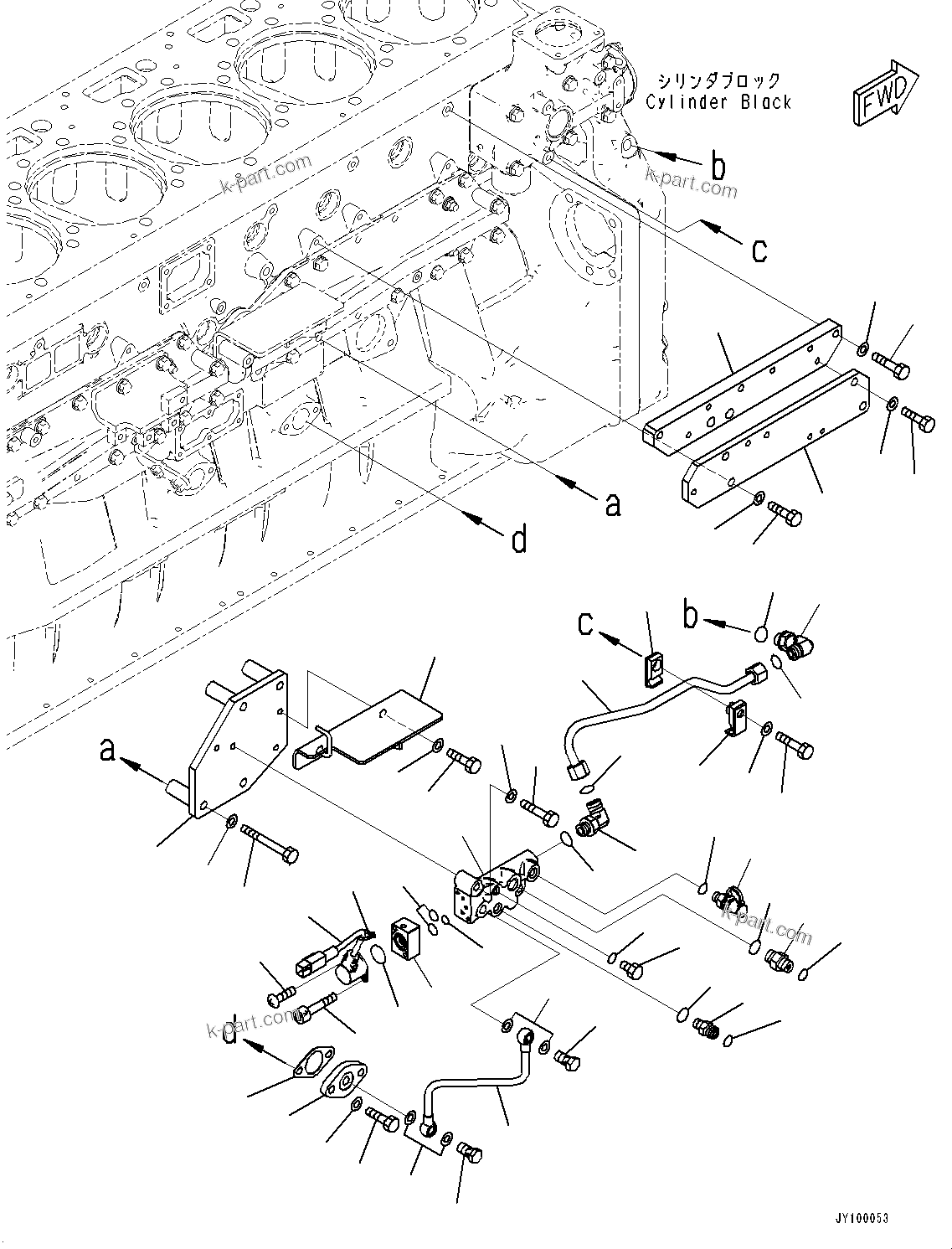

VARIABLE GEOMETRY TURBOCHARGER (VGT), HYDRAULIC OIL PIPING (#710161-) (A1530-001003) in SAA6D170E-7D S/N 710161-UP (For PC1250-11/PC1250LC-11). Diagram image and parts list.
