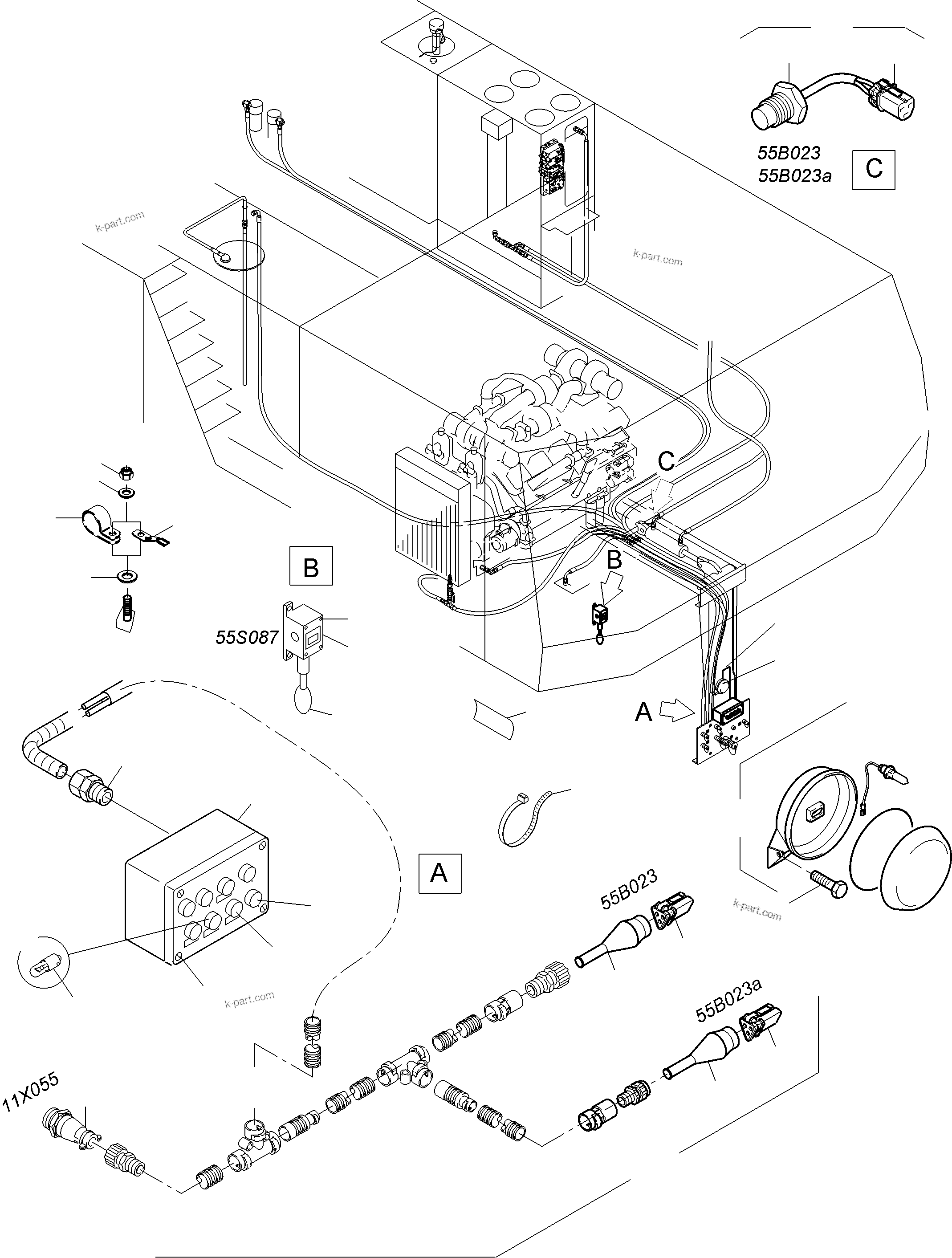

ELECTRIC PARTS - REFUELING | PC3000-6 S/N 06331

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC3000-6 S/N 06331

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	989 282 40	Harness Refueling 11X055 T2	1
?	507 037 98	Nut	11
?	507 596 98	Washer	11
?	340 465 99	Washer	11
?	0443453211	Clamp Ш32	1
?	0443451510	Clamp Ш15	7
?	319 133 99	Screw	4
?	0443451210	Clamp Ш12	2
?	926 528 40	Switch assy.	2
?	255 680 40	Pull switch	1
?	320 816 99	Screw	1
?	320 817 99	Screw	2
?	518 560 98	Lock washer	3
?	518 594 98	Lock washer	1
?	0443451910	Clamp Ш19	5
?	0819320010	Clip	2
?	963 899 40	Harness Spotlight	1
?	963 878 40	Spotlight assy.	1
?	963 877 40	Spotlight without halogen lamp	1
?	507 383 99	Halogen lamp	1
?	769 155 73	Seal	1
?	769 156 73	Glass, white	1
?	098 955 40	Ring	2
?	472 688 99	Chain	-2
?	319 140 99	Bolt	1
?	518 546 98	Lock washer	4
?	941 880 40	Plug	2
?	941 777 40	Plate	4
?	174 411 40	Cable strap	8
?	950 108 40	Plug	1
?	950 132 40	Protection cap	1
?	941 791 40	Rubber grommet	2
?	907 623 40	Cable union NW 12	1
?	972 005 40	Lamp box	1
?	323 675 40	Indicator light, red	3
?	903 423 40	Graphical symbol	1
?	255 328 40	Circuit element	1
?	323 677 40	Press button adapter	1
?	358 291 40	Plug	4
?	955 670 40	Plug	2
?	940 016 40	Switch	2
