Diagram image 1 of 3

PC3000-6 S/N 06330

01 02 05 06 07 08 09 09 10 51 59 60

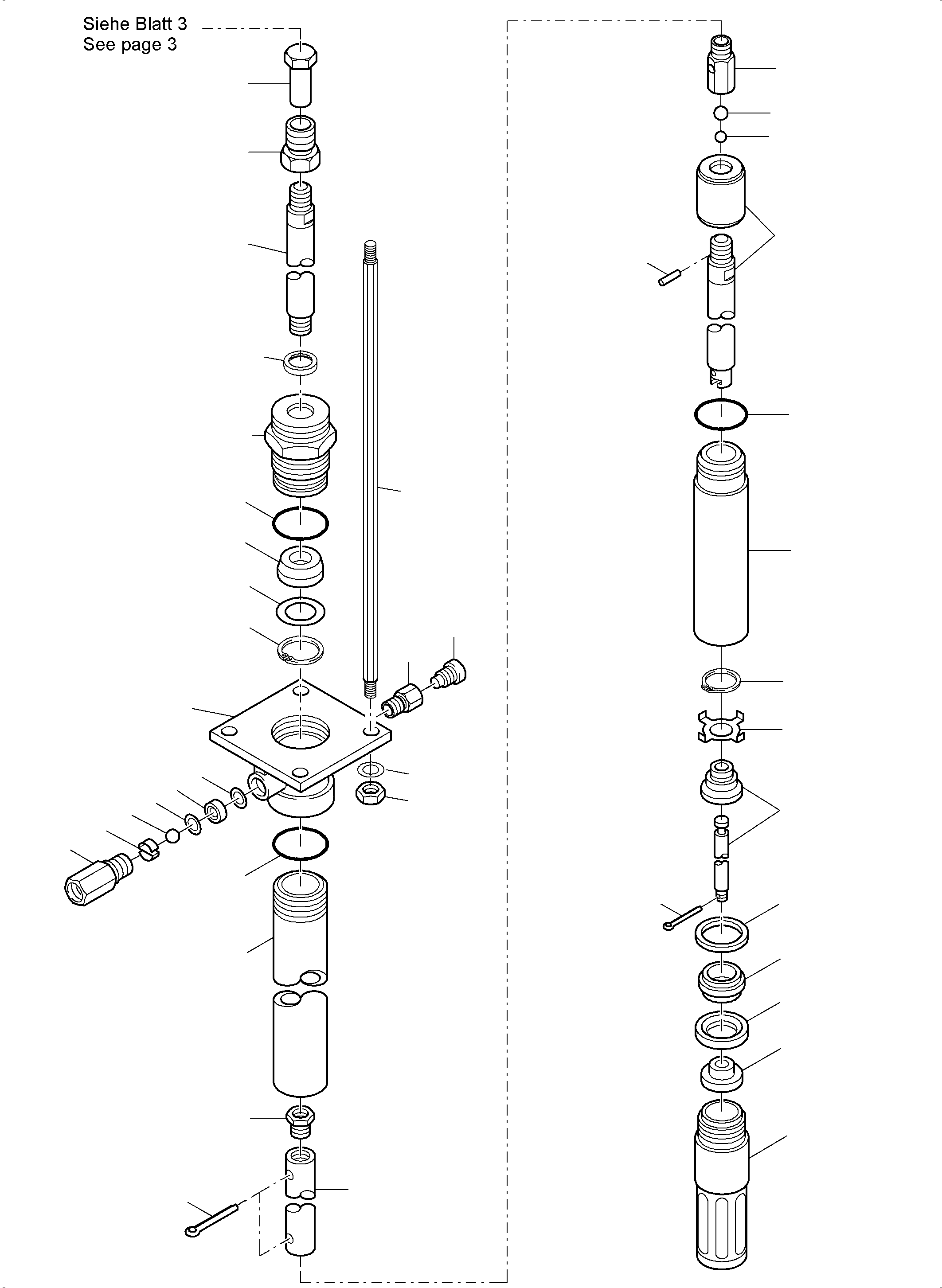

PC3000-6 S/N 06330

04 11 12 13 14 15 16 17 18 19 20 21 22 23 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 52

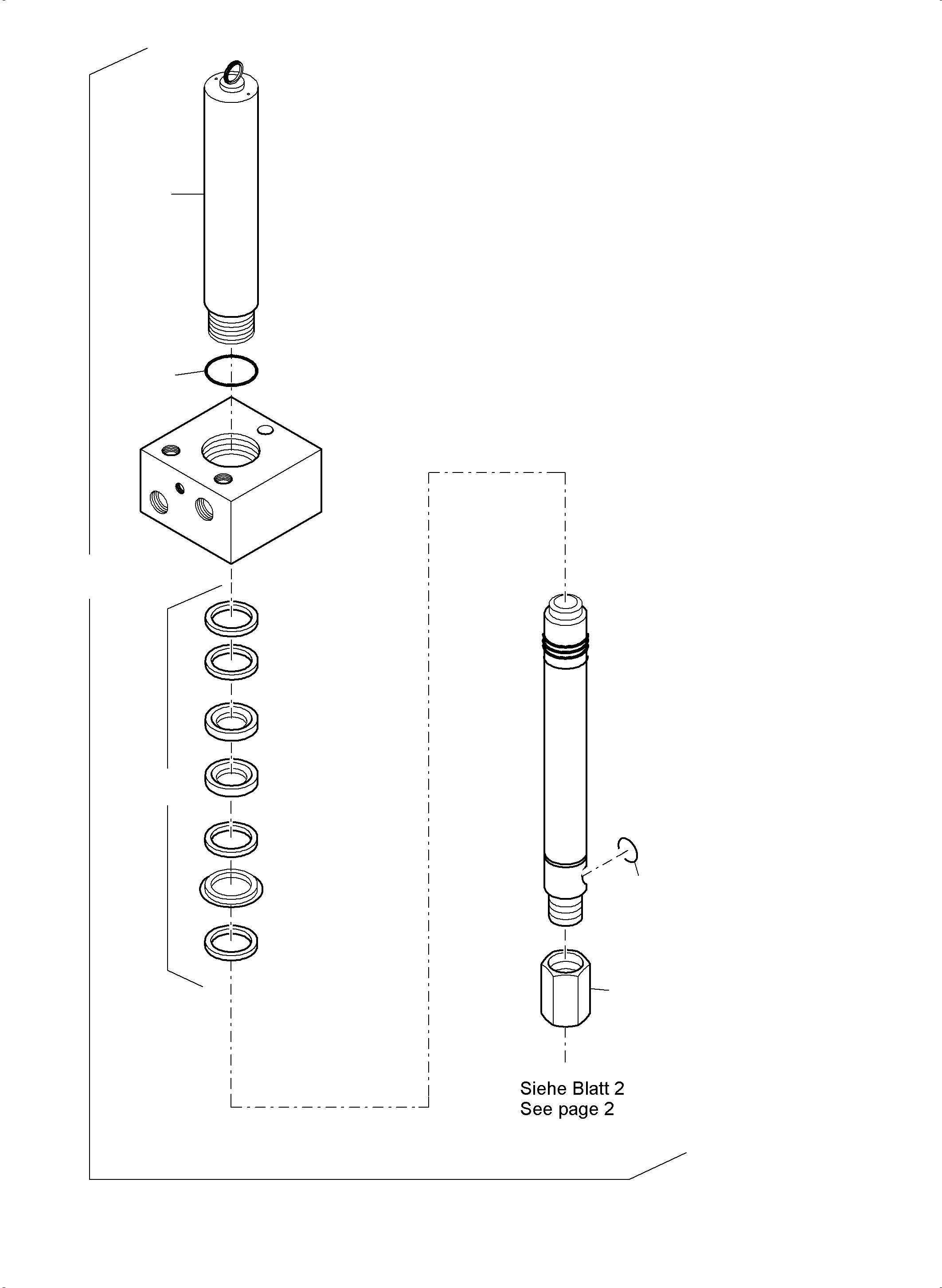

PC3000-6 S/N 06330

02 03 50 60 60 60

#	Part Number	Partname	Quantity
01	798 884 73	Lube pump assy.	1
02		Cylinder assy. with control block	1
03		Cylinder	1
04		Lock washer	4
05		Suction tube assy. + Scraper ring	1
06		Cover	-2
07		Lock washer	4
08		Tapping screw	4
09	769 000 73	Flow control valve	1
10	769 001 73	Pressure reducing valve	1
11		Scraper ring	1
12	769 002 73	Bolt	1
13	769 003 73	Adapter	1
14	769 004 73	Piston rod	1
15	769 005 73	Bushing	1
16		O-ring	1
17		V-seal	1
18		Supporting disc	1
19		Circlip	1
20	769 006 73	Housing	1
21	769 007 73	Plug	1
22	769 008 73	Adapter	1
23		Packing	2
24	769 009 73	Valve seat	1
25	769 010 73	Ball	1
26	769 011 73	Ball retainer	1
27	764 137 73	Adapter	1
28		O-ring	1
29	769 012 73	Pipe	1
30	769 013 73	Adapter	1
31		Cotter pin	2
32	769 014 73	Rod	1
33	769 015 73	Adapter	1
34	769 010 73	Ball	1
35	769 016 73	Ball	1
36	769 017 73	Pin	1
37	769 018 73	Piston assy.	1
38		O-ring	1
39	769 019 73	Cylinder barrel	1
40		Circlip	1
41		Valve guide	1
42	769 020 73	Piston rod, set	1
43		Cotter pin	1
44	769 021 73	Retaining ring	1
45	769 022 73	Valve	1
46	769 023 73	Valve seat	1
47	769 024 73	Piston nut	1
48	769 025 73	End pipe	1
49	500 848 98	Nut	4
50		Adapter	1
51		Plug	2
52		Distance rod	4
59	769 026 73	Repair kit to fig-no. 05 conist. of fig-nos. 16-19,23, 28,31,38,40,41,43	1
60	798 191 73	Seal kit to fig-no. 02	1
\|$$55			-2
\|$$56			-2

Komatsu PC3000-6 S/N 06330 parts catalog PDF

LUBE PUMP (991-1269) in PC3000-6 S/N 06330. Diagram image and parts list.
