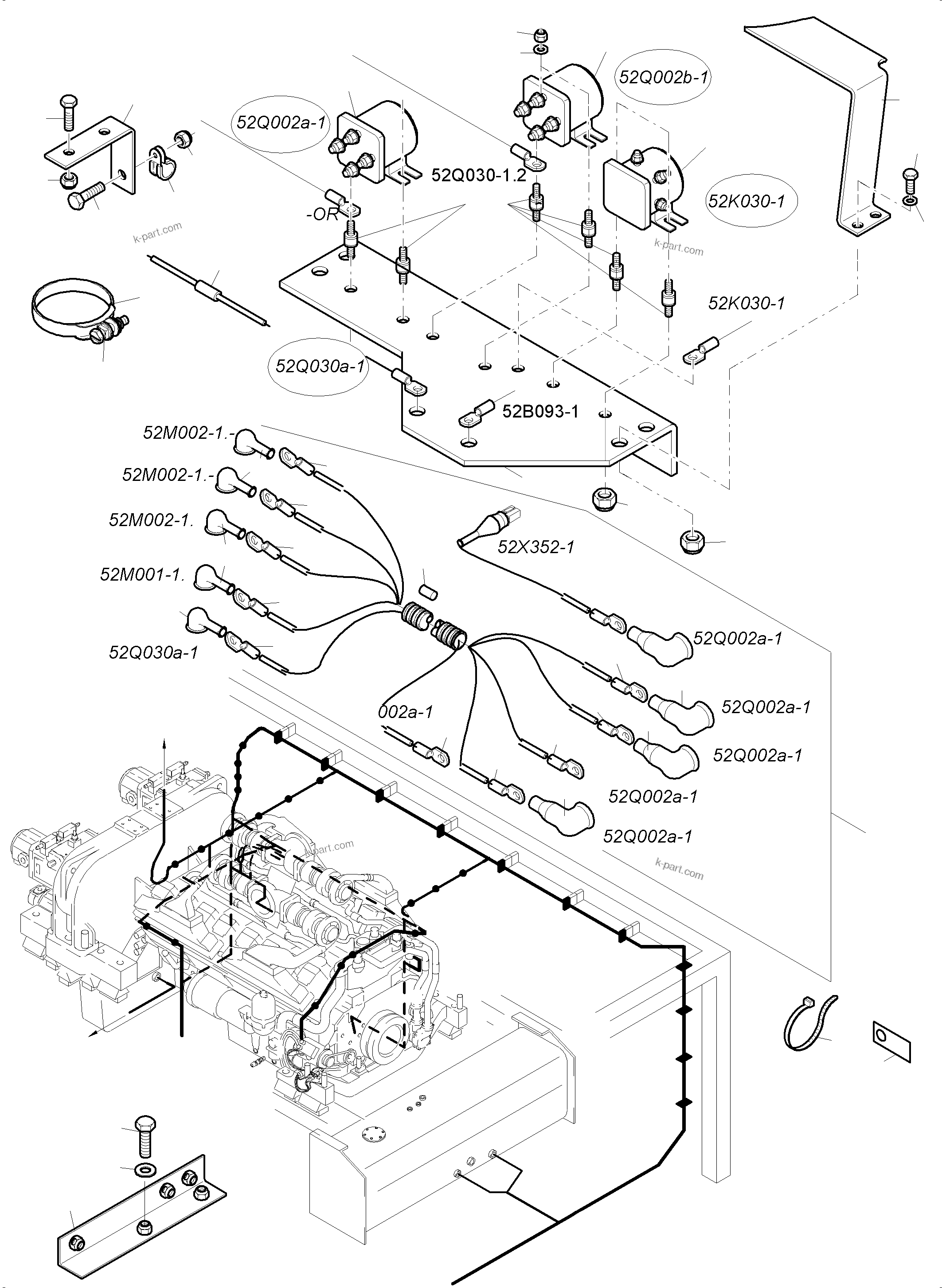

Diagram image 1 of 3

PC4000-6 S/N 08237

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6 S/N 08237

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6 S/N 08237

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	979 804 40	Harness engine	1
?	976 156 40	Harness starter relay	1
?	976 157 40	Harness fuel filter sensor	1
?	957 962 40	Retainer	1
?	961 118 40	Protection guard	1
?	947 904 40	Relay plate	1
?	959 435 40	Angle	3
?	957 980 40	Retainer	1
?	957 977 40	Retainer	2
?	966 605 40	Retainer	3
?	979 070 40	Plate	1
?	0443451210	Clip ш 12	6
?	0443451510	Clip ш 15	4
?	0443451910	Clip ш 19	2
?	0443452711	Clip ш 27	14
?	2080619170	Clip ш 40	3
?	0819320010	Clip	2
?	510 744 98	Resilient sleeve	3
?	307 629 99	Bolt	7
?	340 654 99	Washer	7
?	509 870 98	Nut	7
?	307 445 99	Bolt	12
?	307 777 99	Bolt	7
?	518 299 98	Washer	24
?	507 596 98	Washer	14
?	514 921 98	Nut	24
?	517 122 98	Lock washer	10
?	516 299 98	Clamp	1
?	966 091 40	Kabelbaum Generator ground	1
?	980 807 40	Kabelbaum Generator ground	1
?	980 805 40	Harness prelub pump	1
?	980 806 40	Harness prelub pump 52F39-1	1
?	976 164 40	Harness 52GND_31_b/52GND_31c	1
?	332 113 99	Nut	7
?	518 080 98	Resilent sleeve	3
?	950 113 40	Plug	1
?	950 110 40	Plug	2
?	950 108 40	Plug	1
?	950 106 40	Plug	1
?	950 137 40	Plug	1
?	950 133 40	Plug	1
?	950 949 40	Plug	1
?	950 939 40	Socket	1
?	950 826 40	Plug	1
?	950 824 40	Plug	2
?	950 166 40	Plug assy.	1
?	933 388 40	Plug assy. 4-pole	1
?	958 955 40	Can-bushing	1
?	955 627 40	Plug assy.	1
?	651 461 40	Housing assy.	2
?	952 675 40	Plug assy. with rubber grommet	8
?	958 963 40	Socket assy. with rubber grommet	1
?	950 931 40	Protective cover	1
?	950 132 40	Protection cap	5
?	950 131 40	Protection cap	2
?	0819105320	Pin contact	41
?	621 698 40	Contact plug 1-2 qmm	3
?	0819105340	Pin contact	11
?	0819105420	Female contact	26
?	0819105440	Female contact	8
?	940 852 40	Plug	66
?	0819100770	Sealing plug	9
?	950 833 40	Body	3
?	950 828 40	Seal	5
?	951 171 40	Female contact	5
?	950 829 40	Plug	2
?	0819219400	Wedge	1
?	255 745 40	Rubber grommet	10
?	055 106 40	Cable lug red	1
?	896 520 40	End pin	26
?	056 070 40	Cable sleeve 1,0-1,5	2
?	950 176 40	Protection cap	1
?	950 178 40	Body	1
?	950 173 40	O-ring	1
?	950 174 40	Pin contact	3
?	950 179 40	Contact element	1
?	941 777 40	Plate	25
?	174 411 40	Cable strap	50
?	950 832 40	Seal	7
?	950 831 40	Female contact	7
?	966 667 40	Plug assy. with rubber grommet	1
?	600 225 99	Cable lug	2
?	519 459 98	Cable lug	3
?	519 461 98	Cable lug	1
?	055 108 40	Cable lug	4
?	907 511 40	Cable lug 2,5	1
?	655 693 40	End grommet	4
?	950 143 40	Socket	1
?	941 419 40	Socket	1
?	0819110808	Nut	1
?	0819110809	Lock washer	1
?	950 897 40	Seal ring	1
?	950 129 40	Protection cap	1
?	951 282 40	Dummy plug	1
?	941 464 40	Terminal	2
?	600 209 99	Cable lug 10-95	6
?	056 076 40	Protection cap	10
?	906 493 40	Cable union	2
?	793 268 73	Fuse with cable 400A	1
?	635 965 40	Relay	2
?	765 579 73	Time lag relay	1
?	655 642 40	Circular bearing	6
?	512 975 98	Nut	12
?			-2
?			-2
?			-2

Komatsu PC4000-6 S/N 08237 parts catalog PDF

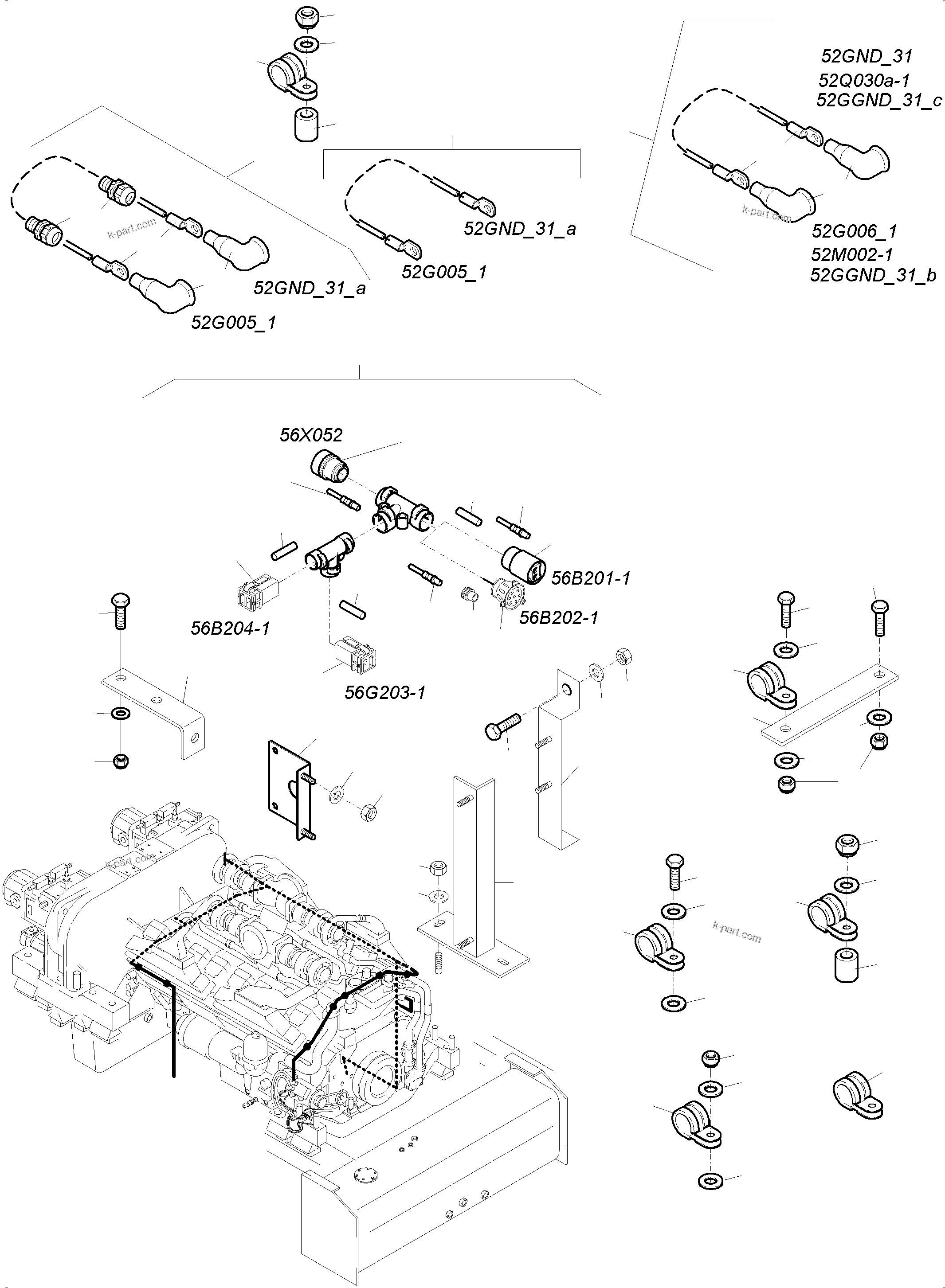

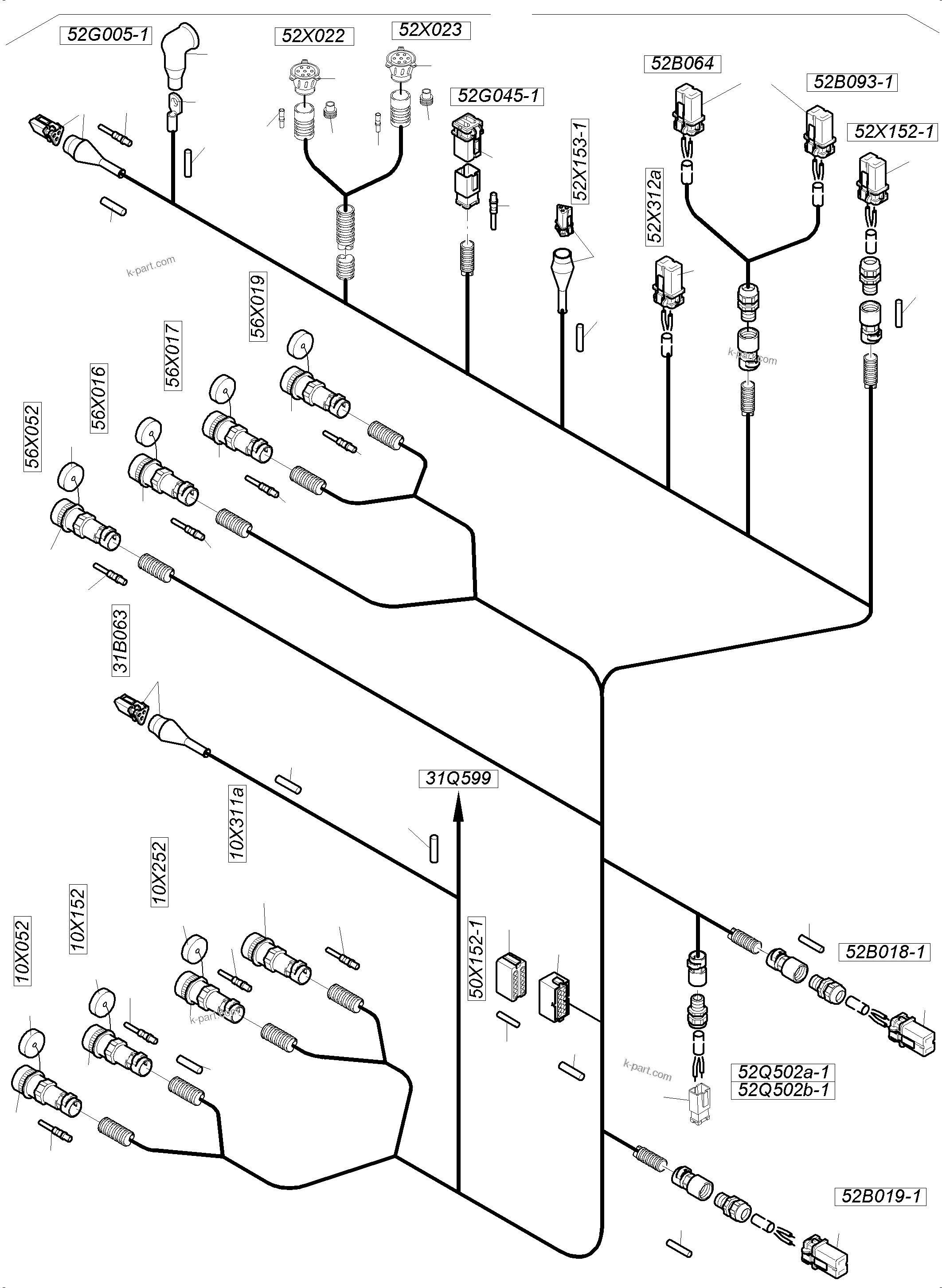

CABLES - ENGINE AND TRANSMITTER (359-2285) in PC4000-6 S/N 08237. Diagram image and parts list.
