Diagram image 1 of 4

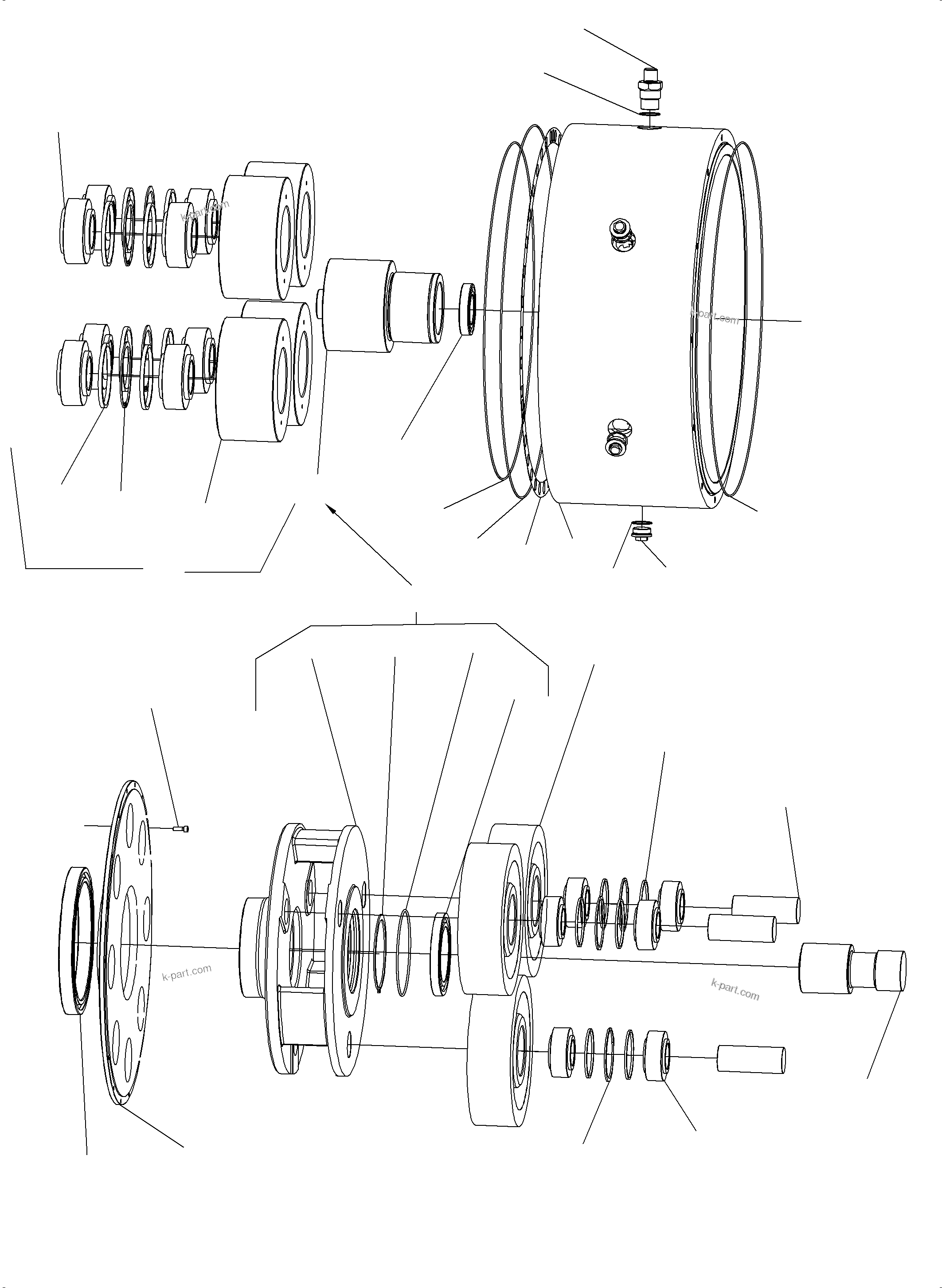

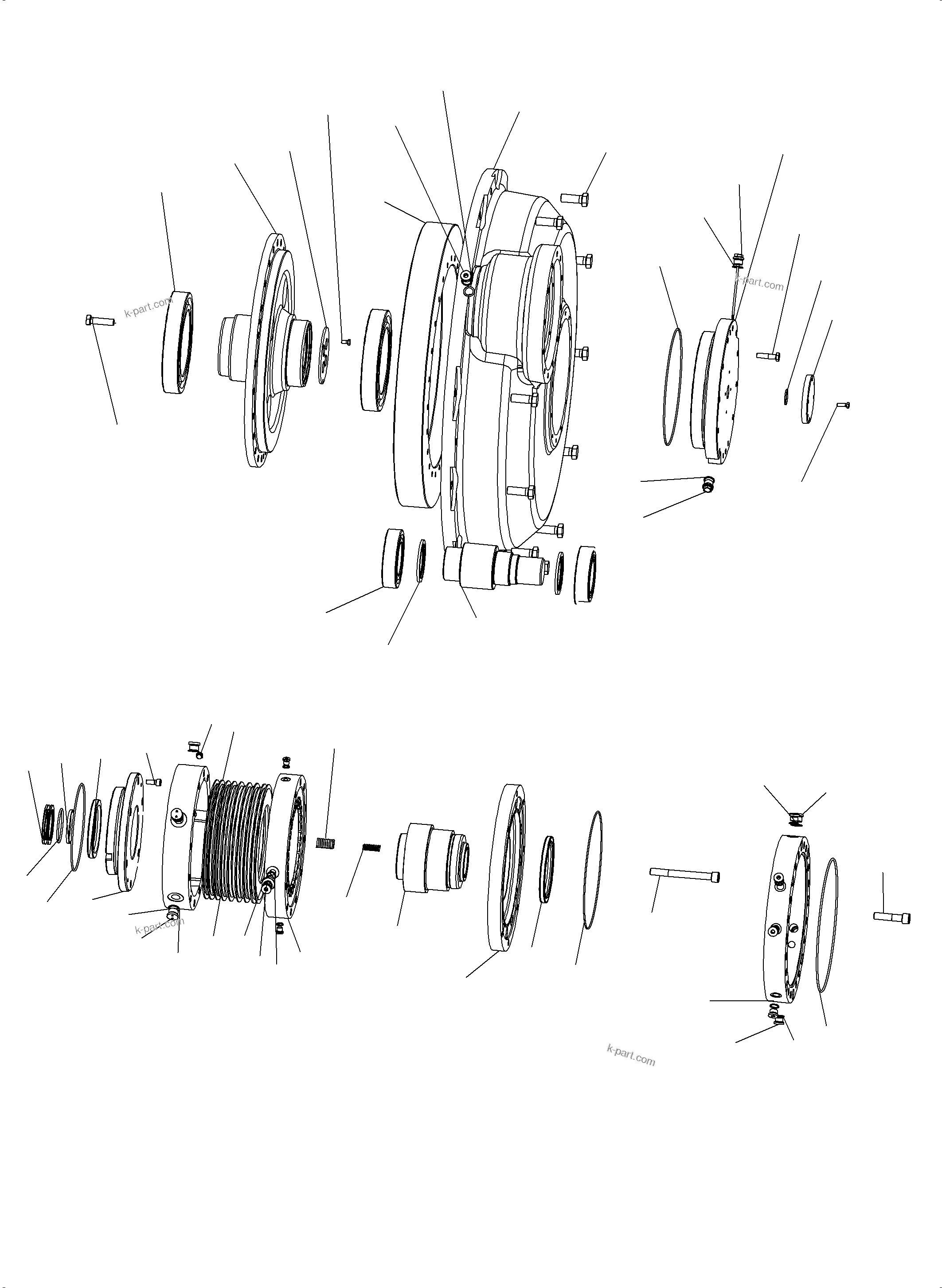

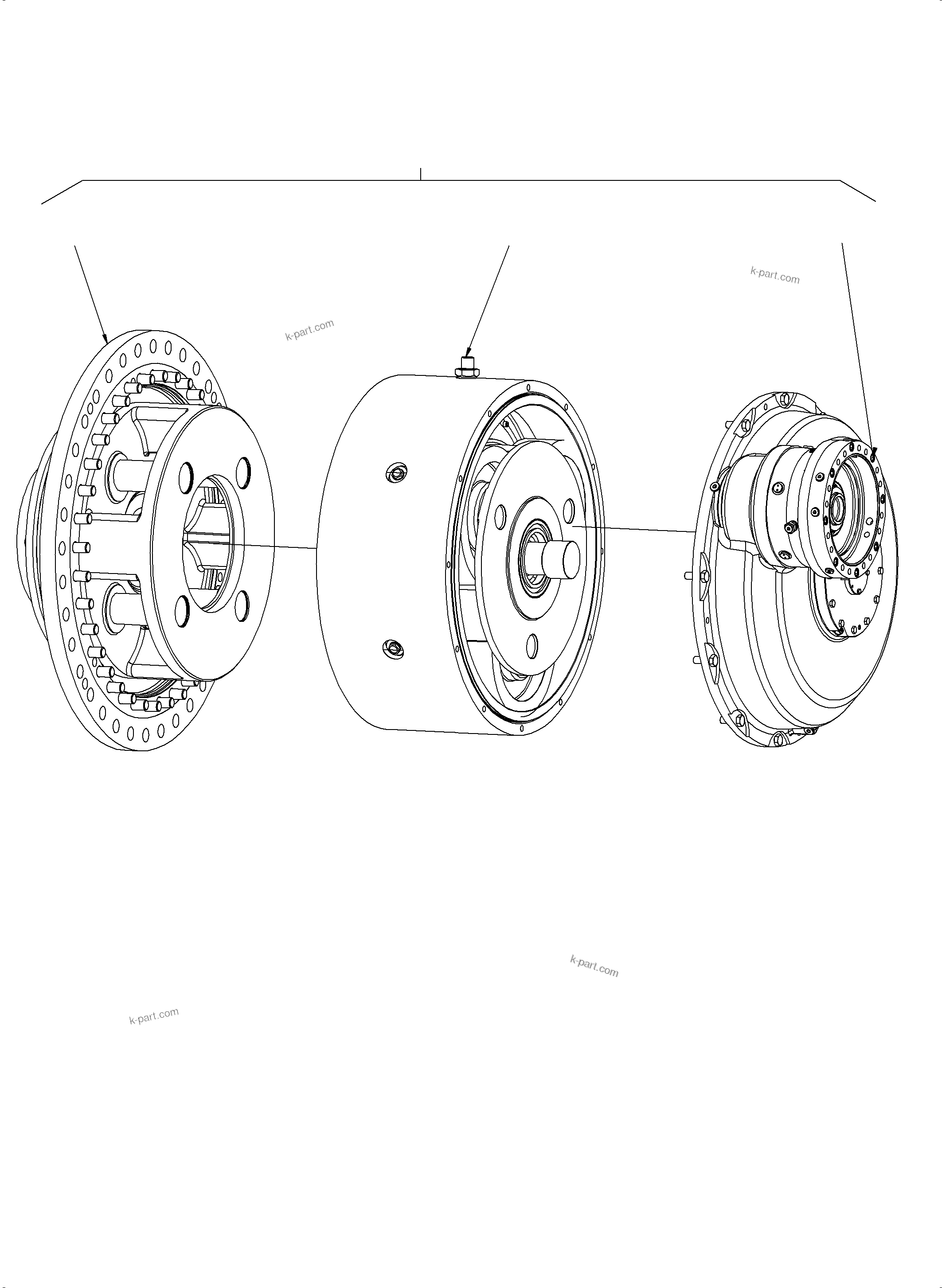

PC4000-6 S/N 08248

? ? ? ? ? ? ?

PC4000-6 S/N 08248

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6 S/N 08248

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

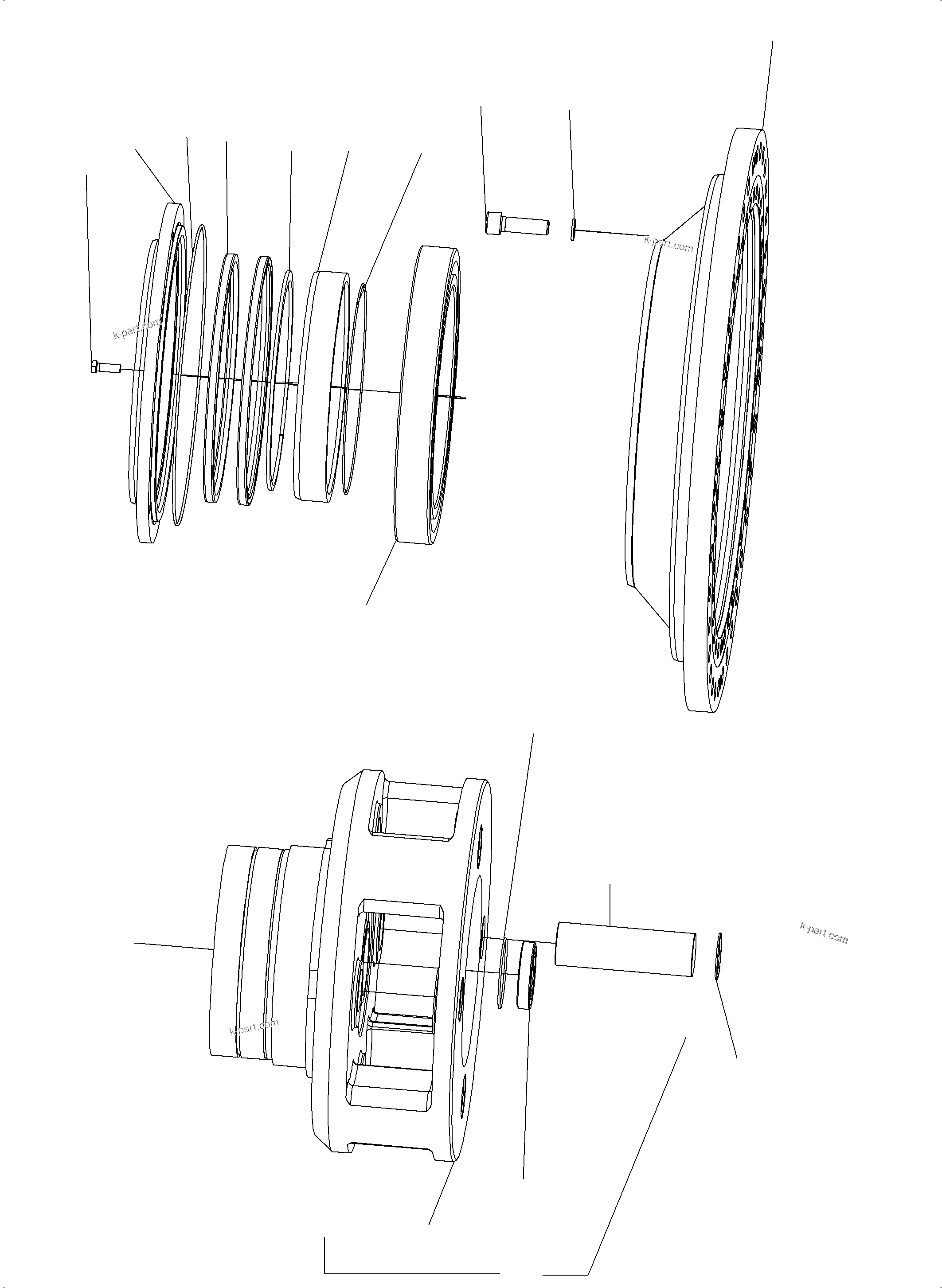

PC4000-6 S/N 08248

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	924 800 40	Planetary Gear assy.	1
?	797 911 73	Planetary Stage Fig.02-26	1
?	796 220 73	Planetary Wheel	4
?	796 221 73	Sun Wheel	1
?	796 222 73	Cylinder Roller Bearing	8
?	342 685 99	Circlip	4
?	796 223 73	Washer	8
?	796 224 73	Planetary Wheel	3
?	797 899 73	Sun Wheel	1
?	796 226 73	Cylinder Roller Bearing	6
?	342 677 99	Circlip	3
?	796 227 73	Washer	6
?	796 228 73	Planetary Carrier i	-2
?	796 229 73	Planetary Axle	3
?	342 497 99	Circlip	1
?	360 566 99	Ball Bearing	1
?	360 470 99	Ball Bearing	1
?	005 276 98	O-ring	1
?	796 230 73	Socket	1
?	339 967 99	Sealing ring	6
?	799 125 73	Planetary Carrier assy. fig. 04,13,15, 16,17 and 18	1
?	313 126 99	plug	5
?	797 900 73	Internal Carrier	1
?	796 232 73	O-ring	1
?	796 233 73	O-ring	1
?	796 234 73	O-ring	1
?	797 901 73	Long output housing fig.31-46	1
?	796 236 73	End housing	1
?		Planetary Carrier	1
?	797 913 73	Planetary Axle	4
?	796 239 73	Ring	1
?	796 240 73	Cover	1
?	307 826 99	Bolt	6
?	319 362 99	Bolt	36
?	796 241 73	Ball Bearing	1
?	796 242 73	O-ring	1
?	360 566 99	Ball Bearing	1
?	796 243 73	Circlip	1
?	796 244 73	Shaft sealing ring	2
?	796 245 73	O-ring	1
?	796 246 73	O-ring	1
?	796 247 73	Washer	36
?	342 668 99	Lock washer	4
?	799 460 73	Planetary Carrier assy. fig. 03,05-0732,33,39 and40	1
?	797 903 73	Drive fig.51-89, 95-102, 121-123	1
?	796 249 73	Spur gear housing	1
?	796 250 73	Pinion shaft	1
?	796 251 73	Spur gear	1
?	796 252 73	Driving sleeve	1
?	796 254 73	Motor flange	1
?	796 255 73	Motor flange	1
?	796 256 73	Ring	1
?	796 257 73	Washer	2
?	796 258 73	Driver	1
?	796 259 73	Input and Output flange	1
?	796 260 73	Bearing flange	1
?	796 261 73	Cover	1
?	796 262 73	Cover	1
?	307 846 99	Bolt	11
?	319 444 99	Bolt	12
?	319 190 99	Bolt	8
?	308 604 99	Bolt	12
?	307 754 99	Bolt	4
?	377 750 99	Bolt	3
?	307 828 99	Bolt	24
?	319 147 99	Bolt	6
?	368 115 99	Ball Bearing	2
?	361 103 99	Cylinder Roller Bearing	2
?	367 058 99	Shaft sealing ring	1
?	367 573 99	Shaft sealing ring	1
?	796 263 73	O-ring	1
?	513 679 98	O-ring	1
?	504 587 98	O-ring	1
?	512 527 98	O-ring	1
?	796 264 73	O-ring	1
?	796 265 73	O-ring	1
?	796 267 73	Washer	4
?	313 398 99	plug	6
?	340 294 99	Sealing ring	10
?	798 218 73	Dipstick	1
?	796 270 73	Hydr.disc brake Fig.91-94	1
?	796 271 73	Hydr.parts for disc brake	1
?	796 272 73	Clutch plate carrier	1
?	796 273 73	Multiple disc	9
?	796 274 73	Multiple disc	7
?	796 275 73	Socket	1
?	313 267 99	Plug	1
?	797 904 73	Spring	16
?	797 905 73	Spring	16
?	798 360 73	Air Filter	1
?	797 906 73	Bearing flange	1
?	319 148 99	Bolt	18
?	797 907 73	Bearing	1
?	797 908 73	Disc	1
?	313 397 99	Plug	7
?	340 285 99	Seal	7
?	797 910 73	Socket	3
?	796 559 73	Gasket set gear, without brake	1
?	796 560 73	Disc set, brake, pos. 93 + 94	1
?	796 561 73	Bearing set cpl. (without planet carrier bearings)	1
