OIL COOLER - HOSE ASSY. | PC4000-6 S/N 08248 | Komatsu parts book catalogue

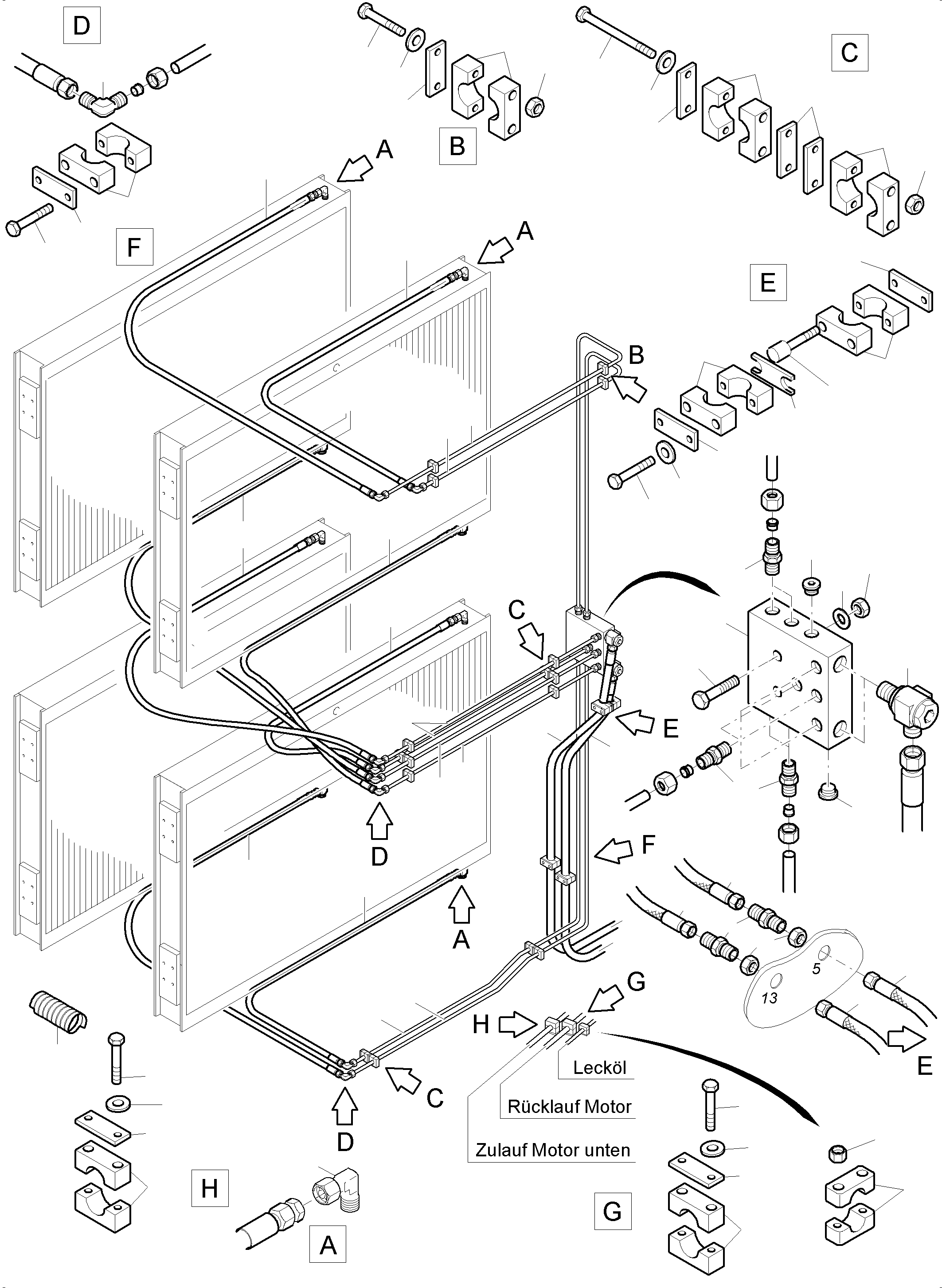

Diagram image 1 of 3

PC4000-6 S/N 08248

01 03 04 05 10 100 101 102 12 14 18 19 19 19 20 20 20 21 21 21 21 22 22 23 24 25 28 28 29 30 30 31 32 33 34 35 92 97

PC4000-6 S/N 08248

02 04 05 06 07 08 09 103 11 11 12 13 14 15 16 17 19 19 19 20 20 20 21 21 21 22 22 22 23 23 24 24 25 25 25 28 28 92

PC4000-6 S/N 08248

110 111 111 112 113 114 115 116 117 38 38 38 38 39 39 40 43 44 45 45 46 47 48 49 49 49 51 52 53 54 55 56 56 56 56 56 57 57 57 58 58 58 59 59 60 61 62 63 63 70 71 72 77 77 77 77 78 78 78 78 79 79 79 79 79 84 85 91 93 93 94 94 95 96

#	Part Number	Partname	Quantity
01	516 359 98	Hose assy DN 40x3800	1
02	961 341 40	Orifice	4
03	518 117 98	Hose assy DN 40x3900	1
04	374 444 99	Union	6
05	512 087 98	Union	4
06	937 586 40	Pipe ш 42	1
07	937 587 40	Pipe ш 42	1
08	937 585 40	Pipe ш 42	1
09	937 584 40	Pipe ш 42	1
10	956 853 40	Pipe ш 42	2
11	518 124 98	Hose assy DN 40x1270	2
12	907 045 40	Union	8
13	518 125 98	Hose assy DN 40x1420	2
14	518 126 98	Hose assy DN 40x1770	2
15	518 127 98	Hose assy DN 40x1580	1
16	518 128 98	Hose assy DN 40x2600	1
17	518 129 98	Hose assy DN 40x2700	1
18	534 009 99	Weld-on plate	2
19	506 371 98	Clamp set	8
20	502 626 98	Elastomeric part	8
21	534 008 99	Cover plate	19
22	517 118 98	Lock washer	38
23	504 786 98	Screw	6
24	504 787 98	Lock washer	5
25	308 612 99	Bolt	10
28	500 345 98	Clamp set	16
29	308 615 99	Bolt	8
30	334 600 99	Nut	16
31	506 728 98	Bolt	8
32	502 879 98	Bolt	8
33	518 130 98	Hose assy DN 40x1020	1
34	518 217 98	Hose assy DN 40x1250	1
35	516 341 98	Hose assy DN 40x 1815	1
38	515 782 98	Hose assy DN 20x2000	5
39	518 221 98	Hose assy DN 20x1870	2
40	515 584 40	Hose assy DN 20x1900	1
43	942 217 40	Pipe ш 22	1
44	942 218 40	Pipe ш 22	1
45	942 221 40	Pipe ш 22	3
46	942 222 40	Pipe ш 22	1
47	942 219 40	Pipe ш 22	1
48	942 220 40	Pipe ш 22	1
49	374 409 99	Socket	16
51	942 216 40	Distributor	1
52	308 671 99	Bolt	2
53	340 470 99	Washer	2
54	332 338 99	Nut	2
55	308 583 99	Bolt	16
56	517 122 98	Washer	34
57	534 001 99	Cover plate	20
58	502 953 98	Clamp set	16
59	332 114 99	Nut	24
60	308 589 99	Bolt	8
61	906 930 40	Union	2
62	516 824 98	Socket	8
63	173 448 40	Locking plug	2
70	518 729 98	Hose assy. DN 25x3100	1
71	516 744 98	Union	1
72	509 272 98	Nut	1
77	308 581 99	Bolt	10
78	534 004 99	Cover plate	5
79	951 012 40	Clamp set	6
84	507 025 98	Nut	4
85	509 057 98	Clamp set	2
91	907 753 40	Hose protection	-2
92	907 804 40	Hose protection	-2
93	518 952 98	Hose assy. DN 25x5100	1
94	513 781 98	Hose assy. DN 25x5500	1
95	504 788 98	Bolt	2
96	504 789 98	Lock washer	1
97	308 599 99	Bolt	4
100	006 635 98	Half of flange	8
101	519 454 98	Flange seal	4
102	319 157 99	Bolt	16
103	374 415 99	Socket	4
110	518 756 98	Hose assy. DN 25x3200	1
111	518 423 98	Clamp set	2
112	517 397 98	Lock washer	1
113	534 020 99	Weld on plate	1
114	511 858 98	Cover plate	1
115	308 540 99	Bolt	2
116	518 546 98	Washer	2
117	517 396 98	Bolt	2
