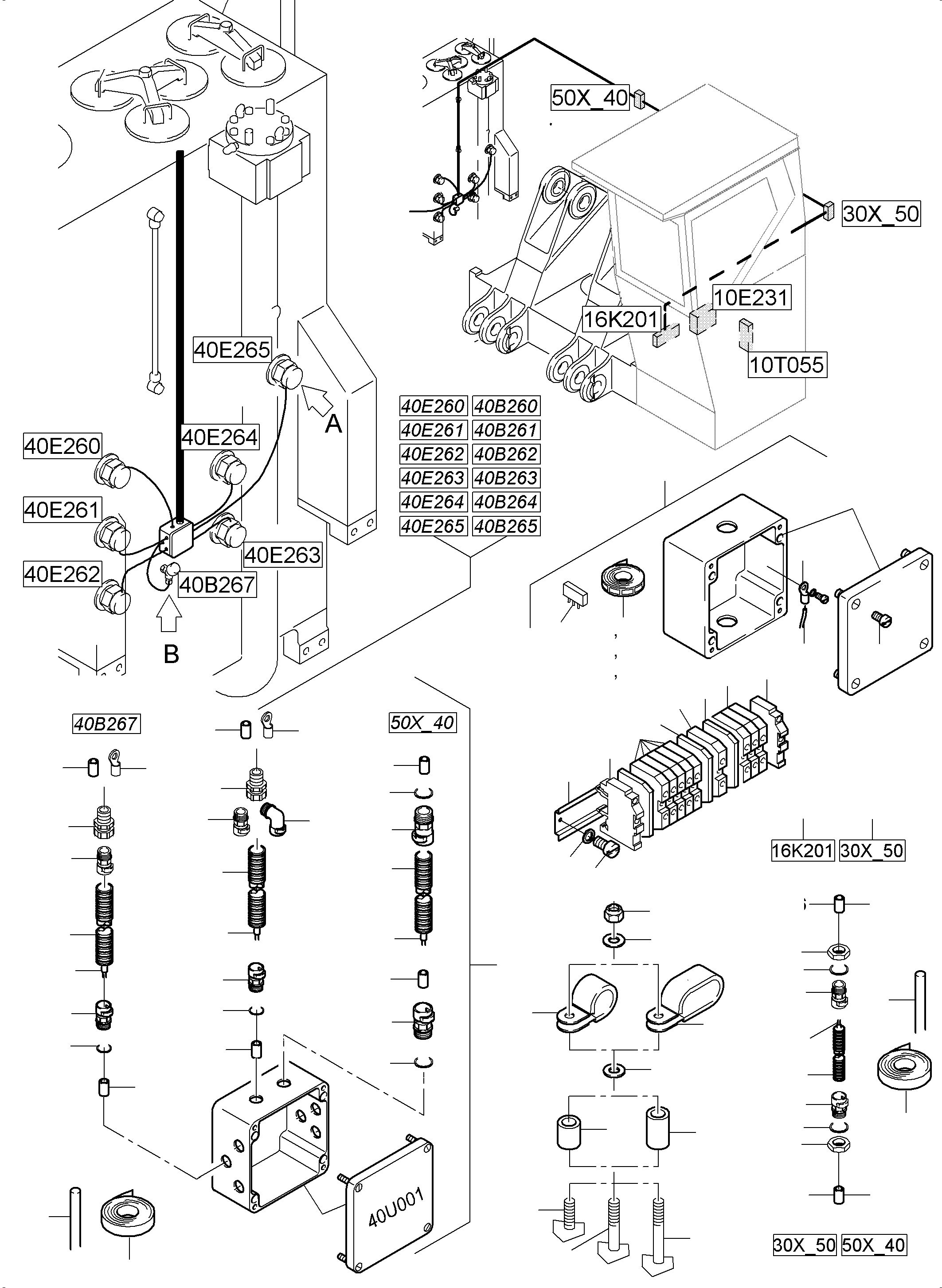

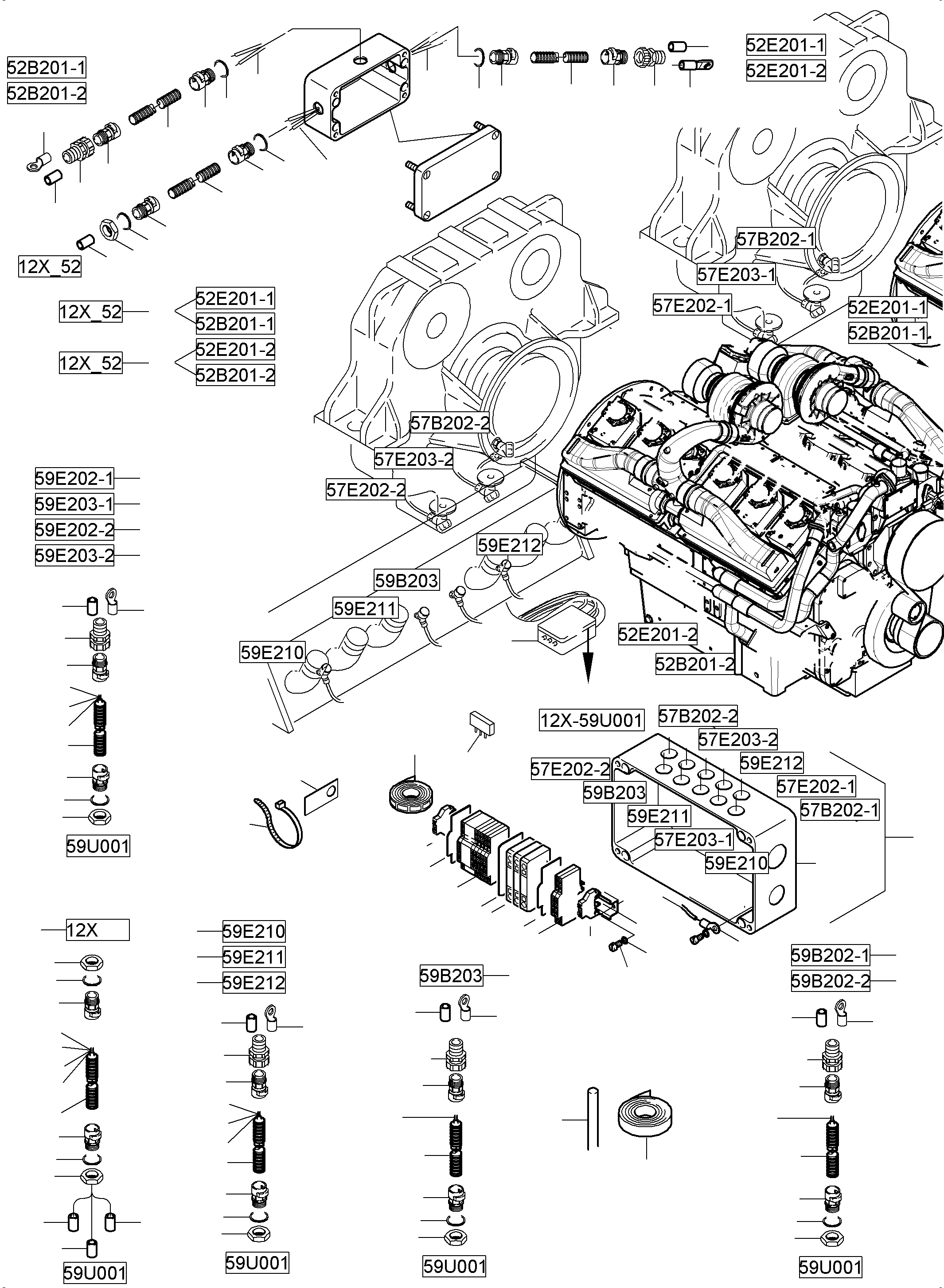

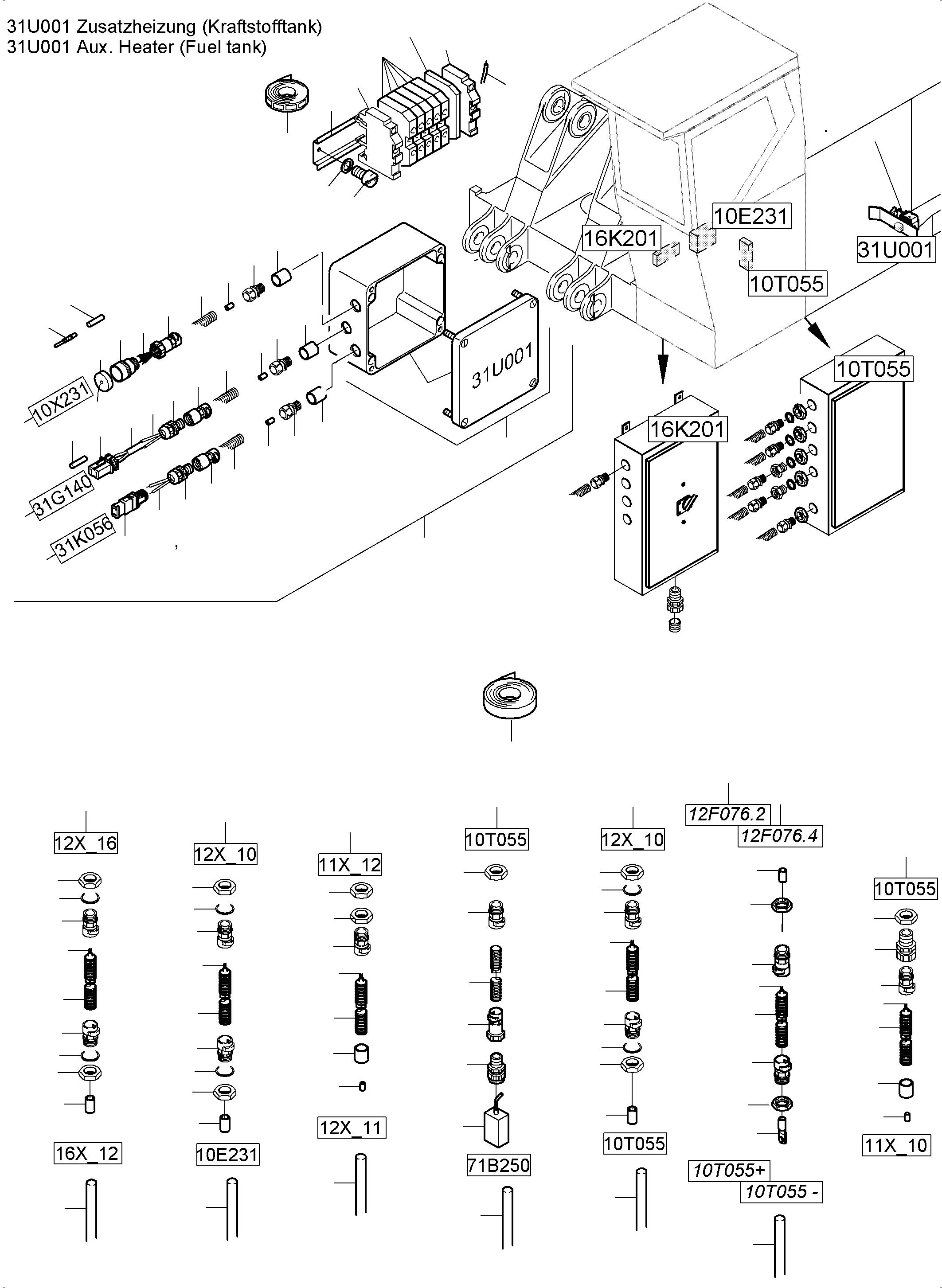

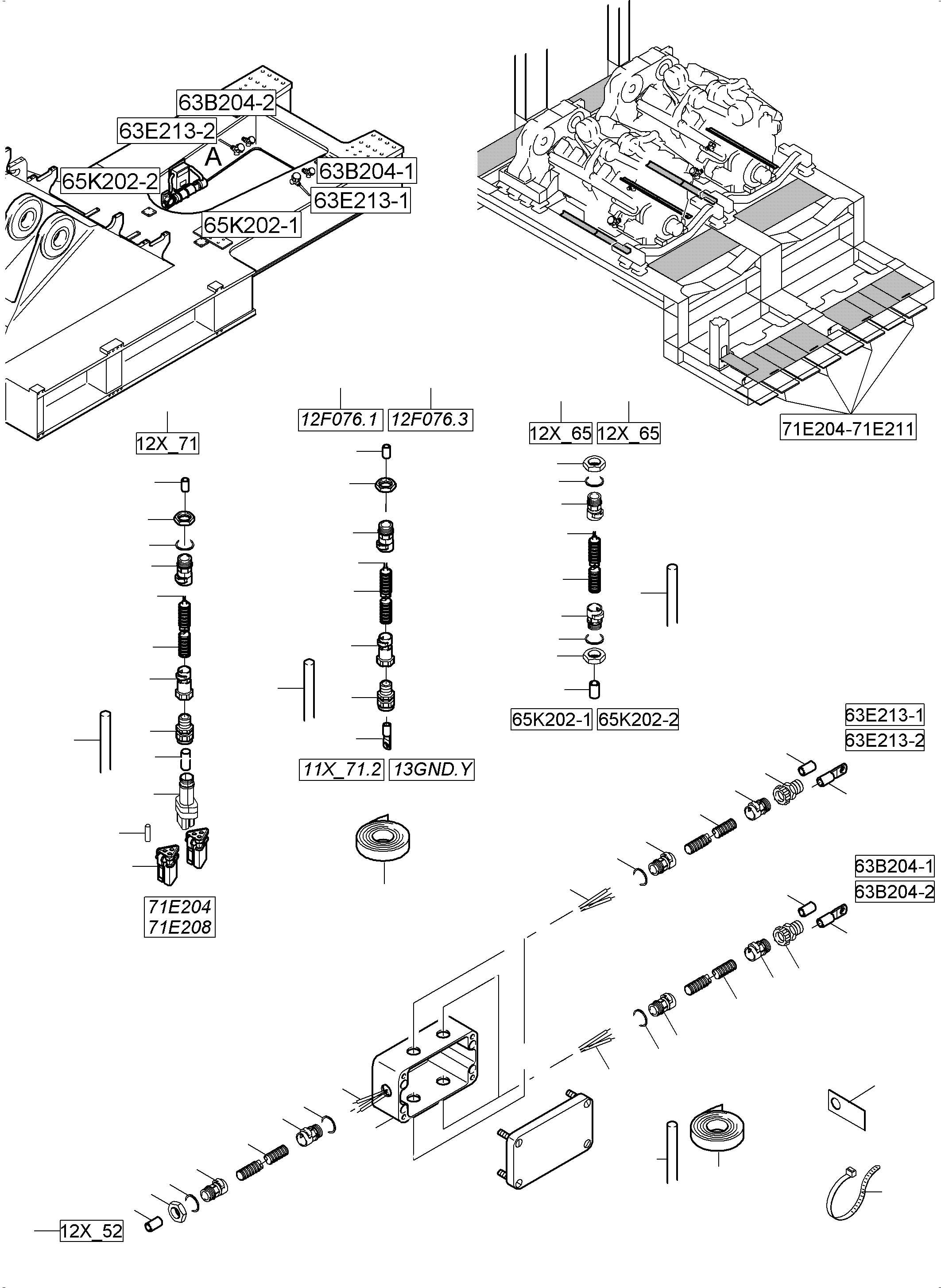

Diagram image 1 of 4

PC5500-6 S/N 15166

01 02 03 102 102 102 102 103 106 106 106 107 110 112 117 117 117 117 117 117 118 121 122 129 129 129 129 129 136 136 136 136 136 136 136 137 139 139 139 144 152 154 155 160 160 160 160 160 160 165 165 165 165 165 165 177 177 177 177 177 177 177 177 178 178 180 180 181 181 184 185 186 187 197 201 201 201 201 201 201 203 205 205 205 205 205 205 205 205 205 205 205 205 205 205 206 206 21 211 215 219 22 224 225 226 226 226 227 228 228 23 24 25 26 27 28 29 30 31 32

PC5500-6 S/N 15166

101 102 102 104 104 104 105 105 106 106 109 119 119 121 122 123 127 127 127 127 127 127 127 129 129 129 129 136 136 138 138 143 144 145 146 147 148 149 150 151 152 154 155 160 160 160 165 165 165 169 177 177 179 179 179 179 180 180 183 183 183 183 196 196 197 197 201 202 203 205 205 205 205 207 207 207 207 209 211 211 214 228 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55

PC5500-6 S/N 15166

08 09 10 104 104 104 105 106 106 108 11 112 113 113 113 114 115 117 117 117 117 117 117 118 118 118 119 119 12 120 121 122 127 127 127 128 131 132 133 133 133 134 135 136 136 138 139 139 139 140 148 15 153 156 157 159 159 159 159 16 161 161 162 163 164 166 168 170 171 172 174 175 176 176 177 177 177 177 179 179 180 180 183 189 19 191 192 194 195 197 197 197 198 198 198 199 20 200 203 204 204 204 204 205 205 205 205 207 207 211 212 213 217 218 220 221 223 226 226 228 228 61 62 63 64

PC5500-6 S/N 15166

04 06 07 102 102 107 115 117 118 118 119 119 124 125 129 129 129 13 131 135 136 136 136 137 138 139 139 139 139 14 142 153 160 160 160 160 161 165 165 165 165 166 167 17 173 177 177 177 178 178 179 179 187 188 190 193 197 197 198 198 199 201 201 205 205 205 205 205 206 206 207 207 208 210 211 211 216 222 223

#	Part Number	Partname	Quantity
01	986 832 40	Harness preheating PTO + suction tank	1
02	984 412 40	Harness preheating engine-oil 1	1
03	984 414 40	Harness preheating engine-oil 2	1
04	984 413 40	Harness preheating engine-oil tank 1+2	1
06	978 382 40	Harness preheating 65K202-1	1
07	978 383 40	Harness preheating 65K202-2	1
08	978 398 40	Harness preheating 12X-10E231	1
09	978 396 40	Harness preheating 12X-10T055	1
10	978 399 40	Harness preheating 10T055-71B250	1
11	978 392 40	Harness preheating 10T055.+ -12F076.2	1
12	978 393 40	Harness preheating 10T055.- -12F076.4	1
13	978 394 40	Harness preheating 71X71.008-12F076.1	1
14	978 395 40	Harness preheating 71X71.014-12F076.3	1
15	986 826 40	Harness preheating 12X_16-16X_12	1
16	986 276 40	Harness preheating 11X-12X	1
17	986 828 40	Harness preheating 12X_71-71E204-E208	1
19	978 397 40	Harness preheating 11X-10T055	1
20	986 848 40	Harness water heater	1
21	978 367 40	Switch box assy. 59U001	1
22	978 389 40	Harness preheating 12X - 59U001	1
23	978 384 40	Harness preheating 59U001-59B203	1
24	978 385 40	Harness preheating 59U001-59E210	1
25	978 386 40	Harness preheating 59U001-59E211	1
26	978 387 40	Harness preheating 59U001-59E212	1
27	978 372 40	Harness preheating 59U001-57B202-1	1
28	978 373 40	Harness preheating 59U001-57E202-1	1
29	978 374 40	Harness preheating 59U001-57E203-1	1
30	978 375 40	Harness preheating 59U001-57B202-2	1
31	978 376 40	Harness preheating 59U001-57E202-2	1
32	978 377 40	Harness preheating 59U001-57E203-2	1
41	986 830 40	Harness preheating hydraulic tank 16K201-30X_50	1
42	986 831 40	Harness preheating hydraulic tank 30X_50-50X_40	1
43	986 825 40	Harness preheating hydraulic tank 50X_40- 40B+40E	1
44	984 417 40	Switch box assy. 30X_50 + 50X_40	2
45	000443551910	Double clamp Ш19 BLZ=10	40
46	000443451910	Clamp Ш19	22
47	518 567 98	Thread pin	5
48	511 773 98	Thread pin	23
49	907 989 40	Threaded pin	5
50	510 746 98	Resilient sleeve	21
51	516 143 98	Resilient sleeve	19
52	507 596 98	Washer	33
53	340 465 99	Washer	33
54	507 037 98	Nut	33
55	321 015 99	Bolt	1
61	986 843 40	Switch box assy. 31U001	1
62	986 849 40	Harness water heater 31U001-10X231	1
63	986 850 40	Harness water heater 31U001-31G140	1
64	986 851 40	Harness water heater 31U001-31K056	1
101			-2
101	055 108 40	Cable lug	-2
102	055 107 40	Cable lug	2
103	055 106 40	Cable lug red	-2
104	056 070 40	Cable sleeve 1,0-1,5	-2
105	056 071 40	Cable sleeve 2,5	-2
106	056 072 40	Cable sleeve	-2
107	174 411 40	Cable strap	-2
108	269 078 40	Wire end ferrule 16/28,7	-2
109	319 056 99	Screw	-2
110	324 484 40	Cable end sleeve	-2
112	514 230 98	Bolt	-2
113	515 213 40	Cable 1,0	-2
114	515 214 40	Cable 2,5	-2
115	634 950 40	Cable AWG 8 BK	44
117	517 322 98	Cable nut	-2
118	517 323 98	Cable nut	-2
119	517 324 98	Cable nut	-2
120	517 328 98	Reducing M25x1,5 - M20x1,5	-2
121	518 546 98	Lock washer	-2
122	519 860 98	Assembly rail	-2
123	551 925 40	Housing emty	-2
124	600 208 99	Cable shoe Ш 10 - 702	-2
125	621 699 40	Female contact 1-2 qmm	-2
127	635 042 40	Wire end ferrule 1,5	10
128	651 461 40	Housing assy.	-2
129	951 205 40	Cable AWG 14 GN	37
131	634 952 40	Cable AWG 8 GN	15
132	655 649 40	Cable protection hose DN 10	-2
133	655 650 40	Cable protection hose DN 12	-2
134	655 651 40	Cable protection hose DN 17	-2
135	655 652 40	Cable protection hose DN 23	-2
136	655 759 40	Cable protection hose PG 16	-2
137	655 760 40	Cable protection hose PG 21	-2
138	655 761 40	Cable protection hose PG 29	-2
139	323 342 40	Cable AWG 14 WH	19
140	896 520 40	End pin	-2
142	906 492 40	Union	-2
143	906 612 40	Through clamp 2.5	-2
144	906 613 40	Cover plate	-2
145	906 615 40	Bridge 3-fold	-2
146	906 617 40	Bridging comb 5-fold 2,5	-2
147	906 623 40	Marking strip	-2
148	906 624 40	Marker 01-10	-2
149	906 625 40	Marker 11-20	-2
150	906 626 40	Marker 21-30	-2
151	906 627 40	Marker 31-40	-2
152	906 630 40	Protective wire clip	-2
153	906 667 40	Wire end ferrule	-2
154	906 772 40	Cover plate	-2
155	906 792 40	Protective wire clip	-2
156	907 478 40	Cable union DN 17	-2
157	907 553 40	Cable 16,0	-2
159	907 623 40	Cable union NW 12	-2
160	907 640 40	Wire end ferrule 2,5	-2
161	907 690 40	Cable union DN 23	-2
162	907 697 40	Temperature sensor with cable	-2
163	907 703 40	Cable union 4x3	-2
164	907 708 40	Cable union 6x2,5	-2
165	323 168 40	Cable AWG 14 BK	55
166	907 891 40	Cable 70,0	-2
167	907 948 40	Fitting M25/NW23	-2
168	907 974 40	Fitting DN 12	-2
169	932 530 40	Cable shoe	-2
170	932 728 40	Cable lug	-2
171	940 271 40	Cable union DN 10	-2
172	940 461 40	Insulating tube B5x0,6	-2
173	940 464 40	Insulating tube B8x0,7	-2
174	940 465 40	Insulating tube	-2
175	940 471 40	Fitting	-2
176	940 520 40	Fitting	-2
177	940 661 40	Seal	-2
178	940 662 40	Seal	-2
179	940 663 40	Seal	-2
180	940 673 40	Clamp	-2
181	940 848 40	Cable shoe	-2
183	655 417 40	Cable AWG 16 RD	10
184	941 736 40	Clamp	-2
185	941 737 40	Cross connection	-2
186	941 738 40	Cover plate	-2
187	941 777 40	Plate	-2
188	941 791 40	Rubber grommet	-2
189	941 840 40	Protective hose DN 12	-2
190	941 880 40	Plug	-2
191	950 131 40	Protection cap	-2
192	950 133 40	Plug	-2
193	950 159 40	Insulating strap	-2
194	950 208 40	End grommet	-2
195	950 209 40	End grommet	-2
196	950 503 40	Shrinkdown tubing 3mm	-2
197	950 504 40	Shrinkdown tubing 6mm	-2
198	950 505 40	Shrinkdown tubing 12mm	-2
199	950 506 40	Shrinkdown tubing 24mm	-2
200	950 542 40	Cable union	-2
201	950 795 40	Adapter 3/4"	-2
202	950 796 40	Adapter 1"	-2
203	951 253 40	Marking strip	-2
204	951 260 40	Slide protection	-2
205	951 339 40	Cable union	-2
206	951 340 40	Cable union	-2
207	951 341 40	Cable union	-2
208	951 343 40	Cable union	-2
209	951 344 40	Cable union	-2
210	951 352 40	Cable union	-2
211	951 368 40	Resin strip	-2
212	951 753 40	Cover plate	-2
213	951 754 40	Through clamp	-2
214	976 646 40	Housing emty	-2
215	984 411 40	Switch box	-2
216	984 415 40	Switch box	-2
217	986 842 40	Switch box	-2
218	986 863 40	Plug	-2
219	999 132 40	Housing, empty	-2
220	0819100770	Sealing plate	-2
221	0819105340	Pin contact	-2
222	0819213400	Wedge	-2
223	907 501 40	Wire end ferrule 10 qmm	8
224	654 599 40	Cable AWG 10 WH	20
225	634 954 40	Cable AWG 10 GN	20
226	323 164 40	Cable AWG 12 BK	20
227	323 341 40	Cable AWG 12 WH	2
228	323 165 40	Cable AWG 12 GN	2
\|$$172			-2
\|$$173			-2
\|$$174			-2
\|$$175			-2
\|$$176			-2
\|$$177			-2
\|$$178			-2
\|$$179			-2
\|$$180			-2
\|$$181			-2
\|$$182			-2
\|$$183			-2
\|$$184			-2
\|$$185			-2
\|$$186			-2
\|$$187			-2
\|$$188			-2
\|$$189			-2
\|$$190			-2
\|$$191			-2
\|$$192			-2
\|$$193			-2
\|$$194			-2
\|$$195			-2
\|$$196			-2
\|$$197			-2
\|$$198			-2
\|$$199			-2
\|$$200			-2
\|$$201			-2
\|$$202			-2
\|$$203			-2
\|$$204			-2
\|$$205			-2
\|$$206			-2
\|$$207			-2
\|$$208			-2
\|$$209			-2
\|$$210			-2
\|$$211			-2
\|$$212			-2
\|$$213			-2
\|$$214			-2
\|$$215			-2
\|$$216			-2
\|$$217			-2

Komatsu PC5500-6 S/N 15166 parts catalog PDF

CABLES-TEMPERATURE CONDITIONING (515-2505q) in PC5500-6 S/N 15166. Diagram image and parts list.
