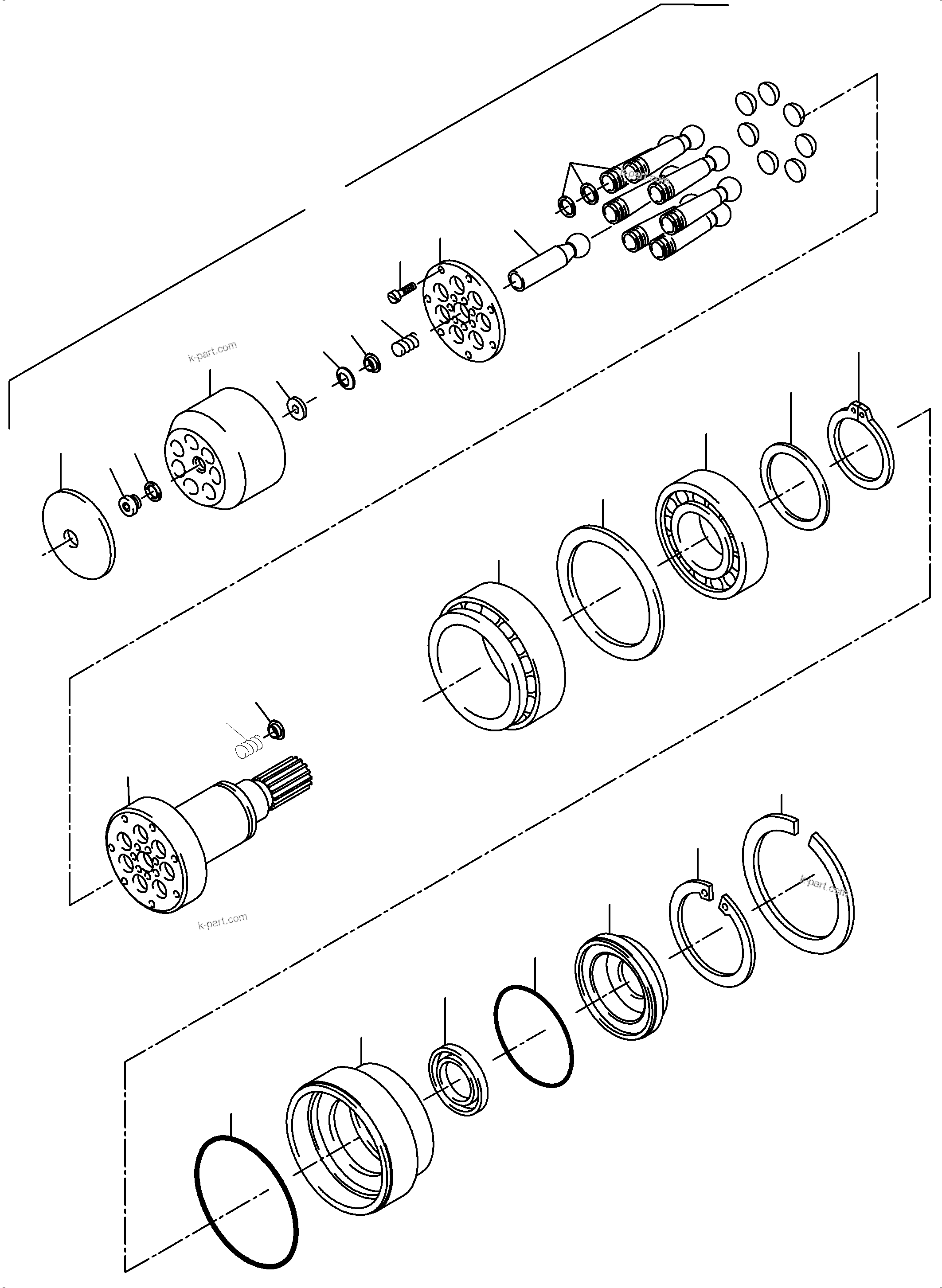

Diagram image 1 of 2

PC5500-6 S/N 15166

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15166

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	978 107 40	Hydr. motor assy.	1
?		Housing (not available)	1
?	173 494 40	Plug	1
?	255 985 40	Plug	8
?		Transmission assy. consist. of fig-nos. 07-30,39,40,88	1
?		Driving flange	1
?		Piston with rings	7
?		Cylinder	1
?		Control lense	1
?	757 299 73	Pivot	1
?	756 371 73	Withdrawal plate	1
?	793 414 73	Race	1
?	757 306 73	Sealing flange	1
?	762 750 73	Adjusting ring	1
?	793 416 73	Spring	1
?	793 417 73	Washer	1
?	793 418 73	Adjusting disc set	1
?	757 294 73	Spacer screw	1
?	763 884 73	Spring	7
?	794 859 73	Roller bearing	1
?	793 421 73	Roller bearing	1
?	762 769 73	Shaft seal	1
?	514 025 98	O-ring	1
?	514 045 98	O-ring	1
?	998 898 00	Circlip	1
?	342 679 99	Circlip	1
?	342 560 99	Circlip	1
?	793 425 73	Shim ring	1
?	319 241 99	Bolt	14
?	768 896 73	Displacement section consist. of fig-nos. 32-35	1
?	767 320 73	Thread pin	1
?	758 192 73	Cap nut	1
?	757 878 73	Nut	2
?	506 627 98	O-ring	4
?	768 897 73	Displacement section consist. of fig-nos. 34,35,37,38	1
?	756 513 73	Thread pin	1
?	757 877 73	Cap nut	1
?	793 412 73	Spring plate	1
?		Cup spring	1
?		Adjustment assy. consist. of fig-nos. 42-44	1
?		Adjuster assy. consist. of fig-nos. 45-57	1
?	768 900 73	Control part assy. consist. of fig-nos. 58-70	1
?		Cover assy. consist. of fig-nos. 73-86	1
?		Cover plate	1
?	767 327 73	Piston	1
?	793 431 73	Regulation journal	1
?		Thread pin	1
?	756 795 73	Quadring	2
?	516 812 98	O-ring	1
?	414 797 40	Seal ring	1
?		O-ring	1
?	514 193 98	Parallel pin	2
?	319 305 99	Bolt	8
?		Breaking plug	4
?	768 903 73	Spring plate	1
?	768 904 73	Spring	1
?	767 709 73	Valve insert consist. of fig-nos. 71-72	1
?	767 330 73	Control housing	1
?	767 331 73	Adjustable non-return valve	2
?	321 597 99	Bolt	4
?	767 405 73	O-ring	2
?	767 724 73	O-ring	2
?	765 471 73	O-ring	2
?	655 377 40	Support ring	2
?		Breaking plug	1
?	767 727 73	Valve insert	1
?	342 524 99	Circlip	1
?		Valve insert	1
?		Cover	1
?	319 289 99	Bolt	4
?	756 462 73	Throttle srew	1
?	794 402 73	Breaking plug	2
?	756 46 73	Throttle srew	1
?	767 724 73	O-ring	3
?	765 471 73	O-ring	1
?	655 377 40	Support ring	1
?	804 932 73	Nozzle 0,8 mm	1
?	806 693 73	Nozzle	1
?		Reset pin	1
?		Plug	1
?	767 034 73	Guide shoe	7
?	768 714 73	Regulation Valve fig. nos 91-97	1
?	793 439 73	Plug	1
?	768 717 73	Piston valve	1
?	753 869	Spring plate	1
?	753 868	Spring	1
?	768 719 73	O-ring	1
?	758 209 73	Nut	1
?	767 163 73	O-ring	2
?	758 210 73	Nut	2
?		Threaded pin	1
?	798 989 73	Seal kit	1
