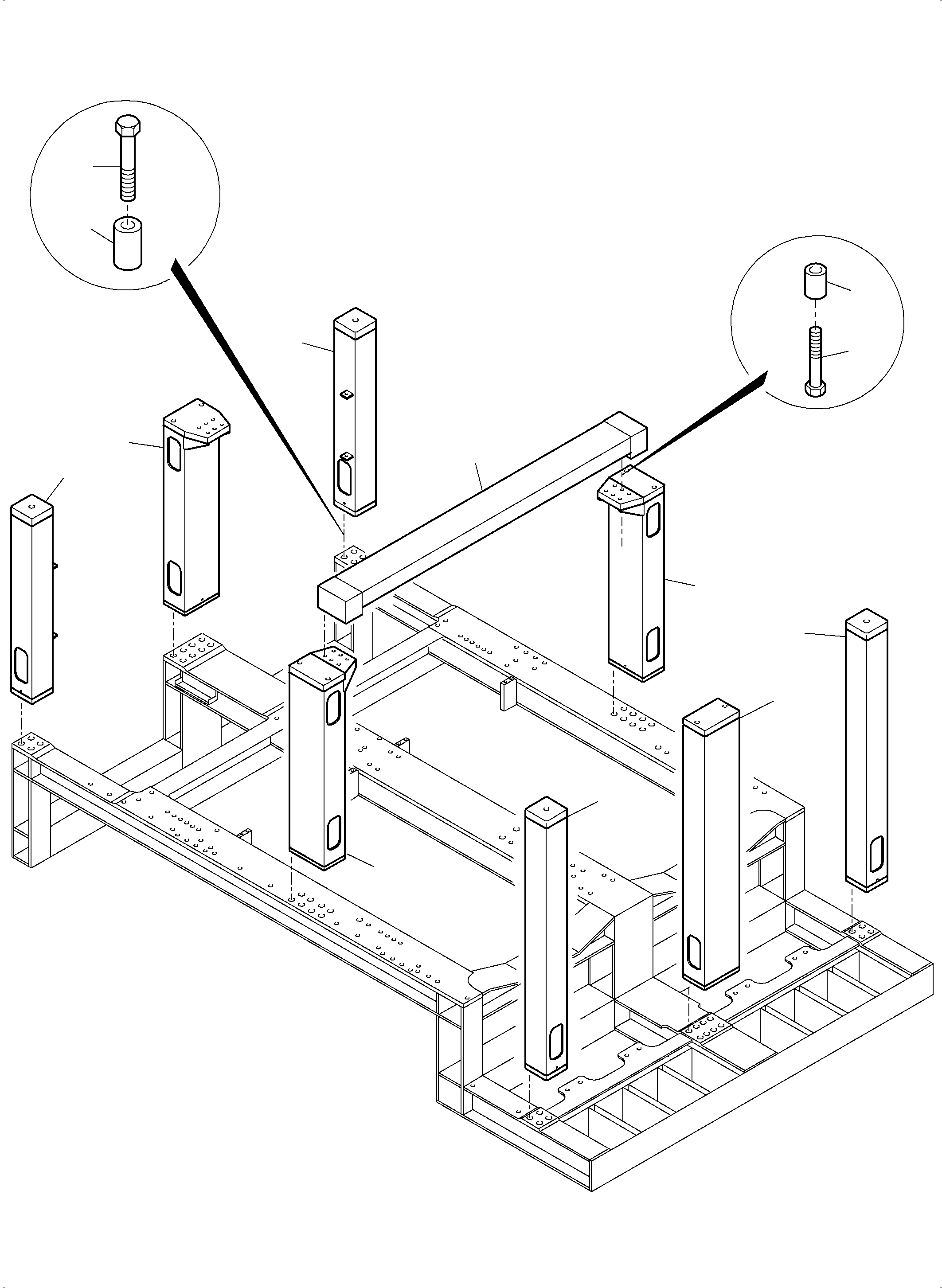

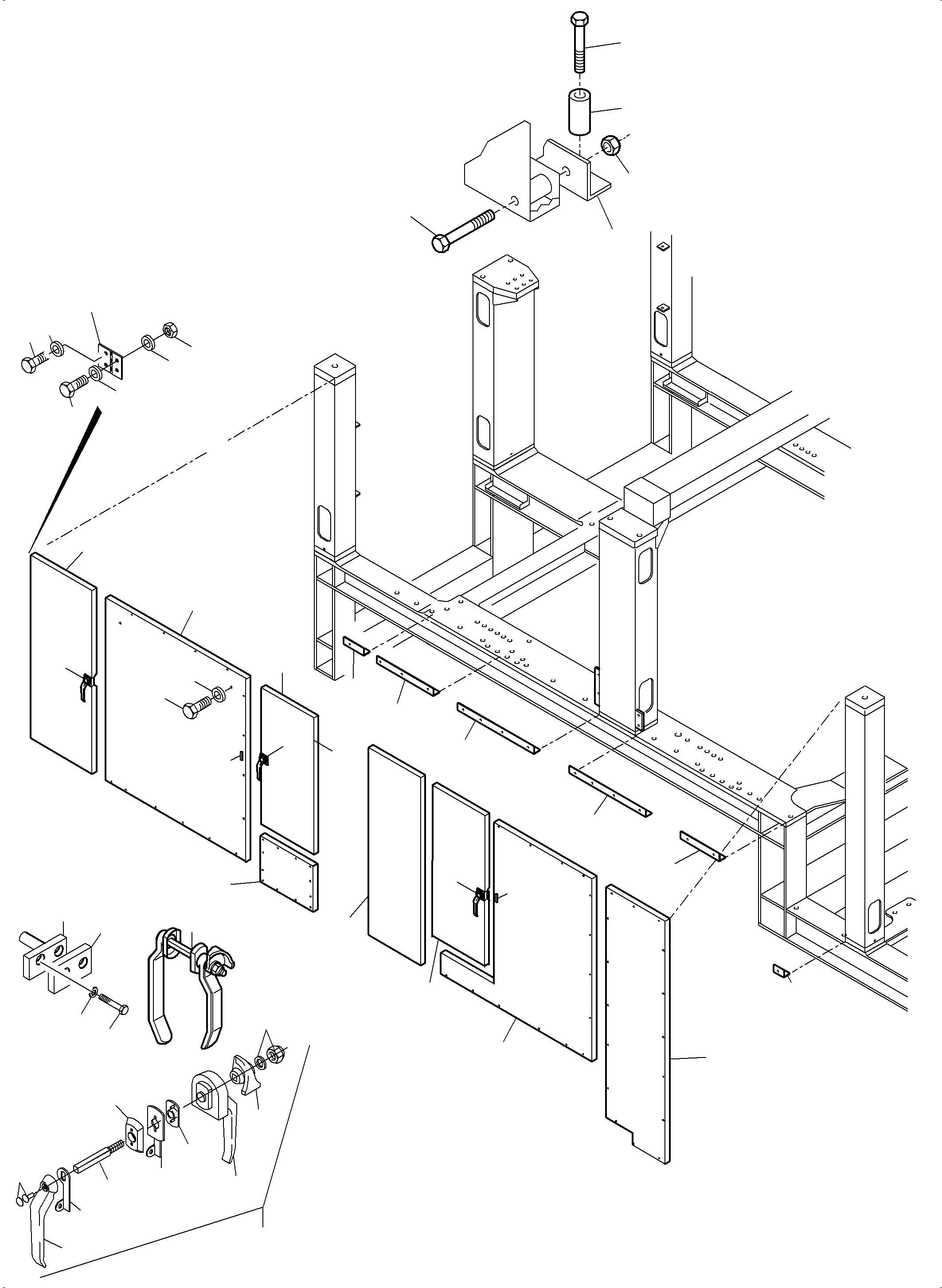

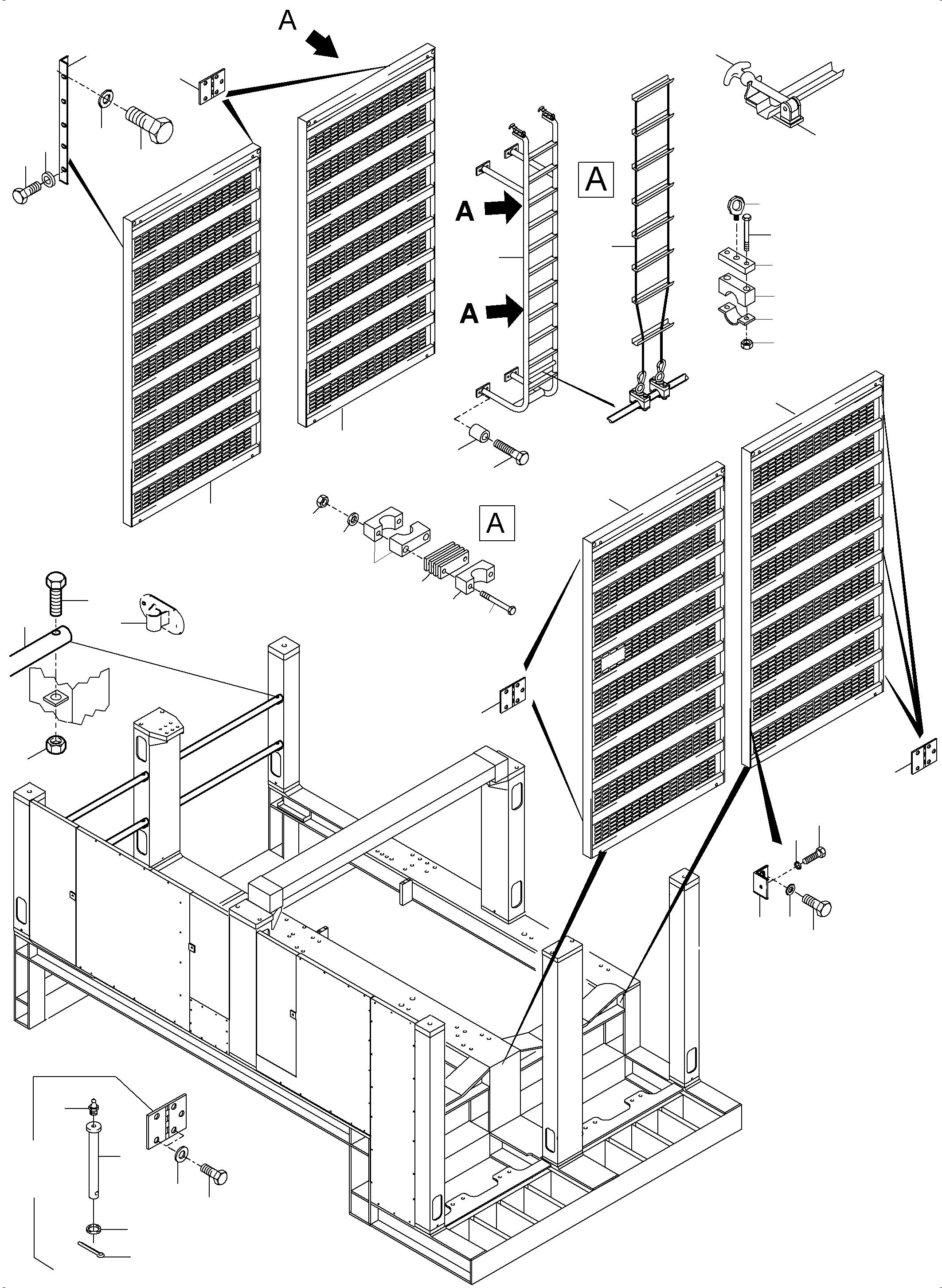

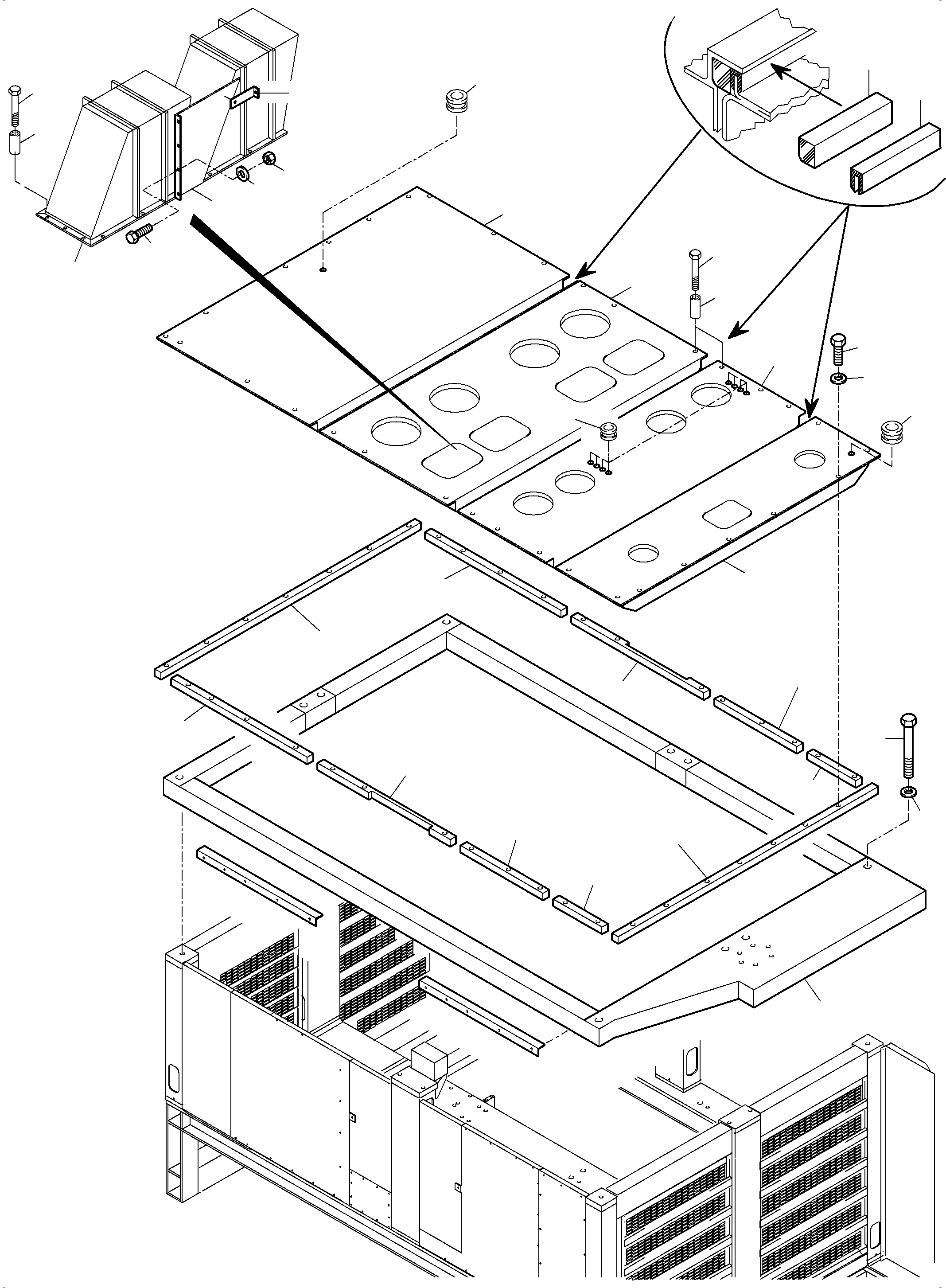

Diagram image 1 of 4

PC5500-6 S/N 15166

101 102 103 104 105 106 106 107 107 108 108 109 109 110 110 111 112 113 113 114 114 115 116 117 118 119 120 121 122 123 123 45 58 59

PC5500-6 S/N 15166

09 10 11 126 127 128 129 130 131 132 133 134 135 137 138 139 140 141 145 148 33 34 35 36 36 36 37 37 38 39 39 39 40 40 40 41 42 42 43 44 45 45 55 63 81 82 83 84

PC5500-6 S/N 15166

13 14 15 16 17 18 19 20 21 21 22 23 24 25 26 27 27 27 27 28 28 28 29 30 31 32 32 45 46 47 48 49 50 50 51 52 52 53 54 54 55 61 62 71 72 73 73 73 74 75 76 77 77 78 78 91

PC5500-6 S/N 15166

01 02 03 04 05 06 07 08 12 56 56 57 60

#	Part Number	Partname	Quantity
01	953 484 40	Post	1
02	953 485 40	Post	1
03	953 497 40	Post	1
04	954 213 40	Post	1
05	954 212 40	Post	1
06	954 211 40	Post	1
07	964 132 40	Post	1
08	964 133 40	Post	1
09	953 479 40	Door	1
10	954 205 40	Door	1
11	954 204 40	Door	1
12	964 134 40	Bridge	1
13	953 424 40	Door	1
14	953 449 40	Wall	1
15	953 434 40	Door	1
16	886 915 40	Wall	1
17	953 460 40	Wall	1
18	953 441 40	Door	1
19	953 465 40	Wall	1
20	918 890 40	Wall	1
21	953 490 40	Angle	1
22	953 491 40	Angle	1
23	953 492 40	Angle	1
24	953 493 40	Angle	1
25	953 494 40	Angle	1
26	953 495 40	Angle	1
27	940 906 40	Fastener, l.h.	2
28	940 907 40	Fastener, r.h.	1
29	953 451 40	Cotter pin	3
30	953 457 40	Plate	3
31	307 779 99	Bolt	6
32	517 122 98	Lock washer	12
33	674 904 40	Pipe	4
34	953 487 40	Angle	2
35	954 200 40	Holding device	6
36	949 370 40	Hinge assy.	9
37	946 165 40	Hinge	3
38	953 478 40	Retainer	2
39	307 804 99	Bolt	98
40	518 200 98	Lock washer	98
41	307 826 99	Bolt	6
42	340 469 99	Washer	12
43	308 638 99	Bolt	6
44	307 806 99	Bolt	8
45	334 600 99	Nut	48
46	510 741 98	Resilient sleeve	15
47	308 608 99	Bolt	15
48	308 610 99	Bolt	34
49	946 164 40	Hinge	4
50	946 151 40	Hinge	2
51	307 777 99	Bolt	12
52	180 613 40	Rubber cord	-2
53	307 780 99	Bolt	18
54	340 465 99	Washer	36
55	507 037 98	Nut	18
56	510 725 98	Resilient sleeve	60
57	304 369 99	Bolt	48
58	304 172 99	Bolt	12
59	255 056 40	Washer	12
60	308 395 99	Bolt	12
61	307 822 99	Bolt	8
62	517 123 98	Lock washer	8
63	979 980 40	Door with ladder	1
71	941 444 40	Handle	2
72	941 445 40	Handle	2
73	941 563 40	Axle	2
74	941 447 40	Collar	2
75	941 450 40	Closing cam	2
76	941 451 40	Collar	2
77	941 448 40	Accessory l.h.	1
78	941 449 40	Accessory r.h.	1
81	946 173 40	Pin	12
82	350 562 99	Grease nipple	12
83	340 612 99	Washer	24
84	342 061 99	Cotter pin	12
91	081 480 40	Hinge pin	6
101	969 595 40	Roof frame	1
102	961 331 40	Roof section	1
103	947 814 40	Roof section	1
104	947 822 40	Roof section	1
105	961 719 40	Roof section	1
106	914 587 40	Threaded rail	2
107	914 586 40	Threaded rail	2
108	947 838 40	Threaded rail	2
109	947 837 40	Threaded rail	2
110	947 836 40	Threaded rail	2
111	592 259 40	Profiled joint	12
112	490 421 40	Moulding material	-2
113	500 816 98	Bolt	30
114	510 741 98	Resilient sleeve	30
115	340 467 99	Washer	6
116	307 949 99	Bolt	56
117	517 118 98	Lock washer	50
118	947 847 40	Exhaust air hood	2
119	961 345 40	Plate	1
120	961 344 40	Plate	1
121	307 804 99	Bolt	6
122	056 054 40	Grommet	8
123	056 055 40	Grommet	2
126	512 884 98	Clamp set	6
127	534 004 99	Cover plate	24
128	308 589 99	Bolt	12
129	350 768 99	Disc	12
130	979 978 40	Door	-2
131	979 990 40	Emergency Ladder	1
132	991 732 40	Emergency jack	1
133	504 004 98	Clamp set	1
134	308 605 99	Bolt	12
135	510 744 98	Resilient sleeve	12
137	991 727 40	Clamp	2
138	991 724 40	Cover plate	2
139	950 498 40	Eye bolt	2
140	308 622 99	Bolt	4
141	504 818 98	Clamp set	3
145	991 734 40	Retainer assy.	1
148	081 474 40	Hood fastener	1

Komatsu PC5500-6 S/N 15166 parts catalog PDF

MACHINERY HOUSE DIESEL (515-1065d) in PC5500-6 S/N 15166. Diagram image and parts list.
