CONTROL- AND FILTER PLATE, REAR (ENGINE 1) | PC5500-6 S/N 15166

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

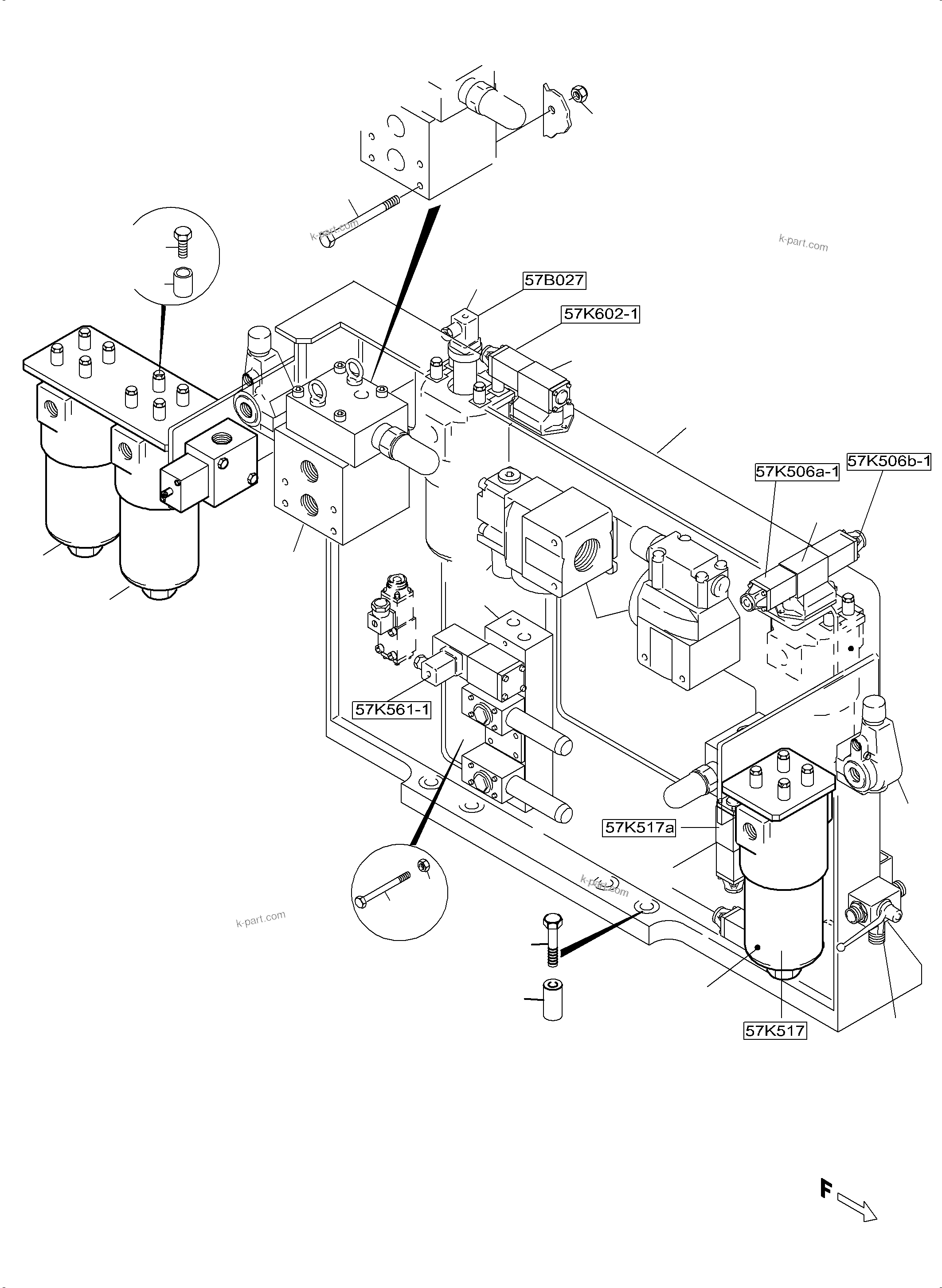

Diagram image 1 of 2

PC5500-6 S/N 15166

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15166

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	939 167 40	Control plate, rear	1
?		Valve block	1	112-1831-3
?		Connecting plate rear	1	515-1892
?		Inline filter	1	991-0424b
?		Hydr. filter assy.	3	991-0952
?	951 787 40	Pressure relief valve	2
?	951 789 40	Pressure relief valve	2
?	654 994 40	Ball cock	1
?	940 730 40	4/2 Directional spool valve	4
?	180 325 40	Base plate	5
?	940 732 40	4/3 Directional spool valve	1
?	951 794 40	Pressure relief valve	1
?	304 322 99	Bolt	4
?	334 682 99	Nut	4
?	334 599 99	Nut	2
?	319 145 99	Bolt	2
?	308 578 99	Bolt	16
?	510 746 98	Resilient sleeve	16
?	319 426 99	Screw	4
?	334 599 99	Nut	4
?	308 586 99	Bolt	4
?	507 037 98	Nut	4
?	514 340 98	Screw	24
?	307 732 99	Bolt	10
?	507 025 98	Nut	14
?	340 506 99	Washer	10
?	307 740 99	Bolt	4
?		Hydr. filter assy.	1	991-0953
?	308 554 99	Bolt	4
?	950 439 40	Pressure relief valve	1
?	515 801 98	Resilient sleeve	4
?	308 516 99	Bolt	2
?	332 292 99	Nut	2
?	340 461 99	Washer	4
?	797 167 73	Solenoid	-2
?	308 444 99	Bolt	8
?	510 733 98	Resilent sleeve	8
