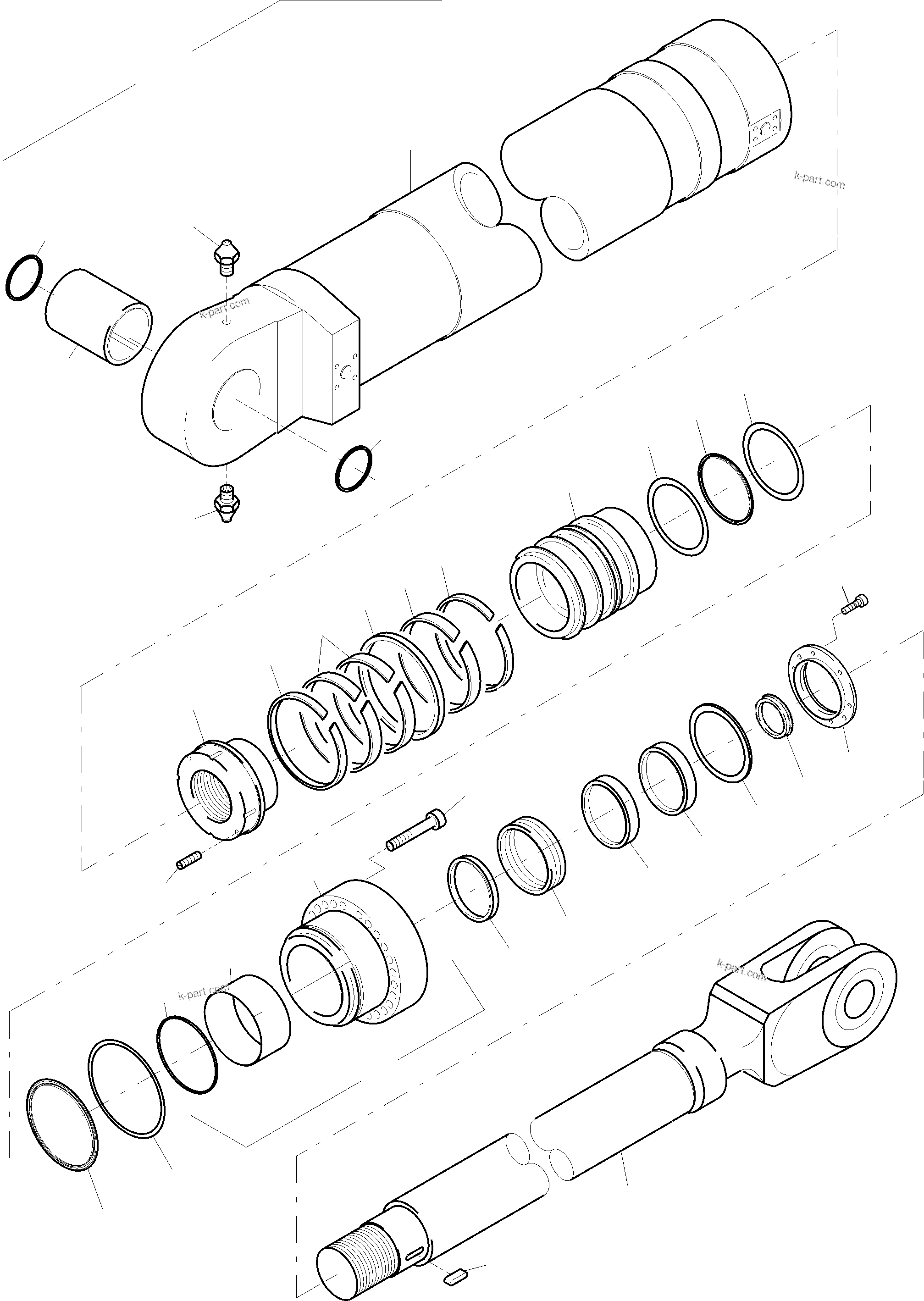

HYDRAULIC CYLINDER | PC3000-6 S/N 46252 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC3000-6 S/N 46252

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	989 945 40	Hydraulic Cylinder assy.	1
?	982 237 40	Sealing flange consist of fig nos 35-37	1
?	989 432 40	Piston	1
?	948 114 40	Groove nut	1
?	982 223 40	Collar	1
?	7078864040	Scraper	1
?	951 294 40	Gasket	1
?	7077520040	Snap ring	1
?	973 829 40	Piston guide	3
?	269 494 40	Piston guide strap	2
?	7075119400	Buffer ring	1
?	7075119300	Rod seal	1
?	979 532 40	Freeze-in bushing with spiral groove	1
?	319 274 99	Bolt	8
?	514 625 98	Bolt	18
?	947 184 40	Thread pin	1
?	950 964 40	O-ring	1
?	907 780 40	Support ring	1
?	519 189 98	O-ring	1
?	270 355 40	Support ring	2
?	907 020 40	Seal ring	2
?	354 389 99	Feather key	1
?	004 860 98	Grease nipple	1
?	7075619770	Dust seal	1
?	7075619800	Dust seal	1
?	798 080 73	Cylinder barrel incl. fig-nos. 14,22,24,32	1
?		Cylinder barrel	1
?	989 983 40	Piston rod	1
?		Flange bushing	1
?	7075291680	Bearing bush (no field repair item)	1
?	0717915200	Ring	1
?	799 874 73	Sealing kit-piston consist. of fig-nos: 08,10,11,20,21	1
?	799 262 73	Sealing kit-sealing flange consist. of fig-nos: 07,09,12,13,18,19,25-26	1
