PC3000-6 S/N 46252

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 46252

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	939 251 40	Post 1	1
?	939 252 40	Post 2	1
?	939 253 40	Post 3	1
?	939 254 40	Post 4	1
?	939 255 40	Post 5	1
?	939 296 40	Post 6	1
?	939 257 40	Post 7	1
?	946 171 40	Door, radiator	1
?	939 212 40	Wall	1
?	930 550 40	Wall	1
?	927 264 40	Wall	1
?	946 170 40	Door	1
?	946 165 40	Hinge	5
?	939 282 40	Door	1
?	510 741 98	Resilient sleeve	9
?	957 387 40	Retainer	1
?	510 732 98	Resilient sleeve	28
?	308 414 99	Bolt to fig-nos. 02, 03 + 07	12
?	957 388 40	Plate	1
?	934 342 40	Angle	1
?	934 343 40	Angle	1
?	308 885 99	Bolt to fig-nos. 01, 04-06	16
?	957 393 40	Retainer	1
?	308 608 99	Bolt	9
?	308 610 99	Bolt	28
?	959 056 40	Cover assy.	1
?	334 600 99	Nut	45
?	307 777 99	Bolt	4
?	946 192 40	Plate	1
?	517 122 98	Lock washer	31
?	307 773 99	Bolt	6
?	440 821 40	Profiled joint	-2
?	340 467 99	Washer	47
?	946 151 40	Hinge	2
?	940 906 40	Fastener with out lock pin consist. of fig nos 121-126,128	1
?	940 907 40	Fastener with out lock pin consist. of fig nos 121-125, 127	1
?	307 775 99	Bolt	17
?	167 693 40	Flex. Header	-2
?	334 600 99	Nut	1
?	307 805 99	Bolt	17
?	927 230 40	Pipe	2
?	946 158 40	Door	1
?	307 802 99	Bolt	23
?	517 118 98	Lock washer	29
?	081 282 40	Silent block	1
?	513 252 98	Screw	1
?	957 395 40	Pipe	1
?	946 164 40	Hinge	2
?	307 780 99	Bolt	10
?	340 007 99	Washer	16
?	507 037 98	Nut	8
?	500 814 98	Bolt	1
?	307 804 99	Bolt	6
?	506 129 98	Washer	1
?	950 233 40	Profiled joint	1
?	949 385 40	Pin	1
?	954 604 40	Plate	1
?	307 779 99	Bolt	2
?	939 280 40	Cotter pin	1
?	939 281 40	Plate	1
?	340 510 99	Washer	1
?	592 259 40	Profiled joint	-2
?	307 822 99	Bolt	5
?	517 123 98	Lock washer	5
?	950 523 40	Plug	6
?	919 943 40	Roof section 1	1
?	925 753 40	Roof section 2	1
?	936 564 40	Roof section 2 (with emergency exit)	1
?	925 754 40	Roof section 3	1
?	925 755 40	Roof section 4	1
?	510 741 98	Resilient sleeve	45
?	308 608 99	Bolt	45
?	307 949 99	Bolt	5
?	517 118 98	Lock washer	8
?	598 248 40	Threaded rail	2
?	598 250 40	Threaded rail	2
?	598 249 40	Threaded rail	1
?	598 240 40	Threaded rail	2
?	598 239 40	Threaded rail	4
?	180 894 40	Plug	16
?	930 529 40	Cover	1
?	517 122 98	Lock washer	4
?	507 037 98	Nut	2
?	930 516 40	Plate	1
?	930 517 40	Plate	1
?	510 748 98	Resilient sleeve	3
?	340 467 99	Washer	7
?	307 807 99	Bolt	3
?	307 804 99	Bolt	7
?	334 600 99	Nut	4
?	948 275 40	Angle	1
?	953 238 40	Plate	1
?	953 227 40	Threaded rail	1
?	307 775 99	Bolt	2
?	308 356 99	Bolt	7
?	919 949 40	Roof frame	1
?	180 889 40	Plug	4
?	930 569 40	Retainer	1
?	318 603 99	Screw	2
?	517 120 98	Lock washer	2
?	941 449 40	Accessory r.h.	1
?	941 444 40	Handle	2
?	941 448 40	Accessory l.h.	1
?	941 447 40	Collar	2
?	941 451 40	Collar	2
?	941 445 40	Handle	2
?	941 450 40	Closing cam	2
?	941 563 40	Axle	2

Komatsu PC3000-6 S/N 46252 parts catalog PDF

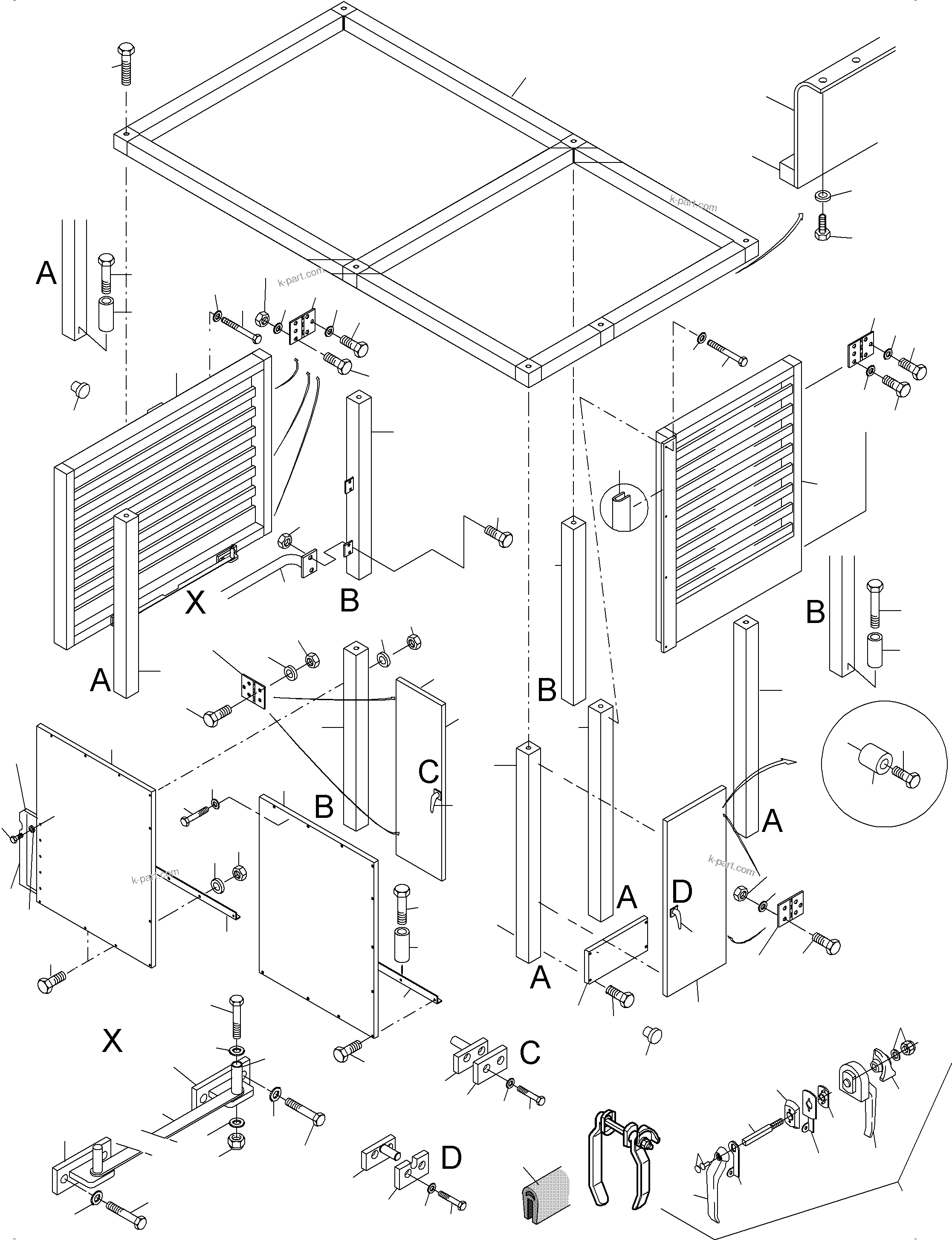

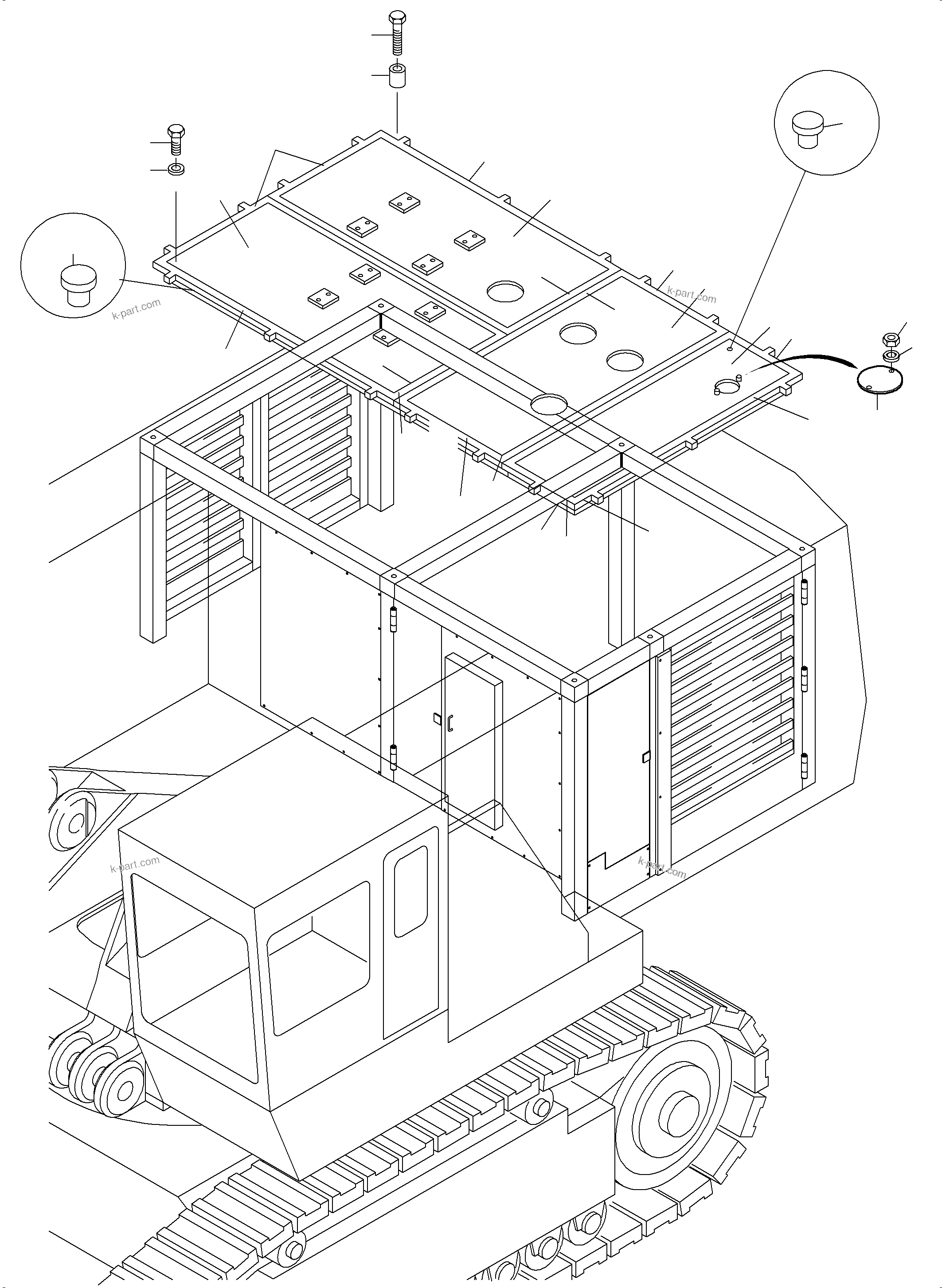

COVERING - ENGINE HOUSING (485-1032g) in PC3000-6 S/N 46252. Diagram image and parts list.
