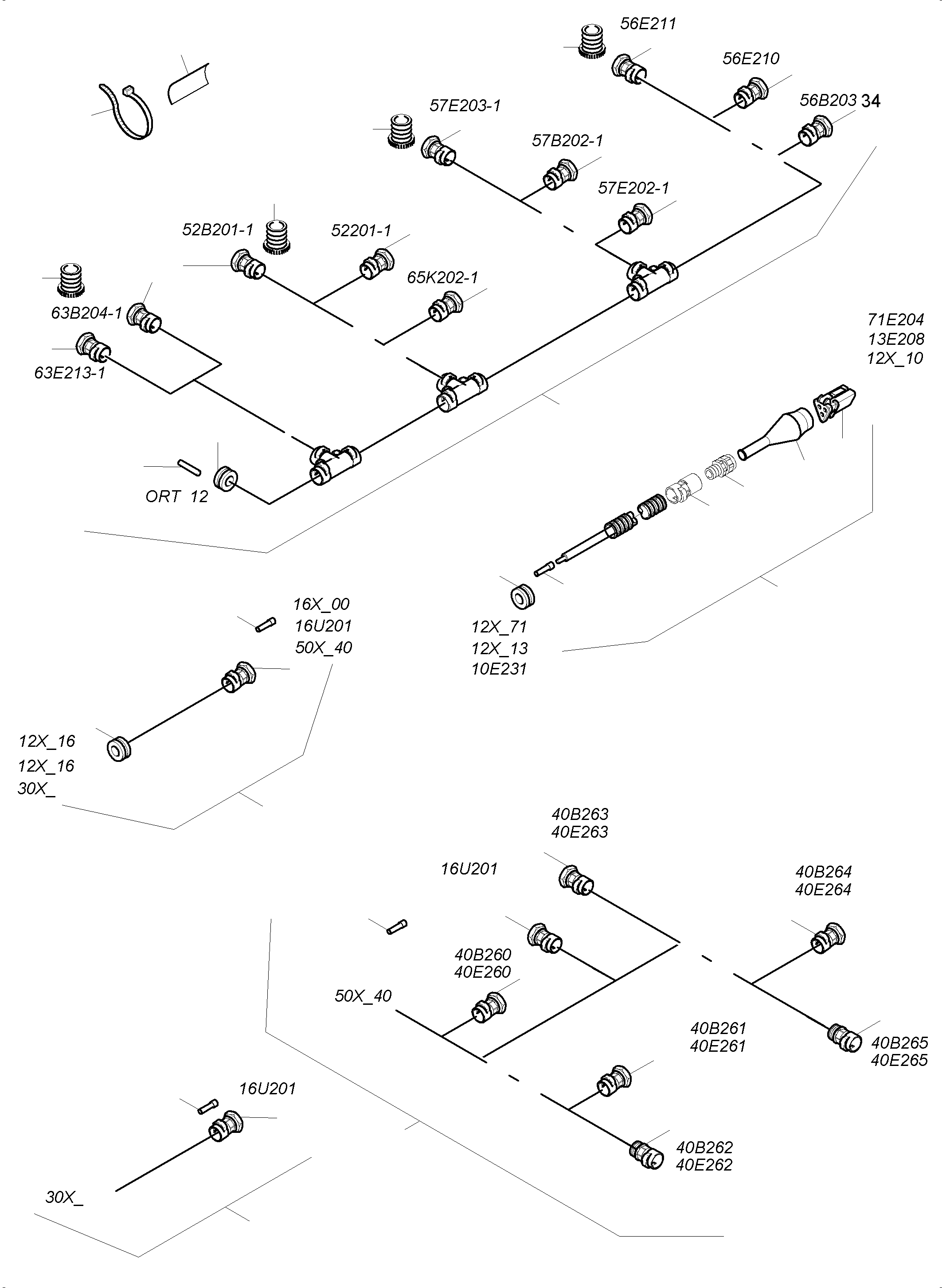

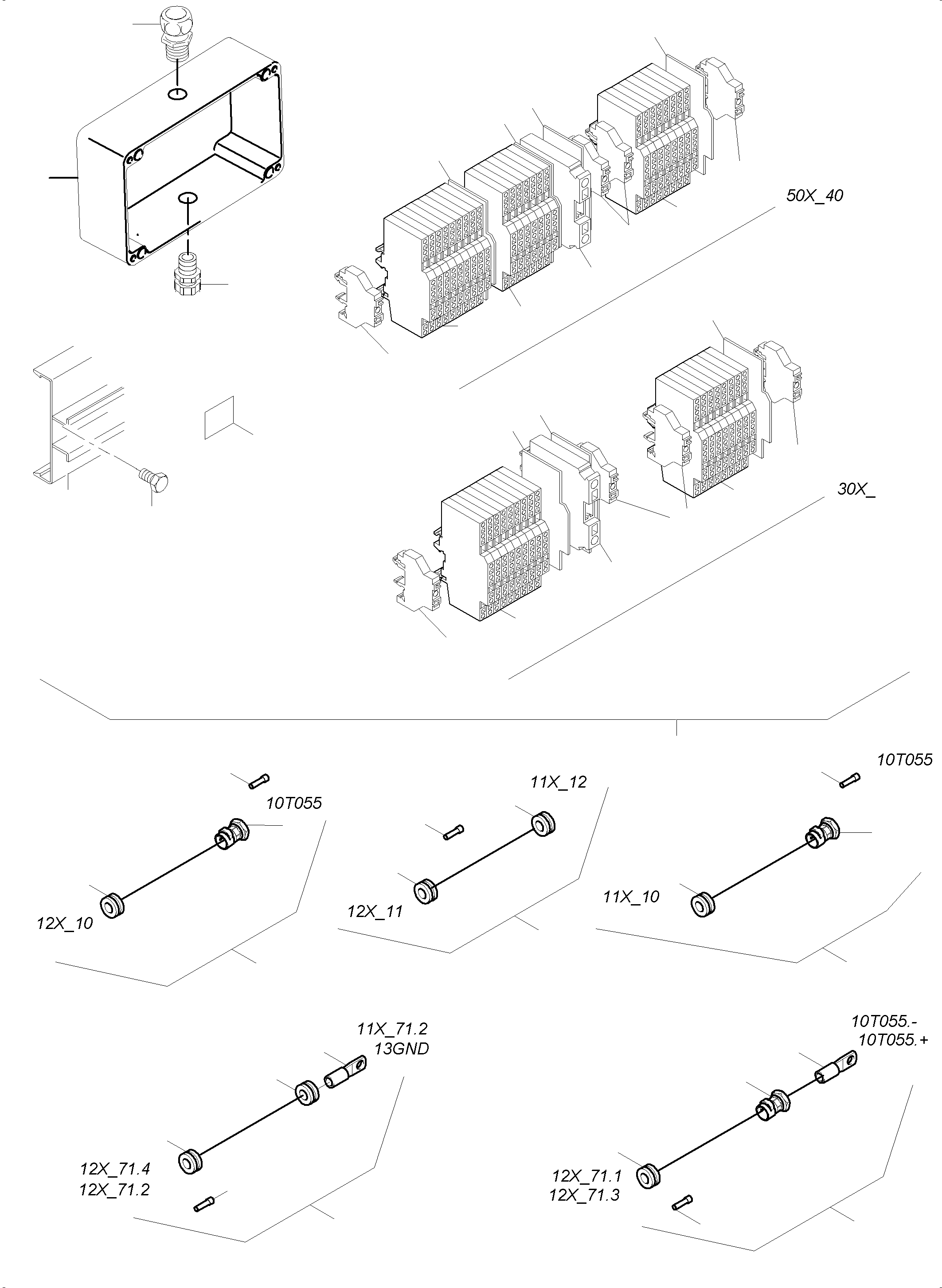

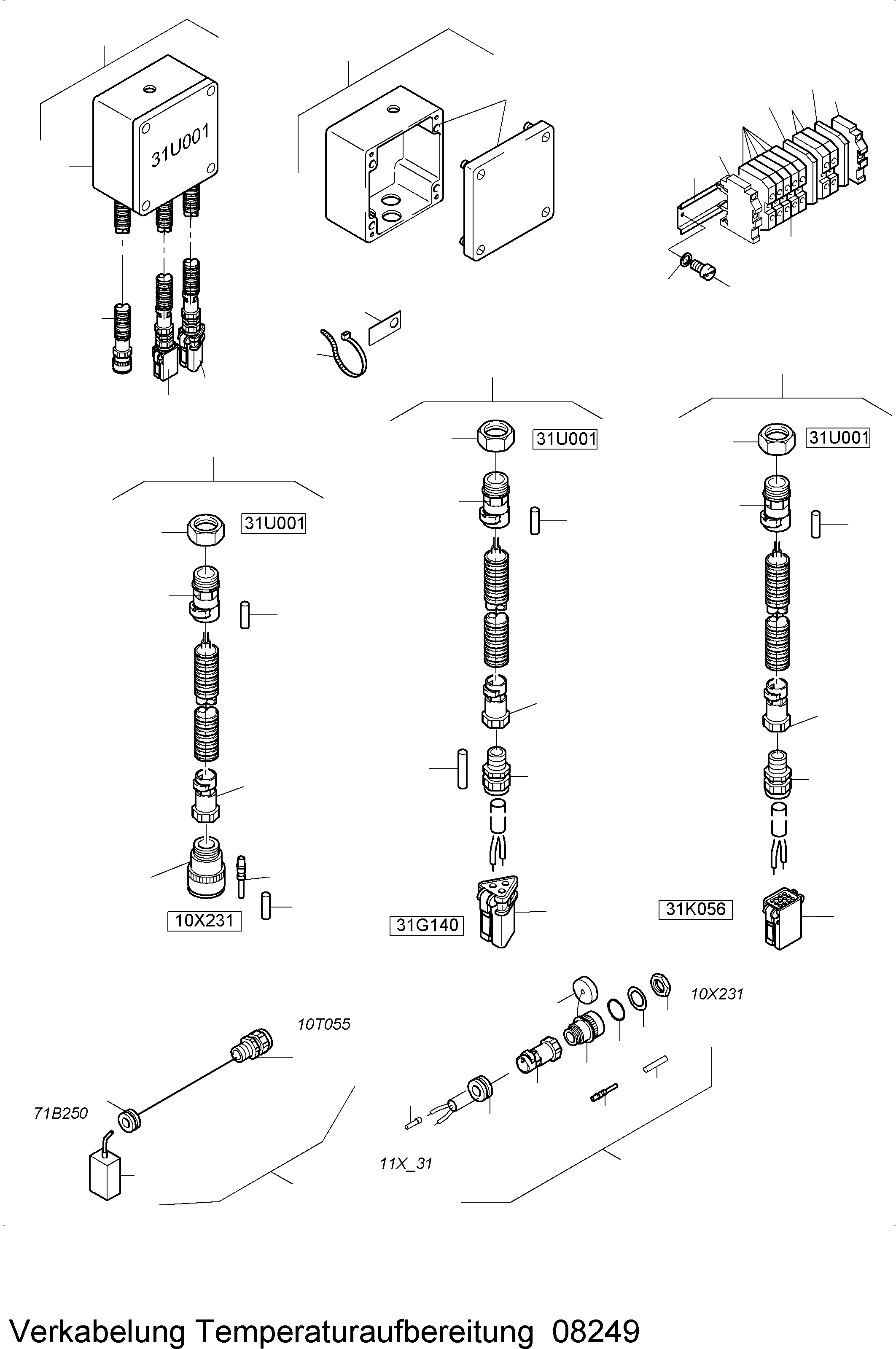

Diagram image 1 of 3

PC4000-6 S/N 58141

01 02 03 04 05 06 07 08 09 30 30 31 31 31 32 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 34 34 34 34 34 34 34 34 34 35 36 37 37 40 41 42 42 43 44 45 46 50 50 50 60 60 60 61 61 70 70 70 70 70 70 80 81

PC4000-6 S/N 58141

10 100 101 102 103 104 104 104 104 11 110 110 111 12 120 121 121 121 122 122 13 130 131 14 140 141 141 15 16 17 18 37 42 42 50 50 60 60 61 61 80 80 81 81 90 91 92 93 93 93 93 93 93 94 94 94 94 95 95 95 95 95 96 97 97 98 98 99

PC4000-6 S/N 58141

110 111 141 150 150 151 151 152 152 153 153 160 161 161 162 162 163 164 170 171 172 173 173 174 174 175 175 176 176 176 180 181 182 183 184 19 190 191 192 20 200 21 210 211 212 213 214 215 31 31 33 35 36 42 60 61 61 91 93 93 99

#	Part Number	Partname	Quantity
01	974 120 40	Harness Temp. Conditioning Motor Oil-PDG	1
02	974 121 40	Harness Temp. Conditioning Baterie-Heater	1
03	974 122 40	Harness Temp. Conditioning Baterie-Heater	1
04	974 123 40	Harness Temp. Conditioning 12X_10-10E231	1
05	974 124 40	Harness Temp. Conditioning 16U201-1	1
06	974 125 40	Harness Temp. Conditioning 16U201-2	1
07	974 126 40	Harness Temp. Hydraulic Tank	1
08	974 127 40	Harness Temp. Conditioning 30X_50-50X_40	1
09	974 128 40	Harness Temp. Conditioning 16U201-30X_50	1
10	974 129 40	Temp. Conditioning Switch Box 50X_40	1
11	974 130 40	Temp. Conditioning Switch Box 30X_50	1
12	974 131 40	Harness Temp. Conditioning 10T055-12X_10	1
13	974 132 40	Harness Temp. Conditioning 10T055.S+/-	1
14	974 133 40	Harness Temp. Conditioning 12X_71-11X_71	1
15	974 134 40	Harness Temp. Conditioning 12X_71-13GND	1
16	974 135 40	Harness Temp. Conditioning 10T055-12X_71.1	1
17	974 136 40	Harness Temp. Conditioning 10T055-12X_71.3	1
18	974 137 40	Harness Temp. Conditioning QV 11X_12-12X_11	1
19	978 368 40	Harness Heater	1
20	974 139 40	Harness	1
21	974 140 40	Harness Temp. Conditioning 11X_31-10X231	1
30	056 072 40	Wire end ferrule	16
31	635 042 40	Wire end ferrule	87
32	950 210 40	End grommed	1
33	907 478 40	Union	18
34	950 795 40	Adapter	11
35	941 777 40	Plate	36
36	174 411 40	Cable strap	72
37	517 322 98	Nut	4
40	907 704 40	Cable Union	2
41	907 692 40	Fitting	2
42	950 208 40	End grommet	8
43	941 880 40	Plug	2
44	0819213400	Wedge	2
45	941 791 40	Rubber grommet	2
46	621 699 40	Bushing contact	6
50	907 640 40	Wire end ferrule	12
60	056 070 40	Wire end ferrule	155
61	907 623 40	Union	7
70	950 796 40	Adapter	6
80	907 479 40	Union	3
81	517 324 98	Nut	3
90	551 925 40	Housing emty OHNE MONTAGEPLATTE	2
91	519 860 98	Assembly rail GELOCHT	-2
92	319 056 99	Screw	4
93	940 673 40	Clamp	10
94	906 612 40	Through clamp 2.5	34
95	906 613 40	Cover plate	6
96	906 630 40	Protective wire clip	7
97	906 792 40	Protective wire clip	2
98	906 772 40	Cover plate	2
99	906 624 40	Marker	3
100	906 625 40	Marker	2
101	906 626 40	Marker	2
102	906 627 40	Marker	2
103	906 628 40	Marker	2
104	906 616 40	Bridge 4-fold	4
110	517 323 98	Nut	5
111	517 328 98	Reducing	2
120	600 208 99	Cable lug	2
121	655 693 40	End grommet	4
122	906 667 40	Wire end ferrule	3
130	932 728 40	Cable lug	2
131	907 690 40	Union	1
140	269 078 40	Wire end ferrule	2
141	950 209 40	End grommet	3
150	986 843 40	Switch box 31U001	1
151	978 369 40	Harness 10x231-31U001	1
152	978 370 40	Harness 31U001-31G140	1
153	978 371 40	Harness 31U001-31K056	1
160	986 842 40	Switch box	1
161	951 754 40	Through clamp 2,5mmІ	7
162	951 753 40	Cover plate	2
163	514 230 98	Bolt	2
164	518 546 98	Washer	2
170	950 133 40	Plug	1
171	950 131 40	Protection cap	1
172	0819105340	Pin Contact	5
173	0819100770	Plug	6
174	907 974 40	Fitting	2
175	056 071 40	Wire end ferrule	10
176	951 260 40	Slide protection	2
180	651 461 40	Junior Timer assy.	1
181	940 471 40	Fitting	1
182	907 703 40	Cable union	1
183	896 520 40	End pin	2
184	940 271 40	Union	1
190	986 863 40	Plug	1
191	907 708 40	Cable union	1
192	940 520 40	Fitting	1
200	907 697 40	Temperature sensor	1
210	950 140 40	Socket	1
211	0819105440	Bushing Contact	5
212	950 129 40	Protection Cap	1
213	0819110808	Nut	1
214	0819110809	Lock washer	1
215	950 897 40	Seal ring	1
