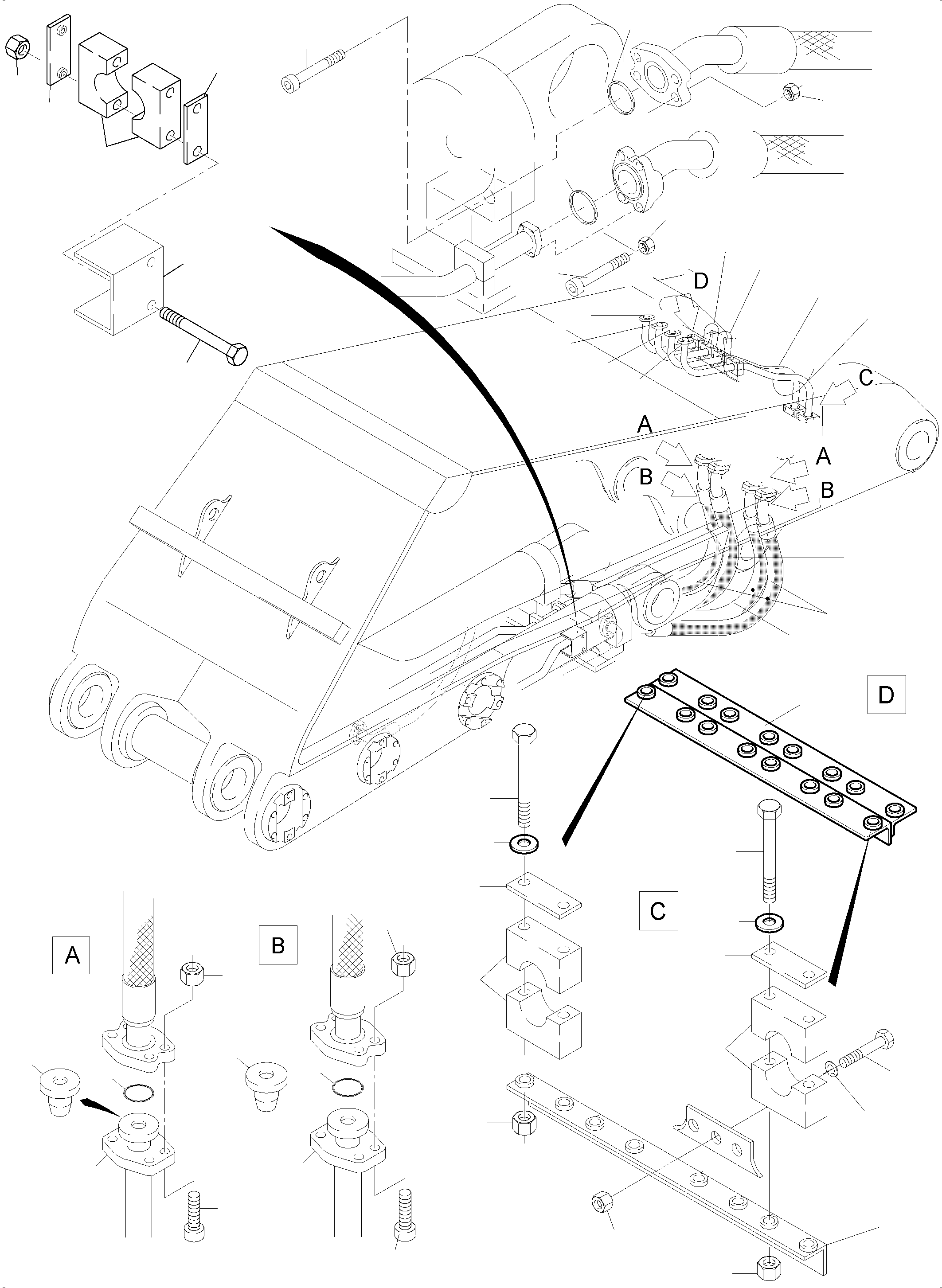

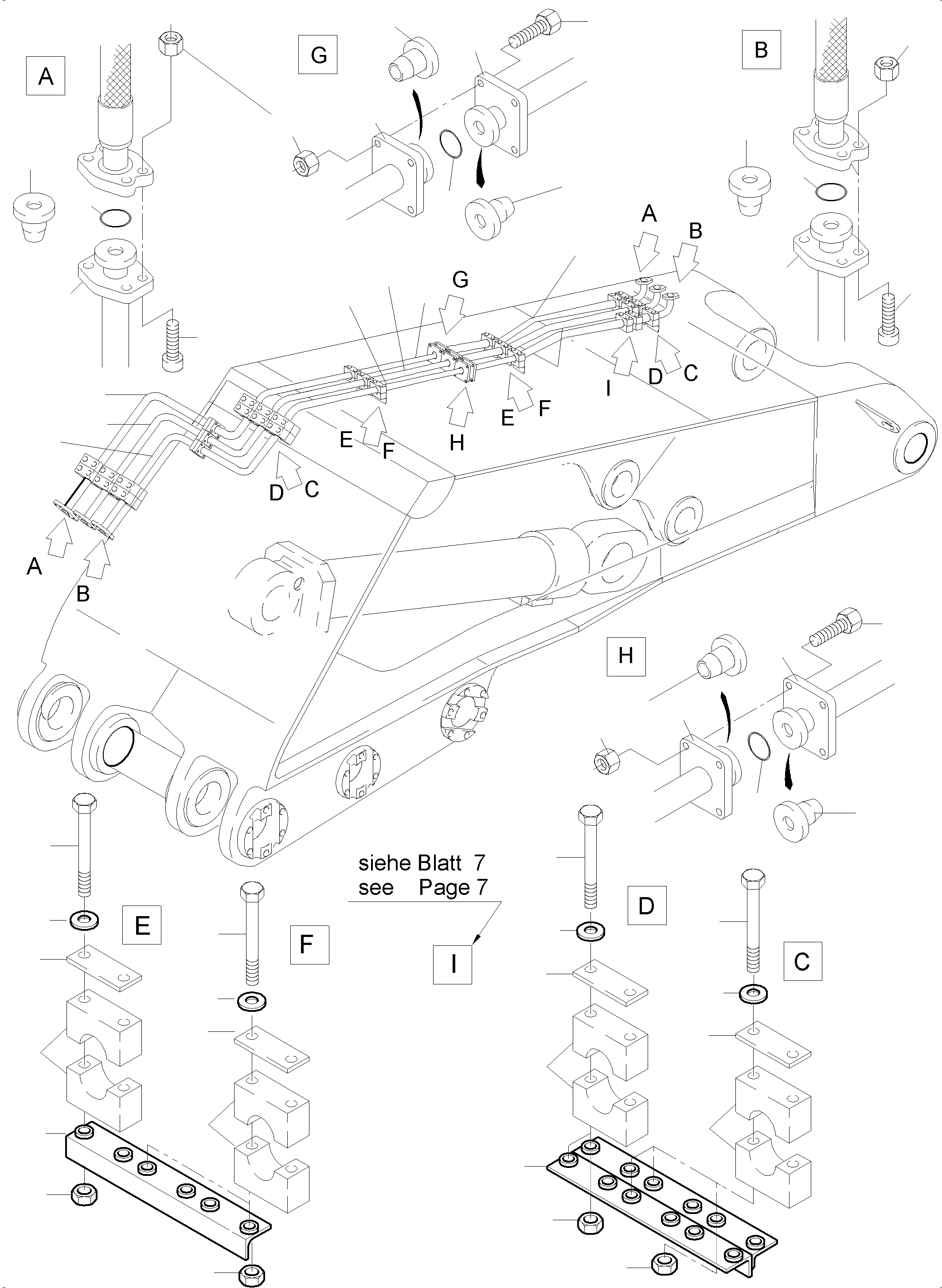

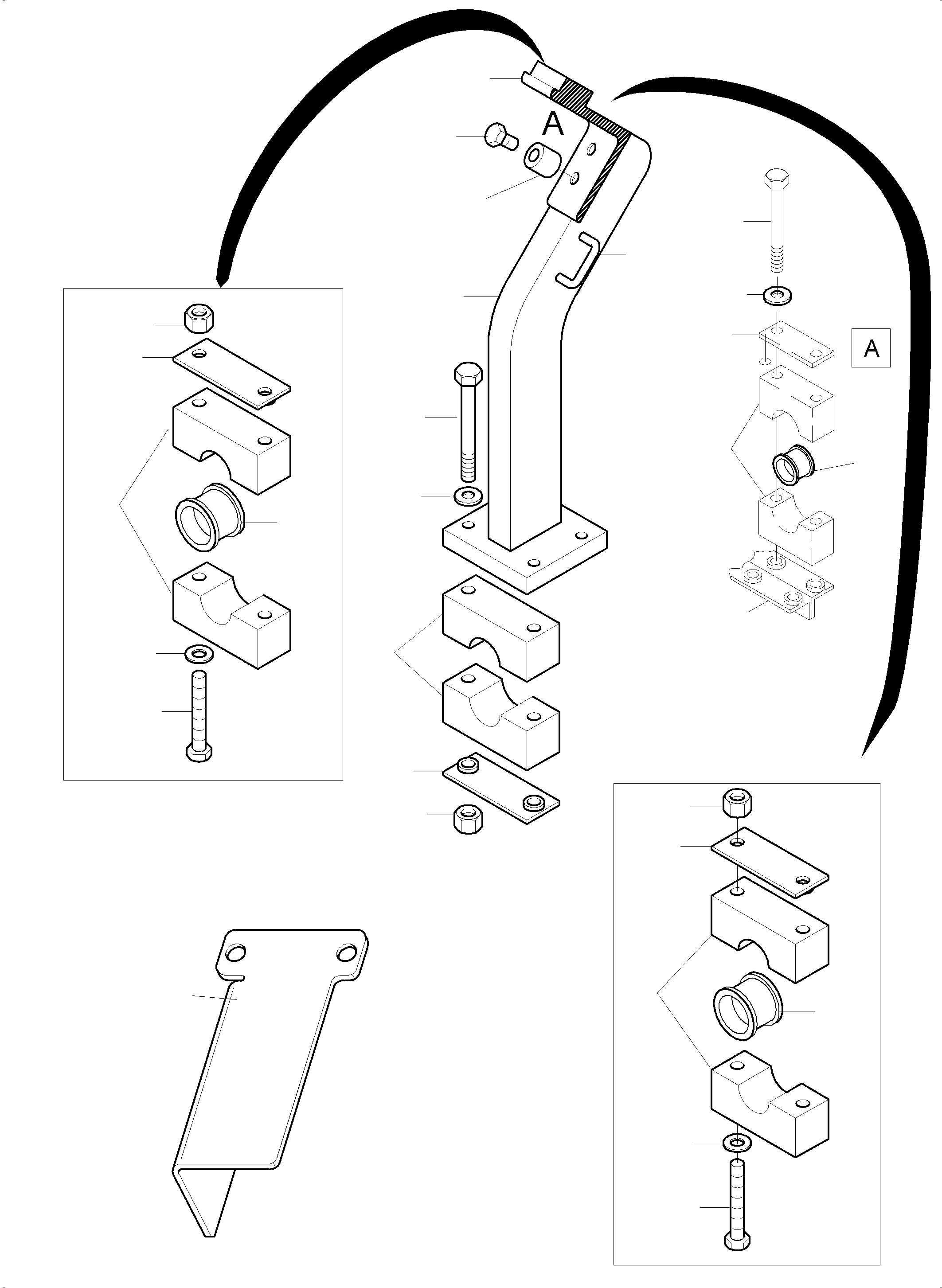

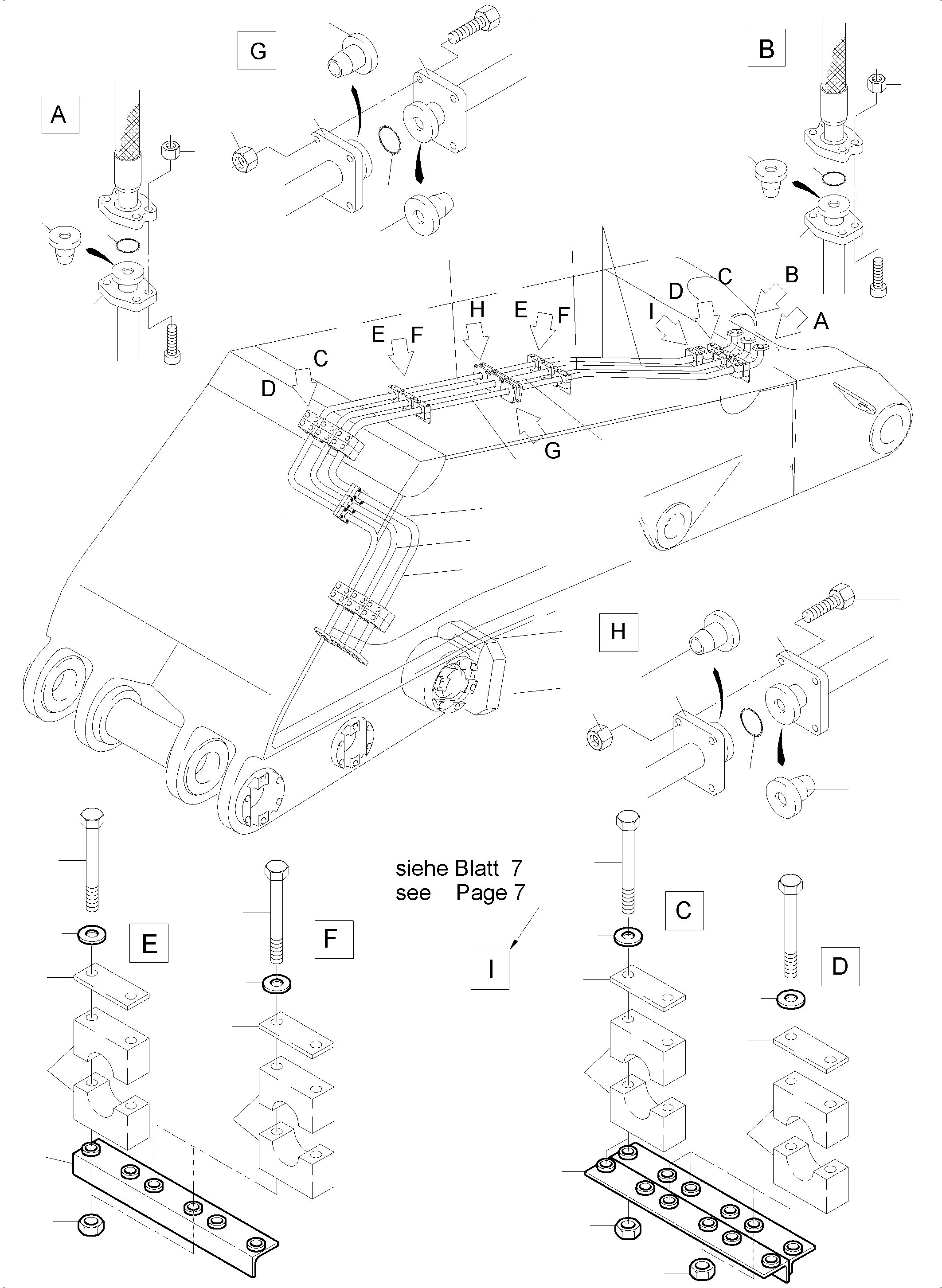

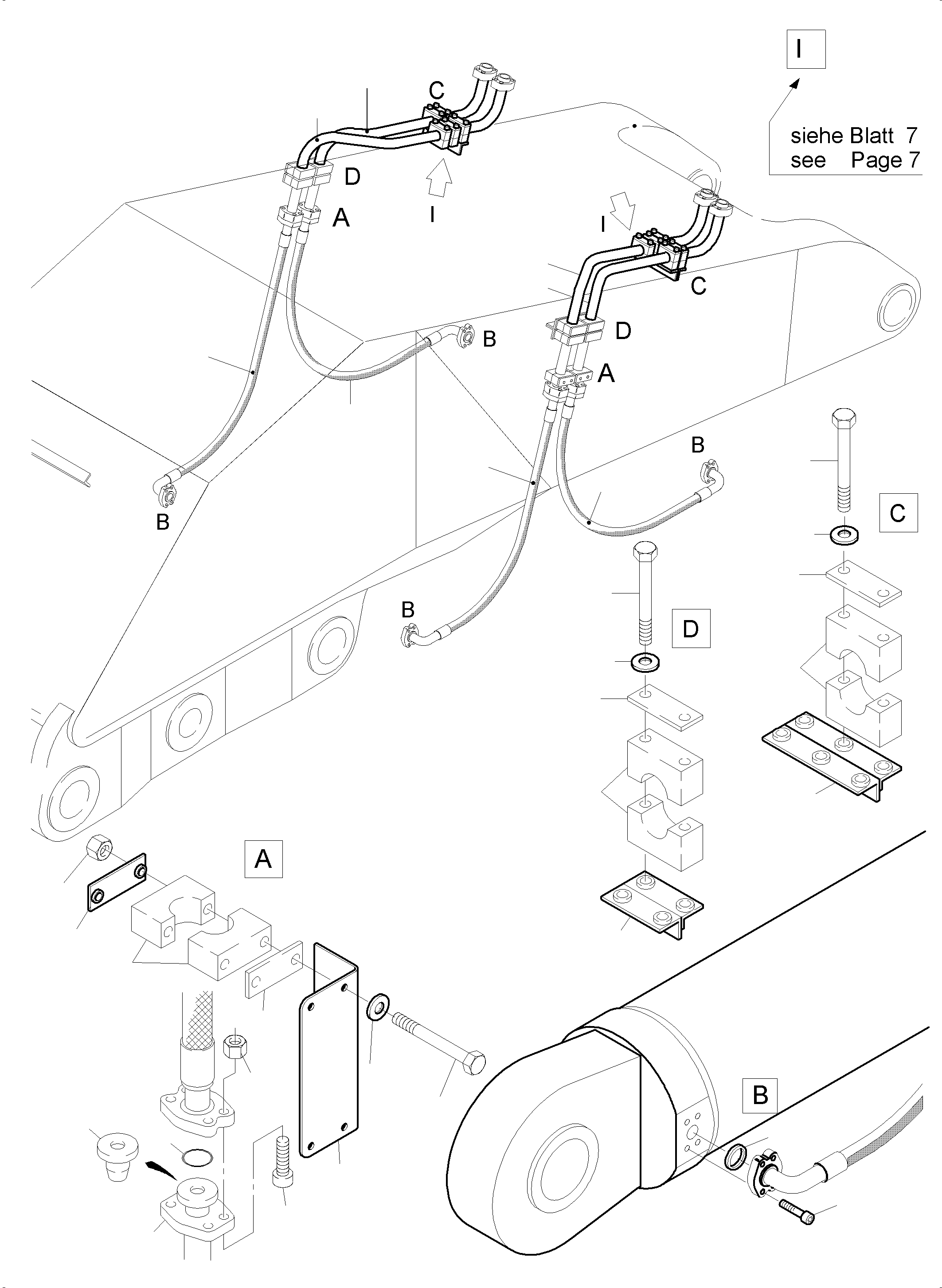

Diagram image 1 of 7

PC4000-6 S/N 58141

110 111 122 123 131 135 136 136 137 137 138 150 151 155 160 161 165 166 166 167 167 168 20 21 22 23 24 24 24 24 26 26 26 26 37 37 38 38 39 41 42 43 43 46 63 85 85 85 85 96 96 96 96

PC4000-6 S/N 58141

110 111 128 129 130 135 136 136 137 137 138 154 156 157 158 159 165 166 166 167 167 168 20 21 22 23 24 24 24 24 26 26 26 37 37 38 38 39 41 42 42 43 43 63 66 85 85 85 85 96 96 96 96

PC4000-6 S/N 58141

115 124 124 125 125 135 137 152 152 153 153 165 167 17 20 22 24 24 24 26 26 26 37 37 38 38 38 39 40 41 41 42 43 43 43 47 47 49 71 85 85 88 91 93 94 96 96 96

PC4000-6 S/N 58141

104 105 106 106 107 107 108 108 116 116 135 137 165 167 20 22 24 24 26 26 37 38 39 41 42 43 44 48 85 85

PC4000-6 S/N 58141

01 02 03 04 05 05 06 07 08 09 10 103 11 12 13 14 15 16 16 17 17 17 18 18 19 19

PC4000-6 S/N 58141

112 113 114 120 121 126 127 135 137 20 20 22 24 24 24 26 37 37 39 40 42 45 45 46 46 85 85 85 92 93 96 96 96

PC4000-6 S/N 58141

100 101 110 17 20 22 24 26 26 43 73 74 75 76 77 78 79 81 82 83 84 85 85 86 87 89 90 93 95 96 97 98 99

#	Part Number	Partname	Quantity
01	977 906 40	Boom weldment	1
02	959 750 40	Pin (Standard)	2
02	959 752 40	Pin (Low Temperature)	2
03	900 654 40	Pin (Standard)	2
03	913 602 40	Pin (Low Temperature)	2
04	900 655 40	Pin (Standard)	2
04	913 603 40	Pin (Low Temperature)	2
05	970 616 40	Flanged bush	4
06	969 054 40	Bushing	2
07	973 861 40	Axle stirrup	4
08	900 657 40	Axle stirrup	4
09	872 463 40	Axle stirrup	4
10	890 988 40	Cover	2
11	900 658 40	Cover	2
12	900 659 40	Cover	2
13	959 751 40	Ring	2
14	900 660 40	Ring	2
15	900 661 40	Ring	2
16	307 829 99	Bolt	20
17	517 123 98	Washer	67
18	907 024 40	Seal ring	4
19	907 020 40	Seal ring	4
20	504 445 98	Clamp set	36
21	504 446 98	Clamp set	4
22	502 976 98	Clamp set	32
23	502 977 98	Clamp set	8
24	534 008 99	Cover plate	81
26	332 353 99	Nut	178
37	07000-B2060	Flange seal	14
38	07000-B3048	Flange seal	20
39	319 313 99	Bolt	72
40	319 305 99	Bolt	24
41	319 292 99	Bolt	80
42	504 662 98	Nut	88
43	332 355 99	Nut	131
44	519 056 98	Hose assy. DN 50x2100	2
45	07084-D2030	Hose assy. DN 50x3000	2
46	2A2-62-15130	Hose assy. DN 50x2450	2
47	07085-D2026	Hose assy. DN 50x2600	2
48	512 485 98	Hose assy. DN 40x2100	4
49	07085-D1426	Hose assy. DN 40x2600	2
63	502 538 98	Bolt	16
66	308 423 99	Bolt	32
71	952 787 40	Angle	1
73	937 609 40	Retainer	4
74	937 611 40	Angle	1
75	937 613 40	Handle	1
76	502 371 98	Clamp set	6
77	505 729 98	Grommet	6
78	509 064 98	Clamp set	8
79	505 212 98	Grommet	8
81	500 398 98	Cover plate	8
82	505 010 98	Bolt	12
83	308 617 99	Bolt	10
84	308 853 99	Bolt	8
85	517 118 98	Washer	364
86	308 421 99	Bolt	4
87	304 322 99	Bolt	2
88	307 826 99	Bolt	3
89	510 741 98	Resilient sleeve	8
90	982 631 40	Protection plate	3
91	935 549 40	Protection plate	1
92	935 546 40	Protection plate	2
93	534 009 99	Weld on plate	7
94	502 658 98	Clamp set	1
95	982 630 40	Protection plate	1
96	519 066 99	Bolt	146
97	502 618 98	Clamp set	1
98	504 926 98	Grommet	1
99	534 004 99	Cover plate	1
100	308 581 99	Bolt	2
101	500 801 98	Washer	2
103	307 830 99	Bolt	12
104	978 722 40	Retainer	1
105	978 723 40	Retainer	1
106	308 003 99	Bolt	8
107	517 124 98	Lock washer	8
108	308 616 99	Bolt	28
110	952 731 40	Angle	4
111	890 939 40	Angle	4
112	909 203 40	Angle r.h.	1
113	911 138 40	Angle	4
114	909 202 40	Angle l.h.	1
115	653 125 40	Angle	1
116	971 997 40	Plate	2
120	978 771 40	Pipe assy. ш 65	1
121	978 772 40	Pipe assy. ш 65	1
122	961 687 40	Pipe assy. ш 65	1
123	978 773 40	Pipe assy. ш 65	1
124	978 774 40	Pipe assy. ш 65	1
125	978 775 40	Pipe assy. ш 65	1
126	978 776 40	Pipe assy. ш 65	1
127	978 777 40	Pipe assy. ш 65	1
128	978 781 40	Pipe assy. ш 65	1
129	967 207 40	Pipe assy. ш 65	1
130	961 686 40	Pipe assy. ш 65	1
131	967 218 40	Pipe assy. ш 65	1
135	504 448 98	Flange	16
136	504 898 98	Flange	4
137	504 449 98	Collar ring	18
138	504 461 98	Collar ring	2
150	961 689 40	Pipe assy. ш 50	1
151	978 778 40	Pipe assy. ш 50	2
152	978 779 40	Pipe assy. ш 50	1
153	978 780 40	Pipe assy. ш 50	1
154	978 782 40	Pipe assy. ш 50	2
155	961 691 40	Pipe assy. ш 50	1
156	961 690 40	Pipe assy. ш 50	1
157	961 688 40	Pipe assy. ш 50	1
158	967 209 40	Pipe assy. ш 50	1
159	967 211 40	Pipe assy. ш 50	1
160	967 217 40	Pipe assy. ш 50	1
161	967 216 40	Pipe assy. ш 50	1
165	500 127 98	Flange	12
166	501 673 98	Flange	8
167	500 203 98	Collar ring	16
168	501 898 98	Collar ring	12

Komatsu PC4000-6 S/N 58141 parts catalog PDF

BULLCLAM BUCKET BOOM 7,15 M (358-4000a) in PC4000-6 S/N 58141. Diagram image and parts list.
