Diagram image 1 of 4

PC4000-6 S/N 58141

01 11 11 183 31 32 32 33 33 33 33 34 34 35 36 36 37 38 38 39 39 40 40 42 43 44 45 46 47 49 98 99

PC4000-6 S/N 58141

11 18 19 192 20 22 23 24 25 26 27 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 75 76 77 78 79

PC4000-6 S/N 58141

100 102 103 104 105 106 107 108 110 111 112 113 114 115 116 117 119 120 121 122 122 122 123 124 125 126 128 129 129 129 129 130 131 132 134 135 136 137 138 138 139 140 141 147 148 149 179 182 184 185 186 191 48

PC4000-6 S/N 58141

150 151 152 153 154 155 156 157 158 158 159 159 160 160 161 162 163 164 165 166 167 168 169 170 171 172 176 177 178 180 181 187 188 189 190

#	Part Number	Partname	Quantity
01	967 850 40	Hydraulic pump assy.	1
01	974 909 40	Hydraulic pump assy. adjusted for a working altitude of 4600m	1
01	973 602 40	Hydraulic pump assy. adjusted for a working altitude of 4800m	1
11	319 248 99	Bolt	8
18	767 063 73	Piston	1
19	767 064 73	ring	1
20	767 065 73	Support ring	1
22	767 067 73	O-ring	1
23	767 068 73	Spring housing	1
24	767 069 73	Spring plate	1
25	767 070 73	Spring	1
26	767 071 73	Spring	1
27		Adjustment	1
31	763 523 73	Pilot valve assy	1
32	767 936 73	Nut	2
33	768 978 73	O-ring	4
34	767 935 73	Nut	2
35	767 934 73	Treaded pin	1
36	319 337 99	Bolt	8
37	768 979 73	Piston housing	1
38	255 171 40	Bolt	5
39	767 092 73	O-ring	2
40	514 917 98	O-ring	2
42		Set piston	1
43	766 693 73	Bushing	1
44	767 085 73	Guide shoe	1
45	767 938 73	Spring	1
46	767 937 73	Threaded pin	1
47	768 980 73	Piston housing	1
48	173 493 40	Bolt	1
49	763 522 73	Pilot valve assy	1
50	766 694 73	Valve assy.	1
51	766 695 73	Valve housing	1
52	255 985 40	Plug	3
53	173 493 40	Plug	2
54	767 092 73	O-ring	4
55	767 093 73	O-ring	1
56	319 265 99	Bolt	2
57	767 094 73	Breaking plug	2
58	765 466 73	Breaking plug	3
59	794 402 73	Breaking plug	3
60	319 259 99	Bolt	2
61	796 778 73	Non-return valve	1
62	767 344 73	Gasket to fig no 61	1
63	345 040 99	Dowel sleeve	1
64	766 697 73	Non return valve mounting kit	1
65	767 106 73	O-ring	1
66	509 633 98	Threaded pin	1
67	363 539 99	Ball	1
68	363 424 99	Ball	2
69	767 098 73	Eccentric stud	1
70	756 820 73	Needle cage	2
71	767 099 73	Lever	1
72	767 100 73	Parallel pin	1
73	767 101 73	Sleeve	1
74		Bolt	1
75	767 103 73	Union	2
76	795 120 73	Pipe Ш 8	-2
77	767 104 73	Union	1
78	767 105 73	Plug	1
79	799 432 73	Pipe assy. (incl. Item 75-78)	1
98	514 919 98	O-ring	1
99		Rod seal	1
100	766 698 73	Indicator assy	1
102	319 417 99	Bolt	1
103	766 699 73	Pointer	1
104	766 700 73	Seal	1
105		Scale	1
106	766 701 73	Threaded pin	1
107	767 120 73	O-ring	1
108	767 121 73	Quad-ring	1
110	766 702 73	Pivot	1
111	767 124 73	Joint part	1
112	345 370 99	Dowel sleeve	1
113	964 736	Breaking plug	1
114	767 901 73	Plug	1
115	767 902 73	Plug	1
116	767 904 73	Cover	1
117	319 140 99	Bolt	3
119	767 900 73	Plug	1
120	767 125 73	Pilot valve	1
\|$$82	767 160 73	Seal kit	1
121	766 703 73	Pump housing (not available)	1
122	173 493 40	Plug	5
123	767 128 73	Plug	3
124	767 129 73	Thread pin assy.	1
125	797 891 73	O-ring	1
126		Power unit	1
128	763 178 73	O-ring	3
129	255 171 40	Plug	3
130		Dummy flange assy.	1
131		Housing	1
132	319 340 99	Bolt	8
134	514 916 98	O-ring	1
135	767 897 73	Cover assy.	1
136	319 185 99	Bolt	4
137		Cover	1
138	767 094 73	Plug	4
139	767 892 73	Reducing union	1
140	767 893 73	Seal	1
141		Plug	1
147	767 923 73	Feather key	1
148	342 555 99	Ring	2
149	767 922 73	Idler	1
150		Ring	1
151	768 981 73	Sealing flange	1
152	798 456 73	Ring	1
153	000 224 98	O-ring	1
154		Drive shaft	1
155	768 982 73	Supporting disc	1
156	767 924 73	Bearing	1
157	342 569 99	Ring	1
158	767 920 73	Shim washer	2
159	767 921 73	Shim washer	2
160	767 927 73	Bolt	2
161	767 912 73	Sliding block	1
162	767 911 73	Pivot	1
163	342 532 99	Ring	1
164	767 919 73	Slider	1
165	767 910 73	Balancer	1
166	767 916 73	Segment	4
167		Piston / guide shoe	9
168		Plate	1
169	767 915 73	Spacer block	4
170	319 424 99	Bolt	8
171	766 708 73	Ball	1
172	767 926 73	Spring	20
176	319 429 99	Bolt	6
177		Cylinder with bushing	1
178	767 908 73	Distribution plate	1
179	766 710 73	Throttle screw	1
180	767 925 73	Bearing	1
181	767 918 73	Bushing	2
182	767 410 73	O-ring	1
183	768 984 73	Adjustment assy.	1
184		Bolt	4
185	767 409 73	O-ring	1
186		Dummy flange	1
187	766 713 73	Sealing bush	1
188	766 714 73	Wheel	1
189	766 717 73	O-ring	1
190	342 676 99	Circlip	1
191	767 929 73	Thread pin	1
192	318 914 99	Screw	4
\|$$145	797 811 73	Seal kit pump	1
\|$$146	797 812 73	Seal kit pump control	1
\|$$147	796 779 73	Seal kit, pilot valve	1
\|$$148	798 759 73	Seal kit ,pilot valve to fig. 120	1

Komatsu PC4000-6 S/N 58141 parts catalog PDF

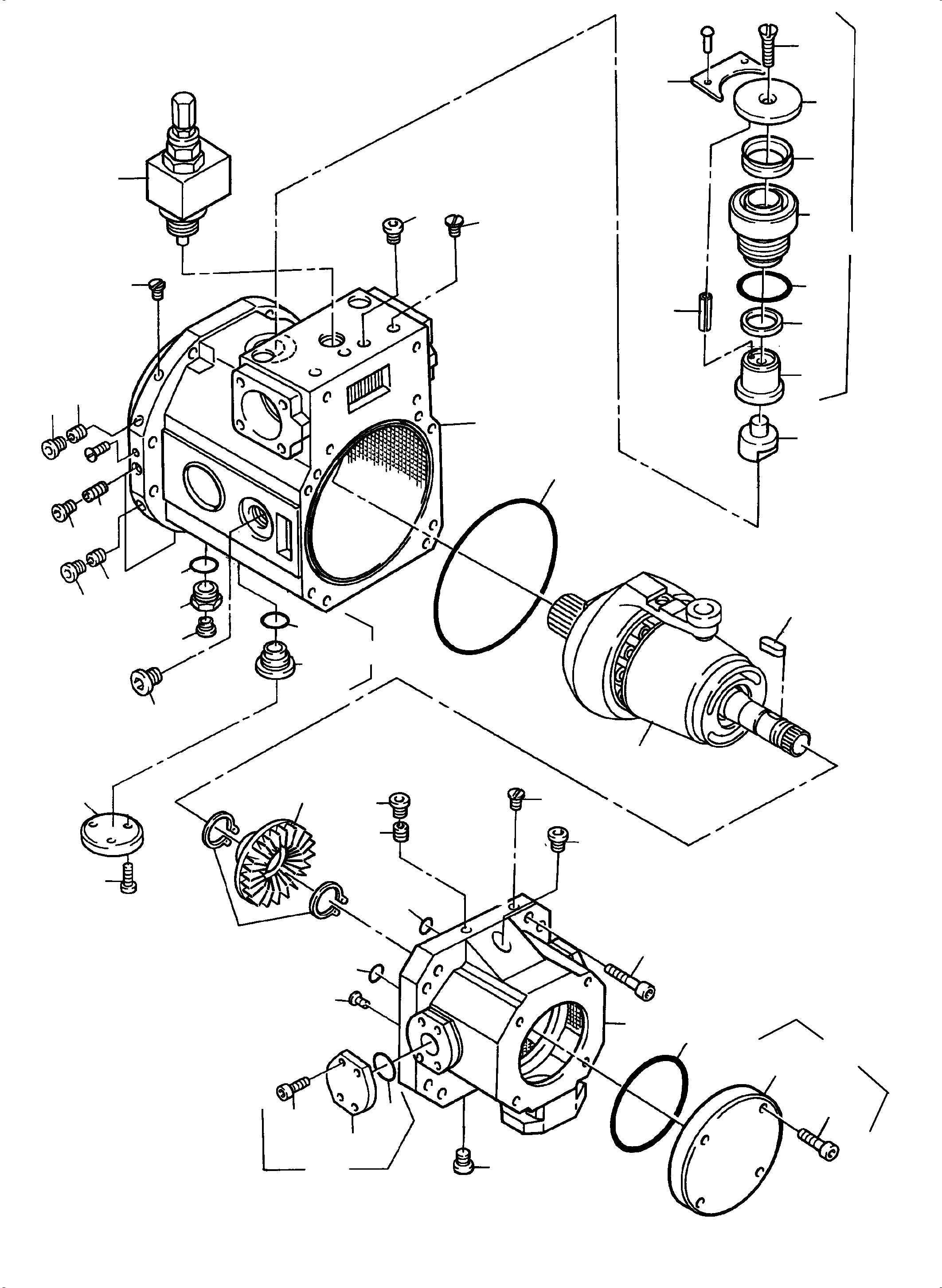

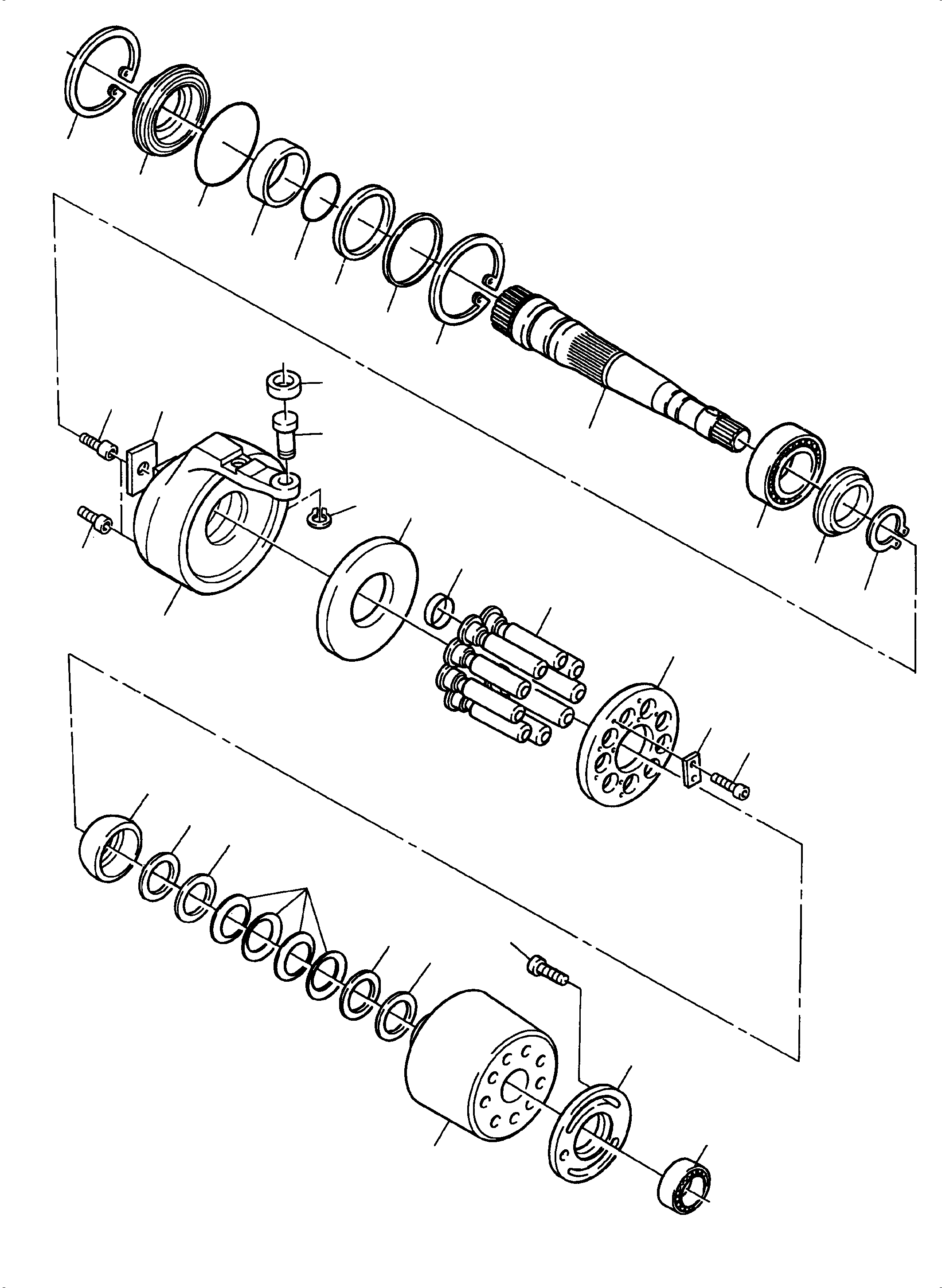

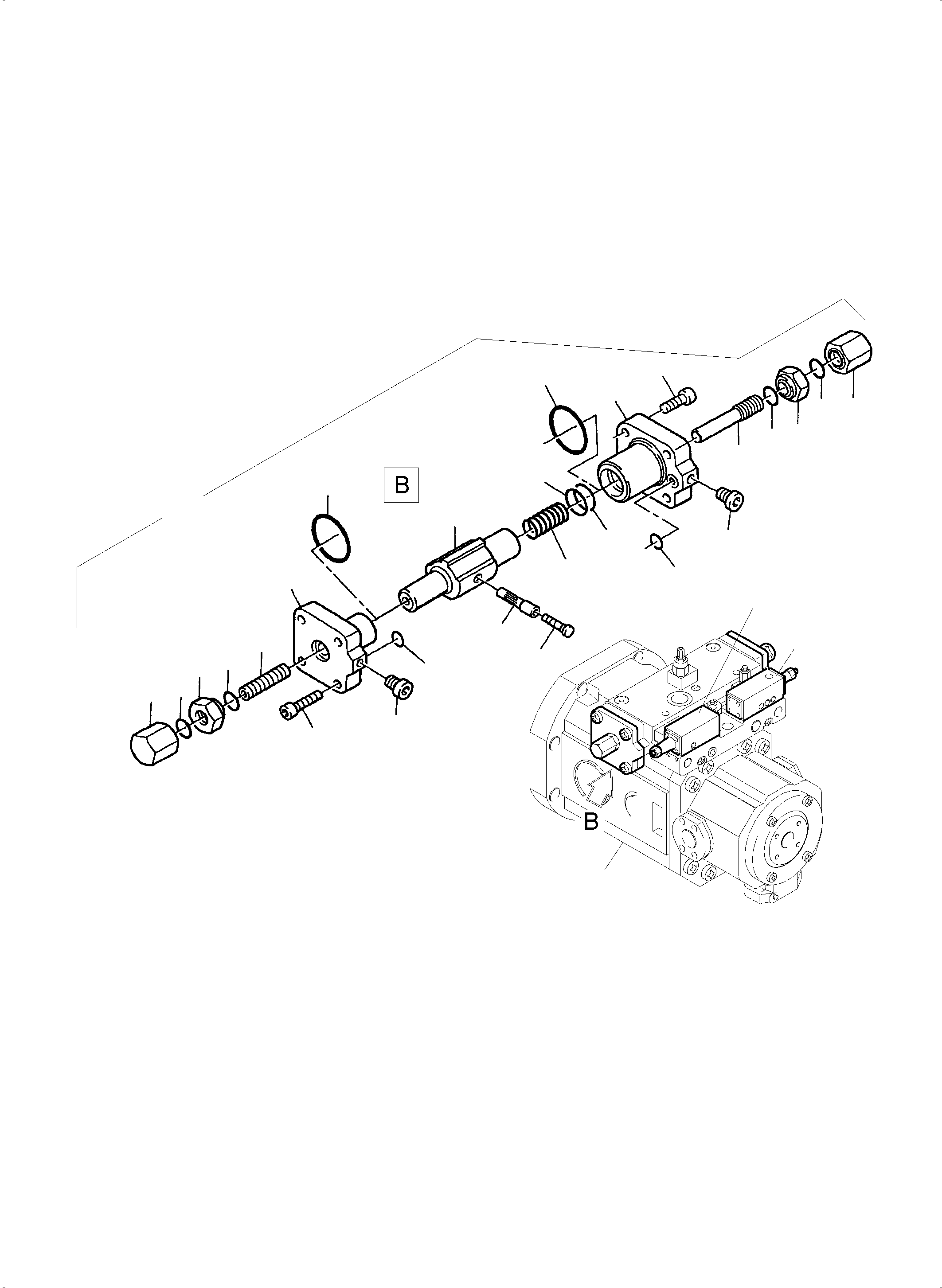

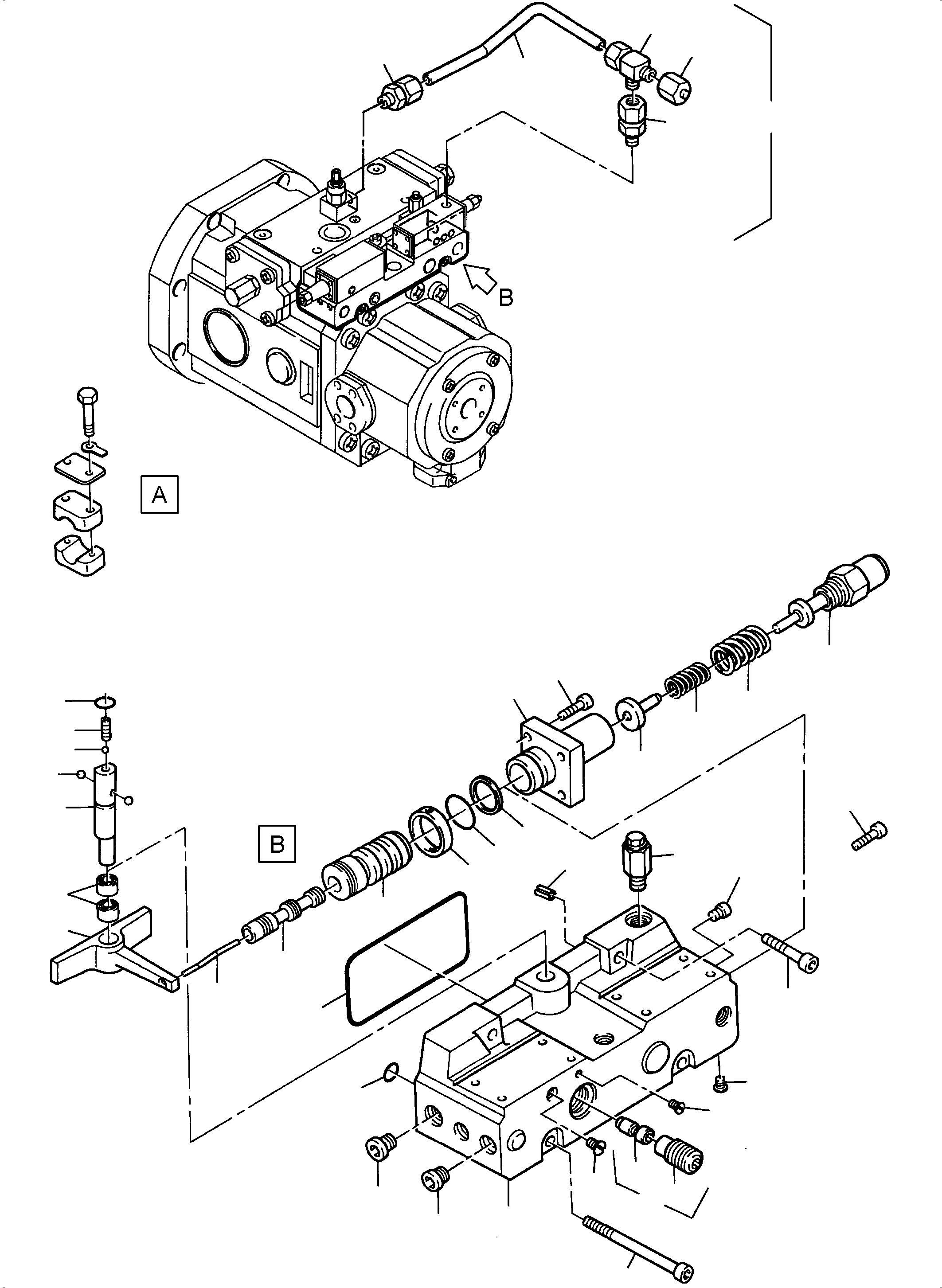

VARIABLE DISPLACEMENT PUMP (991-1153) in PC4000-6 S/N 58141. Diagram image and parts list.
