H455-SD S/N 15009

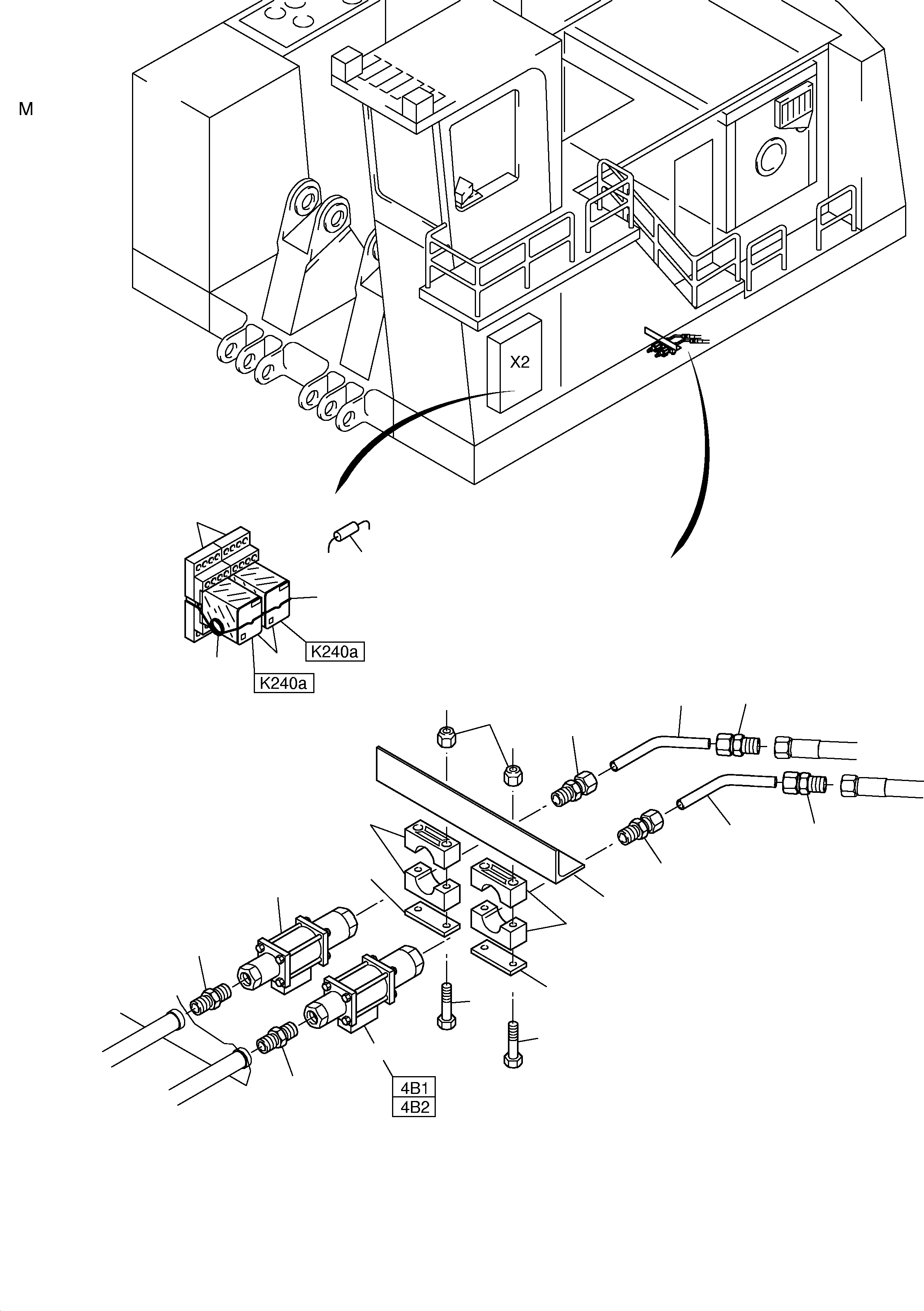

Komatsu parts book diagram for H455-SD S/N 15009: FUEL LOCK-UP VALVE

01 01 02 02 03 03 04 04 05 06 06 07 07 08 08 09 10 10 11 12 13 13 14

	#	Part Number	Partname	Quantity	Options	Reference
	01	374 439 99	Socket	2	InternBDB: L 28 A-G 1 /3901 \| InternKon: 890 021 40 / 2
	02	372 453 99	Union	2	InternBDB: DL 28 /2353 \| InternKon: 890 021 40 / 3
	03	372 405 99	Union	2	InternBDB: EL 28 /2353 \| InternKon: 890 021 40 / 4
	04	890 019 40	Pipe assy. Ш 28	2	InternKon: 890 021 40 / 5
	05	890 020 40	Angle	1	InternKon: 890 021 40 / 6
	06	500 345 98	Half clamp	4	InternBDB: S-4-R-42 /3015 \| InternKon: 890 021 40 / 7
	07	534 008 99	Cover plate	2	InternBDB: S-DP-A-4 /3015 \| InternKon: 890 021 40 / 8
	08	308 614 99	Bolt	4	InternBDB: M12x120 /931 \| InternKon: 890 021 40 / 9
	09	334 600 99	Nut	4	InternBDB: M 12 /985 \| InternKon: 890 021 40 / 10
	10	449 186 40	2/2-Way co-axial valve	2	InternKon: 480 716 40 / 1
	11	356 184 40	Relay	2	InternKon: 480 716 40 / 2
	12	323 910 40	Socket	2	InternKon: 480 716 40 / 3
	13	323 911 40	Spring retainer	2	InternKon: 480 716 40 / 4
	14	604 187 40	Diode	2	InternBDB: Bьrklin BYW 56 20 S 1434 \| InternKon: 480 716 40 / 5

Komatsu H455-SD S/N 15009 parts catalog PDF

FUEL LOCK-UP VALVE (515-2015) in H455-SD S/N 15009. Diagram image and parts list.
