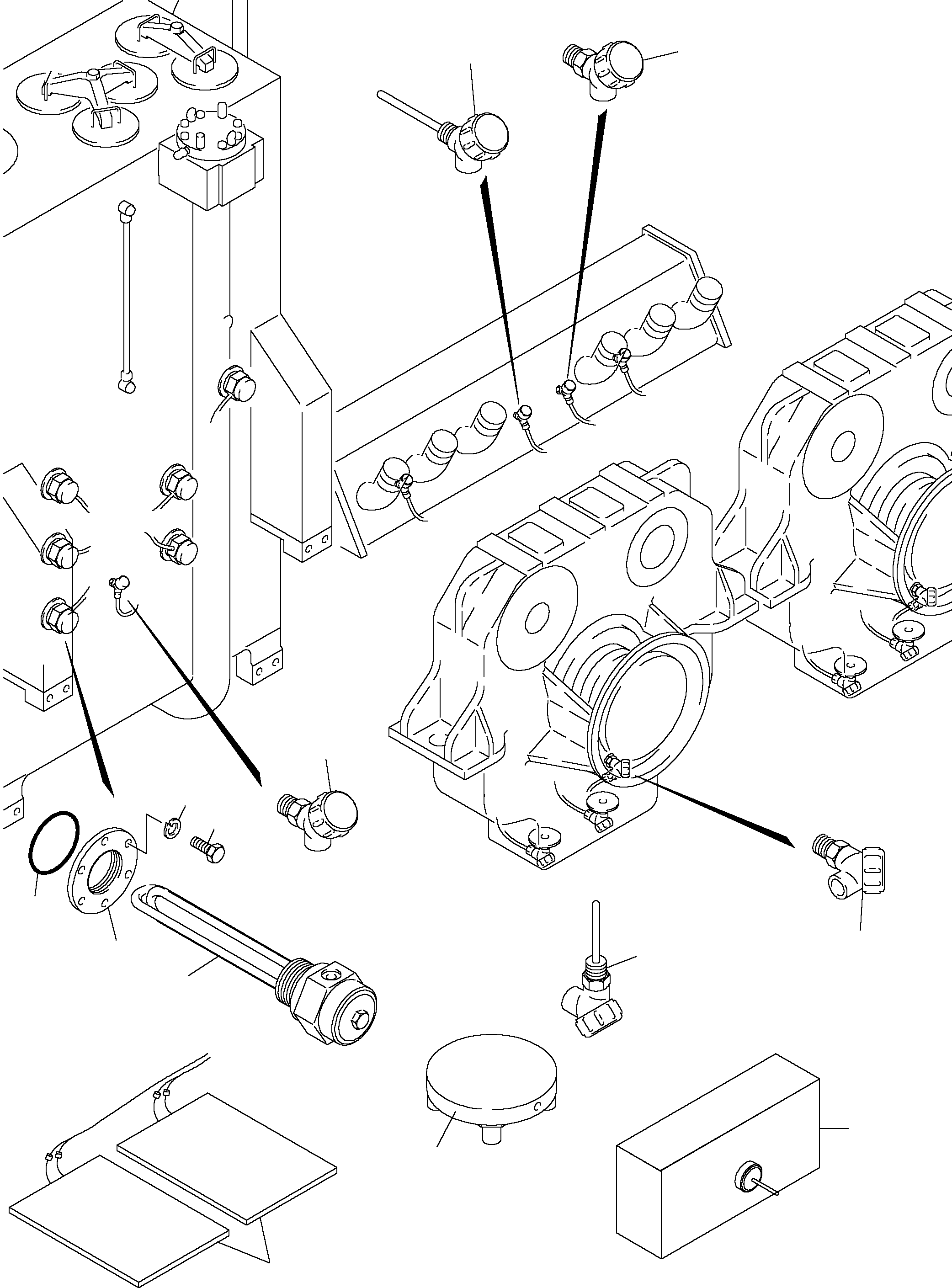

Diagram image 1 of 2

H455-SD S/N 15009

01 02 03 04 04 04 05 08 09 26 27 28 29

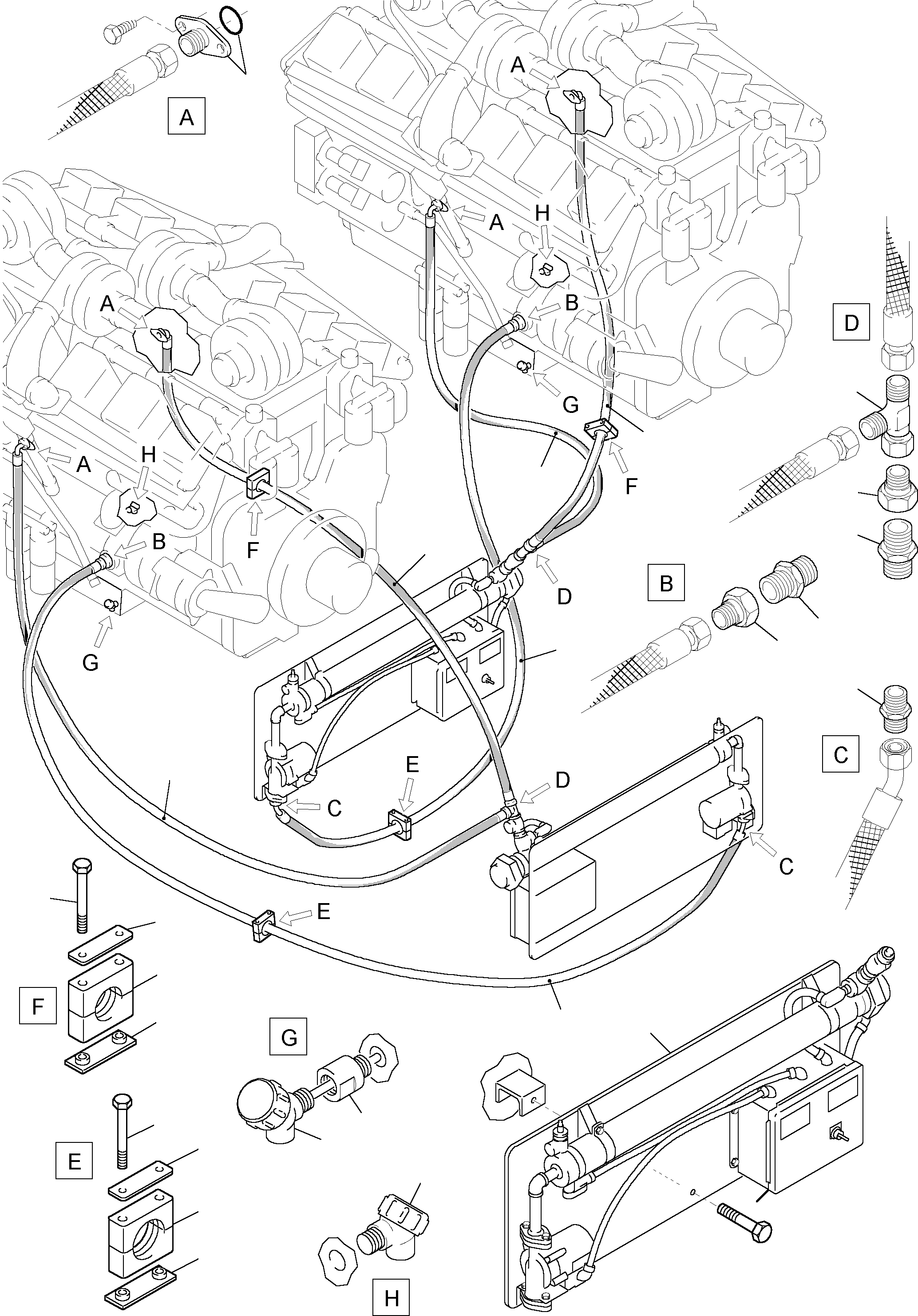

H455-SD S/N 15009

01 04 06 07 10 11 12 13 13 14 15 16 16 17 18 19 20 21 21 22 22 23 24 25 25

#	Part Number	Partname	Quantity	Options	Reference
01	906 370 40	Immersion heater	5	InternBDB: OE 650 100-000 /500W \| InternKon: 873 579 40 / 3
02	490 597 40	Immersion heater	6	InternBDB: OL 3P 182 0208-46-EP \| InternKon: 873 579 40 / 6
03	906 371 40	Immersion heater	4	InternBDB: OE 430 100-000 /300W \| InternKon: 873 579 40 / 7
04	257 965 40	Thermostat	6	InternBDB: ALS 68 EP \| InternKon: 873 580 40 / 4
05	251 816 40	Flange	6	InternKon: 873 580 40 / 9
06	621 579 40	Adapter	2	InternKon: 873 580 40 / 10
07		Coolant preheating arr.	2	InternBDB: 636 618 40 \| InternKon: 873 579 40 / 1	090-0689a2
08	461 696 40	Battery heating plate set	2	InternBDB: E4KB 7515 \| InternKon: 873 579 40 / 2
09	635 825 40	Floor heater	2	InternBDB: BDR 45-SO mit PT 100 Will u. Hahnstein \| InternKon: 873 579 40 / 8
10	515 025 40	Flange with seal	4	InternBDB: Cummi 317 8301 \| InternKon: 873 580 40 / 12
11	372 478 99	Union	2	InternBDB: GE 35-PL /1 1/4 NPT \| InternKon: 873 580 40 / 13
12	372 925 99	Union	2	InternBDB: KOR 35/28-PL \| InternKon: 873 580 40 / 14
13	372 477 99	Union	4	InternBDB: GE 28-PL /1 NPT \| InternKon: 873 580 40 / 15
14	372 917 99	Union	2	InternBDB: KOR 28/22-PL \| InternKon: 873 580 40 / 16
15	371 956 99	Union	2	InternBDB: FFL 22 /2353 \| InternKon: 873 580 40 / 17
16	516 284 98	Hose assy. DN 20x1600	2	InternBDB: DOL 22 /DKJ 15 /1690 \| InternKon: 873 580 40 / 21
17	516 285 98	Hose assy. DN 20x1700	1	InternBDB: DOL 22 /DKJ 15 /1690 \| InternKon: 873 580 40 / 22
18	514 118 98	Hose assy. DN 20x2700	1	InternBDB: DOL 22 /DKJ 15 /1690 \| InternKon: 873 580 40 / 24
19	514 114 98	Hose assy. DN 20x1700	1	InternBDB: DOL 22 /DOL 22-90 \| InternKon: 873 580 40 / 25
20	512 288 98	Hose assy. DN 20x3500	1	InternBDB: DOL 22 /DOL 22-90 \| InternKon: 873 580 40 / 26
21	534 004 99	Cover plate	12	InternBDB: S-DP-A-3 /3015 \| InternKon: 873 580 40 / 27
22	534 005 99	Weld on plate	12	InternBDB: S-AP-A-3 /3015 \| InternKon: 873 580 40 / 28
23	504 827 98	Half clamp	8	InternBDB: S-3-G-38 /3015 \| InternKon: 873 580 40 / 29
24	504 923 98	Half clamp	16	InternBDB: S-3-G-32 /3015 \| InternKon: 873 580 40 / 30
25	308 581 99	Bolt	24	InternBDB: M10x70 /931 \| InternKon: 873 580 40 / 31
26		Switch box	1	InternBDB: 490 598 40 \| InternKon: 873 579 40 / 5	991-0086
27	006 739 98	O-ring	6	InternBDB: 89,2x5,7
28	307 752 99	Bolt	36	InternBDB: M8x20 /933
29	346 510 99	Lock washer	36
