AFE47-GG 730E S/N A30600-A30601 & A30604-A30605 ROSSING (Trolley)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	MM0595	CAPSCREW - M8 X 1.25 X 30	2
?	MM0470	LOCKWASHER - M8	2
?	MM0581	CAPSCREW - M6 X 1.00 X 16	3
?	TF1207	BUZZER - 24 VOLT	1
?	MM0355	MACHINE SCREW - M6 X 1.00 X 8	3
?	MM0206	LOCKWASHER - M5	2
?	TZ7324	PLATE, NAME - BWB	1
?	PB4767	RELAY	1
?	MM0347	MACHINE SCREW - M5 X .8 X 8	1
?	SM2835	COVER, FRONT	1
?	PB8658	SCREW, PAN - M6 X 1.00	6
?	WB2322	PLATE, NAME - R/P230	1
?	EF9753	HARNESS, TIMER CONTACTOR	1
?	WB2323	PLATE, NAME - R/P 231	1
?	TR9441	CLAMP, VINYL - 1 1/4"	2
?	EH7497	HARNESS, BUDDY SEAT AREA	1
?	WB2326	STRIP, CIRCUIT	1
?	VM2951	MACHINE SCREW - #6 - 32NC X 5/16"	6
?	WB2321	PLATE, NAME - TB13	1
?	TZ7317	PLATE, NAME - TB12	1
?	TZ7316	PLATE, NAME - TB11	1
?	WB2325	STRIP, CIRCUIT	1
?	WB2324	STRIP, CIRCUIT	1
?	VS8193	BOARD, TERMINAL (SEE INDEX)	3	64070
?	TG1929	MACHINE SCREW - #10 - 24NC X 1/2"	6
?	DC3101	LOCKWASHER - #10	11
?	VC5344	FLAT WASHER - #10	6
?	WA3367	NUT ASSEMBLY	60
?	EB7418	BAR, BUS	3
?	MM0027	CAPSCREW - M6 X 1.00 X 25	8
?	MM0469	LOCKWASHER - M6	8
?	SM5110	SENSOR, ANGLE (INCLINOMETER) (1)	1
?	VC8762	CAPSCREW - 3/8" - 16NC X 1 1/2" (1)	3
?	TR4436	FLAT WASHER - 3/8" (1)	3
?	TC1231	LOCKWASHER - 3/8" (1)	3
?	TC1233	NUT - 3/8" - 16NC (1)	3
?	TF6925	CLAMP, VINYL - 3/4"	2
?	MM0349	MACHINE SCREW - M5 X .8 X 12	2
?	H2643	LOCKWASHER - #10	2
?	SC3117	FLAT WASHER - #10	2
?	SM4374	PLATE, CONNECTOR	1
?	MM0002	CAPSCREW - M8 X 1.25 X 12	2
?	MM0208	LOCKWASHER - M8 (INTERNAL TOOTH)	2
?	FB5170	TAIL LIGHT RESISTOR DIODE ASSEMBLY	1
?	AK7557	RESISTOR/DIODE UNIT - 24 VOLT	2
?	C5747	CAPSCREW - 5/16" - 18NC X 3/4"	4
?	C1538	LOCKWASHER - 5/16"	4
?	C1520	NUT - 5/16" - 18NC	4
?	SM2219	STRIP, SEAL	2
?	PC0337	TIMER - 24 VOLT	1
?	MM0341	MACHINE SCREW - M4 X .70 X 10	4
?	MM0205	LOCKWASHER - M4 (INTERNAL TOOTH)	4
?	PC2417	TIMER - 3 MINUTE IDLE	1
?	MM0352	MACHINE SCREW - M5 X .80 X 25	1
?	SM2220	STRIP, SEAL	2
?	VS0035	LIGHT, DOME	1
?	SR6747	BULB, LIGHT	1
?	VF2231	MACHINE SCREW - #10 - 24NC X 3/8"	5
?	DL4172	SLEEVE, INSULATING	1
?	SF9896	DISCONNECT, KNIFE - 14-16 AWG	1
?	PB6893	VALVE, CONTROL REMOTE	1
?	SC4174	LOCKWASHER - 5/16"	2
?	HC5040	CAPSCREW - 5/16" - 18NC X 2 3/4"	2
?	TD1684	NUT - 5/16" - 18NC	2
?	TY7202	BRACKET, RELAY	1
?	MM0207	LOCKWASHER - M6	3
?	DL6702	CONTACTOR	1
?	DF0017	NUT - #10 - 24NC	2
?	TX3086	HOUSING	1
?	TK0253	VARISTOR	1
?	EJ7921	HARNESS, TROLLEY	1
?		NOTE: NS = NOT SHOWN	-1
?	PC0121	SWITCH, ROCKER (LEAKAGE TEST)	1
?	SM4481	OVERLAY, LEXAN (LEAKAGE TEST)	1
?	TS0299	RESISTOR	2
?	TY7846	HOUSING, RESISTOR	1
?	TZ0951	HOUSING, RESISTOR (LEVEL)	1
?		NOTE: (1) INCLUDED IN PLM III OPTION.	-1

Komatsu AFE47-GG 730E S/N A30600-A30601 & A30604-A30605 ROSSING (Trolley) parts catalog PDF

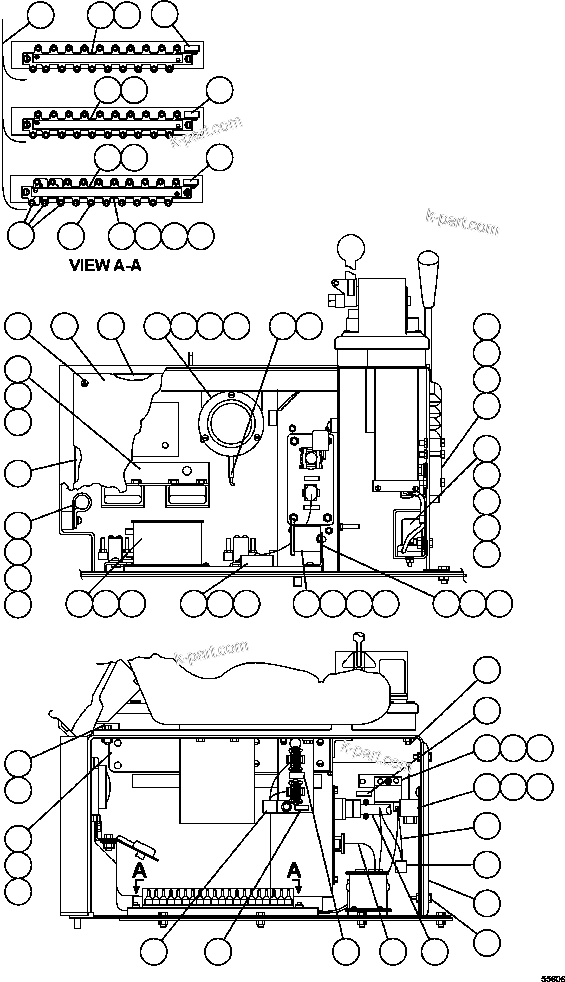

CAB INTERFACE COMPARTMENT ( 2/2) (55606) in AFE47-GG 730E S/N A30600-A30601 & A30604-A30605 ROSSING (Trolley). Diagram image and parts list.
