AFE47-GG 730E S/N A30600-A30601 & A30604-A30605 ROSSING (Trolley)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	XA3540	SHIELD, INSULATION - TOP	1
?	BF4452	MODULE	7
?	GE0032	BUS BAR	5
?	XA3538	CONTACTOR ASSEMBLY	3
?	VE1317	CONTACTOR - GF & GFR (SEE INDEX)	3	64069
?	VE3530	INTERLOCK, POSITION SENSOR (SEE INDEX)	3	64035
?	XA3539	SHIELD, INSULATION - BOTTOM	1
?	VE4515	FLAT WASHER - 3/8"	-1
?	VE4687	LOCKWASHER - 3/8"	-1
?	TC1233	NUT - 3/8" - 16NC	-1
?	VW6069	CAPSCREW, INSULATED	-1
?	VE4999	CAPSCREW - 1/2" - 13NC X 2"	-1
?	VE4519	FLAT WASHER - 1/2"	-1
?	VE4699	LOCKWASHER - 1/2"	-1
?	XA2748	BUS BAR - 1/2" THICK	4
?	XA2754	BUS BAR - INSULATED	1
?	XA2755	BUS BAR - INSULATED	2
?	XA2476	GRID, RETARDING	2
?	XA2475	GRID, RETARDING	2
?	GE0021	COLLAR ASSEMBLY	4
?	GE1815	DIFFUSER ASSEMBLY	4
?	GE0019	GASKET	8
?	GE0020	GASKET	8
?	GE0017	MOTOR, BLOWER (SEE INDEX)	1	64000
?	XA2746	BUS BAR - INSULATED	5
?	XA2751	BUS BAR - 3/8" THICK	2
?	VE4698	NUT - 1/2" - 13NC	-1
?	GE0671	FRAME	4
?		(SEE FOLLOWING PAGE FOR DETAILS B & C)	-1

Komatsu AFE47-GG 730E S/N A30600-A30601 & A30604-A30605 ROSSING (Trolley) parts catalog PDF

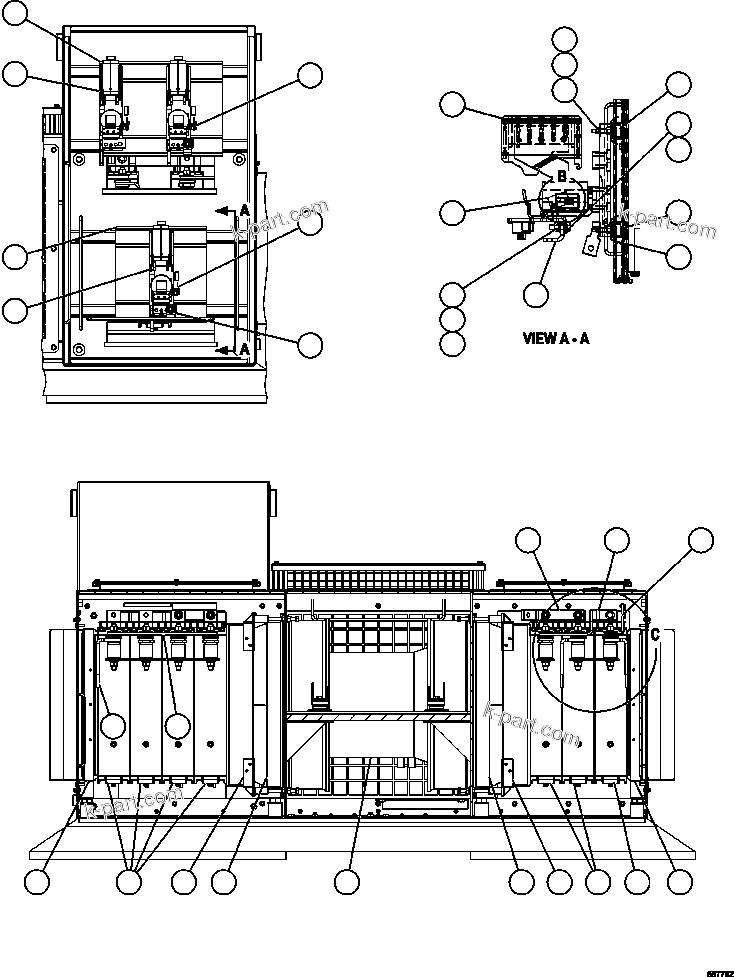

RETARDING GRID ASSEMBLY - 3 STEP 3/4 (PC2187) (55770) in AFE47-GG 730E S/N A30600-A30601 & A30604-A30605 ROSSING (Trolley). Diagram image and parts list.
