AFE47-GV 730E S/N A30648 - A30649 FOSKOR

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VE4655	FLAT WASHER - #10	-1
?	VE4601	LOCKWASHER - #10	-1
?	SF2755	NUT - #10 - 32NF	-1
?	GE0220	SUPPORT, MODULE	7
?	GE0219	SUPPORT, MODULE	7
?	BF4452	MODULE	7
?	XA2748	BUS BAR - 1/2" THICK	4
?	XA2754	BUS BAR - INSULATED	1
?	GE0044	FLAT WASHER - 21/32"	-1
?	VC1390	LOCKWASHER - 5/8"	1
?	GE0045	NUT - 1/2" - 13NC	-1
?	XA2755	BUS BAR - INSULATED	2
?	XA2476	GRID, RETARDING	2
?	GE0038	SPACER	18
?	XA2745	BUS BAR - INSULATED	5
?	XA2746	BUS BAR - INSULATED	5
?	GE0042	WASHER - 5/8" (NARROW)	-1
?	GE0023	INSULATOR	28
?	XA2741	NUT - 5/8" - 11NC	-1
?	XA2475	GRID, RETARDING	12
?	GE0013	LOUVER ASSEMBLY	4
?	XA2739	COVER - 36" X 24"	2
?	XA2740	COVER ASSEMBLY	2
?	XA2738	COVER - 36" X 20"	2
?	GE0014	COVER W/ CUTOUTS	2

Komatsu AFE47-GV 730E S/N A30648 - A30649 FOSKOR parts catalog PDF

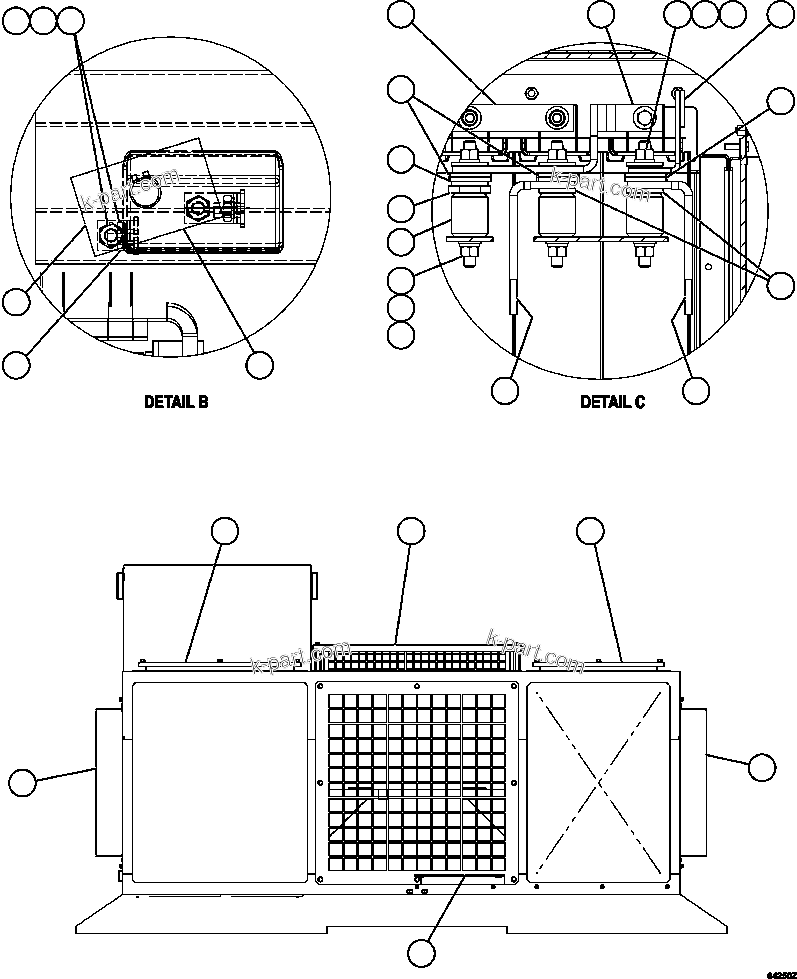

RETARDING GRID ASSEMBLY - 7 STEP 4/4 PC2158 (64250) in AFE47-GV 730E S/N A30648 - A30649 FOSKOR. Diagram image and parts list.
