PC200-8M0 / PC200LC-8M0 S/N B50001 AND UP

34 36 22 32 7 38 39 33 13 42 9 8 10 11 20 12 29 28 27 30 25 26 14 41 37 35 15 17 18 19 3 40 24 31 1 5 23 6 4 21 16 2

#	Part Number	Partname	Quantity	Options
\|$0	600-863-4210	Starting Motor Assembly, 4.5Kw	1	SN: B50001-UP \| : _
1	ND028100-2882	Yoke Assembly	1	SN: B50001-UP \| : _
2	ND028062-0130	Cover	1	SN: B50001-UP \| : _
3	ND028099-3570	Starting Motor Kit	2	SN: B50001-UP \| : _
4	ND028200-1590	Armature Assembly	1	SN: B50001-UP \| : _
5	ND949100-1930	Bearing, Ball	1	SN: B50001-UP \| : _
6	ND949100-1750	Bearing, Ball	1	SN: B50001-UP \| : _
6	ND028300-6551	Clutch Assembly	1	SN: B50001-UP \| : _
7	ND028099-3270	Starting Motor Kit	1	SN: B50001-UP \| : _
8	ND028300-6751	Clutch Assembly	1	SN: B50001-UP \| : _
9	ND949100-4500	Bearing, Ball	1	SN: B50001-UP \| : _
10	ND949100-1920	Bearing, Ball	1	SN: B50001-UP \| : _
11	ND949170-4040	Spring	1	SN: B50001-UP \| : _
12	ND028381-0071	Shaft	1	SN: B50001-UP \| : _
13	ND228401-0633	Housing Assembly	1	SN: B50001-UP \| : _
14	ND153400-8530	Switch Assembly	1	SN: B50001-UP \| : _
15	ND128099-5620	Starting Motor Kit	1	SN: B50001-UP \| : _
16	ND028099-3160	Starting Motor Kit	1	SN: B50001-UP \| : _
17	ND053660-7170	Plunger	1	SN: B50001-UP \| : _
18	ND053404-0240	Gasket	1	SN: B50001-UP \| : _
19	ND053505-0290	Cover	1	SN: B50001-UP \| : _
20	ND053480-7560	Bolt Assembly	1	SN: B50001-UP \| : _
21	ND028065-0250	Bushing	1	SN: B50001-UP \| : _
22	ND028510-5390	Holder Assembly, Brush	1	SN: B50001-UP \| : _
23	ND949173-0571	Spring	4	SN: B50001-UP \| : _
24	ND028501-8091	Frame	1	SN: B50001-UP \| : _
25	ND128961-0010	Ball	1	SN: B50001-UP \| : _
26	ND949170-4070	Spring	1	SN: B50001-UP \| : _
27	ND028371-1500	Pinion	1	SN: B50001-UP \| : _
28	ND028306-0070	Roller	5	SN: B50001-UP \| : _
29	ND028063-0030	Retainer	1	SN: B50001-UP \| : _
30	ND028327-0171	Retainer	1	SN: B50001-UP \| : _
31	ND128950-0520	Bolt	2	SN: B50001-UP \| : _
32	ND949020-0600	Washer	1	SN: B50001-UP \| : _
33	ND90801-10050	O-ring	3	SN: B50001-UP \| : _
34	ND949007-6530	Screw	2	SN: B50001-UP \| : _
35	ND90170-10061	Nut	1	SN: B50001-UP \| : _
36	ND949056-4480	Nut	1	SN: B50001-UP \| : _
37	ND90258-10001	Washer	1	SN: B50001-UP \| : _
38	ND949006-4720	Screw	3	SN: B50001-UP \| : _
39	ND90200-06241	Washer	3	SN: B50001-UP \| : _
40	ND028062-5790	Cover	1	SN: B50001-UP \| : _
41	ND949007-6850	Screw	1	SN: B50001-UP \| : _
42	ND028901-5190	Seal	1	SN: B50001-UP \| : _

Komatsu PC200-8M0 / PC200LC-8M0 S/N B50001 AND UP parts catalog PDF

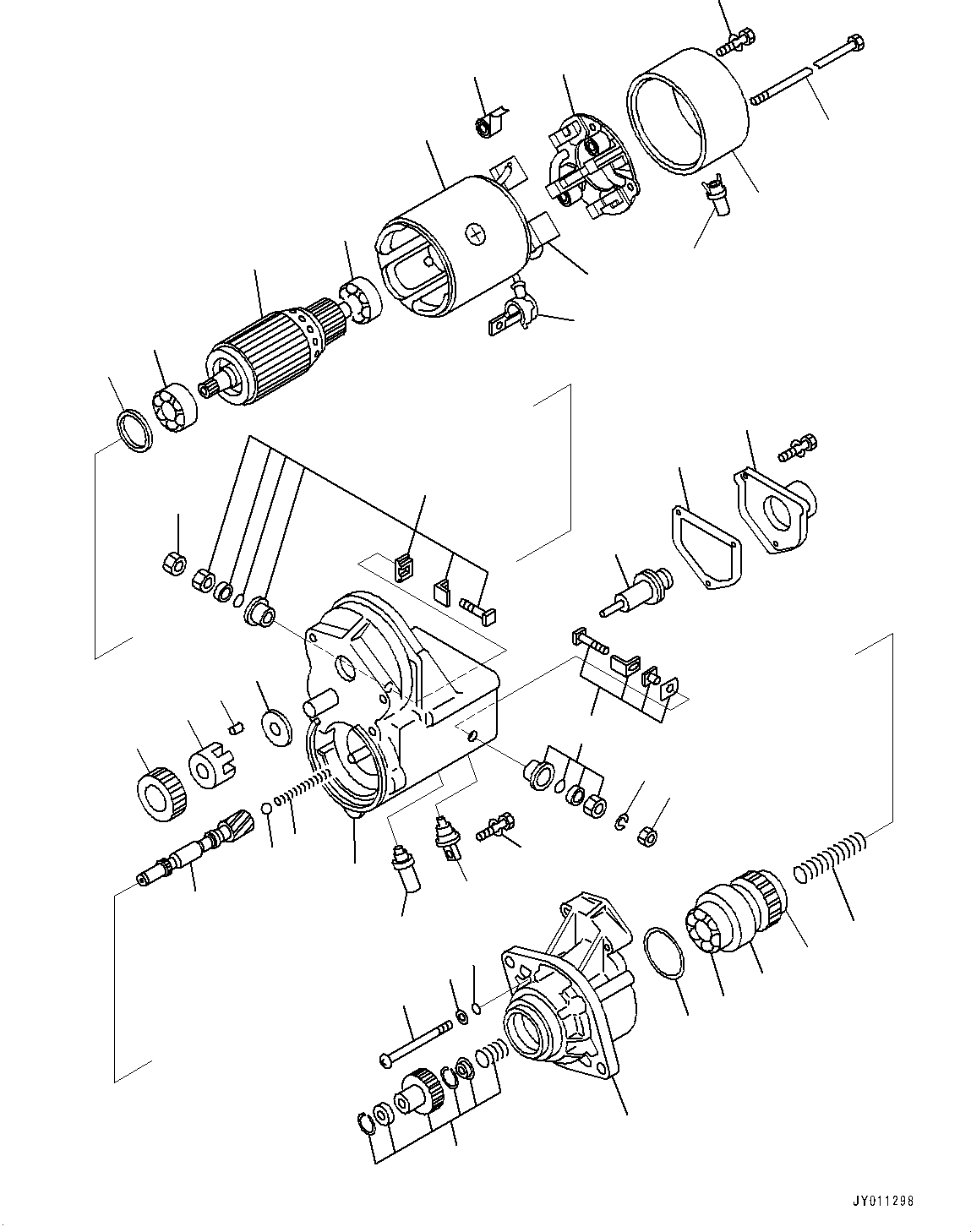

STARTING MOTOR ASSEMBLY, 4.5KW (#B50001-B50002) (AST00-001001) in PC200-8M0 / PC200LC-8M0 S/N B50001 AND UP. Diagram image and parts list.
