PC200-8M0 / PC200LC-8M0 S/N B50001 AND UP

1 2 3 21 24 6 8 9 11 12 14 15 17 18 34 35 26 27 13 4 5 25 22 23 28 31 16 10 7 18 17 20 19 11 9 8 10 29 30 33 32 30 29

#	Part Number	Partname	Quantity	Options
\|$0	20Y-54-73850	Cover Assembly	1	SN: B50001-UP \| : _
1		Cover	1	SN: B50001-UP \| : _ \| SCC: C1
2	20Y-54-73781	Sheet	1	SN: B50001-UP \| : _
3	20Y-54-72481	Cover	1	SN: B50001-UP \| : _
4	01010-81225	Bolt	2	SN: B50001-UP \| : _
5	01643-31232	Washer	2	SN: B50001-UP \| : _
6	20Y-54-73760	Sheet	1	SN: B50001-UP \| : _
7	20Y-54-73772	Sheet	1	SN: B50001-UP \| : _
8	01010-81225	Bolt	3	SN: B50001-UP \| : _
9	01643-31232	Washer	3	SN: B50001-UP \| : _
10	124-54-26540	Washer	3	SN: B50001-UP \| : _
11	01643-51232	Washer	3	SN: B50001-UP \| : _
12	20Y-54-71561	Cover	1	SN: B50001-UP \| : _
13	20Y-54-72470	Sheet	1	SN: B50001-UP \| : _
14	01010-81225	Bolt	2	SN: B50001-UP \| : _
15	124-54-26540	Washer	2	SN: B50001-UP \| : _
16	01643-51232	Washer	2	SN: B50001-UP \| : _
17	01010-81230	Bolt	3	SN: B50001-UP \| : _
18	01643-31232	Washer	3	SN: B50001-UP \| : _
19	01010-81230	Bolt	2	SN: B50001-UP \| : _
20	01643-31232	Washer	2	SN: B50001-UP \| : _
21	20Y-54-12550	Collar	1	SN: B50001-UP \| : _
22	01010-81230	Bolt	1	SN: B50001-UP \| : _
23	01643-31232	Washer	1	SN: B50001-UP \| : _
24	20Y-54-71572	Cover	1	SN: B50001-UP \| : _
25	20Y-54-71950	Sheet	1	SN: B50001-UP \| : _
26	20Y-54-71962	Sheet	1	SN: B50001-UP \| : _
27	206-54-71460	Sheet	1	SN: B50001-UP \| : _
28	20Y-54-71262	Frame	1	SN: B50001-UP \| : _
29	01010-81230	Bolt	6	SN: B50001-UP \| : _
30	01643-31232	Washer	6	SN: B50001-UP \| : _
31	203-54-62670	Collar	2	SN: B50001-UP \| : _
32	01010-81230	Bolt	2	SN: B50001-UP \| : _
33	01643-31232	Washer	2	SN: B50001-UP \| : _
34	01010-81230	Bolt	2	SN: B50001-UP \| : _
35	01643-31232	Washer	2	SN: B50001-UP \| : _

Komatsu PC200-8M0 / PC200LC-8M0 S/N B50001 AND UP parts catalog PDF

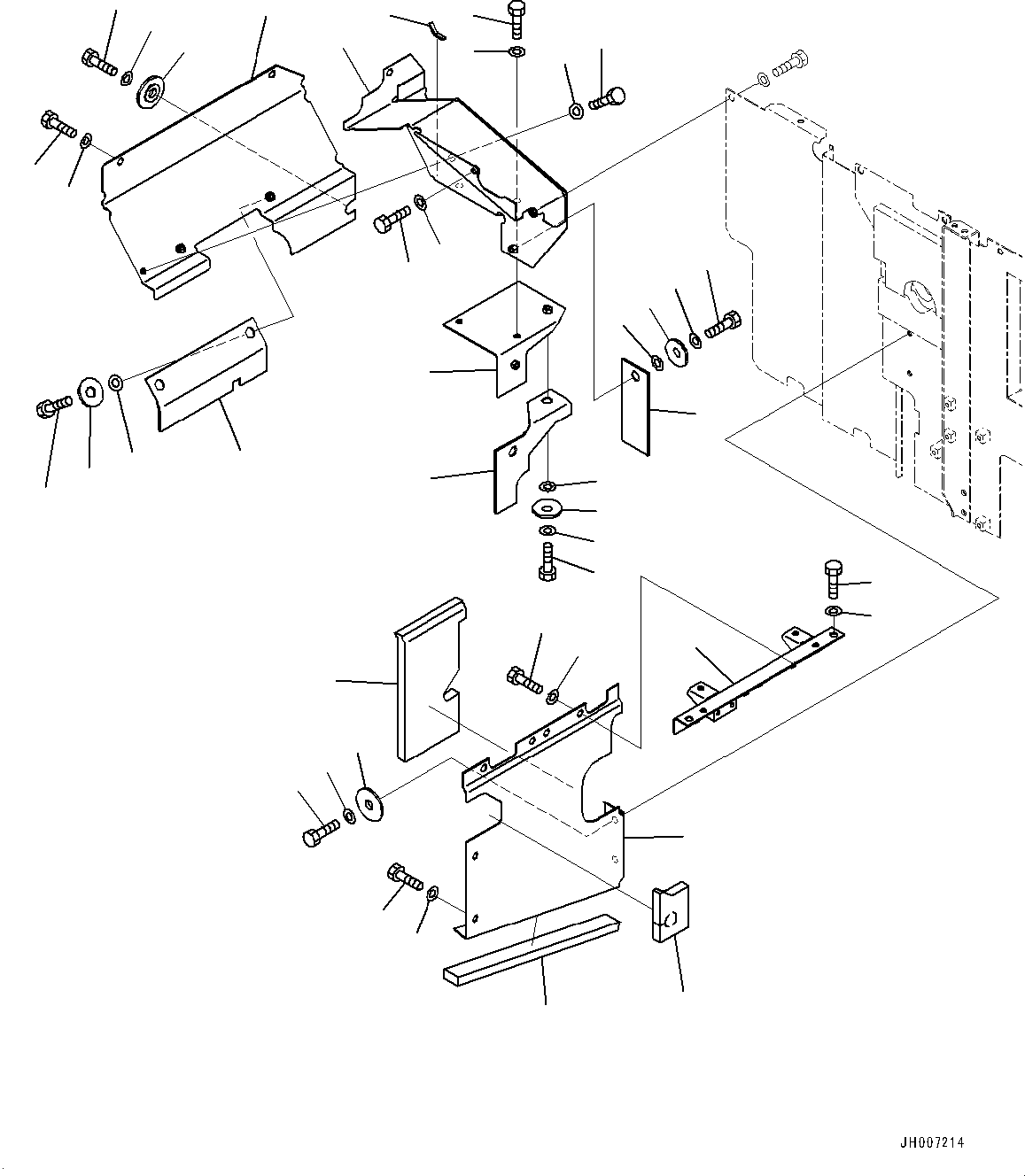

PARTITION, WINDOW WASHER TANK (2/2) (M1150-022003) in PC200-8M0 / PC200LC-8M0 S/N B50001 AND UP. Diagram image and parts list.
