PC200-8M0 / PC200LC-8M0 S/N B50001 AND UP

2 27 28 26 23 22 24 30 20 22 19 25 16 15 14 12 11 9 10 17 8 7 6 35 12 34 32 33 31 29 4 4 1 2 21 13 5 3 18

#	Part Number	Partname	Quantity	Options
\|$0	20Y-27-00670	Final Drive Assembly	1	SN: B50001-UP \| : _
\|$1	20Y-27-00110	Floating Seal Assembly	1	SN: B50001-UP \| : _
1		Seal	2	SN: B50001-UP \| : _ \| SCC: C1
2		O-ring	2	SN: B50001-UP \| : _ \| SCC: C1
3	20Y-27-42570	Hub	1	SN: B50001-UP \| : _
4	20Y-27-41320	Bearing	2	SN: B50001-UP \| : _
5	20Y-27-22280	O-ring	1	SN: B50001-UP \| : _
6	20Y-27-41190	Nut, Lock	1	SN: B50001-UP \| : _
7	20Y-27-41180	Lock	1	SN: B50001-UP \| : _
8	01010-81020	Bolt	2	SN: B50001-UP \| : _
9	20Y-27-42540	Carrier	1	SN: B50001-UP \| : _
10	20Y-27-22140	Gear	4	SN: B50001-UP \| : _
11	20Y-27-22220	Bearing	4	SN: B50001-UP \| : _
12	20Y-27-21250	Washer, Thrust	8	SN: B50001-UP \| : _
13	20Y-27-21230	Pin	4	SN: B50001-UP \| : _
14	20Y-27-21290	Pin	4	SN: B50001-UP \| : _
15	20Y-27-13310	Washer, Thrust	1	SN: B50001-UP \| : _
16	20Y-27-22130	Gear	1	SN: B50001-UP \| : _
17	20Y-27-22240	Washer, Thrust	1	SN: B50001-UP \| : _
18	20Y-27-22151	Gear	1	SN: B50001-UP \| : _
19	20Y-27-22160	Carrier	1	SN: B50001-UP \| : _
20	20Y-27-22120	Gear	3	SN: B50001-UP \| : _
21	20Y-27-22210	Bearing	3	SN: B50001-UP \| : _
22	20Y-27-21240	Washer, Thrust	6	SN: B50001-UP \| : _
23	20Y-27-21220	Pin	3	SN: B50001-UP \| : _
24	20Y-27-21280	Pin	3	SN: B50001-UP \| : _
25	20Y-27-42510	Shaft	1	SN: B50001-UP \| : _
26	20Y-27-21310	Washer	1	SN: B50001-UP \| : _
27	20Y-27-42530	Cover	1	SN: B50001-UP \| : _
28	04260-01587	Ball, Steel	1	SN: B50001-UP \| : _
29	20Y-27-13281	Bolt	18	SN: B50001-UP \| : _
30	01643-31645	Washer	18	SN: B50001-UP \| : _
31	07049-01012	Plug	2	SN: B50001-UP \| : _
32	07044-12412	Plug	3	SN: B50001-UP \| : _
33	07002-12434	O-ring	3	SN: B50001-UP \| : _
34	20Y-27-11583	Sprocket	1	SN: B50001-UP \| : _
35	20Y-27-11561	Bolt	20	SN: B50001-UP \| : _

Komatsu PC200-8M0 / PC200LC-8M0 S/N B50001 AND UP parts catalog PDF

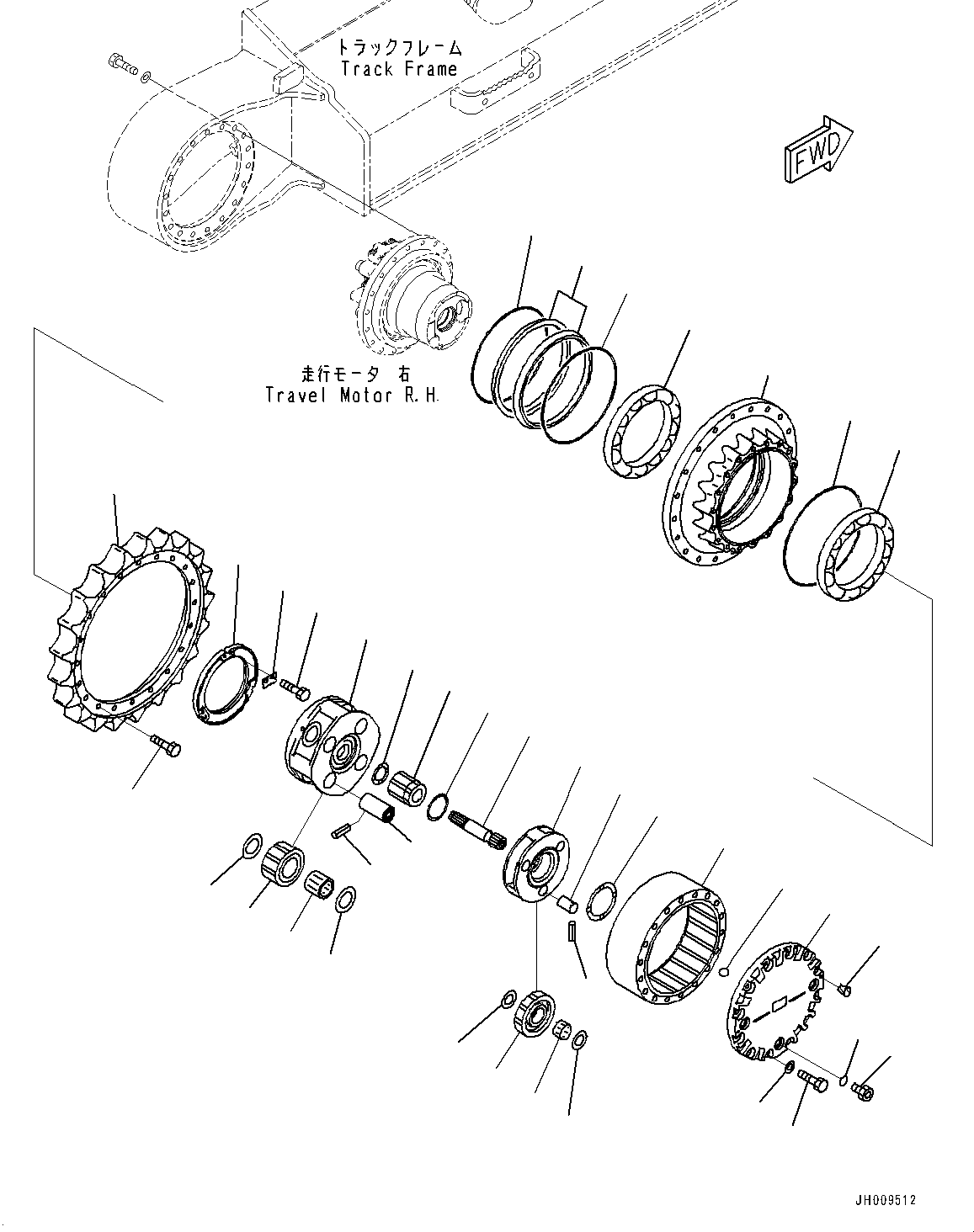

TRAVEL MOTOR AND FINAL DRIVE, FINAL DRIVE R.H. (#B50001-B50310) (P1210-010006) in PC200-8M0 / PC200LC-8M0 S/N B50001 AND UP. Diagram image and parts list.
