PC390LCI-11 A31001-UP BEPB113400 3.8.2018

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	207-63-54590	BRACKET	1
?	707-86-00870	TUBE	1
?	707-86-16631	TUBE, R.H.	1
?	707-87-14700	PLUG	1
?	707-88-21370	BAND	1
?	707-G1-04171	CYLINDER ASSEMBLY, R.H.	1
?	707-76-10290	BUSHING	1
?	707-76-90490	BUSHING	1
?	721-13-14171	CYLINDER	1
?	721-58-10591	ROD, PISTON	1
?	707-27-14690	HEAD, CYLINDER	1
?	707-35-31310	RING, BACK-UP (KIT : K03)	1
?	707-51-10650	RING, BUFFER (KIT : K03)	1
?	707-51-10860	PACKING, ROD (KIT : K03)	1
?	707-52-90781	BUSHING	1
?	707-56-10740	SEAL, DUST (KIT : K03)	1
?	707-75-10160	RING, SNAP	1
?	707-88-81080	BOLT	12
?	07000-B5130	O-RING (KIT : K03)	1
?	07179-13114	RING, SNAP	1
?	707-35-30900	RING, BACK-UP (KIT : K03)	2
?	707-36-14650	PISTON	1
?	707-39-14110	RING, WEAR (KIT : K03)	2
?	707-44-14150	RING, PISTON (KIT : K03)	1
?	707-44-14910	RING	2
?	07000-B5090	O-RING (KIT : K03)	1
?	01310-01216	SCREW	1
?	07020-00000	FITTING, GREASE	1
?	07043-00108	PLUG	1
?	07145-00090	SEAL, DUST (KIT : K03)	2
?	07145-00100	SEAL, DUST (KIT : K03)	2
?	707-88-33040	CAP	2
?	07371-31049	FLANGE, SPLIT	4
?	07372-21035	BOLT	8
?	01643-51032	WASHER	8
?	01010-81025	BOLT	2
?	01643-31032	WASHER	2
?	01597-01009	NUT	2
?	01643-31032	WASHER	2
?	07000-B3035	O-RING (KIT : K03)	2
?	07002-63034	O-RING (KIT : K03)	1
?	07283-33442	CLIP	1
?	07372-21060	BOLT	8
?	01643-51032	WASHER	8
?	07372-21240	BOLT	4
?	01643-51232	WASHER	4

Komatsu PC390LCI-11 A31001-UP BEPB113400 3.8.2018 parts catalog PDF

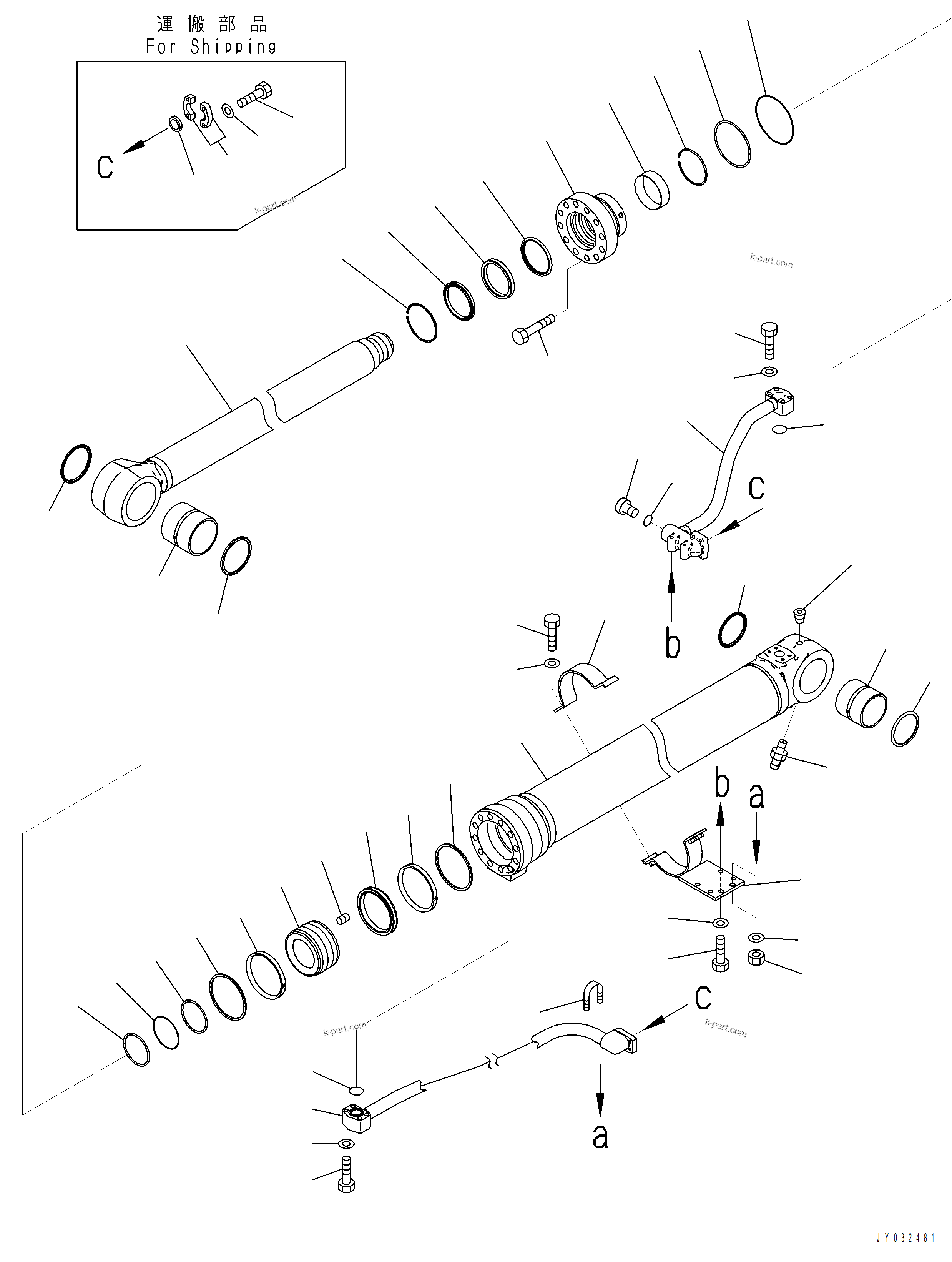

T1120-001001 BOOM CYLINDER R.H. (T1120-001001) in PC390LCI-11 A31001-UP BEPB113400 3.8.2018. Diagram image and parts list.
