Diagram image 1 of 4

PC4000-6E S/N 08286

07 07 07 08 10 11 116 117 118 119 121 122 122 123 123 13 13 131 150 150 17 18 18 19 19 30 31 31 35 35 38 39 39 39 40 40 40 40 41 42 42 46 47 47 47 47 47 49 50 51 51 51 54 54 54 54 54 54 54 58 58 58 58 58 58 60 62 64

PC4000-6E S/N 08286

02 03 04 05 06 09 120 124 124 130 132 132 135 14 15 15 16 160 161 162 162 162 163 164 165 166 166 167 167 198 199 20 200 21 210 22 23 24 25 26 27 32 34 34 36 36 36 37 38 41 41 41 41 41 41 42 42 42 42 44 46 51 52 53 54 54 55 55 56 57 57 61

PC4000-6E S/N 08286

140 141 142 143 47 51 70 71 72 73 74 80 81 82 83 84 85

PC4000-6E S/N 08286

100 100 100 100 101 101 101 101 101 101 102 103 104 104 105 105 106 107 108 108 109 109 109 109 110 110 111 111 112 112 180 181 90 91 92 93 94 94 95 95 96 96 97 97 98 99

#	Part Number	Partname	Quantity
02	955 566 40	Door assy.	1
03	956 899 40	Wall	1
04	955 567 40	Door assy.	1
05	931 030 40	Wall panel	1
06	992 678 40	Wall panel	1
07	946 165 40	Hinge	6
08	949 332 40	Door	1
09	947 755 40	Wall	1
10	949 344 40	Door	1
11	956 194 40	Door	1
13	949 370 40	Hinge assy.	3
14	992 677 40	Angle	1
15	949 376 40	Angle	2
16	949 339 40	Catch	1
17	952 038 40	Plate	1
18	954 114 40	Angle assy.	2
19	954 115 40	Angle assy.	2
20	949 385 40	Pin	2
21	961 453 40	Wall panel	1
22	949 379 40	Angle	4
23	949 352 40	Angle	1
24	949 349 40	Angle	1
25	949 361 40	Angle	1
26	949 375 40	Angle	1
27	955 534 40	Plate	2
30	902 019 40	Pipe	2
31	949 359 40	Angle	2
32	947 751 40	Angle	1
34	308 614 99	Bolt	4
35	308 611 99	Bolt	4
36	308 610 99	Bolt	48
37	308 608 99	Bolt	20
38	307 808 99	Bolt	8
39	307 804 99	Bolt	57
40	307 802 99	Bolt	15
41	334 600 99	Nut	64
42	512 545 98	Washer	51
44	510 741 98	Resilient sleeve	20
46	307 780 99	Bolt	10
47	307 777 99	Bolt	21
49	507 037 98	Nut	6
50	374 409 99	Socket	4
51	517 122 98	Lock washer	22
52	517 121 98	Lock washer	2
53	307 752 99	Bolt	2
54	517 118 98	Lock washer	92
55	517 123 98	Lock washer	9
56	345 071 99	Pin	1
57	307 822 99	Bolt	9
58	340 007 99	Washer	12
60	173 493 40	Plug	1
61	518 200 98	Lock washer	6
62	371 857 99	Plug	1
64	371 277 99	Union nut	1
70	970 547 40	Catch	1
71	304 369 99	Bolt	32
72	510 725 98	Resilient sleeve	32
73	510 742 98	Resilient sleeve	12
74	308 404 99	Bolt	12
80	985 621 40	Post	1
81	949 307 40	Post	1
82	980 470 40	Post	1
83	953 313 40	Post	1
84	949 315 40	Post	1
85	953 315 40	Post	1
90	961 425 40	Roof frame	1
91	961 405 40	Roof section	1
92	961 410 40	Roof section	1
93	961 415 40	Roof section	1
94	901 833 40	Threaded rail	2
95	901 832 40	Threaded rail	2
96	901 834 40	Threaded rail	2
97	961 417 40	Threaded rail	2
98	990 412 40	Plate	1
99	490 694 40	Moulding material	-2
100	940 628 40	Plug	9
101	160 962 40	Plug	11
102	510 741 98	Resilient sleeve	40
103	500 816 98	Bolt	40
104	504 271 98	Lock washer	4
105	307 802 99	Bolt	4
106	950 593 40	Locking stopple	4
107	990 413 40	Plate	1
108	517 122 98	Lock washer	2
109	340 465 99	Washer	4
110	307 775 99	Bolt	2
111	307 780 99	Bolt	2
112	507 037 98	Nut	2
116	946 173 40	Pin	9
117	340 612 99	Washer	9
118	342 061 99	Cotter pin	9
119	350 562 99	Grease nipple	9
120	956 193 40	Door	1
121	946 164 40	Hinge assy.	4
122	307 779 99	Bolt	12
123	507 037 98	Nut	22
124	940 906 40	Fastener LH	3
130	949 320 40	Door	1
131	946 151 40	Hinge assy.	2
132	940 907 40	Fastener RH	1
135	975 093 40	Cover	1
140	961 595 40	Cover	1
141	961 594 40	Cover	1
142	308 579 99	Bolt	8
143	510 746 98	Resilient sleeve	8
150	081 480 40	Hinge Pin	8
160	941 444 40	Handle	2
161	941 445 40	Handle	2
162	941 563 40	Axle	2
163	941 447 40	Collar	2
164	941 450 40	Closing cam	2
165	941 451 40	Collar	2
166	941 448 40	Accessory l.h.	1
167	941 449 40	Accessory r.h.	1
180	304 172 99	Bolt	12
181	255 056 40	Washer	12
198	517 192 98	Lock Washer	4
199	500 104 98	Bolt	4
200	959 701 40	Disconnecting Point	1
210	967 356 40	Disconnecting Point	1

Komatsu PC4000-6E S/N 08286 parts catalog PDF

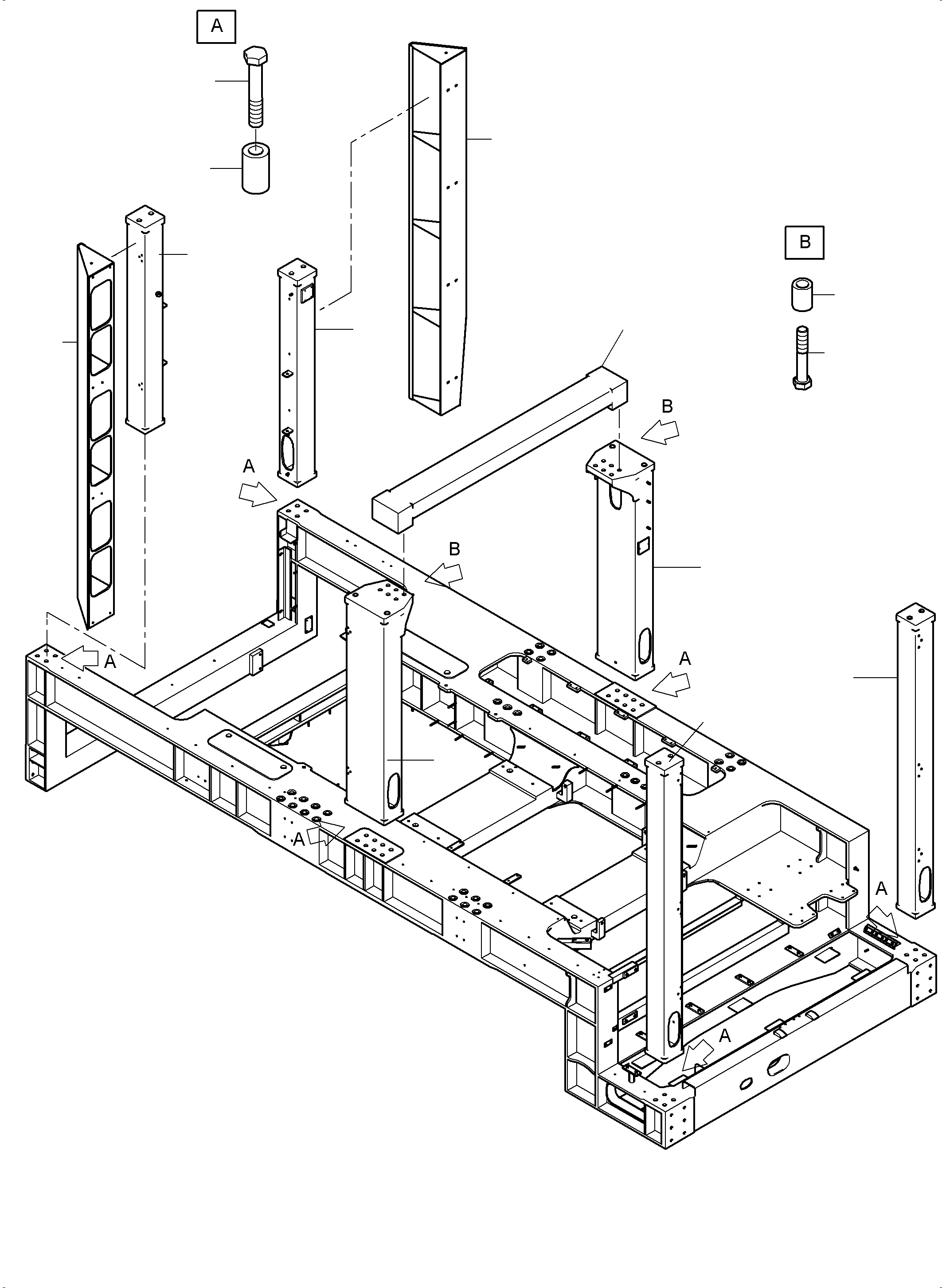

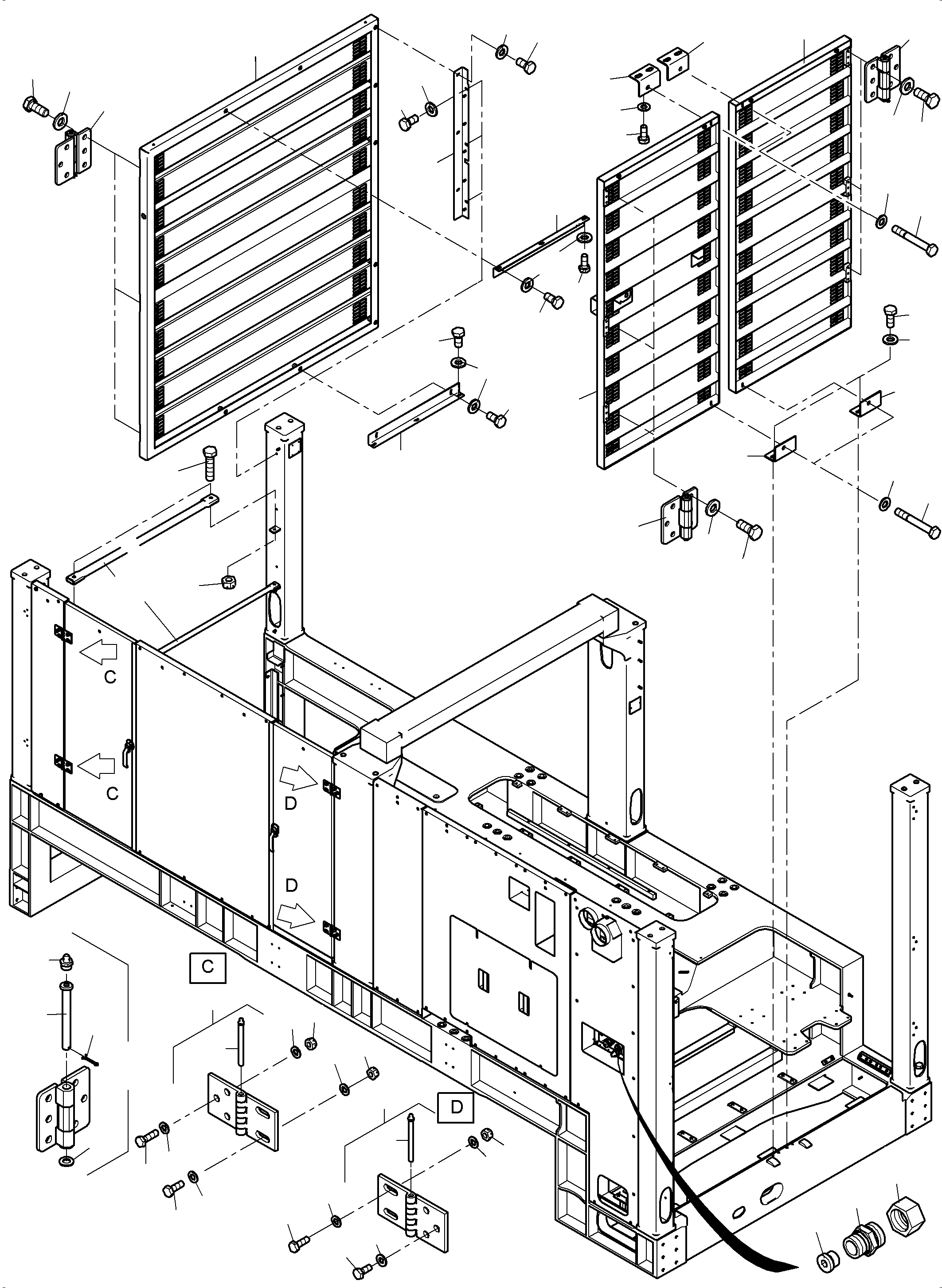

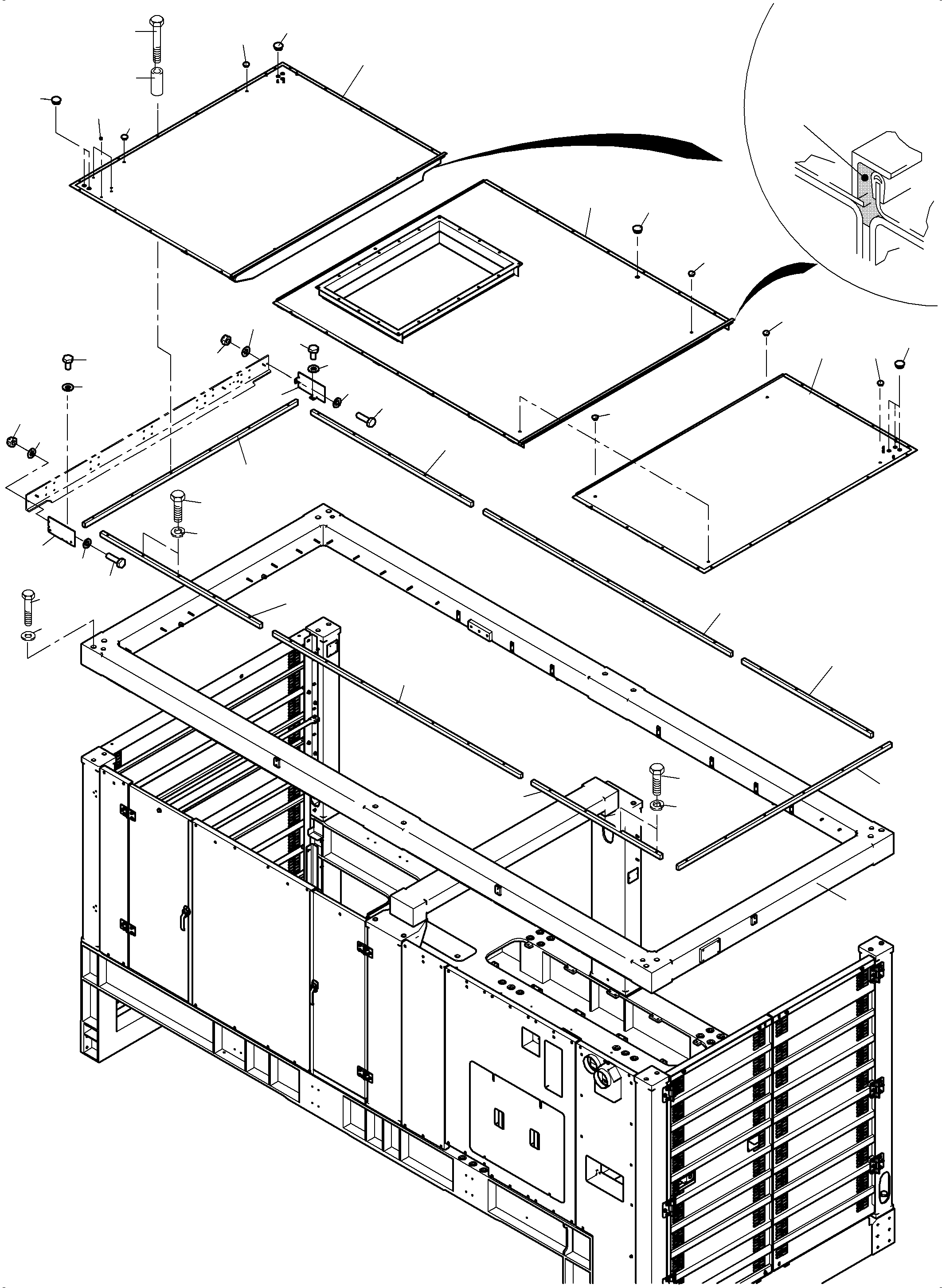

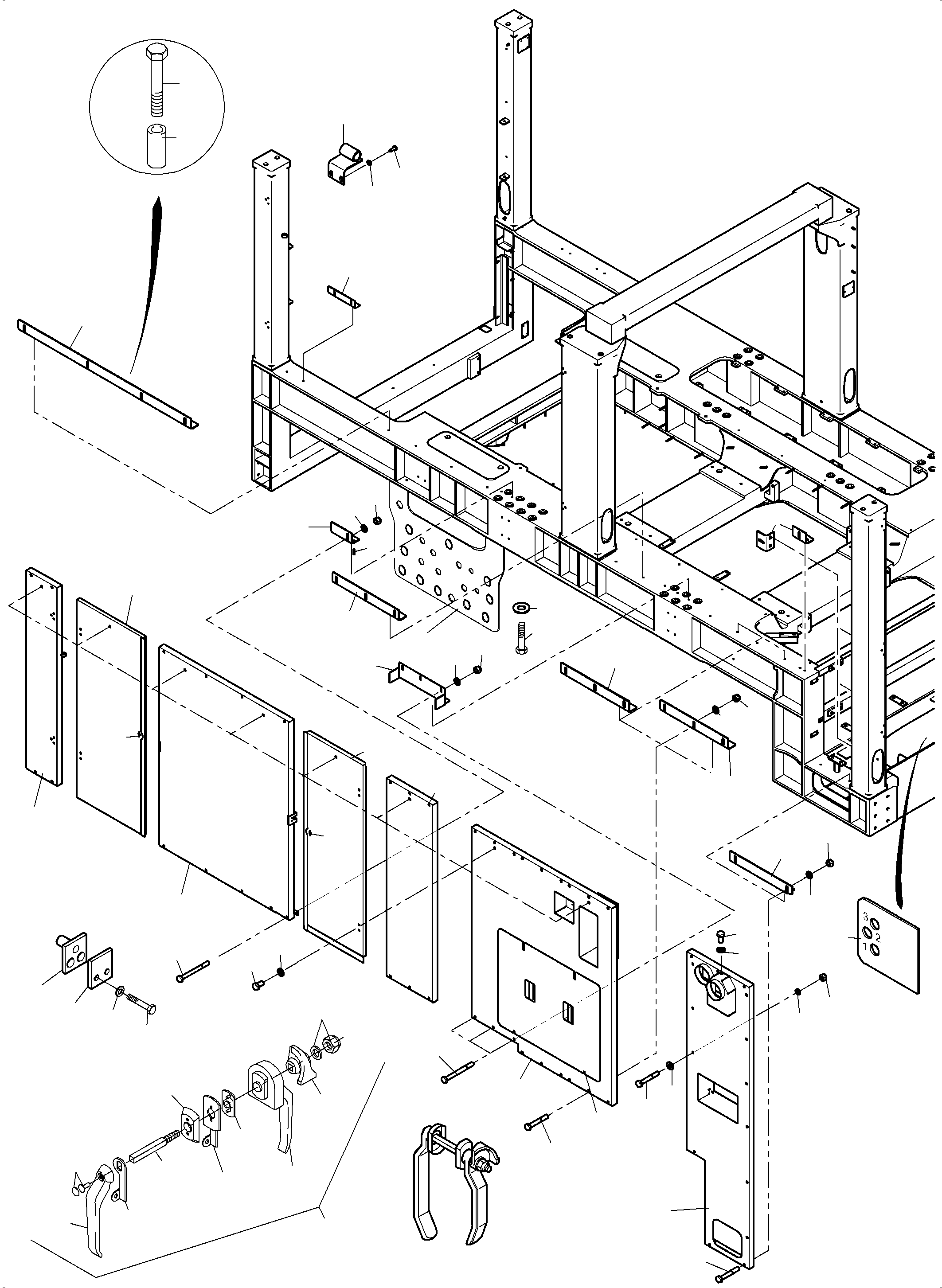

COVERING, ENGINE HOUSING (356-1030i) in PC4000-6E S/N 08286. Diagram image and parts list.
