Diagram image 1 of 6

PC4000-11 S/N 08273

01 07 11 12 14 29 37 40 59 72 75

PC4000-11 S/N 08273

121 121 121 121 130 131 132 140 141 142 143 144 146 150 151 23 24 27 27 27 27 27 27 27 27 32 35 35 36 38 39 43 44 46 47 48 48 50 57 58 64 77 79

PC4000-11 S/N 08273

02 03 03 04 05 115 122 147 148 149 25 26 27 27 27 27 27 27 27 27 27 27 27 28 28 28 28 28 28 28 30 31 33 39 42 47 48 49 51 53 54 57 62 62 63 63 63 63 63 63 63 63 65 65 65 65 65 71 74 78

PC4000-11 S/N 08273

03 03 06 10 116 116 117 117 118 15 16 17 18 19 20 21 22 26 26 27 27 27 27 27 27 28 28 34 34 41 48 56 57 61 63 63 63 63 64 64 65 65 65 65 66 67 68 68 68 68 68 69 70

PC4000-11 S/N 08273

08 08 08 08 08 08 08 09 09 09 09 09 101 102 103 104 105 107 108 109 111 112 113 13 13 170 170 171 171 171 173 173 173 173 174 174 174 174 174 174 174 174 174 175 175 175 175 175 175 175 175 176 176 176 176 176 176 176 176 176 179 179 179 179 179 179 179 179 179 180 180 180 180 180 180 190 191 191 191 191 192 192 192 192 193 193 193 200 201 202 203 204 210 210 211 211 212 223 223 230 230 240 241 241 250 82 83 84 85 88 91 92 93 94 95 96 97 98 99

PC4000-11 S/N 08273

08 08 08 08 09 09 101 102 103 104 105 106 106 119 120 160 161 162 163 163 164 164 170 171 171 172 173 173 173 174 174 175 175 176 176 178 178 179 179 179 180 180 180 180 192 192 193 200 201 202 203 204 220 221 222 223 260 261 270 271 272 76 76 76 80 80 80 80 80 80 81 81 82 83 85 87 87 88 89 89 90 90 91 92 93 94 95 96 97 98 99

#	Part Number	Partname	Quantity
01	995 602 40	Housing	1
02	461 322 40	Cover plate	1
03	906 613 40	Cover plate	4
04	906 772 40	Cover plate	1
05	906 773 40	Cover plate	1
06	941 503 40	Cover plate	1
07	906 670 40	Wire end ferrule 25mm	11
08	056 070 40	Cable sleeve 1,0-1,5	566
09	635 042 40	Wire end ferrule 1,5	44
10	996 114 40	Cross Connection	1
11	907 640 40	Wire end ferrule 2,5	31
12	324 484 40	Cable end sleeve	10
13	269 078 40	Wire end ferrule 16/28,7	29
14	519 773 98	Wire end ferrule	4
15	906 623 40	Marking strip	1
16	906 626 40	Marker	1
17	906 803 40	Marker	1
18	360 801 40	Marking strips	1
19	906 625 40	Marker	1
20	906 627 40	Marker	1
21	906 624 40	Marker	1
22	907 540 40	Marker	1
23	906 482 40	Booster	1
24	999 599 40	Diode array	2
25	906 768 40	Through clamp 6,0	4
26	906 612 40	Through clamp 2,5	58
27	940 673 40	Clamp	29
28	999 298 40	Breaker	9
29	055 103 40	Cable shoe	11
30	950 339 40	Wire clip	1
31	950 185 40	Protective wire clip	20
32	951 916 40	Semiconductor relay	8
33	951 101 40	Buffer module	1
34	999 459 40	Clamp	2
35	951 862 40	Semiconductor relay	33
36	898 681 40	Relay assy.	1
37	941 354 40	Cable shoe	7
38	941 467 40	Modul with Resistor	1
39	990 247 40	Relay	1
40	941 379 40	Relay	1
41	941 502 40	Potencial clamp	11
42	910 027 40	Converter	1
43	906 615 40	Bridge 3-fold	2
44	906 614 40	Bridge 2-fold	7
46	926 505 40	Series terminal with diode	5
47	951 284 40	Relay	9
48	990 246 40	Relay assy.	5
49	951 445 40	Semiconductor relay	1
50	975 518 40	Rail collector	2
51	962 672 40	Rail collector	1
53	975 519 40	Rail collector	1
54	975 521 40	Rail collector	1
56	993 768 40	Rail collector	1
57	940 640 40	Rail collector end cap	12
58	323 590 40	Switch modul	1
59	0443451910	Clamp Ш19	11
61	999 302 40	Breaker 20 A	1
62	999 296 40	Breaker 1 A	2
63	999 299 40	Breaker	25
64	999 300 40	Breaker 13 A	6
65	999 301 40	Breaker	12
66	999 308 40	Breaker	1
67	999 304 40	Breaker	1
68	999 307 40	Breaker 50 A	5
69	999 313 40	Breaker	1
70	999 309 40	Circuit breaker	1
71	986 209 40	Relay assy.	5
72	794 225 73	Cable lug	9
74	461 321 40	Terminal	1
75	520 042 98	Cable lug	8
76	974 059 40	Cap	2
77	999 593 40	Cover Plate	1
78	999 405 40	Distribution block	2
79	993 765 40	Resistor Clamp	6
80	974 058 40	Plug assy.	3
81	997 101 40	Harness	1
82	997 102 40	Harness	1
83	997 103 40	Harness	1
84	996 131 40	Harness	1
85	996 111 40	Harness	1
87	997 104 40	Harness	1
88	996 144 40	Harness	1
89	996 330 40	Harness	1
90	996 107 40	Harness	1
91	996 130 40	Harness	1
92	996 105 40	Harness	1
93	996 141 40	Harness	1
94	996 328 40	Harness	1
95	996 329 40	Harness	1
96	987 288 40	Harness	1
97	996 133 40	Harness	1
98	987 325 40	Harness	1
99	996 117 40	Harness	1
101	996 137 40	Harness	1
102	996 136 40	Harness	1
103	987 329 40	Harness	1
104	987 330 40	Harness	1
105	996 109 40	Harness	1
106	996 135 40	Harness	1
107	515 213 40	Cable 1,0	450
108	655 873 40	Cable 1,5	30
109	515 214 40	Cable 2,5	32
111	907 553 40	Cable 16,0	24
112	906 023 40	Cable 25,0 bl	18
113	950 880 40	Cable	4
115	951 895 40	Safety switch	1
116	999 588 40	Washer	11
117	307 758 99	Bolt	11
118	999 587 40	Nut	11
119	950 728 40	Plug	1
120	517 324 98	Nut	1
121	951 888 40	Isolationplate	4
122	951 901 40	Modul	1
130	940 021 40	Relay	1
131	323 910 40	Socket	1
132	323 911 40	Spring	1
140	950 613 40	Relay	1
141	344 498 40	Supporting trestle	39
142	340 904 99	Washer	37
143	346 508 99	Lock washer	24
144	320 975 99	Bolt	36
146	950 600 40	Relay	5
147	986 200 40	Relay	5
148	518 314 40	Washer	15
149	991 392 40	Plate	5
150	999 592 40	Clamp	6
151	999 600 40	Resistor	6
160	969 833 40	Cap	3
161	951 031 40	Seal	3
162	946 218 40	Cap	3
163	350 762 99	Washer	5
164	307 646 99	Bolt	5
170	950 125 40	Socket	8
171	621 699 40	Female contact 1-2mmІ	50
172	906 653 40	Female contact	1
173	0819105420	Female contact	221
174	950 318 40	Panel lock washer	18
175	950 898 40	Seal ring	18
176	0819150808	Nut	18
178	519 770 98	Wire end ferrule	3
179	950 130 40	Protection cap	18
180	940 852 40	Plug	123
190	996 120 40	Socket	3
191	0819105440	Female contact	33
192	0819100770	Plug	43
193	056 071 40	Wire end ferrule	46
200	950 146 40	Socket	5
201	0819110808	Nut	5
202	0819110809	Seal Ring	5
203	950 897 40	Seal	5
204	950 129 40	Protection cap	5
210	950 117 40	Socket	2
211	941 426 40	Female contact	3
212	941 443 40	Plug	4
220	950 121 40	Socket	1
221	906 652 40	Pin contact	2
222	0819105340	Pin contact	1
223	0819105320	Pin contact	31
230	950 122 40	Socket	2
240	950 123 40	Socket	1
241	621 698 40	Pin Contact	4
250	950 126 40	Socket	1
260	950 119 40	Socket	1
261	941 428 40	Plug	1
270	969 835 40	Cap	2
271	951 032 40	Seal	2
272	946 224 40	Cap	2
\|$$168			-2
\|$$169			-2

Komatsu PC4000-11 S/N 08273 parts catalog PDF

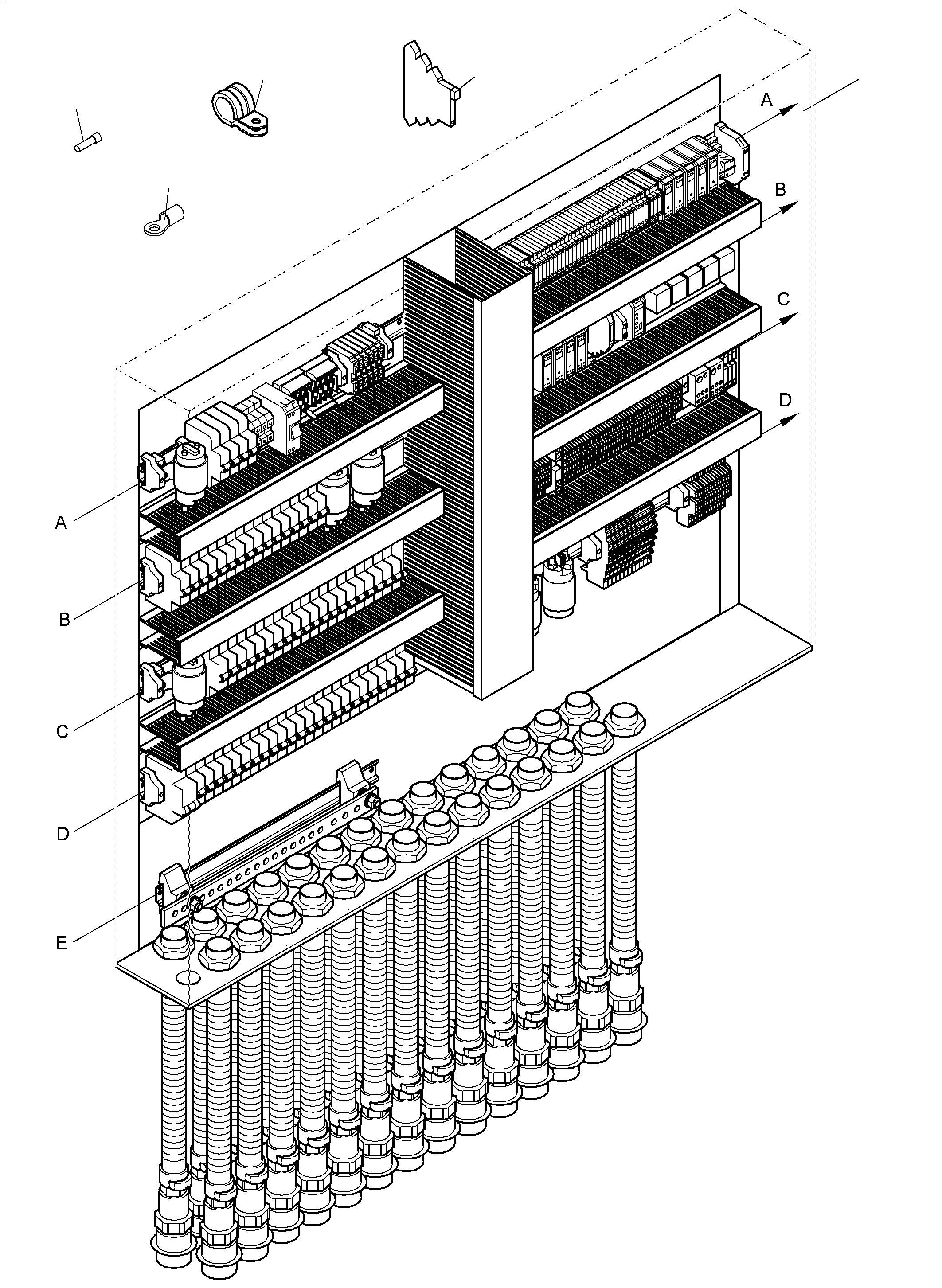

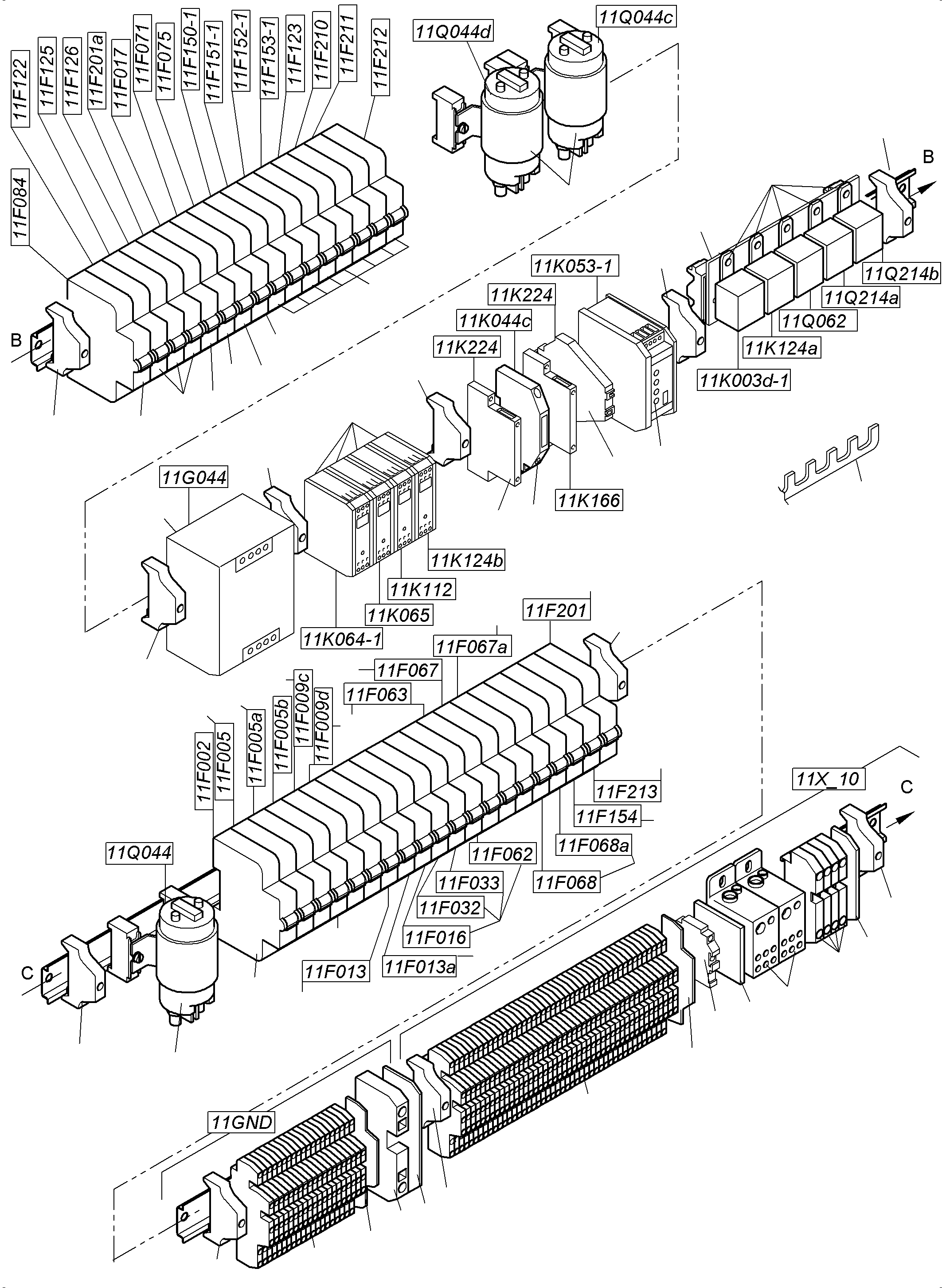

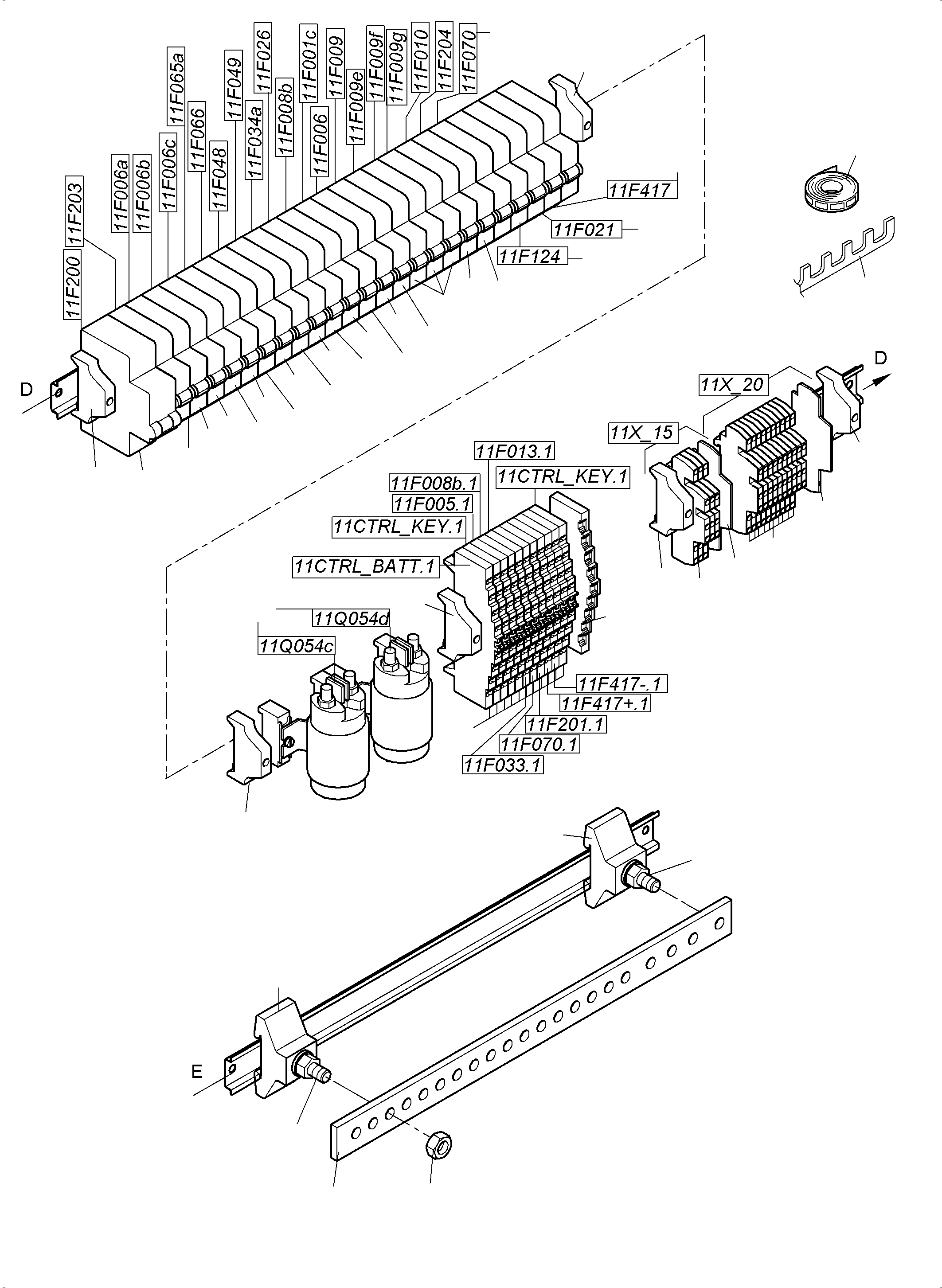

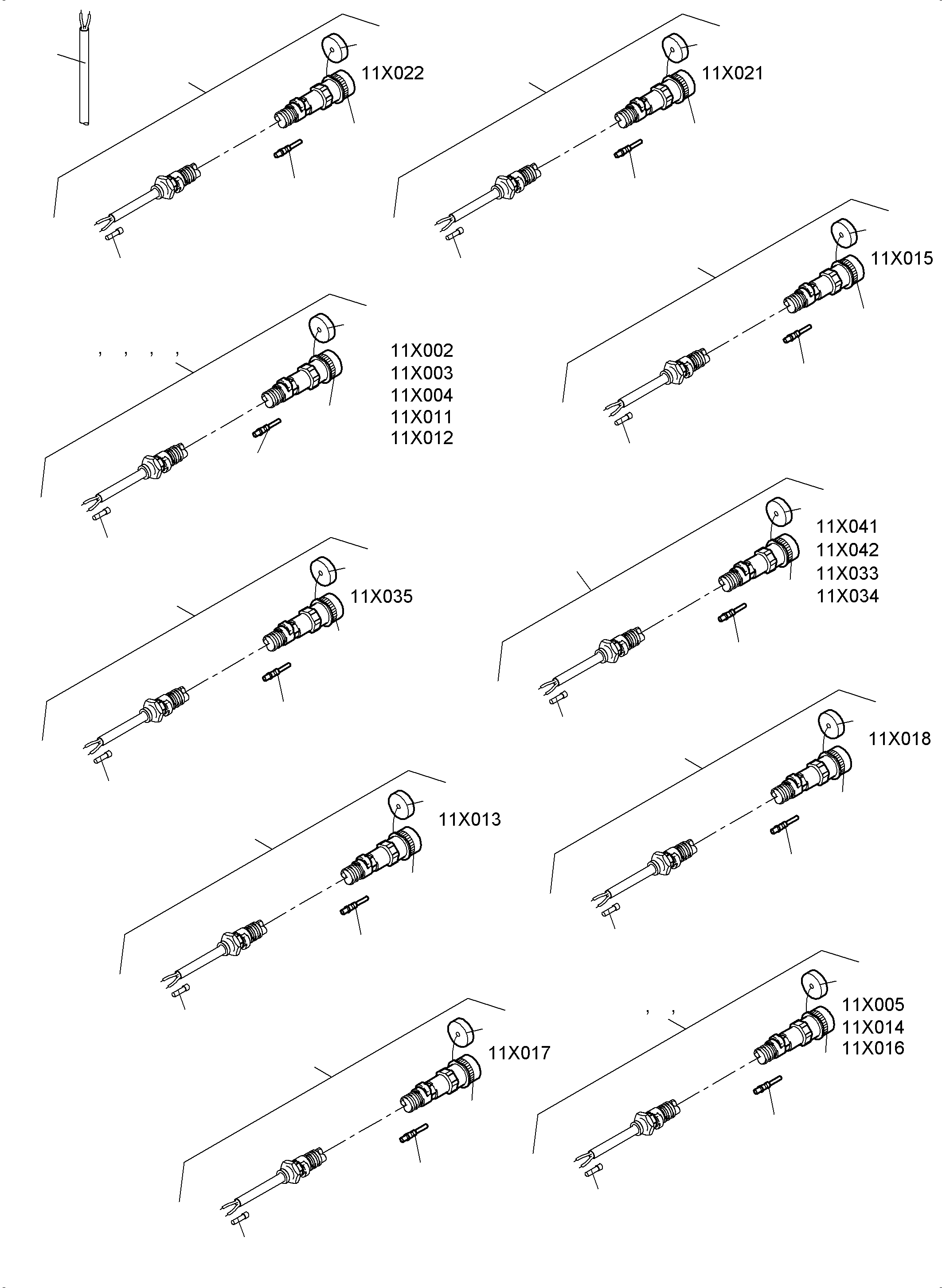

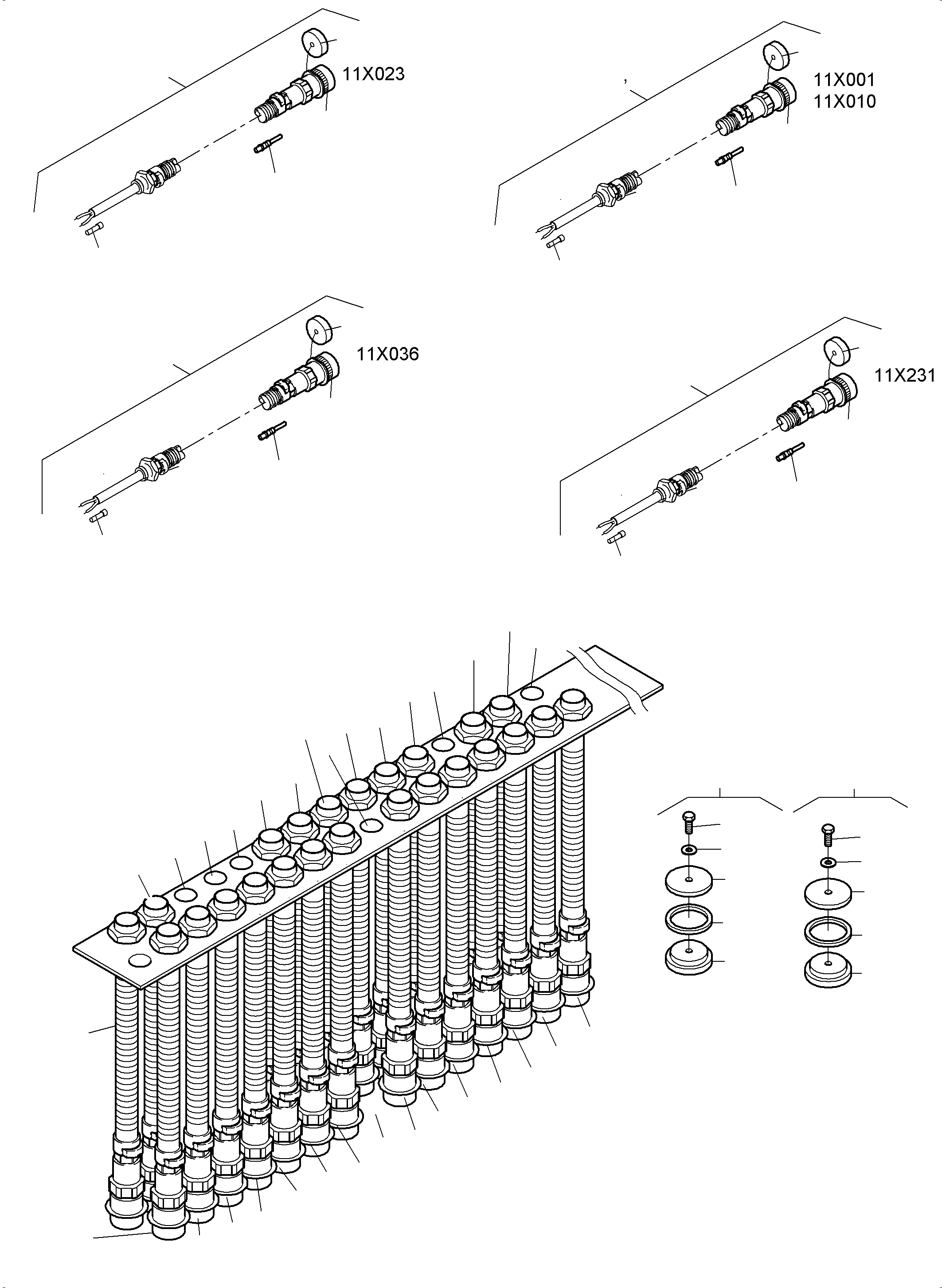

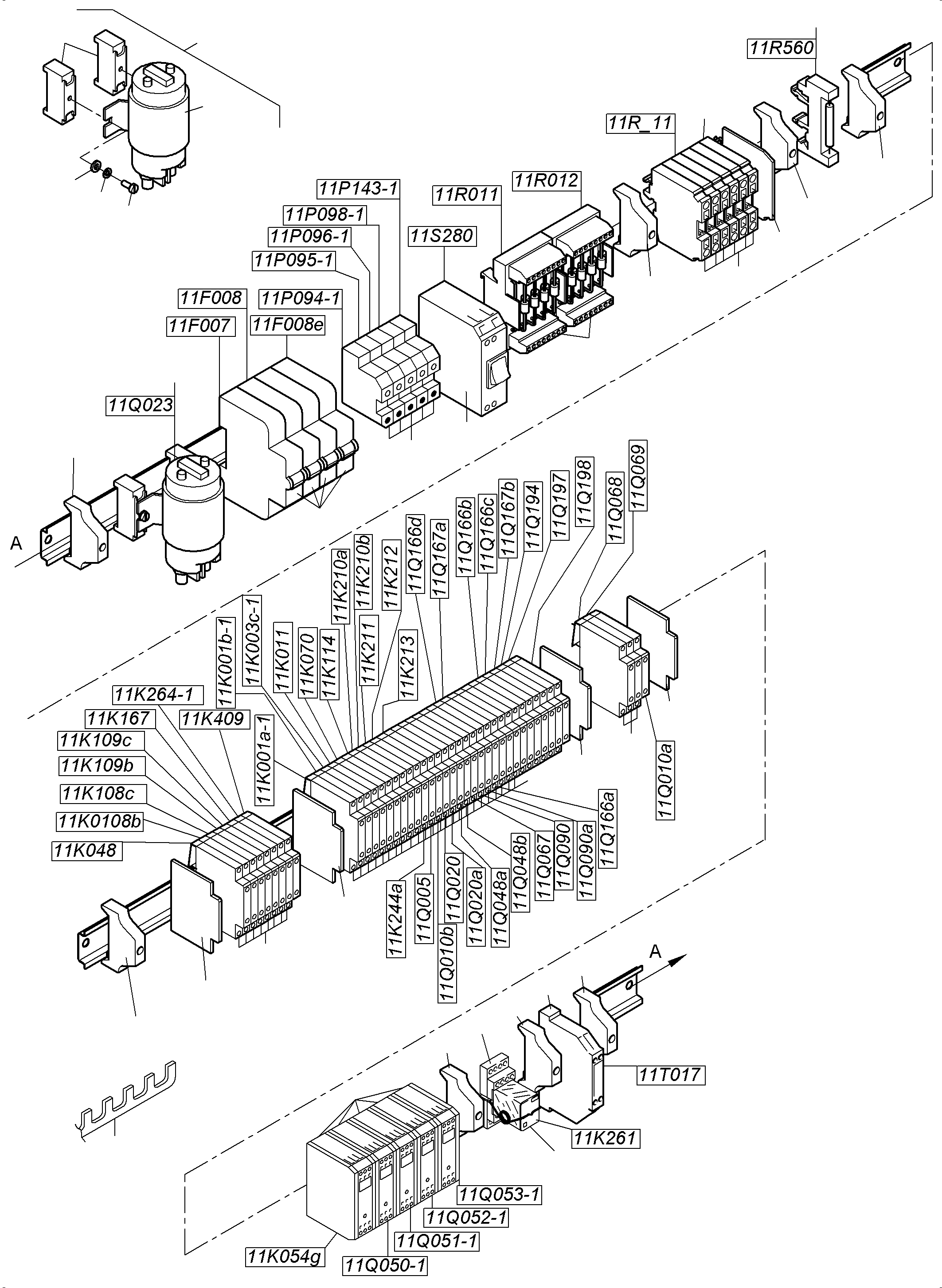

SWITCH FRAMING-CAB SUPPORT-LOCATION 11 (359-2265e) in PC4000-11 S/N 08273. Diagram image and parts list.
