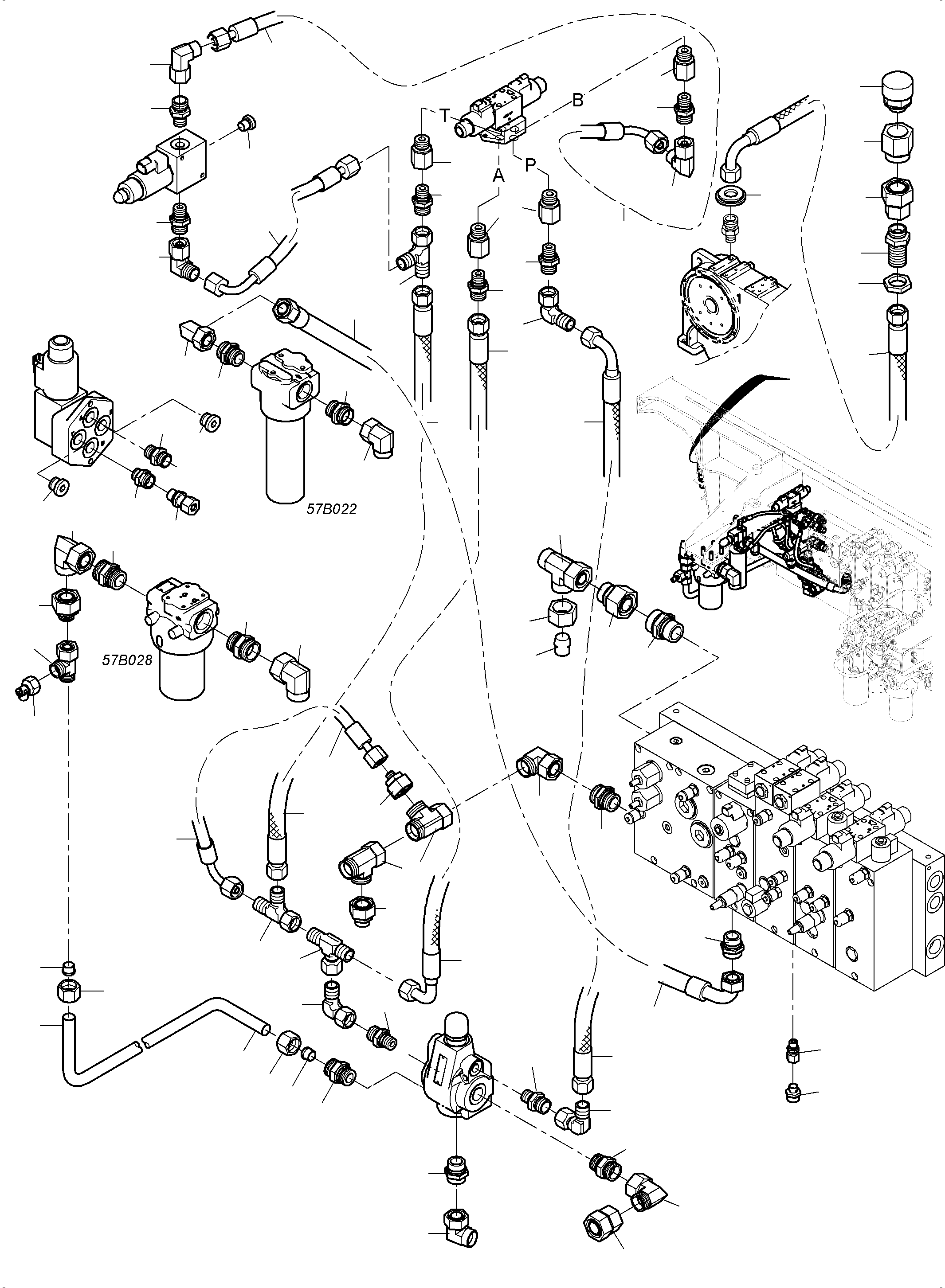

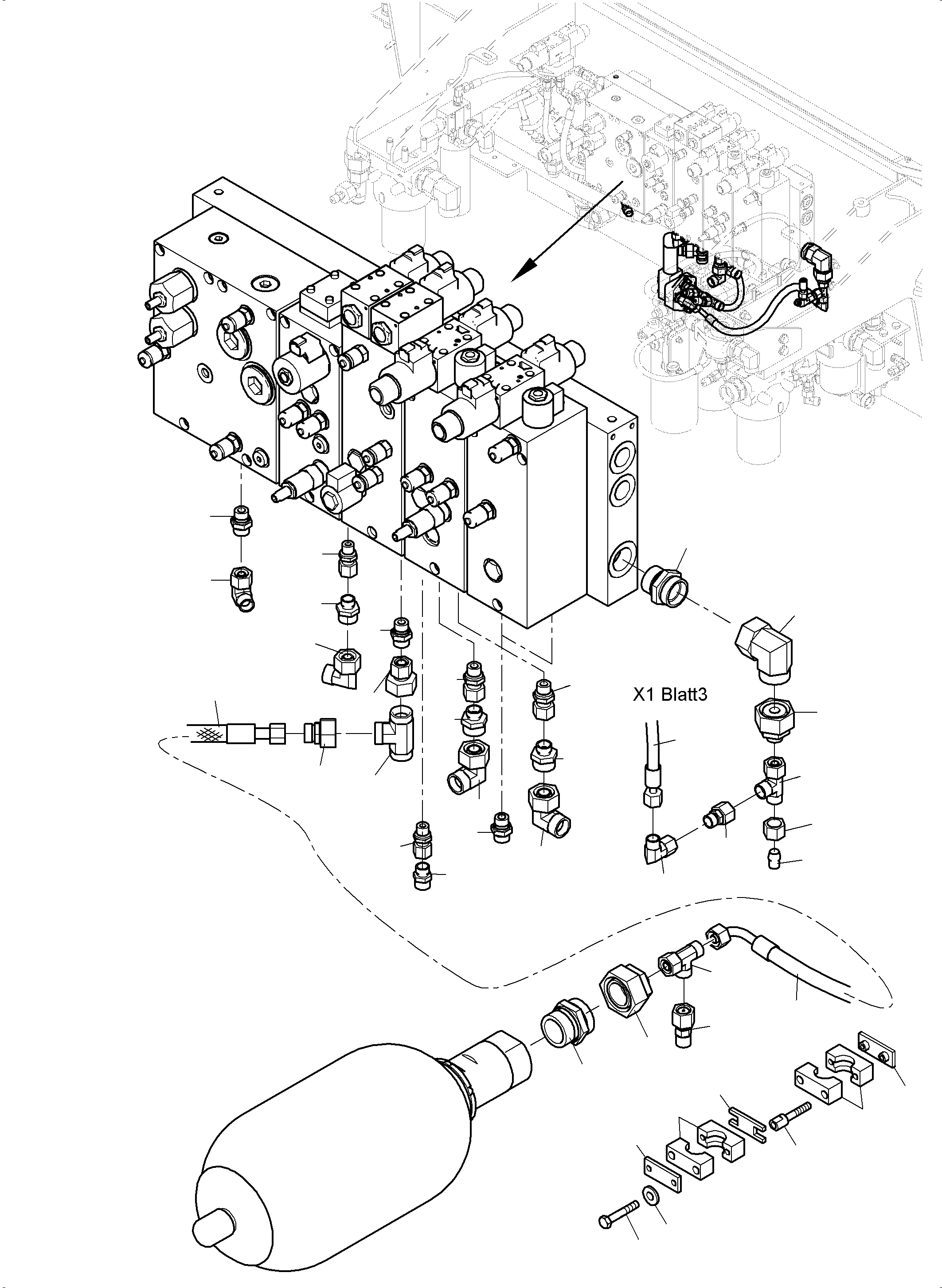

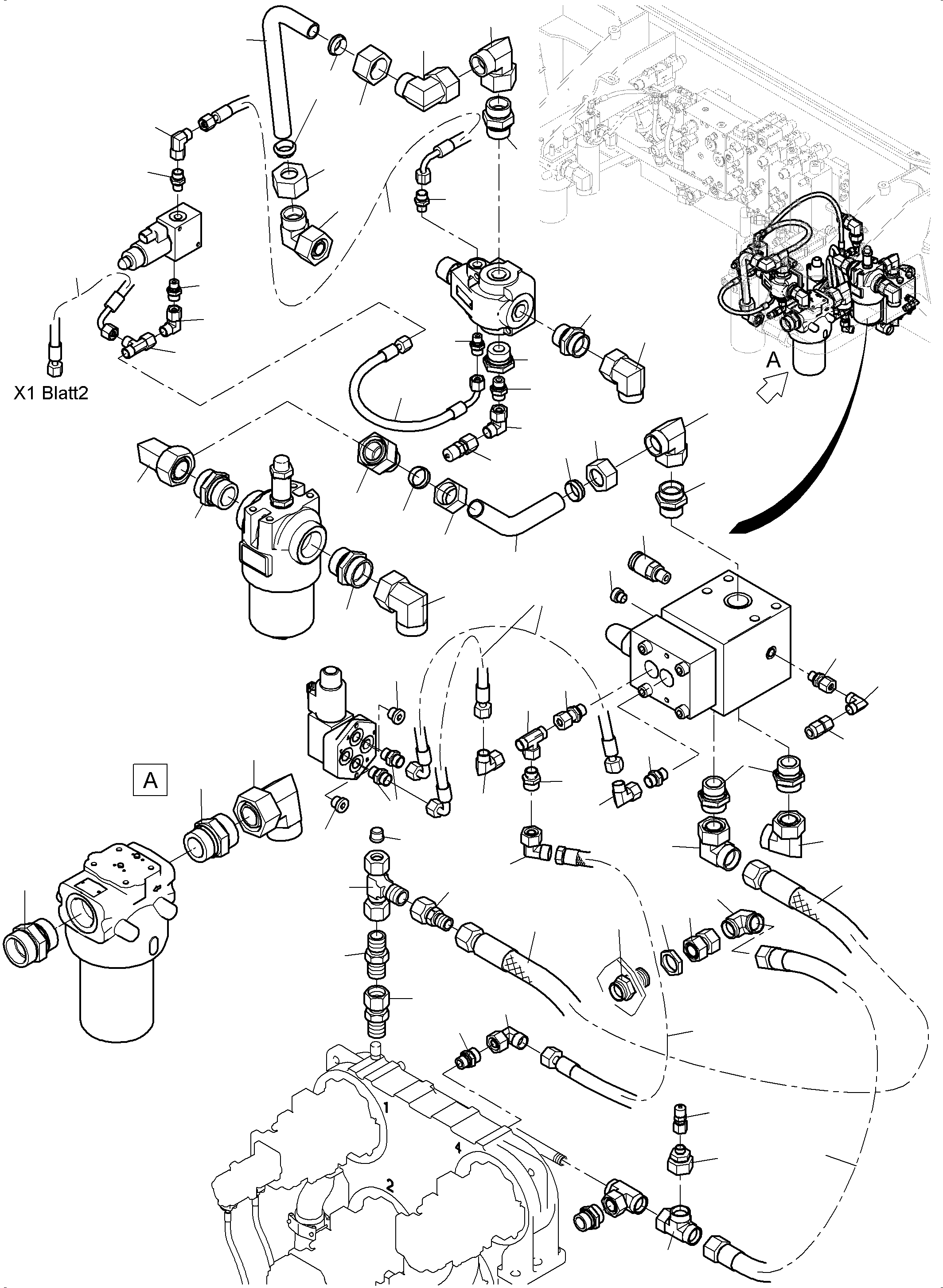

Diagram image 1 of 3

PC4000-11 S/N 08273

01 01 02 09 10 10 10 10 11 12 15 15 15 15 15 15 16 16 17 19 20 24 24 24 24 24 24 24 24 25 25 26 27 28 29 29 29 30 30 31 32 32 32 33 34 34 35 46 49 50 50 54 54 55 56 56 57 57 58 60 60 61 61 62 62 66 67 67 70 71 72 73 74 77 78 79 85 85 86 86 91 92

PC4000-11 S/N 08273

01 02 02 03 03 03 04 05 06 07 08 09 10 111 112 113 114 114 115 116 117 118 119 120 121 122 123 13 14 15 36 53 63 80 80 81 81 82 82 83 84

PC4000-11 S/N 08273

01 01 04 04 04 10 10 10 10 100 101 102 103 104 105 11 15 15 16 18 21 21 22 22 23 24 24 24 24 25 27 27 27 29 33 33 33 34 34 35 39 39 40 41 42 43 44 45 46 47 48 52 53 59 62 62 63 63 64 65 67 69 75 76 85 85 86 87 87 88 88 95 96 96 97 98 99

#	Part Number	Partname	Quantity
01	374 431 99	Socket	6
02	516 182 98	Socket	3
03	374 430 99	Socket	4
04	516 157 98	Socket	4
05	515 865 98	Socket	1
06	511 135 98	Socket	1
07	576 403 40	Union	1
08	604 762 40	Union	1
09	592 069 40	Union	2
10	516 161 98	Socket	9
11	516 177 98	Socket	4
12	634 304 40	Union	1
13	634 423 40	Union	1
14	551 379 40	Union	1
15	516 156 98	Socket	9
16	374 419 99	Socket	3
17	634 482 40	Union	2
18	965 783 40	Pipe assy. Ш 25	1
19	516 742 98	Socket	1
20	004 684 98	Coupling	1
21	374 460 99	Socket	2
22	516 162 98	Socket	2
23	965 782 40	Pipe assy. Ш 28	1
24	374 416 99	Socket	12
25	516 173 98	Socket	3
26	180 113 40	Plug	1
27	516 248 98	Socket	4
28	516 100 98	Socket	1
29	374 439 99	Socket	4
30	954 093 40	Pipe assy. Ш 25	1
31	516 224 98	Socket	1
32	372 876 99	Socket	4
33	371 459 99	Socket	4
34	255 694 40	Plug	2
35	516 184 98	Socket	1
36	516 174 98	Socket	1
39	502 752 98	Coupling	2
40	516 183 98	Socket	1
41	518 372 98	Socket	1
42	371 948 99	Union	1
43	255 171 40	Plug	1
44	515 814 98	Coupling	1
45	516 167 98	Socket	1
46	576 472 40	Union	2
47	516 744 98	Union	1
48	509 272 98	Nut	1
49	621 127 40	Union	1
50	607 571 40	Hose assy. DN 25x740	1
52	516 046 98	Hose assy. DN 10x570	2
53	516 312 98	Hose assy. DN 08x850	1
54	516 384 98	Hose assy. DN 08x360	1
55	518 649 98	Hose assy. DN 08x280	1
56	518 650 98	Hose assy. DN 08x380	1
57	516 310 98	Hose assy. DN 08x360	1
58	643 993 40	Hose assy. DN 08x400	1
59	510 922 98	Hose assy. DN 08x450	1
60	516 219 98	Hose assy. DN 08x300	1
61	374 409 99	Socket	1
62	374 464 99	Socket	4
63	516 158 98	Socket	4
64	516 308 98	Hose assy. DN 08x400	1
65	518 807 98	Socket	1
66	551 404 40	Union	1
67	516 746 98	Union	3
69	576 471 40	Union	1
70	517 913 98	Socket	1
71	509 271 98	Nut	1
72	515 867 98	Socket	1
73	519 284 98	Union	1
74	951 098 40	bleeding filter	1
75	518 968 98	Union	1
76	517 495 98	Socket	1
77	516 176 98	Socket	1
78	519 765 98	Plug	1
79	371 276 99	Union Nut	1
80	517 269 98	Socket	2
81	635 997 40	Socket	2
82	516 159 98	Socket	2
83	519 072 98	Plug	1
84	371 274 99	Union nut	1
85	371 264 99	Union nut	4
86	906 868 40	Olive	4
87	371 278 99	Union nut	2
88	906 350 40	Olive	2
91	967 347 40	Orifice	1
92	519 285 98	Hose assy. DN 16x550	1
95	513 598 98	Hose assy. DN 25x620	1
96	517 620 98	Hose assy. DN 25x2000	1
97	643 849 40	Hose assy. DN 12x1000	1
98	374 407 99	Socket	1
99	516 952 98	Socket	1
100	374 444 99	Union	1
101	516 178 98	Socket	1
102	371 860 99	Plug	1
103	634 306 40	Union	1
104	516 195 98	Union	1
105	371 280 99	Union nut	1
111	374 425 99	Socket	1
112	906 870 40	Union	1
113	516 175 98	Socket	1
114	518 859 98	Hose assy. DN 12x3280	1
115	006 525 98	Coupling	1
116	509 057 98	Clamp set	1
117	504 985 98	Locking plate	1
118	504 986 98	Screw	2
119	511 856 98	Cover plate	1
120	518 546 98	Lock washer	2
121	308 536 99	Bolt	2
122	533 992 99	Weld on plate	1
123	509 058 98	Clamp set	1

Komatsu PC4000-11 S/N 08273 parts catalog PDF

CONTROL- AND FILTER PLATE PIPING (359-1842c) in PC4000-11 S/N 08273. Diagram image and parts list.
