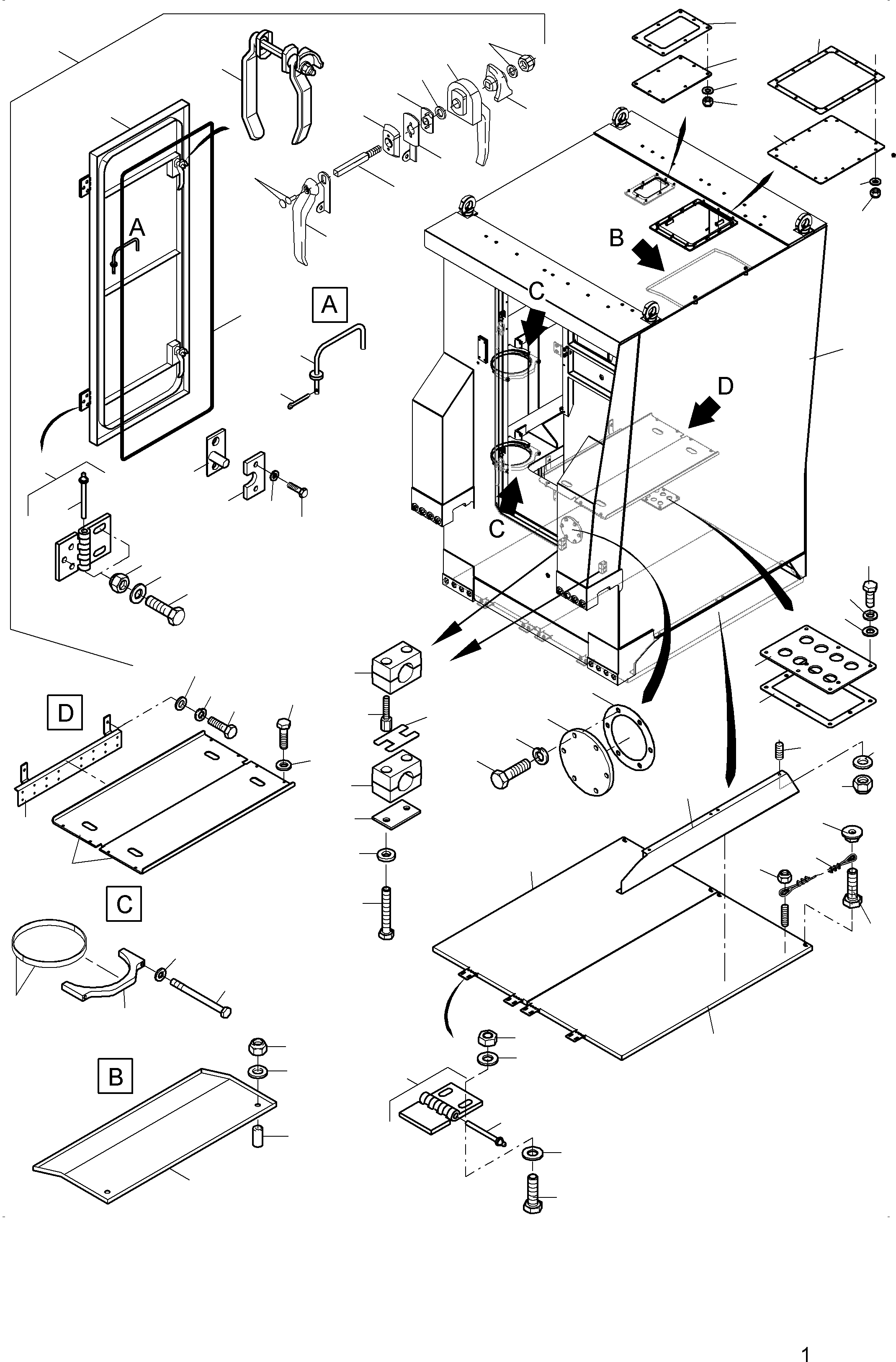

CAB SUPPORT(NS-SWITCH CABINET) | PC 7000-6E 35 003 11.06.2019

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity
01	983 602 40	Cab support	1
02	970 031 40	Flap assy.	1
03	970 035 40	Flap assy.	1
04	983 623 40	Cable retainer assy.	1
05	914 911 40	Covering	1
06	945 758 40	Seal	1
07	592 259 40	Profiled joint ca. 5500 lg.	1
08	904 243 40	Seal	1
09	904 244 40	Cover	1
10	944 856 40	Guard plate	1
11	983 622 40	Plate	1
12	939 280 40	Lock pin assy.	2
13	939 281 40	Plate	2
14	970 024 40	Door assy.	1
15	607 492 40	Resilient sleeve	2
16	507 488 98	Thread pin	4
17	517 121 98	Lock washer	8
18	340 464 99	Washer	28
19	517 122 98	Lock washer	32
20	340 465 99	Washer	4
21	517 118 98	Lock washer	10
22	340 468 99	Washer	4
23	950 290 40	Washer nut	4
24	307 756 99	Screw	8
25	307 779 99	Bolt	4
26	307 598 99	Bolt	18
27	307 805 99	Bolt	6
28	334 599 99	Nut	22
29	507 037 98	Nut	14
30	956 896 40	Wire assy.	4
31	332 114 99	Nut	14
32	517 120 98	Lock washer	4
33	307 736 99	Bolt	4
34	343 095 99	Lock washer	2
35	307 777 99	Bolt	2
36	343 108 99	Lock washer	6
37	307 753 99	Hex screw m 8x	6
38	308 616 99	Bolt	4
39	983 808 40	Flange plate	1
40	983 628 40	Cover	1
41	983 629 40	Cover	1
42	983 643 40	Retainer	2
43	983 828 40	Seal	1
44	945 739 40	Seal	1
45	983 644 40	Rubber	4
46	941 868 40	Clamp set	4
47	504 985 98	Locking plate	2
48	504 986 98	Screw	4
49	511 856 98	Cover plate	2
50	966 210 40	Hinge assy.	4
51	907 854 40	Thread pin	4
52	081 480 40	Hinge pin	6
53	970 025 40	Door SK	1
54	940 907 40	Fastener	2
55	946 151 40	Hinge assy.	2
56	946 184 40	Yoke	1
57	340 469 99	Washer	2
58	342 057 99	Cotter pin	1
59	941 444 40	Lever	1
60	941 445 40	Lever	1
61	941 563 40	Axle	1
62	941 447 40	Collar	1
63	941 451 40	Collar	1
64	941 450 40	Closing cam	1
65	941 449 40	Accessory ri.	1
