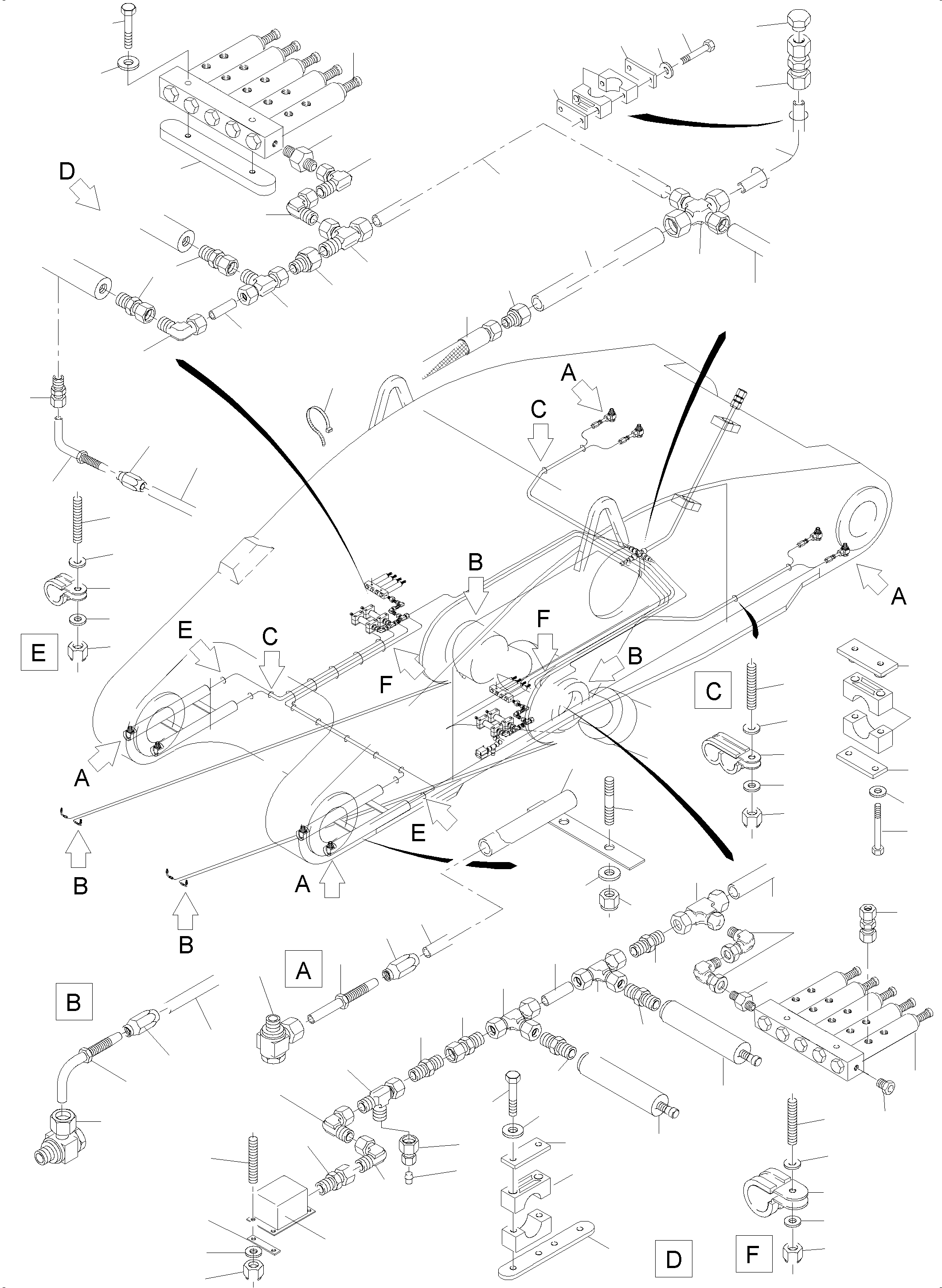

STICK 5.5 M - CENTRAL LUBRICATION | PC 7000-6E 35 003 11.06.2019

Diagram image 1 of 2

PC 7000-6E 35 003 11.06.2019

01 01 02 02 03 03 03 04 05 06 07 08 08 09 10 11 12 12 13 14 15 16 16 16 16 16 17 18 19 19 19 20 21 23 24 25 27 27 28 29 29 29 30 30 30 31 31 32 32 32 33 33 33 33 34 35 36 36 37 37 37 38 39 40 40 40 41 41 42 42 42 43 44 44 45 45 46 47 48 49 50 51 52 53 54 55 56 57 57 58 59 60 61 62 62 63 64 64 65 66 66 66 66 67 67 67 67 68 69 71 72 73 74 74 74 75 76 77 78 78 79

PC 7000-6E 35 003 11.06.2019

12 12 12 17 17 17 17 18 18 18 18 19 19 20 20 21 21 21 21 22 22 23 23 23 24 24 24 25 25 26 26 26 63 70 70

#	Part Number	Partname	Quantity	Reference
01		Metering valve	4	991-0323a
02		Metering valve	2	991-0091
03	654 130 40	Protection cap	10
04	948 497 40	Hose protection assy.	2
05	308 555 99	Bolt	4
06	517 121 98	Lock washer	4
07	324 672 40	Plug	2
08	654 496 40	Protection cap	4
09	950 511 40	Half clamp	16
10	634 774 40	Cover plate	8
11	308 611 99	Bolt	16
12	517 118 98	Lock washer	22
13	341 754 40	Ultimate pressure control	1
14	652 383 40	Shackle	2
15	511 773 98	Thread pin	4
16	507 037 98	Nut	54
17	534 000 99	Clamp set	9
18	534 001 99	Cover plate	9
19	534 002 99	Weld on plate	2
20	308 579 99	Bolt	14
21	517 122 98	Lock washer	18
22	307 789 99	Bolt	4
23	504 445 98	Clamp set	3
24	534 009 99	Weld on plate	3
25	534 008 99	Cover plate	2
26	308 599 99	Bolt	6
27	0443451210	Clamp	10
28	0443551210	Clamp	28
29	907 854 40	Thread pin	50
30	340 111 99	Washer	42
31	655 649 40	Cable protection hose DN 10	-2
32	907 080 40	Olive	28
33	340 465 99	Washer	50
34	516 929 98	Hose assy. DN 20x2600	1
35	515 027 40	Hose connection	12
36	515 029 40	Hose connection	16
37	515 028 40	Collet	28
38	170 427 40	Cable strap	51
39	512 273 98	Socket	2
40	516 741 98	Union	4
41	906 967 40	Union	2
42	502 303 98	Socket	4
43	517 597 98	Union	1
44	516 961 98	Union	2
45	514 937 98	Union	2
46	215 629 99	Pipe 16x55	-2
47	517 255 98	Union	1
48	371 502 99	Union	1
49	515 883 98	Socket	1
50	374 471 99	Union	1
51	513 386 98	Union	1
52	516 156 98	Socket	2
53	502 000 98	Socket	1
54	371 861 99	Breech block	5
55	374 443 99	Union	1
56	517 598 98	Union	1
57	517 291 98	Union	10
58	906 981 40	Union	10
59	517 560 98	Union	4
60	371 264 99	Union nut	10
61	906 868 40	Olive	8
62	371 257 99	Union nut	33
63	976 342 40	Plate	1
64	936 983 40	Thread plate	2
65	942 832 40	Thread plate	4
66	371 263 99	Union nut	4
67	907 151 40	Olive	4
68	371 867 99	Breech block	2
69	0443452511	Clamp	4
70	332 114 99	Nut	2
71	507 596 98	Washer	4
72	374 441 99	Union	4
73	516 837 98	Union	1
74	576 160 40	Hose DN 4	-2
75	907 753 40	Hose protection 27- 35X2,5	-2
76	976 338 40	Pipe 25x1433	1
77	976 339 40	Pipe 25x2571	1
78	976 340 40	Pipe 25x1965	1
79	976 341 40	Pipe 25x1965	1
