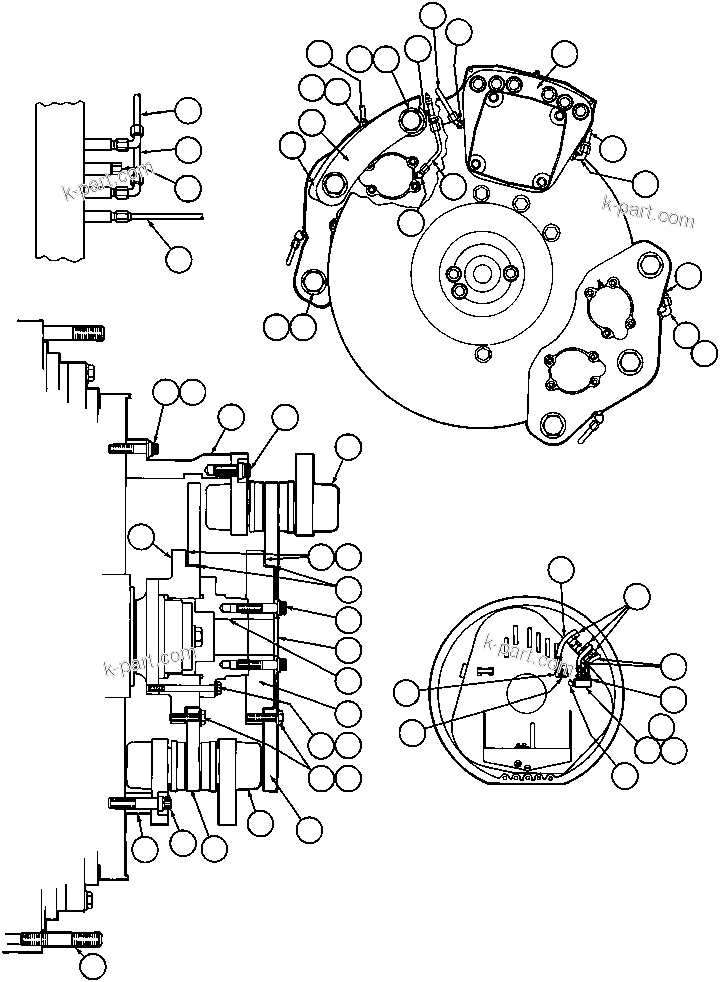

REAR DISC & PARKING BRAKE INSTL | AFE32-BA 830E ARCH MINERAL

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE32-BA 830E ARCH MINERAL

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	WA0915	CAPSCREW - 3/4" - 10NC X 3 1/4"	5
?	WA0362	FLAT WASHER - 7/8"	5
?	TK0981	ADAPTOR	1
?	WA0850	CAPSCREW - 7/8" - 9NC X 1 3/4"	4
?	PB5553	DISC BRAKE ASSM (SEE INDEX)	2
?	TK8632	ADAPTOR, INBOARD DISC	1
?	TK8634	SHIM - .010	6
?	TK8635	SHIM - .040	6
?	PB5669	BUSHING	2
?	WA0924	CAPSCREW	10
?	TN4604	RING, LOCK	1
?	TK7184	ADAPTOR, INTERMEDIATE	1
?	TK8633	ADAPTOR, OUTBOARD DISC	1
?	VN9169	CAPSCREW - 5/8" - 11NC X 5 1/2"	16
?	WA0361	LOCKWASHER	40
?	VN9087	CAPSCREW - 5/8" - 11NC X 2 1/2"	24
?	TX0401	DISC - 25 INCH	2
?	WA0943	CAPSCREW - 5/8" - 11NC X 2 1/2"	4
?	TK0982	SPACER	1
?	EB0611	STUD - 1" - 14UNS X 7 1/4"	24
?	WB0358	FITTING, STRAIGHT ADAPTOR	1
?	WB0499	FITTING, ELBOW - 90 DEG	1
?	HA6705	HOSE - TO PARKING BRAKE	1
?	HA6704	HOSE- T0 UPPER LEVEL SERVICE BRAKE	1
?	HA6703	HOSE- T0 LOWER SERVICE BRAKE	1
?	WA4167	CAPSCREW - 1" - 14NF X 10 1/2"	2
?	WA0364	FLAT WASHER - 1"	2
?	TK7188	SPACER	1
?	TK7183	BRACKET	1
?	JG8686	SHIM - .010	6
?	JG8687	SHIM - .040	6
?	JG8689	TUBE	1
?	WB0281	FITTING, ELBOW - 90 DEG	1
?	WB0574	ADAPTOR, 0 - RING STRAIGHT	1
?	JG6351	TUBE	1
?	WB0531	FITTING, O - RING ELBOW - 45 DEG	1
?	PB6945	PARKING BRAKE ASSM (SEE INDEX)	1
?	WB0442	FITTING, BULKHEAD - 90 DEG	1
?	HA5574	HOSE	3
?	WB0400	ELBOW - 90 DEG	3
?	WB0580	ADAPTOR, STRAIGHT O - RING	5
?	TK2272	BLOCK, JUNCTION	1
?	C1602	CAPSCREW - 3/8" - 16NC X 1"	2
?	WA0720	FLAT WASHER - 3/8" (HARDENED)	2
?	WA2566	FITTING CAP NUT	1
?	WB0374	FITTING 90 DEG	1
?		(QUANTITIES SHOWN ARE FOR ONE SIDE ONLY)	65535
