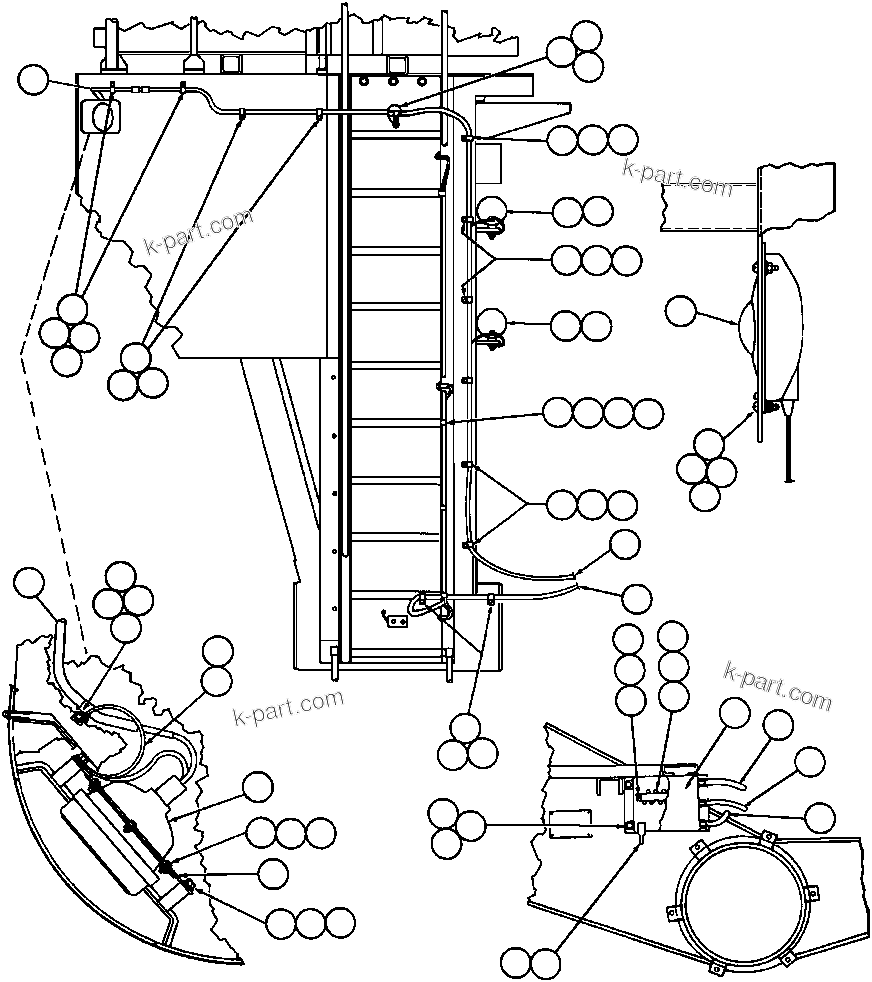

AFE32-ED 830E COLLAHUASI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VH9969	WELD, STUD - 3/8" - 16NC X 3/4"	3
?	TC1231	LOCKWASHER - 3/8"	20
?	TC1233	NUT - 3/8" - 16NC	18
?	424243	CLAMP	7
?	VN5153	WIRE, GROUND	1
?	SP6153	LOCKWASHER - 3/8" (EXTERNAL/INTERNAL TOOTH)	6
?	AK7504	SERVICE LIGHT ASSM	2
?	AK7552	HOUSING ASSM	2
?	AK7575	BULB - 24V/60W	2
?	AK7685	LENS, PLASTIC	2
?	EC2521	HARNESS, LADDER LIGHT	1
?	TG2568	CLAMP	7
?	EF0983	HARNESS - RIGHT DECK	1
?	TZ2413	LADDER LIGHT ASSM (SEE INDEX)	3
?	AK8456	FRONT TURN & CLEARANCE LIGHTS (SEE FIG 40877)	1
?	DC5004	MACHINE SCREW - #12 - 24NC X 1/2"	3
?	VD2047	LOCKWASHER - #12	3
?	TR8580	NUT - #12 - 24NC	3
?	TY7470	PLATE, MOUNTING	1
?	C1601	CAPSCREW - 3/8" - 16NC X 3/4"	4
?	C0312	LOCKWASHER - 3/8"	4
?	DF3042	FLAT WASHER - 3/8"	4
?	EB5963	JUNCTION BOX ASSM - R.H.	1
?	WA3367	NUT ASSM	24
?	EB5966	BOX	1
?	SR8325	SWITCH, TOGGLE (ENGINE MAINTENANCE LIGHTS)	1
?	PB3324	BOOT, TOGGLE SWITCH	1
?	VS8479	BOARD, TERMINAL	2
?	VF2231	MACHINE SCREW - #10 - 24NC X 3/8"	4
?	DC3101	LOCKWASHER - #10	4
?	WB2112	STRIP, CIRCUIT IDENTIFICATION (TB16A)	1
?	EB5972	STRIP, CIRCUIT IDENTIFICATION - R.H. (TB16B)	1
?	VM2951	SET SCREW - #6 - 32NC X 5/16"	2
?	TD1548	CAPSCREW - 1/4" - 20NC X 5/8"	4
?	DC3584	LOCKWASHER - 1/4"	4
?	SP8417	FLAT WASHER - 1/4"	4
?	EF4234	HARNESS - RIGHT FRAME RAIL	1
?	DF0017	NUT - #10 - 24NC	9
?	TG1929	MACHINE SCREW - #10 - 24NC X 1/2"	9
?	VC5344	FLAT WASHER - #10	9
?	EF7757	JUMPER, HARNESS	1
?	VN5153	WIRE, GROUND (1)	1
?	VH9969	WELD, STUD - 3/8" - 16NC X 3/4" (1)	2
?	SP6153	LOCKWASHER - 3/8" (EXTERNAL/INTERNAL TOOTH) (1)	2
?	TC1233	NUT - 3/8" - 16NC (1)	2
?		NOTE: (1) RIGHT DECK TO SUB-FRAME AT HORSECOLLAR.	65535
