AFE42-GA 630E GLIDER KIT - AK5157 S/N GAE2209 & UP MAGNUM HOBET

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	TZ5518	HEAD, CYLINDER	1
?	VM2202	PLUG, VENT	1
?	VN9066	CAPSCREW - 3/4" - 10NC X 2"	18
?	C1542	LOCKWASHER - 3/4"	18
?	WA0277	SEAL, O-RING	1
?	WA1277	RING, BACKUP	1
?	WA0839	CAPSCREW - 5/8" - 11NC X 1 1/2"	12
?	ED5207	PLATE	1
?	TY1503	SEAL	1
?	ED5224	RETAINER, BEARING	1
?	ED5213	QUILL ASSEMBLY	1
?	EB8590	PLUG	2
?	ED5210	QUILL	1
?	722187	POPPET, BALL	2
?	TZ5520	HOUSING	1
?	TZ6903	TUBE - 10.50	1
?	TZ6352	TUBE - 8.50	1
?	ED5202	ROD, EYE	1
?	WA2702	COVER, FLANGE HEAD	1
?	H8524	CAPSCREW - 3/8" - 16NC X 5/8"	4
?	WA2704	COVER, FLANGE HEAD	1
?	C1611	CAPSCREW - 1/2" - 13NC X 3/4"	4
?	PB6551	BEARING - 8.50 (2)	1
?	PB6545	BEARING - 5.00 (1)	1
?	PB6552	SEAL, BUFFER - 8.50 (2)	1
?	PB6546	SEAL, BUFFER - 5.00 (1)	1
?	PB6547	SEAL, ROD - 5.00 (1)	1
?	PB6548	WIPER, ROD - 5.00 (1)	1
?	PB6554	WIPER, ROD - 8.50 (2)	1
?	PB6560	WIPER, ROD - 10.50 (3)	1
?	PB6553	SEAL, ROD - 8.50 (2)	1
?	PB6559	SEAL, ROD - 10.50 (3)	1
?	PB6558	SEAL, BUFFER - 10.50 (3)	1
?	PB6557	BEARING - 10.50 (3)	1
?	PB6628	SNAP RING (2)	1
?	PB6549	BEARING - 7.38 (1)	2
?	PB8613	SEAL - 7.38 (1)	1
?	PB8615	SEAL - 9.50 (2)	1
?	PB6555	BEARING - 9.50 (2)	2
?	PB7444	BEARING - 11.75 (3)	2
?	PB8618	SEAL - 11.75	1
?	TZ1083	NOTE: (1) INCLUDED IN TZ1083 HOIST CYLINDER SEAL KIT.	-1
?		(STAGE 3)	-1
?	TZ1103	(2) INCLUDED IN TZ1103 HOIST CYLINDER SEAL KIT.	-1
?		(STAGE 2)	-1
?	TZ1118	(3) INCLUDED IN TZ1118 HOIST CYLINDER KIT.	-1
?		(STAGE 1)	-1

Komatsu AFE42-GA 630E GLIDER KIT - AK5157 S/N GAE2209 & UP MAGNUM HOBET parts catalog PDF

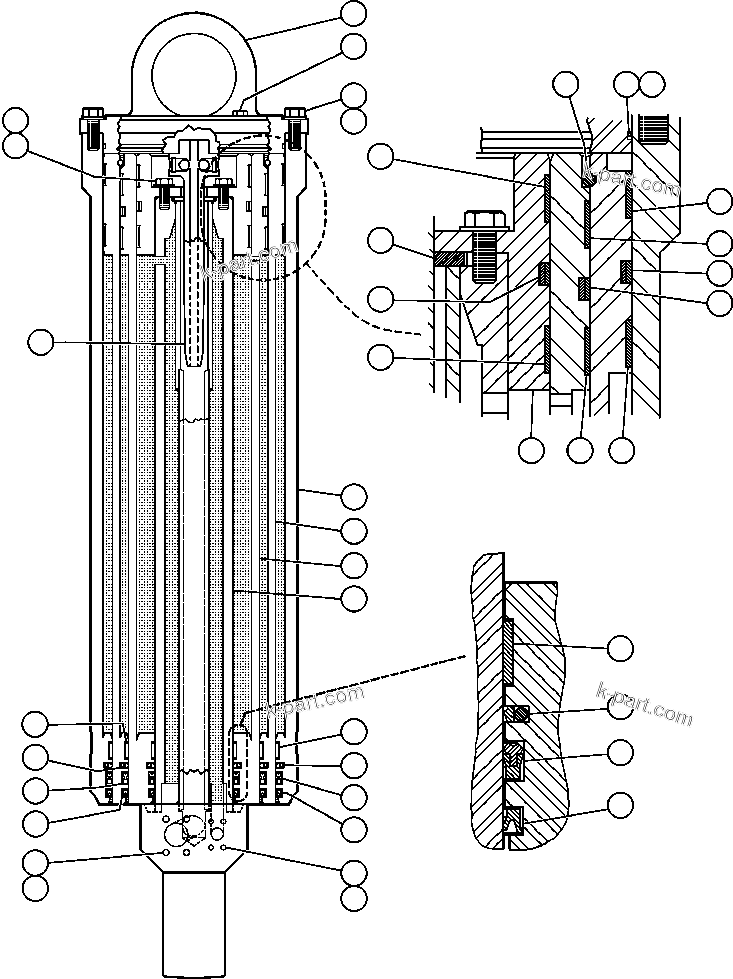

HOIST CYLINDER ASSEMBLY (EJ9935) (30642) in AFE42-GA 630E GLIDER KIT - AK5157 S/N GAE2209 & UP MAGNUM HOBET. Diagram image and parts list.
