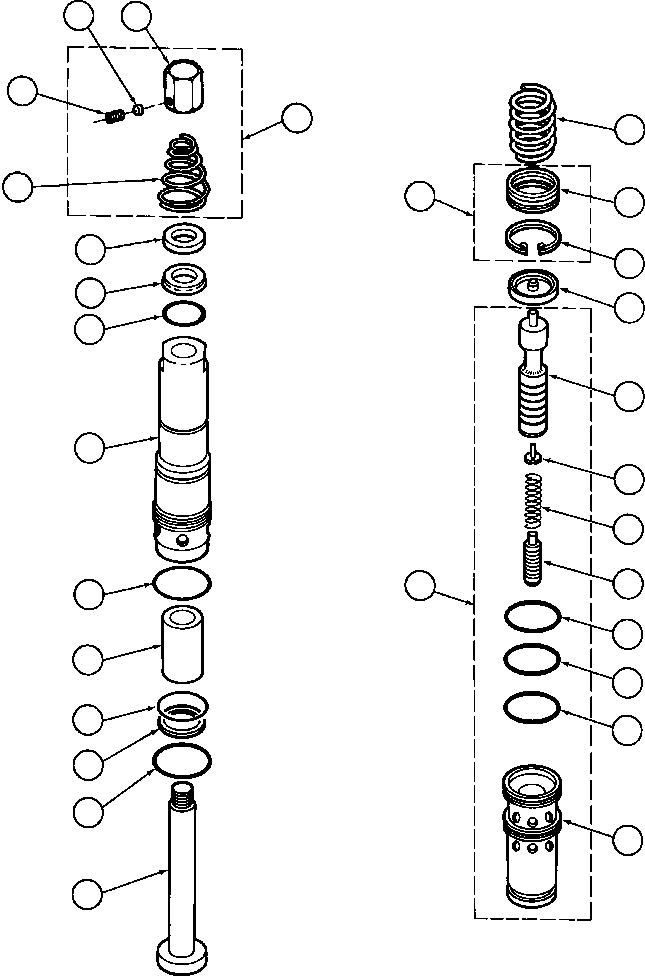

1 |
RK0260
|
ADJUSTING HARDWARE KIT (4) |
1 |
|
|
|
|
2 |
VE0394
|
LUG, ADJUSTER |
1 |
|
|
|
|
3 |
VE0393
|
SPRING |
1 |
|
|
|
|
4 |
VE5238
|
SET SCREW - #10 - 32NF X 3/16" (ALLEN HEAD) |
1 |
|
|
|
|
5 |
VE5237
|
THREAD, LOCK (NYLON PLUG) |
1 |
|
|
|
|
6 |
VE5266
|
SEAL, UPPER (3)/(6) |
1 |
|
|
|
|
7 |
VE2777
|
GUIDE, RING (2)/(3)/(6) |
1 |
|
|
|
|
7 |
WA0015
|
O-RING (2)/(3)/(6) |
1 |
|
|
|
|
8 |
TC9899
|
O-RING (3)/(6) |
1 |
|
|
|
|
9 |
VE7733
|
SLEEVE, RETAINER (1)/(6) |
1 |
|
|
|
|
10 |
WA0020
|
O-RING - #20 - 90D (2)/(3)/(6) |
1 |
|
|
|
|
11 |
|
SLEEVE (1) |
1 |
|
|
|
|
12 |
WA0019
|
O-RING (2)/(3)/(6) |
1 |
|
|
|
|
13 |
VE2779
|
GUIDE, RING (2)/(3)/(6) |
1 |
|
|
|
|
14 |
WA0023
|
O-RING - #23 - 90D (6) |
1 |
|
|
|
|
15 |
VE4419
|
PLUNGER, SEAT (5) |
1 |
|
|
|
|
16 |
|
SPRING (1) |
1 |
|
|
|
|
17 |
RK0264
|
KIT - SHIM (5) |
1 |
|
|
|
|
18 |
VE6361
|
SHIM - .005 (3) |
2 |
|
|
|
|
18 |
VE6362
|
SHIM (3) |
2 |
|
|
|
|
18 |
VE6363
|
SHIM (3) |
2 |
|
|
|
|
18 |
VE6364
|
SHIM - .988 DIA. (3) |
2 |
|
|
|
|
19 |
VE6360
|
SNAP RING (3) |
1 |
|
|
|
|
20 |
|
PRIMARY, SPRING SEAT (1) |
1 |
|
|
|
|
21 |
VE6485
|
KIT, PLUNGER/SPOOL/SLEEVE |
1 |
|
|
|
|
22 |
|
SPOOL, REGULATOR |
1 |
|
|
|
|
23 |
|
NOT USED THIS APPLICATION |
-1 |
|
|
|
|
24 |
|
SPRING |
1 |
|
|
|
|
25 |
|
PLUNGER, REACTION |
1 |
|
|
|
|
26 |
VE4139
|
O-RING (3) |
1 |
|
|
|
|
27 |
WA0020
|
O-RING - #20 - 90D (2)/(3) |
1 |
|
|
|
|
28 |
WA0017
|
O-RING (3) |
1 |
|
|
|
|
29 |
|
SLEEVE |
1 |
|
|
|
|
NS|34 |
|
NOTE: (1) NOT SERVICED SEPARATELY. |
-1 |
|
|
|
|
NS|35 |
VE4457
|
(2) INCLUDED IN VE4457 PLUNGER ACTUATOR KIT. |
-1 |
|
|
|
|
NS|36 |
RK0229
|
(3) ALSO INCLUDED IN RK0229 SEAL KIT. |
-1 |
|
|
|
|
NS|37 |
RK0226
|
(4) ALSO INCLUDED IN RK0226 HARDWARE KIT. |
-1 |
|
|
|
|
NS|38 |
|
(5) ALSO INCLUDED IN VE1249 ASSEMBLY. |
-1 |
|
|
|
|
NS|39 |
RK0265
|
(6) INCLUDED IN RK0265 PLUNGER SEAL KIT. |
-1 |
|
|
