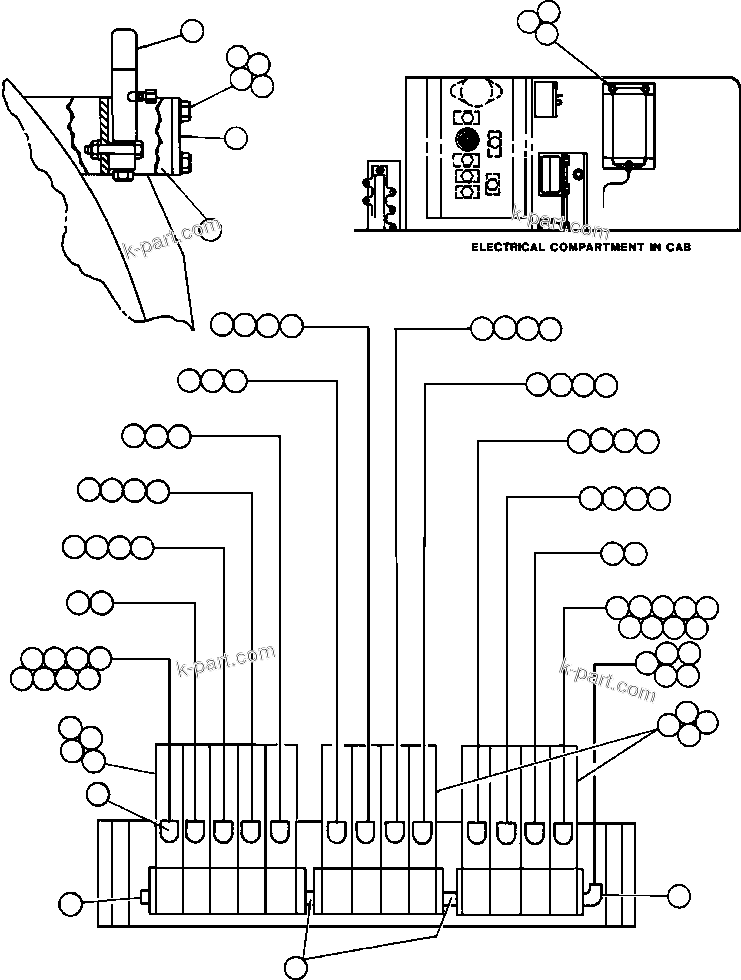

AUTOMATIC LUBRICATION SYSTEM | AFE32-FA 830E COLLAHUASI

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE32-FA 830E COLLAHUASI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VW7989	INJECTOR, REAR (1)	2
?	TA4411	INJECTOR, REAR (1)	1
?	VW7990	PROTECTOR, CAP	13
?	H0595	CAPSCREW - 3/8" - 16NC X 2 1/4"	6
?	C0312	LOCKWASHER - 3/8"	16
?	C1521	NUT - 3/8" - 16NC	16
?	TY9709	MOUNT, INJECTORS	1
?	TA4407	PLATE, COVER	1
?	TA1232	SPACER	2
?	C1624	CAPSCREW - 1/2" - 13NC X 4"	2
?	C1613	CAPSCREW - 1/2" - 13NC X 1 1/4"	4
?	C1540	LOCKWASHER - 1/2"	8
?	C5770	PLUG, PIPE	1
?	TB8803	NIPPLE	2
?	WB0262	FITTING, ELBOW - 90 DEG	1
?	WB0252	FITTING, ELBOW - 90 DEG	13
?	HA0478	HOSE	1
?	VW8099	HOSE (TO BOTTOM OF REAR SUSPENSIONS)	2
?	WB0252	FITTING, ELBOW - 90 DEG	2
?		BOTTOM OF REAR SUSPENSIONS)	65535
?	HA1517	HOSE - TO TOP OF HOIST CYLINDERS	2
?	WB0454	ADAPTOR, STRAIGHT (AT TOP OF HOIST CYLINDERS)	2
?	HA0994	HOSE - TO BOTTOM OF HOIST CYLINDERS	2
?	CD3705	NIPPLE (AT BOTTOM OF HOIST CYLINDERS)	2
?	C1231	COUPLING (AT BOTTOM OF HOIST CYLINDERS)	2
?	WB0252	FITTING, ELBOW - 90 DEG	2
?		BOTTOM OF HOIST CYLINDERS)	65535
?	HA2995	HOSE - TO DRIVE AXLE PIVOT PIN	1
?	CD3705	NIPPLE (AT DRIVE AXLE PIVOT PIN)	1
?	C1231	COUPLING (AT DRIVE AXLE PIVOT PIN)	1
?	WB0252	FITTING, ELBOW - 90 DEG (AT DRIVE AXLE PIVOT PIN)	1
?	HA1413	HOSE - TO L.H. OF ANTI-SWAY BAR	1
?	CD3705	NIPPLE (AT L.H. OF ANTI-SWAY BAR)	1
?	C1231	COUPLING (AT L.H. OF ANTI-SWAY BAR)	1
?	WB0252	FITTING, ELBOW - 90 DEG (AT L.H. OF ANTI-SWAY BAR)	1
?	HA1413	HOSE (TO R.H. OF ANTI-SWAY BAR)	1
?	CD3705	NIPPLE (AT R.H. OF ANTI-SWAY BAR)	1
?	C1231	COUPLING (AT R.H. OF ANTI-SWAY BAR)	1
?	WB0252	FITTING, ELBOW - 90 DEG (AT R.H. OF ANTI-SWAY BAR)	1
?	HA1416	HOSE - TO TOP OF REAR SUSPENSIONS	2
?	CD3705	NIPPLE (AT TOP OF REAR SUSPENSIONS)	2
?	C1231	COUPLING (AT TOP OF REAR SUSPENSIONS)	2
?	WB0252	FITTING, ELBOW - 90 DEG (AT TOP OF REAR SUSPENSIONS)	2
?	VD4661	HOSE (TO BODY PIVOT PINS)	2
?	WB0252	FITTING, ELBOW - 90 DEG (AT BODY PIVOT PINS)	2
?	HC1580	BUSHING, PIPE (AT BODY PIVOT PINS)	2
?	VH9969	WELD STUD - 3/8" - 16NC X 3/4"	10
?	TC1565	CLAMP	4
?	VN9907	CLAMP	6
?	CD3705	NIPPLE (AT BOTTOM OF REAR SUSPENSIONS)	2
?	C1231	COUPLING (AT BOTTOM OF REAR SUSPENSIONS)	2
?	PC0237	TIMER	1
?	DC3101	LOCKWASHER - #10	3
?	DF0017	NUT - #10 - 24NC	3
?		NOTE: (1) ORDER VS1974 INJECTOR ASSEMBLY.	65535
?		FOR FIELD REPLACEMENT.	65535
