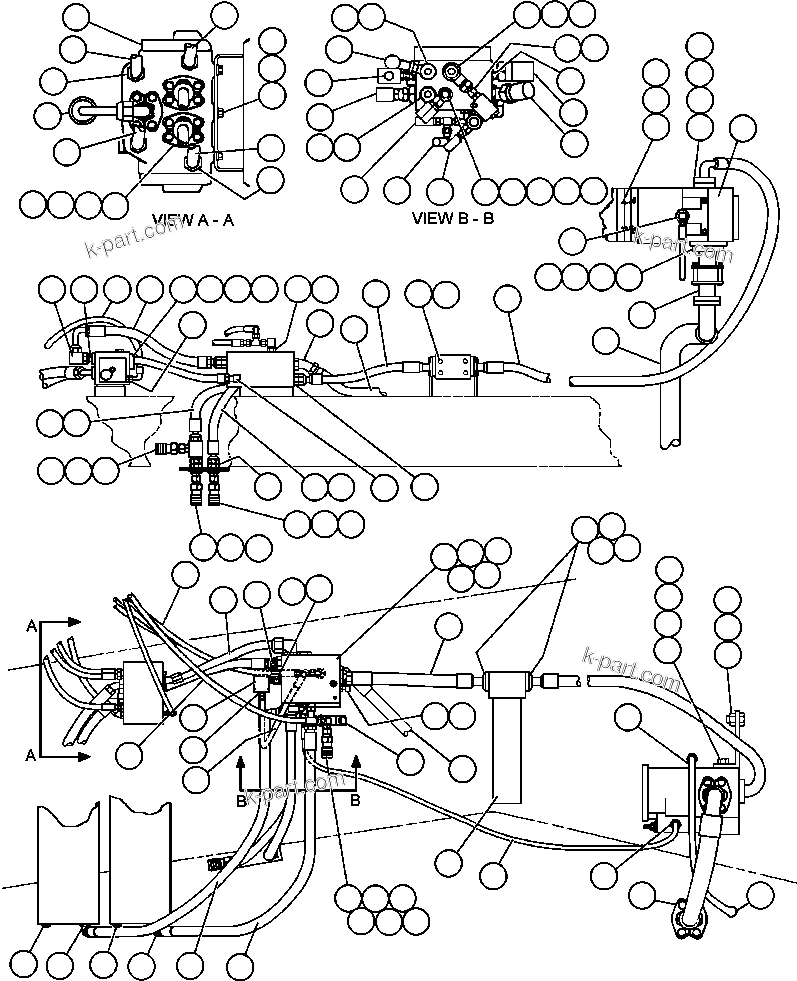

STEERING SYSTEM PIPING - 1 | AFE32-FA 830E COLLAHUASI

AFE32-FA 830E COLLAHUASI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	WB0378	FITTING, ELBOW - 90 DEG	1
?	WA4850	FITTING	1
?	HA6225	HOSE	1
?	HA4416	HOSE	1
?	TF3237	CLAMP, SPLIT FLANGE	2
?	VG9096	SEAL, O-RING	1
?	C1609	CAPSCREW - 7/16" - 14NC X 1 1/2"	4
?	C5775	LOCKWASHER - 7/16"	11
?	WB0600	FITTING, STRAIGHT ADAPTOR	1
?	HA6766	HOSE	1
?	WB0520	FITTING, ELBOW - 90 DEG	1
?	WB0549	FITTING, ELBOW - 45 DEG	2
?	HA7529	HOSE	1
?	WA5629	CLAMP, HALF	2
?	VG9097	SEAL, O-RING	3
?	C1631	CAPSCREW - 5/8" - 11NC X 2 1/4"	4
?	VC1390	LOCKWASHER - 5/8"	4
?	TF8077	FLANGE, SPLIT	6
?	PB9875	PISTON PUMP ASSEMBLY (SEE INDEX)	1
?	TY8353	SHUT-OFF VALVE ASSEMBLY (SEE INDEX)	1
?	VN3308	ADAPTOR, SWIVEL	2
?	PB4683	COUPLING, QUICK DISCONNECT	2
?	PB4686	PLUG, DUST	2
?	VH6718	FLANGE, SPLIT	4
?	WA0232	SEAL, O-RING	3
?	C1615	CAPSCREW - 1/2" - 13NC X 1 3/4"	8
?	C1540	LOCKWASHER - 1/2"	13
?	WA0878	CAPSCREW - 3/4" - 10NC X 2 1/2" (12 POINT)	4
?	HA6227	HOSE	1
?	HA6833	HOSE	1
?	WA0720	FLAT WASHER - 3/8" (HARDENED)	4
?	HA4165	HOSE	1
?	WB0601	ADAPTOR, STRAIGHT	3
?	HA6242	HOSE	1
?	WB0433	FITTING, BULKHEAD STRAIGHT	1
?	WB0510	FITTING - 90 DEG	1
?	HA7546	HOSE	1
?	WB0524	FITTING - 90 DEG	1
?	WB0691	FITTING, BULKHEAD TEE O-RING	1
?	WB0599	ADAPTOR, STRAIGHT	1
?	WB0574	FITTING, STRAIGHT ADAPTOR	1
?	EG7185	TUBE	1
?	VN3308	ADAPTOR, SWIVEL	1
?	PB4683	COUPLING, QUICK DISCONNECT (FEMALE)	1
?	PB4686	PLUG, DUST	1
?	PB4685	COUPLING, QUICK DISCONNECT (FEMALE)	1
?	WA3568	FITTING, TUBE	1
?	TA2968	PLUG, DUST	1
?	HA5514	HOSE	1
?	PC0235	BLEEDDOWN MANIFOLD VALVE (SEE INDEX)	1
?	C1628	CAPSCREW - 1/2" - 13NC X 7"	2
?	WA0360	FLAT WASHER - 1/2" (HARDENED)	2
?	C1523	NUT - 1/2" - 13NC	2
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	8
?	TF8090	FLANGE, SPLIT	4
?	VG9095	SEAL, O-RING	3
?	PB7056	HIGH-PRESSURE FILTER ASSEMBLY	1
?		HEAD ASSEMBLY (1)	1
?	VE1750	KIT, SEAL	1
?	VE4206	INDICATOR - 24V DC	1
?	VE3431	KIT, SEAL	1
?	VE0731	ELEMENT	1
?	VE4207	HOUSING	1
?	VE3434	PLUG	1
?	VE3435	O-RING	1
?	HA7523	HOSE	1
?	WA0098	SEAL, O-RING	1
?	VG9058	RING, SEATING	4
?	PB6528	COUPLING, DIAGNOSTIC	1
?	PB6041	CAP, DUST	1
?	EC8707	BRACKET	1
?	DC7524	CAPSCREW - 3/8" - 16NC X 7/8"	2
?	WA0720	FLAT WASHER - 3/8" (HARDENED)	2
?	C0312	LOCKWASHER - 3/8"	18
?	HA7537	HOSE	2
?	WB0584	FITTING, STRAIGHT ADAPTOR	3
?	HA7484	HOSE	1
?	PB6908	FLOW AMPLIFIER (SEE INDEX)	1
?	HA6498	HOSE	1
?	C1603	CAPSCREW - 3/8" - 16NC X 1 1/4"	6
?	C1608	CAPSCREW - 7/16" - 16NC X 1"	3
?	PB1255	FLAT WASHER - 7/16"	3
?	WB0537	FITTING, O-RING - 45 DEG	1
?	C1629	CAPSCREW - 5/8" - 11NC X 1 3/4"	2
?	WA0361	FLAT WASHER - 5/8" (HARDENED)	4
?	VN9952	LOCKNUT - 5/8" - 11NC	2
?	HA7161	HOSE	1
?	VM0317	PLUG, O-RING	2
?	WB0520	FITTING - O-RING - 90 DEG	2
?	HA3278	HOSE	1
?	WB0559	ADAPTOR	1
?	WB0560	FITTING - O-RING - TEE	2
?	WA3043	FITTING - O-RING - ADAPTOR	1
?	EG1092	BOSS	1
?	PB7557	SWITCH (LOW STEERING PRESSURE)	1
?	WB0580	FITTING - ADAPTOR	1
?	HA5822	HOSE	1
?	WA4504	ADAPTOR	1
?	WB0361	FITTING, ADAPTOR	1
?	WB0583	FITTING - O-RING - ADAPTOR	2
?	WA5658	ADAPTOR, SWIVEL	1
?	PC0016	SOLENOID	1
?	WB0384	FITTING - O-RING - TEE	1
?	PC0008	VALVE CHECK	1
?	HA6717	HOSE	1
?	WB0561	FITTING, O-RING TEE	1
?	WB0387	FITTING, TEE	1
?	WB1065	FITTING - O-RING SWIVEL	1
?	WB1064	FITTING - SWIVEL, REDUCER	1
