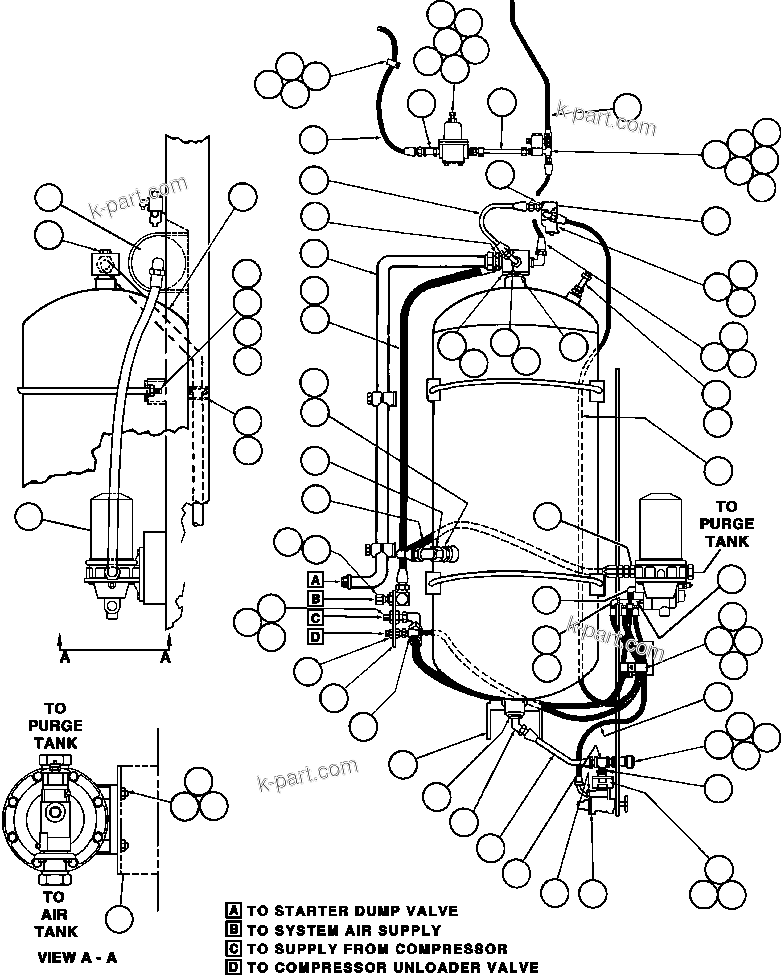

AIR SYSTEM PIPING & INSTALLATION | AFE32-EZ 830E COLLAHUASI

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE32-EZ 830E COLLAHUASI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	HA0586	HOSE	1
?	DL2676	FITTING, TUBE	1
?	SD5208	BUSHING, PIPE	1
?	VH4145	FITTING, TUBE	1
?	VW5504	GOVERNOR VALVE ASSEMBLY (SEE INDEX)	1
?	SR6301	CAPSCREW - 1/4" - 20NC X 2 3/4"	2
?	C5774	LOCKWASHER - 1/4"	2
?	VH0596	FITTING, TUBE	1
?	TW1026	BLOCK, JUNCTION	1
?	C1603	CAPSCREW - 3/8"-16 NC X 1 1/4"	4
?	SV8013	NIPPLE, CLOSE	1
?	PB8813	VALVE, SAFETY	1
?	HD0876	BUSHING, PIPE	1
?	HA0190	HOSE	1
?	VY1005	FITTING, TUBE	1
?	PB1304	TEE, SWIVEL	1
?	VY3129	FITTING, TEE	1
?	TR9441	CLAMP	2
?	WA2220	WELD STUD - 1/2" - 13NC X 1"	1
?	C1523	NUT - 1/2" - 13NC	5
?	C1540	LOCKWASHER - 1/2"	7
?	HA1131	HOSE	1
?	E2579	NIPPLE, CLOSE	1
?	TF6987	SOCKET	1
?	TF6988	CAP	1
?	WA5820	TUBE, FITTING	1
?	VW5013	BRACKET	1
?	C1611	CAPSCREW - 1/2" - 13NC X 3/4"	2
?	PB4774	DRAIN VALVE ASSEMBLY (SEE INDEX)	1
?	SV5630	ADAPTOR	1
?	E2577	FITTING, PIPE	1
?	HA0780	HOSE	1
?	VH4142	FITTING, TUBE	1
?	TD8566	BUSHING, PIPE	1
?	TX9024	SUPPORT, TANK	1
?	HA1146	HOSE	1
?	VY9285	FITTING, BULKHEAD	1
?	TX9025	PLATE, MOUNTING	1
?	HA0158	HOSE	1
?	WA2564	FITTING, BULKHEAD	1
?	VN0110	FITTING, BULKHEAD	1
?	WA2569	NUT, FITTING	1
?	VC8634	HOSE	1
?	TD9749	ADAPTOR	2
?	TV9133	VALVE, CHECK	1
?	HD8019	BUSHING, PIPE	1
?	TA4405	HOSE	1
?	TY8652	TUBE	1
?	TD7426	ADAPTOR	1
?	R2028	PLUG, PIPE	1
?	TD9743	ADAPTOR	1
?	SD5209	BUSHING, PIPE	3
?	TX9706	TANK, AIR	1
?	TY8651	STRAP	2
?	DD5640	FLATWASHER - 1/2"	4
?	WA2770	CHANNEL	2
?	WA4710	CLAMP	2
?	EG4563	AIR AFTERCOOLER ASSEMBLY	1
?	PC0107	AIR DRYER (SEE INDEX)	1
?	SF9896	DISCONNECT, KNIFE	1
?	VH2585	TERMINAL, RING	1
?	PB8813	VALVE, SAFETY	1
?	WB0468	ADAPTOR	1
?	WB0270	ELBOW	1
?	EG4562	BRACKET, MOUNT	1
?	HA0383	HOSE	1
?	TD5557	FITTING, TUBE	1
?	VZ3502	SOLENOID VALVE ASSEMBLY (SEE INDEX)	1
?	VF2231	MACHINE SCREW - NO.10 - 24NC X 3/8"	2
?	DC3101	LOCKWASHER - #10	2
?	VC5344	FLAT WASHER - #10	2
?	TD9720	ADAPTOR	1
?	WB0328	TEE	1
?	EG6207	TANK, PURGE	65535
?	TZ3549	TUBE	1
?	PB3215	REGULATOR, PRESSURE	1
?	TM6380	BRACKET	1
?	VN7333	MACHINE SCREW NO.12 - 24NC X 3/4"	4
?	VD2047	LOCKWASHER - NO.12	4
?	PB6042	VALVE, CHECK	1
?	HA4840	HOSE - TO VENT ON SURGE TANK	1
?	TF6925	CLAMP	3
?	VC2195	WELD STUD - 3/8" - 16NC X 1"	1
?	C1521	NUT - 3/8" - 16NC	5
?	C0312	LOCKWASHER - 3/8"	5
?	PB7463	VALVE, CHECK	1
?	VN0090	FITTING	1
?	HA4964	HOSE	1
