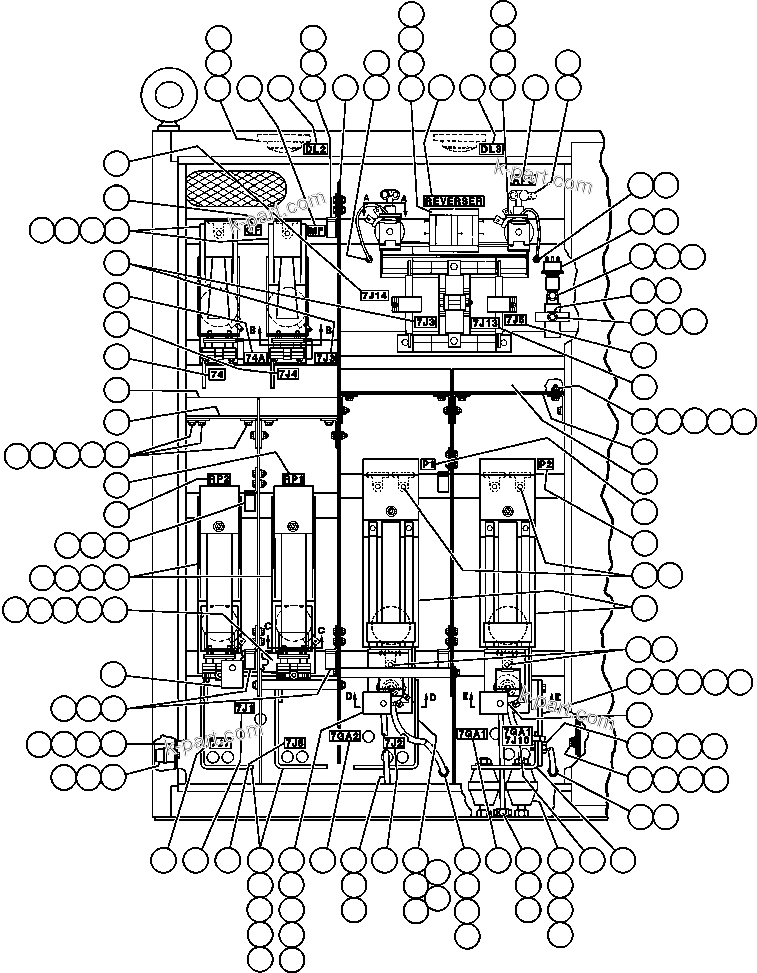

CONTROL CABINET ASSEMBLY - 3 | AFE32-EZ 830E COLLAHUASI

AFE32-EZ 830E COLLAHUASI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VS0035	DOME LIGHT	2
?	VZ1912	BULB	2
?	TM9090	INSULATOR	2
?	DC3101	LOCKWASHER - #10	6
?	TG1929	MACHINE SCREW - #10 - 24NC X 1/2"	6
?	MM0469	LOCKWASHER - M6	16
?	MM0176	NUT - M6	16
?	MM0459	FLAT WASHER - M6	16
?	EC7343	ARC BARRIER ASSEMBLY (SEE INDEX)	1
?	PB4254	REVERSER (SEE INDEX)	1
?	VS7677	INTERLOCK (SEE INDEX)	1
?	MM0179	NUT - M12	4
?	MM0472	LOCKWASHER - M12	4
?	MM0462	FLAT WASHER - M12	4
?	EC3858	BAR, FLAT	2
?	TA0603	FITTING, NYLON	4
?	HC1582	NIPPLE, PIPE	1
?	TK1977	GASKET	3
?	VN9951	LOCKNUT - 5/16" - 18NC	4
?	HC1580	BUSHING, PIPE	5
?	EC7326	TUBE, NYLON	4
?	TA0602	FITTING, NYLON	6
?	WA2674	FITTING, NYLON	1
?	PB8282	SWITCH, PRESSURE - 90 PSI	1
?	VY7326	CONNECTOR, PIPE	1
?	PB4857	VALVE, AIR REGULATOR	1
?	R2508	TEE	1
?	PB5593	CONTACTOR ASSEMBLY - GF & MFC (2)/(3)	2
?	TV3419	CONTACTOR (SEE INDEX)	1
?	VE3530	SENSOR, POSITION (SEE INDEX)	1
?	EC7327	TUBE NYLON	1
?	EC7079	SHELF, ARC BARRIER	1
?	EC7076	BRACKET, ARC BARRIER	1
?	EC2012	BRACKET, INSULATED	2
?	MM0027	CAPSCREW - M6 X 1 X 25	8
?	PB2052	INSULATION	4
?	VW6069	BOLT, INSULATED	14
?	PB5592	CONTACTOR ASSEMBLY P1 & 2 (1)	2
?	VJ0850	CONTACTOR (SEE INDEX)	1
?	BF0017	SENSOR, POSITION (SEE INDEX)	1
?	VW6070	SHIELD	18
?	EC9114	SPACER, COPPER	2
?	ED2910	BAR, BUS	2
?	TD0792	CAPSCREW - 3/8" - 16NC X 2 1/4"	4
?	TC1231	LOCKWASHER - 3/8"	4
?	TC1233	NUT - 3/8" - 16NC	4
?	TR2961	CAPSCREW - 5/8" - 11NC X 1"	2
?	TR9082	FLAT WASHER - 5/8"	16
?	VC1390	LOCKWASHER - 5/8"	8
?	TV1749	NUT - 5/8"	2
?	EC4675	BARRIER, ARC	1
?	TD0794	CAPSCREW - 5/16" - 18NC X 3/4"	10
?	TV0177	FLAT WASHER - 5/16"	20
?	SC4174	LOCKWASHER - 5/16"	20
?	ED5374	BAR, BUS	2
?	WA5637	TEE, NYLON TUBE CONNECTOR	1
?	EC9124	TUBE	1
?	PB5430	INSULATOR	1
?	TN9637	BAR, BUS	3
?	VC6561	CAPSCREW - 1/2" - 13NC X 1 1/2"	5
?	TR6643	NUT - 1/2" - 13NC	8
?	TR5445	LOCKWASHER - #6	8
?	TR6008	FLAT WASHER - 1/2"	10
?	VC6500	CAPSCREW - 1/2" - 13NC X 2"	3
?	EC2010	BAR, BUS	2
?	PB8497	INSULATOR, STANDOFF	10
?	EC2006	BARRIER, ARC	1
?	EB3459	BAR, BUS	1
?	PB5594	CONTACTOR ASSEMBLY - RP1 & 2 (4)/(5)	2
?	VE1317	CONTACTOR (SEE INDEX)	1
?	VE3530	SENSOR, POSITION (SEE INDEX)	1
?	PB5754	SPACER	4
?	EC7084	SHELF, ARC BARRIER	1
?	EC7082	BRACKET, ARC BARRIER	1
?	EC7458	PLATE, NAME - DL2	1
?	EC7459	PLATE, NAME - DL3	1
?	TZ7515	PLATE, NAME - REVERSE	1
?	EC7456	PLATE, NAME - APS	1
?	ED0371	PLATE, NAME - 7J5	1
?	ED0370	PLATE, NAME - 7J13	1
?	ED0368	PLATE, NAME - 7J14	1
?	TZ7512	PLATE, NAME - P1	1
?	TZ7509	PLATE, NAME - P2	1
?	ED0357	PLATE, NAME - 7GA1/7J10	1
?	ED0356	PLATE, NAME - 7GA1A	1
?	ED0355	PLATE, NAME - 7J2	1
?	ED0354	PLATE, NAME - 7GA2	1
?	EC7467	PLATE, NAME - 7J8	1
?	ED0352	PLATE, NAME - 7J1	1
?	EC7464	PLATE, NAME - 7J7	1
?	TZ7510	PLATE, NAME - RP2	1
?	TZ7511	PLATE, NAME - RP1	1
?	ED0364	PLATE, NAME - 74	1
?	ED0365	PLATE, NAME - 74A	1
?	ED0366	PLATE, NAME - 7J4	1
?	ED0367	PLATE, NAME - 7J3	1
?	TZ7508	PLATE, NAME - GF	1
?	TZ7507	PLATE, NAME - MF	1
?	VC5162	CAPSCREW - 5/8" - 11NC X 1 1/4"	6
?	AK0940	NOTE: (1) CONTACTOR TIP KIT (STANDARD).	1
?	AK0941	(2) CONTACTOR TIP KIT (STANDARD).	1
?	AK0942	(3) CONTACTOR TIP KIT (SILVER TIP).	1
?	AK0938	(4) CONTACTOR TIP KIT (STANDARD).	1
?	AK0939	(5) CONTACTOR TIP KIT (SILVER TIP).	1
