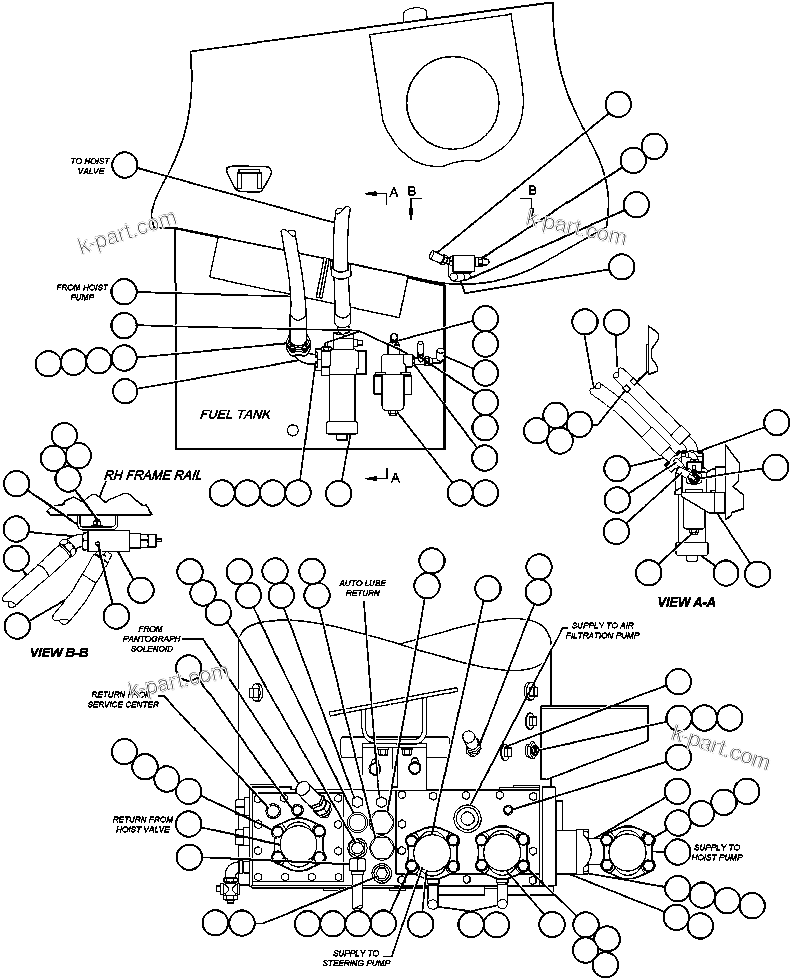

HYDRAULIC SYSTEM PIPING | AFE47-AD 730E SISHEN (A30095 & A30098)

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE47-AD 730E SISHEN (A30095 & A30098)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	HA7340	HOSE	3
?	C1629	CAPSCREW - 5/8" - 11NC X 1 3/4"	4
?	C1541	LOCKWASHER - 5/8"	16
?	WA0237	SEAL, O-RING	8
?	VL9963	CLAMP, SPLIT FLANGE	10
?	WB0609	PLUG, MALE - TEST PORT	1
?	C0312	LOCKWASHER - 3/8"	1
?	C1521	NUT - 3/8" - 16NC	1
?	WB0599	FITTING, STRAIGHT ADAPTOR	1
?	HA2137	HOSE - FROM LOAD SENSING RELIEF VALVE	1
?	WB0581	FITTING, STRAIGHT ADAPTOR	1
?	TA0189	HOSE - DRAIN FROM UNLOADER VALVE	1
?	WB0601	FITTING, STRAIGHT ADAPTOR	2
?	HA7460	HOSE - RETURN FROM HEAT EXCHANGER	1
?	HA7333	HOSE - RETURN FROM BLEEDDOWN VALVE	1
?	WB0297	FITTING - 45 DEG	1
?	HA7332	HOSE - BRAKE RETURN TO TANK	1
?	PB2717	PROBE, LIQUID TEMPERATURE	1
?	PB2639	PROBE OIL LEVEL	1
?	PB3019	REDUCER, BAFFLED	1
?	SF4094	BUSHING, PIPE	1
?	WB0574	FITTING, STRAIGHT ADAPTOR - TEST PORT	1
?	C1640	CAPSCREW - 5/8" - 11NC X 4 1/4"	16
?	HA7508	HOSE	1
?	C1540	LOCKWASHER - 1/2"	9
?	C8558	CAPSCREW - 3/8" - 16NC X 3 1/4"	1
?	WB0547	FITTING - 45 DEG	1
?	EG5534	TUBE	1
?	C5769	PLUG, PIPE	1
?	TH5602	GROMMET	1
?	C7591	CAPSCREW - 1/4" - 20NC X 2"	2
?	C5774	LOCKWASHER - 1/4"	2
?	PC0171	VALVE, SHUT-OFF	3
?	WB0590	FITTING, STRAIGHT ADAPTOR	1
?	HA7514	HOSE - BLOWER MOTOR CASE DRAIN	1
?	TZ4221	TUBE	1
?	WB0561	TEE	2
?	WB0364	FITTING, STRAIGHT ADAPTOR	1
?	HA7459	HOSE - PISTON PUMP CASE DRAIN	1
?	HA7339	HOSE - FROM HOIST PUMP	1
?	HA4755	HOSE - FROM PISTON PUMP PORT "LSS2"	1
?	PB9920	VALVE, RELIEF	1
?	EG2630	PLATE, BENT	1
?	WB0522	FITTING - 90 DEG	1
?	WB0517	FITTING - 90 DEG	1
?	HA2802	HOSE - TO REAR AXLE BLOWER MOTOR	1
?	WA4897	FITTING, STRAIGHT ADAPTOR	1
?	HA7469	HOSE - FROM PISTON PUMP LOAD SENSING PORT "LSS3"	1
?	PB9922	HYD FILTER - TROLLEY BLOWER MTR. (SEE INDEX)	1
?	EG2631	PLATE, BENT	1
?	PB9715	HI-PRESSURE FILTER ASSEMBLY (SEE INDEX)	1
?	TF3231	CLAMP, SPLIT FLANGE	4
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	8
?	WA0187	SEAL, O-RING	2
?	HA7339	HOSE - TO HOIST VALVE	1
?	PB6770	COUPLING, QUICK DISCONNECT	2
?	WB0996	FLANGE, SPLIT/SWIVEL	1
?	HA1920	HOSE - FROM PISTON PUMP PORT "LSS1"	1
?	TH5601	CLAMP, HALF	1
