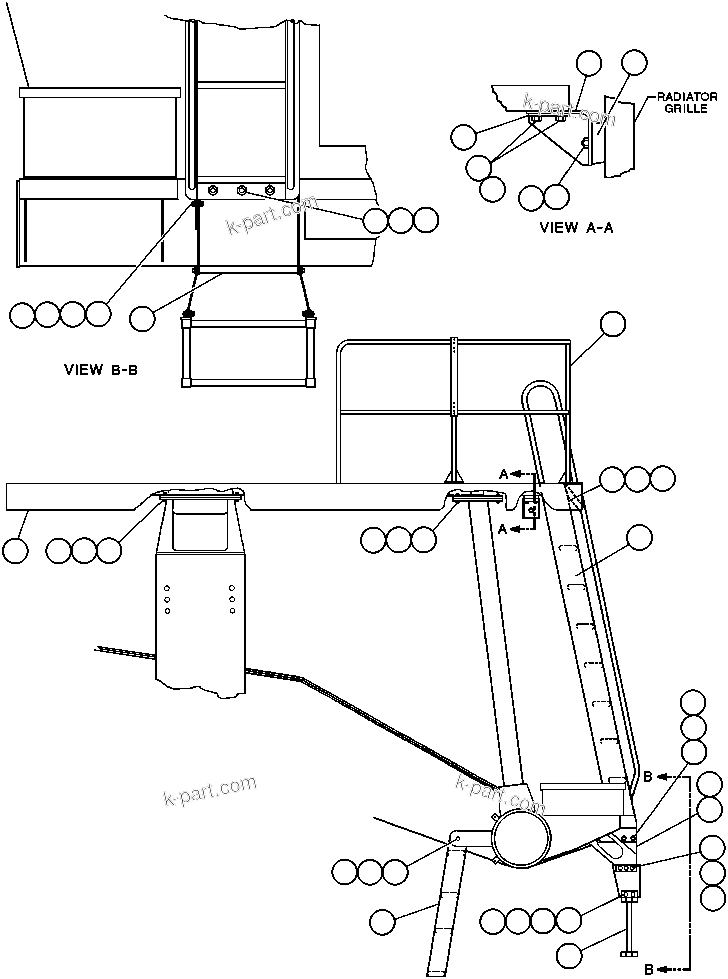

RIGHT DECK, HANDRAIL & LADDER | AFE47-AD 730E SISHEN (A30095 & A30098)

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE47-AD 730E SISHEN (A30095 & A30098)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EG6833	HANDRAIL, R.H. FRONT	1
?	EG8958	DECK, R.H.	1
?	MM0091	CAPSCREW - M20 X 2.50 X 80	8
?	EC7594	FLAT WASHER (HARDENED)	16
?	MM0697	LOCKNUT - M20 X 2.50	8
?	MM0010	CAPSCREW - M12 X 1.75 X 25	6
?	MM0462	FLAT WASHER - M12	6
?	MM0472	LOCKWASHER - M12	6
?		LADDER ASSEMBLY, R.H. (SEE FIG 55050)	1
?	MM0024	CAPSCREW - M10 X 1.50 X 16	3
?	MM0713	FLAT WASHER - M10 (HARDENED)	9
?	MM0471	LOCKWASHER - M10	16
?	EB2104	STRAP, MOUNTING - R.H.	1
?	EB2105	STRAP, MOUNTING - L.H.	1
?	MM0047	CAPSCREW - M10 X 1.50 X 30	6
?	EB2899	FLAT WASHER	6
?	EB2102	FLAT WASHER	2
?	MM0064	CAPSCREW - M10 X 1.50 X 45	4
?	MM0178	NUT - M10 X 1.50	7
?	EC6553	STEP	1
?	EG9648	LADDER, ACCESS	1
?	C1644	CAPSCREW - 3/4" - 10NC X 2"	2
?	C1551	FLAT WASHER - 3/4"	2
?	VL2993	LOCKNUT - 3/4" - 10NC	2
?	EC7588	BRACKET	1
?	D104556	BUMPER	1
?	VN9780	FLAT WASHER - 9/16"	1
?	TR6643	NUT - 1/2" - 13NC	1
?	MM0707	FLAT WASHER - M20 (HARDENED)	4
?	MM0031	CAPSCREW - M20 X 2.50 X 45	4
?	EC7589	PLATE	1
?	MM0050	CAPSCREW - M10 X 1.50 X 35	3
?	ED5893	STEP EXTENSION, R.H.	1
?		NOTE: NS = NOT SHOWN	65535
?	EG0194	DECK, REAR CENTER R.H.	1
?	MM0031	CAPSCREW - M20 X 2.50 X 45	4
?	EC7594	FLAT WASHER - M20 (HARDENED)	8
?	MM0697	LOCKNUT - M20 X 2.50	4
