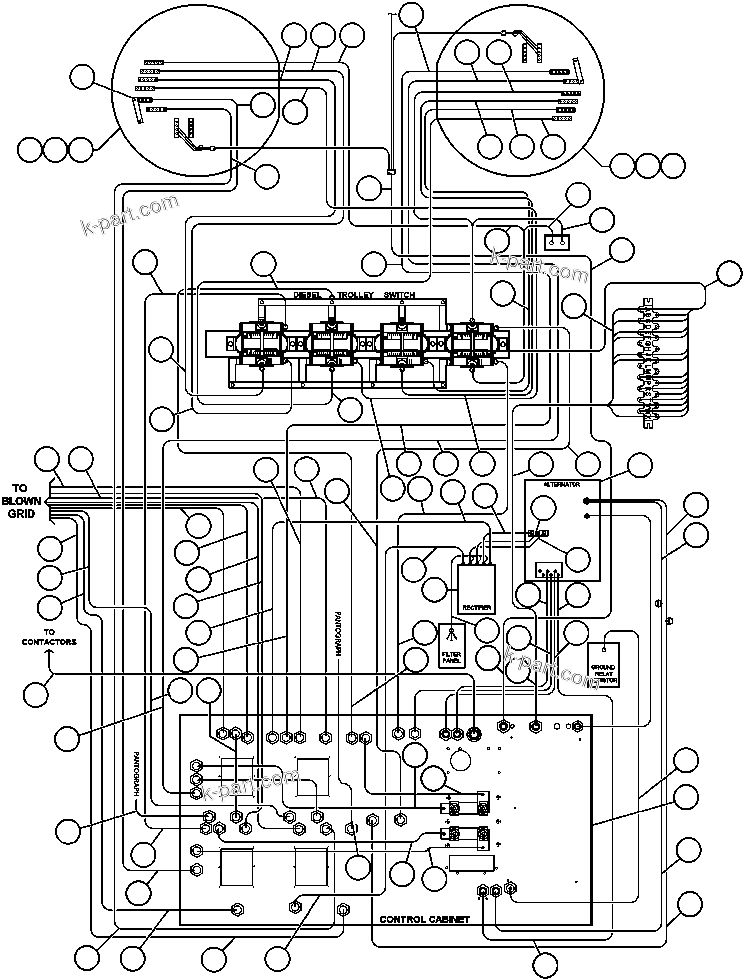

ELECTRIC POWER COMPONENTS WIRING (TROLLEY) | AFE47-AD 730E SISHEN (A30095 & A30098)

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE47-AD 730E SISHEN (A30095 & A30098)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	PC0152	ALTERNATOR/BLOWER ASSEMBLY (SEE INDEX)	1
?	PB9732	WHEEL, MOTORIZED DRIVE (788FS10) (SEE INDEX)	2
?	VN3270	CAPSCREW - 1 1/4" - 7NC X 5"	96
?	WA0366	FLAT WASHER - 1 1/4"	96
?	TK5255	BAR, BUS	2
?	TG5720	CAPSCREW - 3/8" - 16NC X 1"	2
?	TR1376	CAPSCREW - 1/2" - 13NC X 1 1/4"	2
?	PB6489	RECTIFIER (SEE INDEX)	1
?		CONTROL CABINET (ORDER FROM FACTORY)	1
?	CH2582	CABLE - 7S1 (LH WHEEL MTR TO DIESEL/TROLLEY SWITCH)	1
?	CH2583	CABLE - 7SS1 (LH WHEEL MTR TO DIESEL/TROLLEY SWITCH)	1
?	CH3174	CABLE - 7J1L (LH WHEEL MTR TO CONTROL CABINET)	1
?	CH3176	CABLE - 7GA1 (RECTIFIER TO CONTROL CABINET)	1
?	CH2585	CABLE - 7SSX1 (LH WHEEL MTR TO DIESEL/TROLLEY SWITCH)	1
?	CH2584	CABLE - 7SX1 (LH WHEEL MTR TO DIESEL/TROLLEY SWITCH)	1
?	ED3913	CABLE - G.E. CONDUIT	1
?	CH2586	CABLE - 7S2 (RH WHEEL MTR TO DIESEL/TROLLEY SWITCH)	1
?	CH2587	CABLE - 7SS2 (RH WHEEL MTR TO DIESEL/TROLLEY SWITCH)	1
?	CH2588	CABLE - 7SX2 (RH WHEEL MTR TO DIESEL/TROLLEY SWITCH)	1
?	CH2589	CABLE - 7SSX2 (RH WHEEL MTR TO DIESEL/TROLLEY SWITCH)	1
?	CH3171	CABLE - 7J2 (RH WHEEL MTR TO CONTROL CABINET)	1
?	CH3170	CABLE - 7J1R (RH WHEEL MTR TO CONTROL CABINET)	1
?	EF2685	CABLE - 7SSX1	1
?	EF2684	CABLE - 7S2	1
?	CH3175	CABLE - 7TR9 (DIESEL TROLLEY SWITCH TO CONTROL CABINET)	1
?	CH3169	CABLE - 7TR10 (DIESEL TROLLEY SWITCH TO CONTROL CABINET)	1
?	EG2430	HARNESS - (DIESEL TROLLEY SWITCH TO TB61)	1
?	CH2560	CABLE - 7J9 (DIESEL TROLLEY SWITCH TO CONTROL CABINET)	1
?	EG1411	CABLE - (TB61 TO CONTROL CABINET)	1
?	CH2572	CABLE - 7J4 (DIESEL TROLLEY SWITCH TO CONTROL CABINET)	1
?	CH3120	CABLE - T1 (ALTERNATOR TO RECTIFIER)	1
?	CH3121	CABLE - T2 (ALTERNATOR TO RECTIFIER)	1
?	CH3122	CABLE - T3 (ALTERNATOR TO RECTIFIER)	1
?	CH3173	CABLE - 7GA1 (LH WHEEL MTR TO CONTROL CABINET)	1
?	CH3177	CABLE - 7GA2 (RECTIFIER TO CONTROL CABINET)	1
?	EC7734	CABLE (RECTIFIER TO FILTER PANEL)	1
?	TZ9163	HARNESS (GRR TO CONTROL CABINET)	1
?	CH3163	CABLE - 7J7 (CONTROL CABINET TO BLOW GRID)	1
?	CH3156	CABLE - 7GA1 (CONTROL CABINET TO BLOWN GRID)	1
?	CH3166	CABLE - 7J18 (CONTROL CABINET TO BLOWN GRID)	1
?	CH3159	CABLE - 7RC4 (CONTROL CABINET TO BLOWN GRID)	1
?	CH3162	CABLE - 7J8 (CONTROL CABINET TO BLOWN GRID)	1
?	CH3141	CABLE - 7J32 (CONTROL CABINET TO BLOWN GRID)	1
?	CH3158	CABLE - 7RC6 (CONTROL CABINET TO BLOWN GRID)	1
?	CH3168	CABLE - 7J2 (CONTROL CABINET TO BLOWN GRID)	1
?	CH3167	CABLE - 7RC5 (CONTROL CABINET TO BLOWN GRID)	1
?	CH2561	CABLE - 75X (ALTERNATOR TO MFSE)	1
?	CH2562	CABLE - 71J (ALTERNATOR TO AFSE)	1
?	CH2541	CABLE - 71G (ALTERNATOR TO CONTROL CABINET)	1
?	CH2563	CABLE - 74D (ALTERNATOR TO CONTROL CABINET)	1
?	CH2550	CABLE - 74AA (ALTERNATO TO AFSE)	1
?	CH2564	CABLE - 74 (ALTERNATOR TO CONTROL CABINET)	1
?	EG1412	HARNESS - ERR (CONTACTOR BOX TO CONTROL CABINET)	1
?	CH2698	CABLE - 7TR1 (CONTROL CABINET TO PANTOGRAPH)	1
?	CH3155	CABLE - 7J30	1
?	CH3150	CABLE - 7J1RS	1
?	CH3185	CABLE - 7TR10	1
?	CH3152	CABLE - 7J1LS	1
?	CH3184	CABLE - 7TR9	1
?	CH3129	CABLE - 7TR2 (CONTROL CABINET TO PANTOGRAPH)	1
