AFE47-BV 730E S/N A30229, A30231, A30236-A30237 CVG

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	EJ9931	CYLINDER, HOIST (SEE FIG 55043)	2	55043
?	EC0575	TANK, HYDRAULIC (SEE FIG 55503)	1	55503
?	HA2463	HOSE	2
?	HA7431	HOSE	2
?	HA7340	HOSE	1
?	HA7770	HOSE	1
?	HA5194	HOSE	1
?	HA7332	HOSE	1
?	EJ1018	HOIST PUMP MODULE (SEE FIG 55484 & 55485) (1)	1	55484
?	HA7339	HOSE	1
?	WB0508	FITTING, ELBOW - 90 DEG	3
?	HA7454	HOSE	1
?	HA7695	HOSE	1
?	HA4273	HOSE	1
?	HA6502	HOSE	3
?	PC0184	SHAFT, DRIVE (SEE FIG 55350)	1	55350
?	TG2568	CLAMP, VINYL	3
?	C1602	CAPSCREW - 3/8" - 16NC X 1"	1
?	WA0720	FLAT WASHER - 3/8"	1
?	C0312	LOCKWASHER - 3/8"	1
?	C1521	NUT - 3/8" - 16NC	1
?	VL9963	CLAMP, SPLIT	4
?	WA0237	O-RING	3
?	C1629	CAPSCREW - 5/8" - 11NC X 1 3/4"	4
?	C1541	LOCKWASHER - 5/8"	11
?	C1640	CAPSCREW - 5/8" - 11NC X 4 1/4"	4
?	WA4897	FITTING, STRAIGHT	1
?	WB0601	FITTING, STRAIGHT	1
?	VH6718	CLAMP, SPLIT	2
?	WA0232	O-RING	2
?	C1624	CAPSCREW - 1/2" - 13NC X 4"	4
?	WB0297	FITTING, ELBOW - 45 DEG	1
?	PB2717	PROBE, TEMP	1
?	PB2639	PROBE, LEVEL	1
?	PB3019	REDUCER, BAFFLED	1
?	SF4094	BUSHING, PIPE	1
?	PC0171	VALVE, SHUT-OFF - 3"	1
?	PC0170	VALVE, SHUT-OFF - 2 1/2"	1
?	VM0319	PLUG, O-RING	1
?	WB0582	FITTING, STRAIGHT	1
?	WB0690	FITTING, STRAIGHT	1
?	WB0561	FITTING, TEE	1
?	EH1236	FILTER ASSEMBLY	1
?	PB9715	FILTER, HI-PRESSURE (SEE INDEX)	1	55504
?	PB7034	SEAL, CABLE	2
?	PB7740	SLEEVE, TERMINAL	2
?	PB7743	CONNECTOR, FEMALE	1
?	TF3231	CLAMP, SPLIT	6
?	WA0187	O-RING	3
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	12
?	C1540	LOCKWASHER - 1/2"	16
?	WB0996	FITTING, SPLIT SWIVEL	1
?	PB6770	COUPLING, QUICK DISCONNECT - MALE	1
?	EG1215	PLATE	1
?	TH5601	CLAMP, HALF	1
?	TH5602	GROMMET	1
?	C7591	CAPSCREW - 1/4" - 20NC X 2"	2
?	C5774	LOCKWASHER - 1/4"	2
?	VM0316	PLUG, BOSS - 5/8"	1
?	VM0314	PLUG, BOSS - 3/8"	1
?	VM0317	PLUG, BOSS - 3/4"	1
?	VG7000	MOUNT, CENTER BONDED	3
?	C1637	CAPSCREW - 5/8" - 11NC X 3 3/4"	3
?	WA0361	FLAT WASHER - 5/8"	3
?	TD5915	WASHER (SPECIAL)	6
?	C1525	NUT - 5/8" - 11NC	3
?		NOTE: (1) NOT SOLD AS AN ASSEMBLY.	-1
?		ORDER INDIVIDUAL COMPONENT PARTS.	-1

Komatsu AFE47-BV 730E S/N A30229, A30231, A30236-A30237 CVG parts catalog PDF

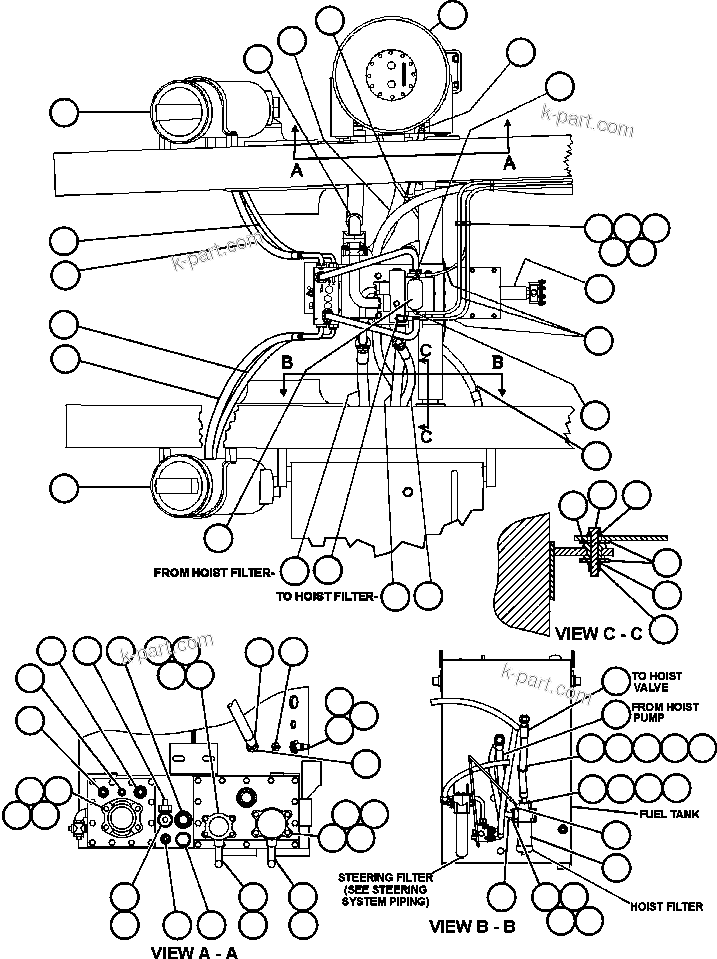

HYDRAULIC SYSTEM PIPING (55480) in AFE47-BV 730E S/N A30229, A30231, A30236-A30237 CVG. Diagram image and parts list.
