AFE47-BV 730E S/N A30229, A30231, A30236-A30237 CVG

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EB8714	CHANNEL	1
?	MM0592	CAPSCREW - M8 X 1.25 X 16	8
?	MM0470	LOCKWASHER - M8	8
?		(NOT USED THIS APPLICATION)	-1
?	PB7490	ARM BOW ASSEMBLY - R.H.	1
?	VE5449	BOW, ARM	1
?	C1603	CAPSCREW - 3/8" - 16NC X 1 1/4" (1)	4
?	VE5451	WASHER, FIBER - 25/64" x 7/8" (1)	4
?	H5304	LOCKWASHER - 3/8" (1)	2
?	SD4572	JAM NUT - 3/8" - 16NC (1)	2
?	VE5453	CLAMP (1)	2
?	VE5454	MOUNTING ANGLE (1)	4
?	VE5452	WASHER - 13/32" (1)	2
?	C1521	NUT - 3/8" - 16NC (1)	2
?	PB7491	CONVEX MIRROR ASSEMBLY - R.H.	1
?	VE5448	BACK ASSEMBLY	1
?	VE5445	MIRROR, CONVEX GLASS	1
?	VE5447	TRIM, PINCHWELT	1
?	VE5446	SPRING, CLIP	1
?	VE5450	NOTE: (1) INCLUDED IN VE5450 REPAIR KIT.	-1

Komatsu AFE47-BV 730E S/N A30229, A30231, A30236-A30237 CVG parts catalog PDF

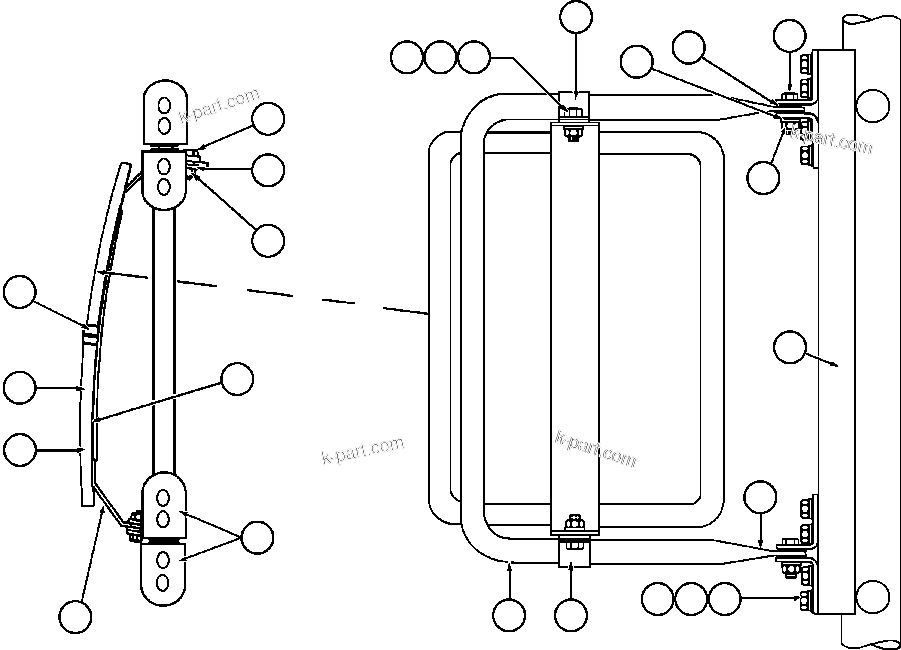

R.H. CONVEX MIRROR INSTALLATION (60029) in AFE47-BV 730E S/N A30229, A30231, A30236-A30237 CVG. Diagram image and parts list.
