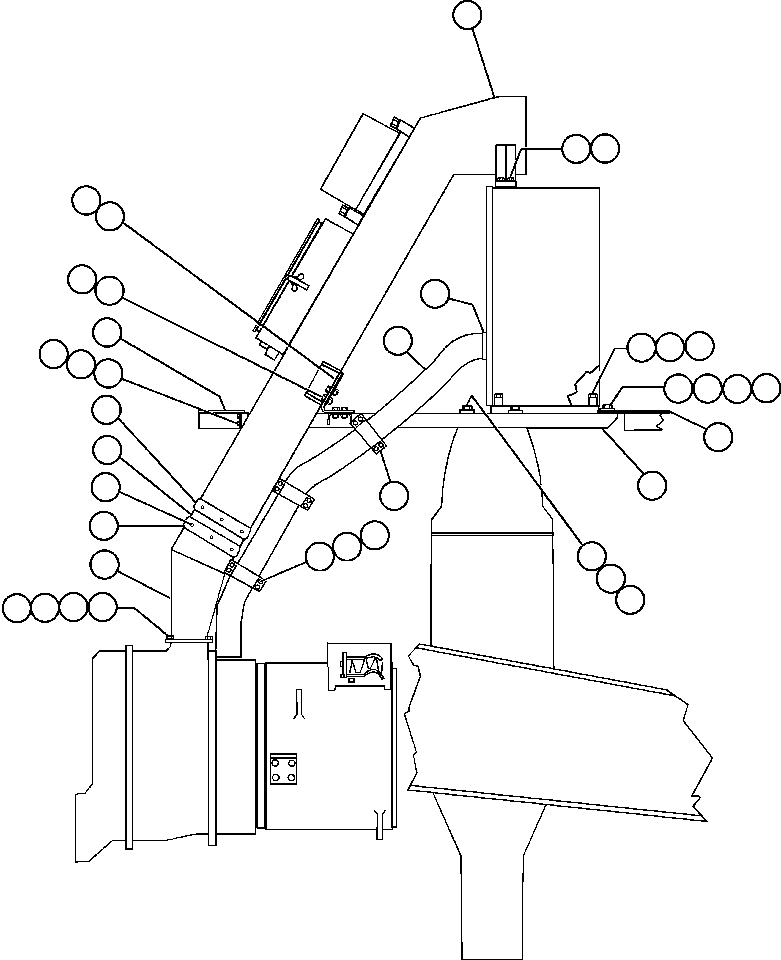

AFE47-BV 730E S/N A30229, A30231, A30236-A30237 CVG

1 3 2 29 28 27 25 31 26 30 6 5 4 25 24 23 8 5 6 7 22 9 21 10 20 12 19 15 14 5 13 18 6 11 15 14 16 17

#	Part Number	Partname	Quantity
1	EK4376	DUCT, INLET	1
2	TR1376	CAPSCREW - 1/2" - 13NC X 1 1/4"	4
3	TR6008	FLAT WASHER - 1/2"	10
4	MM0110	CAPSCREW - M16 X 2.00 X 100	4
5	MM0706	FLAT WASHER - M16	12
6	MM0474	LOCKWASHER - M16	12
7	MM0080	CAPSCREW - M16 X 2.OO X 50	2
8	MM0181	NUT - M16 X 2.00	2
9	EK2836	DECK, CENTER	1
10	EG2812	SUPPORT	1
11	MM0125	CAPSCREW - M16 X 2.00 X 120	4
12	TW6954	U-CLAMP	6
13	MM0042	CAPSCREW - M10 X 1.50 X 25	12
14	MM0471	LOCKWASHER - M10	22
15	MM0178	NUT - M10 X 1.50	22
16	MM0050	CAPSCREW - M10 X 1.50 X 35	10
17	TK1427	GASKET	1
18	EB8014	TRANSITION	1
19	TY3656	BAR	4
20	WA4497	SCREW, SELF TAPPING (SPECIAL)	32
21	TY3655	BOOT	1
22	JG9620	BAR	4
23	MM0053	CAPSCREW - M12 X 1.75 X 45	4
24	MM0472	LOCKWASHER - M12	4
25	EC7593	FLAT WASHER	16
26	EB9388	DECK, REAR CENTER CATWALK	1
27	MM0694	LOCKNUT - M12 X 1.75	4
28	EB9747	PLATE, BENT - R.H.	1
29	EB9748	PLATE, BENT - L.H.	1
30	EB4426	HOSE, AIR	1
31	WA1060	CLAMP, T-BOLT	2
NS\|32		NOTE: NS = NOT SHOWN	-1
NS\|33	PB7081	SWITCH, PRESSURE	1

Komatsu AFE47-BV 730E S/N A30229, A30231, A30236-A30237 CVG parts catalog PDF

BLOWER INLET & COOLING AIR INSTL (55076) in AFE47-BV 730E S/N A30229, A30231, A30236-A30237 CVG. Diagram image and parts list.
