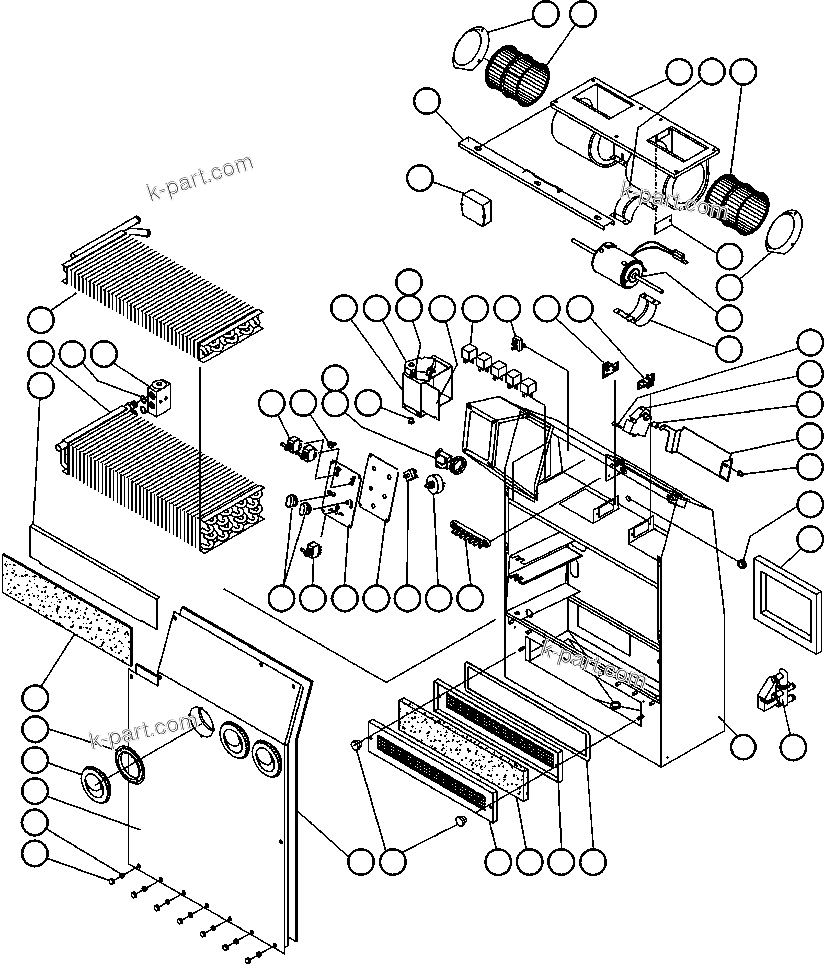

HEATER/AIR CONDITIONER ASSEMBLY - 1 (PC1066) | AFE47-BS 730E S/N A30220-A30224 PAMA

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE47-BS 730E S/N A30220-A30224 PAMA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VE8652	BLOWER ASSEMBLY	1
?		HOUSING, BLOWER (1)	1
?	VE7951	WHEEL, BLOWER	2
?		PLATE, COVER (1)	1
?		VENTURI (1)	2
?	VE7950	MOTOR - 24V	1
?		MOUNT, MOTOR (1)	2
?	BF5260	CONVERTER	1
?	BF5257	ACTUATOR, MOTOR	2
?	BF5266	SCREW - M4 X 20	6
?	BF5265	SPACER, NYLON	6
?	BF5254	DOOR, FLAPPER (DEFROST)	1
?	BF5267	BUSHING, SNAP - 3/16"	2
?		FOAM, OPEN CELL (1)	1
?	BF4816	VALVE, HEATER	1
?	BF4170	GROMMET	1
?	XA2219	CASING	1
?	XA2227	GASKET - 1/16" X 1/2"	1
?	BF5252	HOLDER, INTERNAL FILTER	1
?	BF5467	FILTER, AIR	1
?	BF5268	KNOB	2
?	XA2242	HOLDER, EXTERNAL FILTER	1
?	XA2221	INSULATION, FOAM	1
?	XA2226	NUT, CAP	7
?	XA2222	FLAT WASHER - M5	7
?	XA2220	COVER	1
?	BF2721	LOUVER	3
?	PB8320	ADAPTER, LOUVER	3
?	XA2231	FOAM	1
?	XA2224	PLATE, COIL	1
?	VE8650	COIL, EVAPORATOR	1
?	BF2733	O-RING - #8	2
?	BF2732	VALVE, BLOCK	1
?	BF4218	KNOB	2
?	BF2729	SWITCH, TOGGLE (3 POSITION)	1
?	XA2229	OVERLAY	1
?	XA2228	PLATE, CONTROL	1
?	BF4168	POTENTIOMETER	1
?	BF2722	BLOCK, JUNCTION	1
?	BF5256	THERMOSTAT	1
?	BF2734	HOSE, PVC - 1/4" OD	1
?	BF2723	SWITCH, BLOWER	1
?	BF2738	SCREW, PAN - M6 X 1	4
?	BF5645	DOOR, FLAPPER (DISCHARGE)	1
?	BF2728	SWITCH, TOGGLE (2 POSITION)	2
?	BF5642	BRACKET, FLAPPER DOOR	1
?	SM2516	COIL, HEATER	1
?	XA2064	RELAY - 12V	5
?	BF2731	BREAKER, CIRCUIT	1
?	BF2725	RESISTOR - 12V	1
?	BF2726	RESISTOR - 24V	1
?	BF4166	RETAINER, BLOWER	1
?		NOTE: NS = NOT SHOWN	-1
?	XA2230	HARNESS, WIRING	1
?		NOTE: (1) NOT SERVICED SEPARATELY.	-1
