AFE47-BZ 730E S/N A30246-A30256 HAMMERSLEY IRON

6 3 5 2 2 3 12 3 11 10 9 8 4 4 7 5 7 5 8 8 1 9 9 10 10 29 1 16 14 17 15 13 13 28 27 26 14 43 15 13 15 21 19 16 14 16 21 19 17 18 19 20 18 19 20 20 20 20 20 20 20 20 20 20 20 13 14 15 16 22 23 25 4 24 35 30 36 25 4 40 24 37 42 31 41 38 32 39 44 45 43 33 36 34 35

#	Part Number	Partname	Quantity	Reference
1	PB6663	DIFFUSER, AIR	2
2	ED8159	BRACKET	2
3	MM0604	CAPSCREW - M10 X 1.50 X 20	14
4	MM0461	FLAT WASHER - M10	16
5	C1547	FLAT WASHER - 3/8"	14
6	MM0471	LOCKWASHER - M10	2
7	EC0199	SHROUD, FAN	2
8	TC1234	CAPSCREW - 3/8" - 16NC X 3/4"	10
9	TR4436	FLAT WASHER - 3/8"	10
10	TC1231	LOCKWASHER - 3/8"	10
11	VN5153	WIRE	1
12	PB9278	MOTOR, GRID BLOWER (SEE INDEX)	1	64173A
13	MM0472	LOCKWASHER - M12	8
14	MM0462	FLAT WASHER - M12	12
15	MM0179	NUT - M12 X 1.75	8
16	MM0619	CAPSCREW - M12 X 1.75 X 35	10
17	EB9445	BRACKET	2
18	EB0747	BAR, BUS	2
19	EJ2075	RESISTOR, BRAKING	4
20	EJ2073	RESISTOR, BRAKING	12
21	EJ2074	RESISTOR, BRAKING	2
22	TY4436	BAR, BUS	1
23	MM0621	CAPSCREW - M12 X 1.75 X 45	2
24	EG4623	CHANNEL	2
25	MM0603	CAPSCREW - M10 X 1.50 X 16	4
26	TG2562	CLAMP	2
27	MM0471	LOCKWASHER - M10	2
28	MM0178	NUT - M10 X 1.50	2
29	EC0191	BUSHING, CONDULET	2
30	PB6376	BLOCK, SPACER	4
31	VN2877	PIN, COTTER	4
32	MM0460	FLAT WASHER - M8	8
33	MM0724	JAMNUT - M14 X 2.00	4
34	EB9430	SCREW, ADJUSTING	4
35	EB9876	INSULATOR	4
36	PB6711	INSULATOR	4
37	MM0598	CAPSCREW - M8 X 1.25 X 45	32
38	MM0470	LOCKWASHER - M8	32
39	MM0177	NUT - M8 X 1.25	32
40	PB8766	STANDOFF, INSULATING	36
41	PB9047	WASHER, TAIL	4
42	WA4728	FLAT WASHER - 1/2" (HARDENED)	4
43	PB5633	RING, TERMINAL	2
44	EC4028	TAG, IDENTIFICATION	1
45	EC4029	TAG, IDENTIFICATION	1

Komatsu AFE47-BZ 730E S/N A30246-A30256 HAMMERSLEY IRON parts catalog PDF

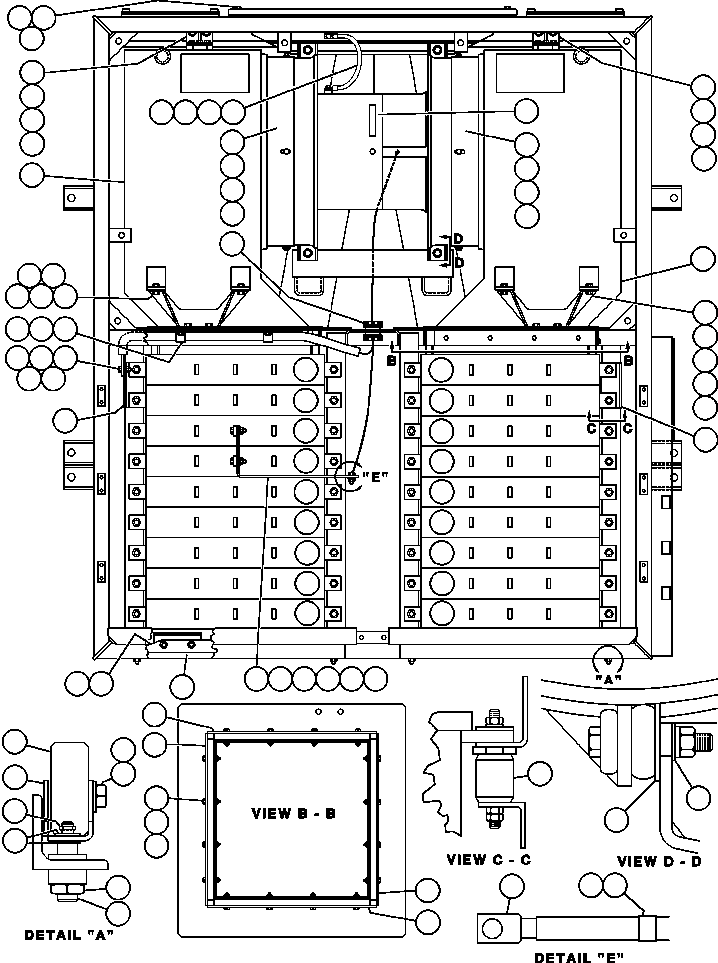

BLOWN GRID - 3 STEP, 18 ELEMENT - 1 (55591) in AFE47-BZ 730E S/N A30246-A30256 HAMMERSLEY IRON. Diagram image and parts list.
