AFE47-BZ 730E S/N A30246-A30256 HAMMERSLEY IRON

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?		(NOT USED THIS APPLICATION)	-1
?	VE8235	GEAR AND PISTON	3
?	VE8232	TORQUE TUBE	1
?	BF1484	CAPSCREW	44
?	VE3922	WASHER	44
?	VE4785	RING, ADAPTOR	1
?	BF2111	MOTOR	1
?	VE0654	BEARING	3
?	VE4495	BEARING CAP	3
?	VE5185	FLAT WASHER	40
?	VE0653	BEARING	3
?	VE4496	NUT	3
?	VE4497	LOCKWASHER	3
?	VE0500	BEARING, INBOARD	1
?	VE4742	HUB, WHEEL	1
?	VE4744	SEAL RING	1
?	VE0662	WEAR BAND	3
?	VE0656	WEAR BAND	1
?	VE0657	OIL SEAL	1
?	VE7201	O-RING	1
?	VE0655	PACKING	1
?	TD8074	CEMENT - 1 GALLON	-1
?	VE0763	SEAL RING	1
?	C1620	CAPSCREW - 3/8" - 16NC X 3"	16
?	C5768	PLUG, PIPE	16
?	VE4508	FLINGER	1
?	VE4489	SCREW	36
?	VE4403	CLAMP	36
?	VS7492	SEALER - .5 OZ	-1
?	VE0760	SEAL HOUSING	1
?	BF0279	BOLT	18
?	BF3900	BOLT	6
?	BF3896	WIRE	-1
?	VE2971	PLANET COVER	1
?	VS9430	CAPSCREW	52
?	VE0517	SEAL	2
?	VE0756	RING	1
?	BF1486	CAPSCREW	18
?	VS8999	SEAL	-1
?	VE8234	COLLAR	3
?	VE8699	CAP, BEARING	3
?	BF3901	OIL BAFFLE	3
?	VE8691	SLEEVE	3
?	VE1273	SEAL RING	1
?	VE3035	CEMENT	-1
?	VE2974	PINION & SHAFT	1
?	VE0665	SUN PINION COVER	1
?	VS8411	PLUG MAGNETIC	2
?	VS9430	CAPSCREW	6
?	VS8410	GASKET	1
?	VE4548	RING, DRIVE	1
?	VE4782	COMPOUND RI - 55GL	-1
?	BF3863	CAPSCREW	1
?	VE5185	FLAT WASHER	1
?	VE4739	CAPSCREW	4
?	VE4687	LOCKWASHER - 3/8"	4
?	VE4783	PUTTY, SILASTIC	-1
?	VE4470	INSULATION	-1
?	VE4335	TAPE, FIBERGLASS - 1" WIDE	-1
?	VE3915	VARNISH/GALLON	-1
?	VE3027	WASHER	-1
?	VE4243	WASHER, CONCAVE	144
?		(SEE FOLLOWING PAGES FOR BALANCE OF PB9732	-1
?		MOTORIZED WHEEL COMPONENT PARTS.)	-1

Komatsu AFE47-BZ 730E S/N A30246-A30256 HAMMERSLEY IRON parts catalog PDF

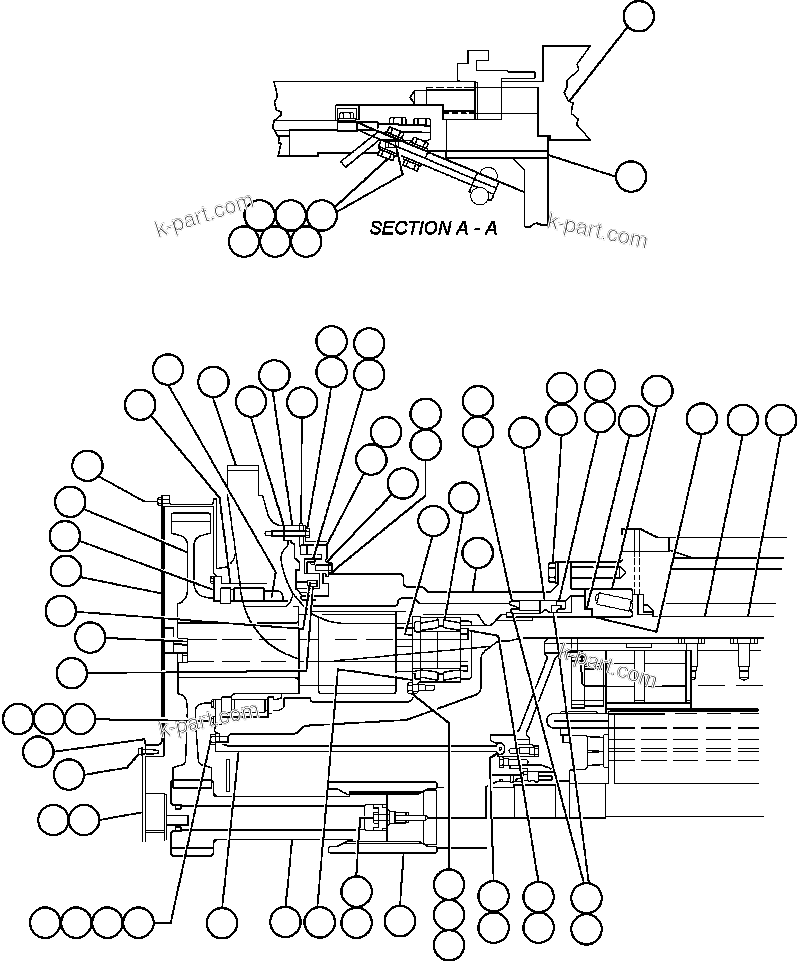

MOTORIZED WHEEL - 788FS10 (PB9732) (64099A) in AFE47-BZ 730E S/N A30246-A30256 HAMMERSLEY IRON. Diagram image and parts list.
